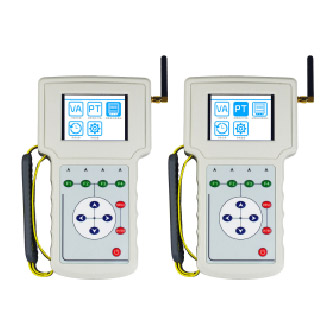

Wireless secondary load and voltage drop tester

Wireless secondary load and voltage drop tester

Type: ZC-106C
Zc-106c wireless secondary load and voltage drop tester is also called secondary voltage drop load online tester and transformer secondary voltage drop load online tester. A single host can complete the high-precision measurement of three-phase voltage, current, phase, frequency, power, power factor, three-phase imbalance and other electrical parameters, which has the advantages of small size, light weight, easy to carry, simple wiring, accurate test, etc.
Contact Supplier
  • Product Features
  • Parameter
  • Guide
  • Scene
  • Related video
  • Packing
Product Features
1. Distributed wireless synchronous measurement of volt ampere phase electrical parameters, wireless synchronous measurement of six voltage amplitude phase, single-phase or three-phase measurement of secondary voltage drop, automatic calculation of the ratio difference, angle difference;
2. It can be used as secondary load on-line tester and three-phase volt ampere phase meter separately;
3. No GPS is needed to avoid long-term star searching due to weather and tall buildings;
4. It is not necessary to set up temporary cable between the side of electric energy meter and PT end to avoid PT secondary short circuit caused by cable insulation or operation problems;
5. Wireless communication is adopted to avoid the pollution of secondary measurement loop caused by carrier communication and affect the accuracy of electric energy measurement;
6. It can be single-phase or three-phase measurement;
7. Wireless repeater can be selected to solve the problem of wireless communication in basement and well shielded room;
8. The current amplitude and phase measurement can reach 1mA at least, which is very suitable for the load test of the main transformer and the current measurement of the new station or the station with small load;
9. Automatic range switching;
10. Full isolation of voltage and current sampling;
11. Measurement data can be exported to SD card through SD card upgrade application program;
12. Adoption Three point five Inch color LCD;
13. Built in large capacity lithium battery, - after charging, it can work continuously for 6 hours without turning off the backlight of the screen (turn on the backlight off function, and the standby time is longer);
14. Industrial operating temperature range: - 20 ~ 50 ° C.
Parameter

Model / technical specifications

Capacity of Control box (kVA)

Output Voltage (kV)

output
current (A)

Number of
reactor

Withstand voltage of Single reactor
(kV)

Rated capacity of Single reactor
(kVA)

ZCVL-C-35kV/0.5A

5

30

0.5

1

40

20

ZCVL-C 66kV/0.5A

5

50

0.5

1

50

25

ZCVL-C-110kV/0.5A

5

80

0.5

1

40

20

ZCVL-C-110kV/1A

5

80

1

2

40

20

ZCVL-C-220kV/0.5A

6

160

0.5

4

40

20

ZCVL-C-220kV/1A

10

160

1

4

40

40

ZCVL-C-330kV/0.5A

10

240

0.5

6

60

20

ZCVL-C-330kV/1A

15

240

1

4

40

60

ZCVL-C-550kV/0.5A

10

320

0.5

8

40

20

ZCVL-C-550kV/1A

15

320

1

6

60

60
