Multichannel temperature inspection instrument

Multichannel temperature inspection instrument

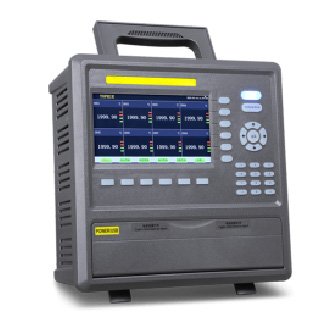

Type: ZC-230
ZC-230 multi-channel temperature inspection instrument has been widely used in all walks of life due to its rich display, flexible operation and powerful recording, operation, control and management functions. This product absorbs the advantages of all kinds of data recorders at home and abroad. With the latest display technology, microelectronics technology, data storage and communication technology, it is a product with complete functions, convenient operation, accurate reliability and high cost performance.
Contact Supplier
  • Product Features
  • Parameter
  • Guide
  • Scene
  • Related video
  • Packing
Product Features
1. No pen and paper records are required, daily maintenance workload is very small, and operation cost is low;
2. High brightness touch color TFT LCD screen, CCFL backlight, and clear picture:
3. Using ARM microprocessor, it can realize multi-channel signal acquisition, recording, display and alarm at the same time;
4. Use 70MB FLASH memory chip with large capacity to store historical data and never lose data in case of power failure;
5. Fully isolated universal input. It can input a variety of signals at the same time, without replacing the module, and can be set directly on the instrument;
6. The value range of the displayed quantity data is wider, and 6-digit value can be displayed: - 999.99 ~ 1999.99;
7. It can be used to set parameters, display project I tag number, engineering unit, with flow accumulation and other functions;
8. It has red alarm display, indicating the lower limit, lower limit, upper limit and upper limit alarm of each channel at the same time; 8-way relay alarm output (customized product);
9. High display accuracy, basic error of + 0.2% F.S;
10. Built in GB2312 English character library, input with full spelling input method;
11. Support external micro printing, built-in printer, manual printing of data, curve, automatic timing printing of data, to meet the needs of users on-site printing (customized products);
12. Equipped with standard USB2.0 interface. It is easy to operate with mouse and keyboard, and to transfer and store historical data quickly and conveniently;
13. Standard serial communication interface, RS485 and RS232C with optical couple isolation and Ethernet (10.1 inch large screen type);
14. Support standard ModBus RTU communication protocol (optional function). Support other configuration software besides data management software of the company
15. International famous brand switching power supply is adopted. It can work normally in AC 85V ~ 265V wide voltage range;
16. Provide transmitter DC 24V isolated power distribution;
17. Ensure the normal operation of the instrument in the harsh environment through the level of EMCII
Parameter

AC power supply

85VAV ~ 265VAV

DC power supply

24VDC±10%

Power consumption

≤25VA (actual power consumption is related to the number of instrument input channels)

Number of channels

1-64 channels

Input signal

thermocouple K,E, R, B, N,T, EJ,S, WRE5 - 26,WRE3-25

Measurement accuracy

≤+ 0.2%F.S

Sampling frequency

1 ~ 19999s self setting

Recording capacity
(64M as reference)

6 days (64 channels, 1 second recording interval);
36 days (64 channels, 1 minute recording interval)

Record mode

cycle record

Alarm type

high and low limit alarm, 4 for each channel (upper limit, upper limit, lower limit, lower limit)

Relay

8-way normally open relay 250VAC / 3A (optional)

Power distribution

one 24VDC power distribution (multiple power distribution and 5VDC power distribution are optional)

communication

Standard RS232C (optional RS485, USB communication, Ethernet, GPRS wireless communication, etc.)
Standard ModBus RTU communication protocol

Operating ambient temperature

0 °C ~ 50 °C

Operating environment

humidity lower than 85% R: H (no condensation)

Storage ambient temperature

- 20 °C ~ 70 °C

Storage environment

humidity lower than 95% R: H (no condensation)

Body material

ABS

Overall dimension

288 x 288 x 200mm3

Weight

3kg

guide
ZC-230 multi-channel temperature inspection instrument is equipped with color LCD touch screen display. It can receive various types of current, voltage and resistance signals, realize the display of temperature, humidity, pressure excitation liquid level, flow, composition, force, torque, displacement and other physical quantities, record the over limit monitoring, report generation, data communication, signal transmission, flow accumulation and other functions. ZC-230 multi-channel temperature inspection instrument is mainly composed of touch LCD, key, main board with ARM microprocessor as the core, main power supply, external transmitter power data acquisition board, signal output board, large capacity FLASH, etc:
It can be equipped with different types of intelligent data acquisition control board, according to the application requirements.
Built in large capacity flash can quickly dump the data in flash to the computer through the U disk. The capacity of the built-in FLASH is 70M or more to 2G bytes. If it is recorded once in 10 seconds for 8 channels, 720 hours can be recorded, and the data of all channels can be recorded once in 1 second at most.
Digital display interface, bar graph display screen, real-time (History) curve screen, alarm data page.
History curve reading cursor function.
Basic error of measurement and display: + 0.2% FS
The multi-point alarm function can be set by parameters.
