Induction voltage regulator

Induction voltage regulator

Type: ZC-241

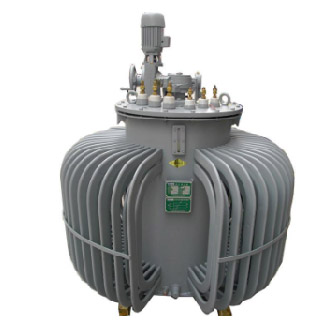

ZC-241 series induction voltage regulator adopts the new I technology of chute, with good waveform, which meets the requirements of IEC standard for electrical test power supply. This series of products can adjust the load voltage smoothly and steplessly, with small distortion of output voltage waveform, long service life, reliable operation, convenient use and maintenance, low loss, strong overload capacity. It has two kinds of voltage regulating speeds, and is the most ideal for motors, transformers and other electrical appliances Adjustable power supply.
Contact Supplier
  • Product Features
  • Parameter
  • Guide
  • Scene
  • Related video
  • Packing
Product Features
1. No contact adjustment, long service life;
2. Suitable for all kinds of loads
3. Strong overload capacity
4. In the case of load, steplessly, smooth and continuous regulation of output voltage can work for a long time.
Parameter

Product model

Capacity

Number of phases

Frequency
(Hz)

Input Voltage
(V)

Output Voltage
(V)

maximum output Current (A)

ZC-241-63

63

3

50

380

0~650

56

ZC-241-100

100

3

50

380

0~650

89

ZC-241-160

160

3

50

380

0~650

142

ZC-241-200

200

3

50

380

0~650

178

ZC-241-250

200

3

50

380

0~650

222

ZC-241-315

315

3

50

380

0~650

280

ZC-241-500

500

3

50

380

0~650

445

ZC-241-630

630

3

50

380

0~650

560

ZC-241-750

750

3

50

380

0~650

667

ZC-241-1000

1000

3

50

380

0~650

889

ZC-241-1250

1250

3

50

380

0~650

1112

ZC-241-1600

1600

3

50

380

0~650

1423
