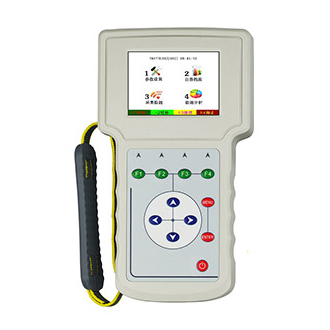

Low voltage anti electric larceny inspection instrument

Low voltage anti electric larceny inspection instrument

Type: ZC-603A
ZC-603A Low voltage anti electric larceny inspection instrument can centrally diagnose long-distance users' electricity meters, collect data, and the collected data can be sent back to the low-voltage intelligent analysis system in time for data analysis and storage, automatically lock the low-voltage stealing electricity users, analyze and diagnose the means of stealing electricity, and quickly reduce the line loss in the station area.
Contact Supplier
  • Product Features
  • Parameter
  • Guide
  • Scene
  • Related video
  • Packing
Product Features
1. With the function of data acquisition and recording, and collects the real-time data such as voltage, live line current, zero line current, active power, reactive power, power factor, bottom of the meter, cover opening record, etc. of the household meter in the station area through the concentrator RS232 through transmission mode;
2. With the function of data analysis, it can quickly screen suspected users or users with abnormal metering through the analysis and diagnosis model, predict the mode of stealing electricity, estimate the loss of electricity, and automatically generate the unified report of collection and analysis results of abnormal stealing electricity. It can accurately judge the power stealing methods of under voltage method, under current method, phase shifting method and intra meter differential expansion method, and the report can classify the suspected household table according to the severity;
3. with the function of automatic verification of station topology. It can quickly determine the subordination relationship between the station area and the household table, and verify the correctness of the station area files and the abnormal line loss;
4. With the function of maintaining the station area file data, which can automatically import the station area file data records, or modify the file data through the diagnosis results;
5. Complete the whole process of on-site collection, diagnosis and results at one time, with the time no more than 12 hours.
Parameter

External structure

Equipment weight

400g

Equipment volume

185mm x 95mm x 40mm

Display size

60x40mm

Communication mode

RS232 and 485 communication upload:

wireless serial port, USB, GPRS

Electrical parameters

Structure

plastic shell integrated structure

Voltage level

AC 220V

Frequency

50Hz

Power consumption

≤ 6W

Working environment

relative humidity < 85%; temperature: - 25 ° C ~ 65 ° C.

guide

ZC-603A low voltage anti electric larceny inspection instrument and embedded software realize the batch reading, checking, analysis and screening of user data in the station area by using the data freezing and carrier data transmission functions of intelligent table. It can analyze the voltage abnormality of single-phase meter to determine whether it is under voltage or abnormal voltage; by reading and comparing the fire and zero line current recorded by single-phase meter, it can determine the suspected household of stealing electricity. Through the voltage and current information recorded by the three-phase four wire intelligent electronic meter, we can judge whether there is voltage loss or current loss, and can generate the connection vector diagram to judge whether there is electricity stealing.

ZC-603A Low voltage anti electric larceny inspection instrument can centrally diagnose the remote user electricity meter, collect data, and send the collected data back to the low-voltage intelligent analysis system in time for data analysis and storage, automatically lock the low-voltage stealing electricity user, analyze and diagnose the stealing electricity means, and quickly reduce the line loss in the station area.
