Fully intelligent cable fault tester

Fully intelligent cable fault tester

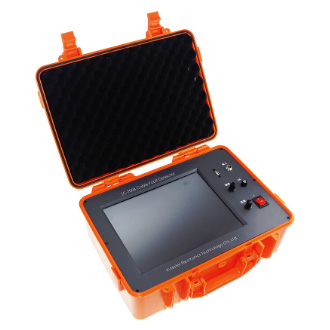

Type: ZC-700B
ZC-700B intelligent cable fault tester is suitable for measuring low resistance, short circuit, open circuit and broken wire faults of power cables, high frequency coaxial cables, local telephone cables, street lamp cables and buried wires of various materials with different cross sections and different media, as well as high resistance leakage and high resistance flashover faults. Super strong cable management system, automatically generate test report.
Contact Supplier
  • Product Features
  • Parameter
  • Guide
  • Scene
  • Related video
  • Packing
Product Features
1. 12 inch industrial computer control, touch operation mode;
2. Windows XP operating system, super strong cable management system, touch operation mode, wireless visual expert online guidance, scientific cable management, real-time report generation;
3. It has the functions of ranging and speed measurement;
4. 100MHz sampling frequency with a minimum resolution of 0.5m (100M / US);
5. Fully automatic continuous sampling, never missing any discharge waveform
6. Test methods: flashover sampling and low-pressure pulse sampling;
7. Pulse amplitude: 100vpp;
8. Pulse width: 0.1us and 2us;
9. Measurement distance: Smax: 60km; smin: 15m;
10. Measurement error: absolute error of rough measurement: + 10 m relative error of rough measurement: + 15%, (DL / t849.1-2004 does not exceed + (1% L + 20) m, where: l is cable length)
11. Power supply mode: built in 12V / 10Ah DC power supply, which can work continuously for 4 hours, or external AC 220V 50Hz power supply.
Parameter

Model / technical specifications

Capacity of Control box (kVA)

Output Voltage (kV)

output
current (A)

Number of
reactor

Withstand voltage of Single reactor
(kV)

Rated capacity of Single reactor
(kVA)

ZCVL-C-35kV/0.5A

5

30

0.5

1

40

20

ZCVL-C 66kV/0.5A

5

50

0.5

1

50

25

ZCVL-C-110kV/0.5A

5

80

0.5

1

40

20

ZCVL-C-110kV/1A

5

80

1

2

40

20

ZCVL-C-220kV/0.5A

6

160

0.5

4

40

20

ZCVL-C-220kV/1A

10

160

1

4

40

40

ZCVL-C-330kV/0.5A

10

240

0.5

6

60

20

ZCVL-C-330kV/1A

15

240

1

4

40

60

ZCVL-C-550kV/0.5A

10

320

0.5

8

40

20

ZCVL-C-550kV/1A

15

320

1

6

60

60

guide
ZC-700B fully intelligent cable fault tester is suitable for measuring the low resistance, short circuit, open circuit and broken wire fault, high resistance leakage and high resistance flashover fault of power cable, high frequency coaxial cable, local telephone cable, street lamp cable, buried wire of various materials with different sections and different media. Super strong cable management system, automatically generate test report.
