Voltage transformer load box

type:ZC-123
Online Service

TAGS:

  • Product Introduction

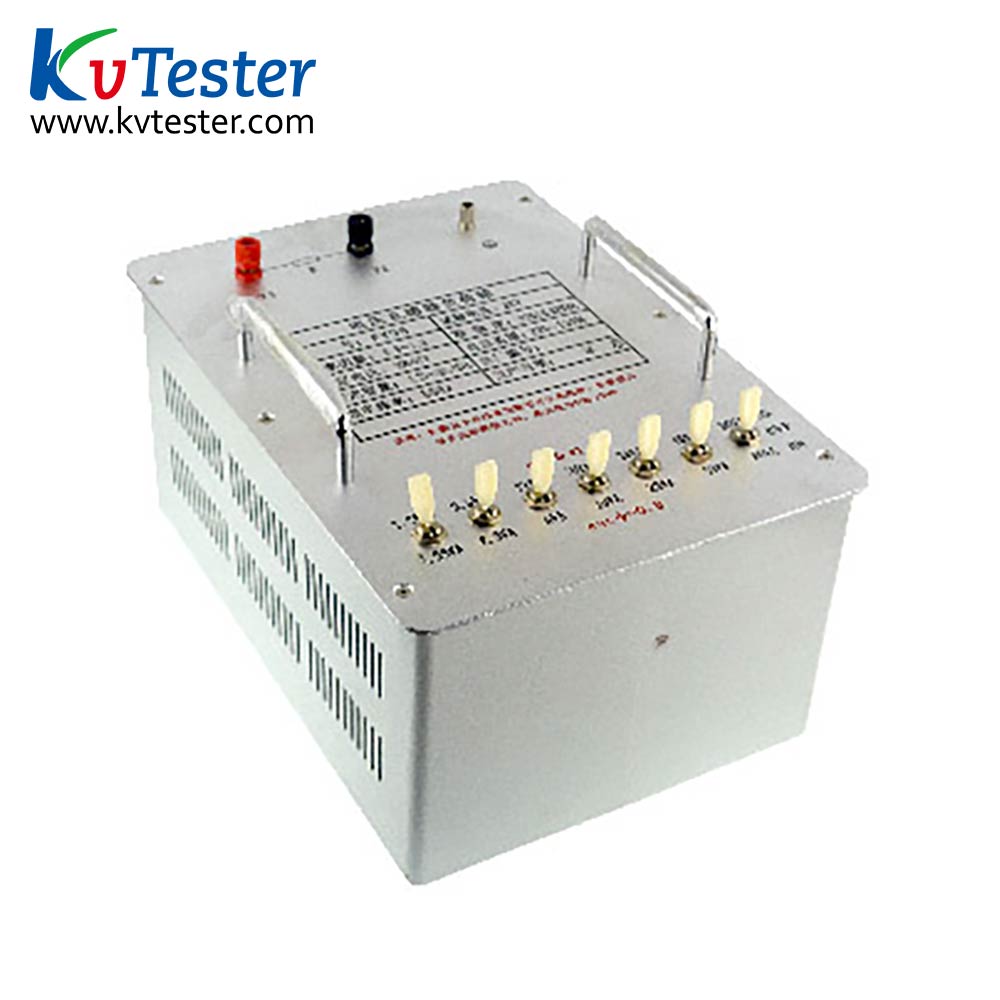

ZC-123 current transformer load box is an ideal supporting product of various transformer calibration devices, which is a kind of various effective loads specially provided when testing current transformer. This product is designed in strict accordance with the national standard JG 314-2010 verification regulation of measuring current transformer. It has the advantages of large output capacity, complete load types, light weight, beautiful appearance and strong stability

  • Product Parameters

Environment condition

Temperature

5 ~ 40 ° C

Humidity

< 80% (25 ° C)

Altitude

< 1500m

Working power

AC 220V

Power frequency

50Hz

Rated capacity

COS 0.8:2.5va ~ 60VA

Current range

20% - 120%

Secondary current

100/√3(can be customized)

Power factor

0.8, 1.0

Accuracy

+ 3% + 0.05VA

Test voltage

2KV

Overall dimension

250x350x175mm3

Weight

8kg

  • Product Features
1. Light weight, strong structure;
2. Beautiful appearance;
3. Large capacity and easy operation;
4. Strong stability.
