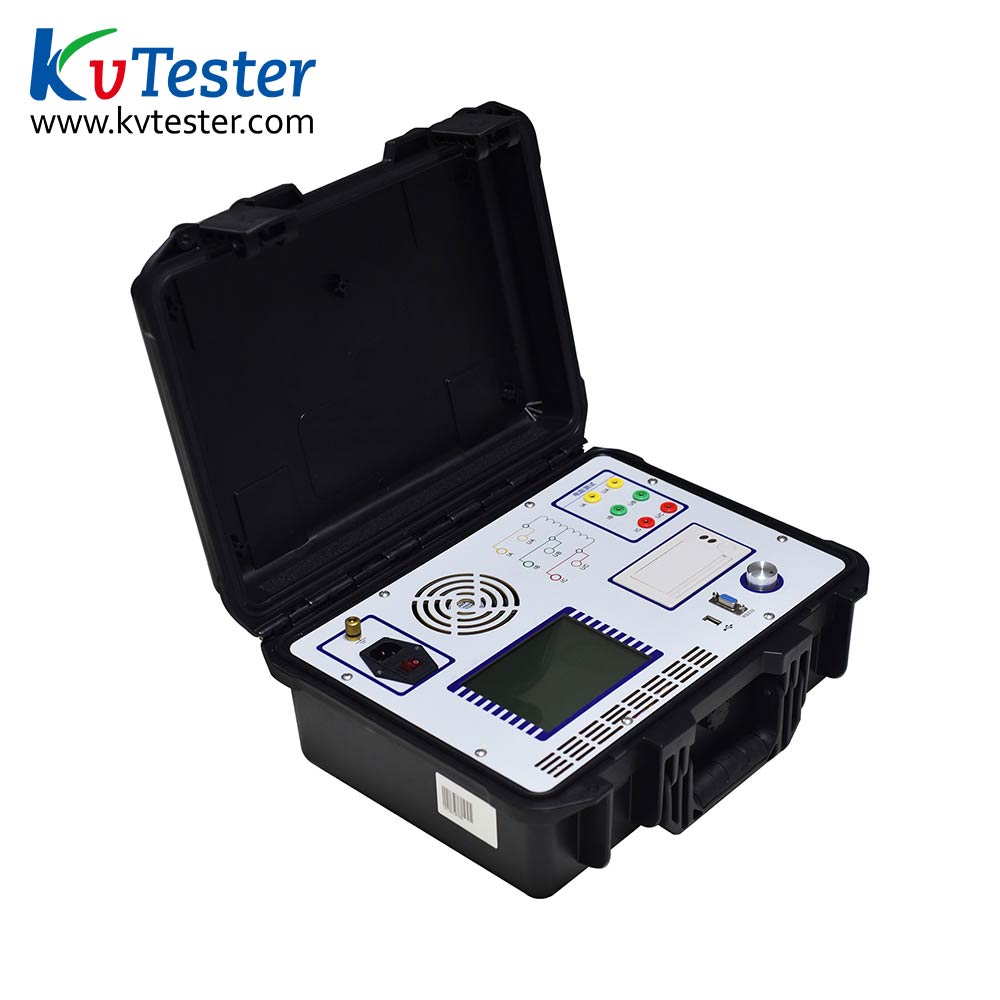

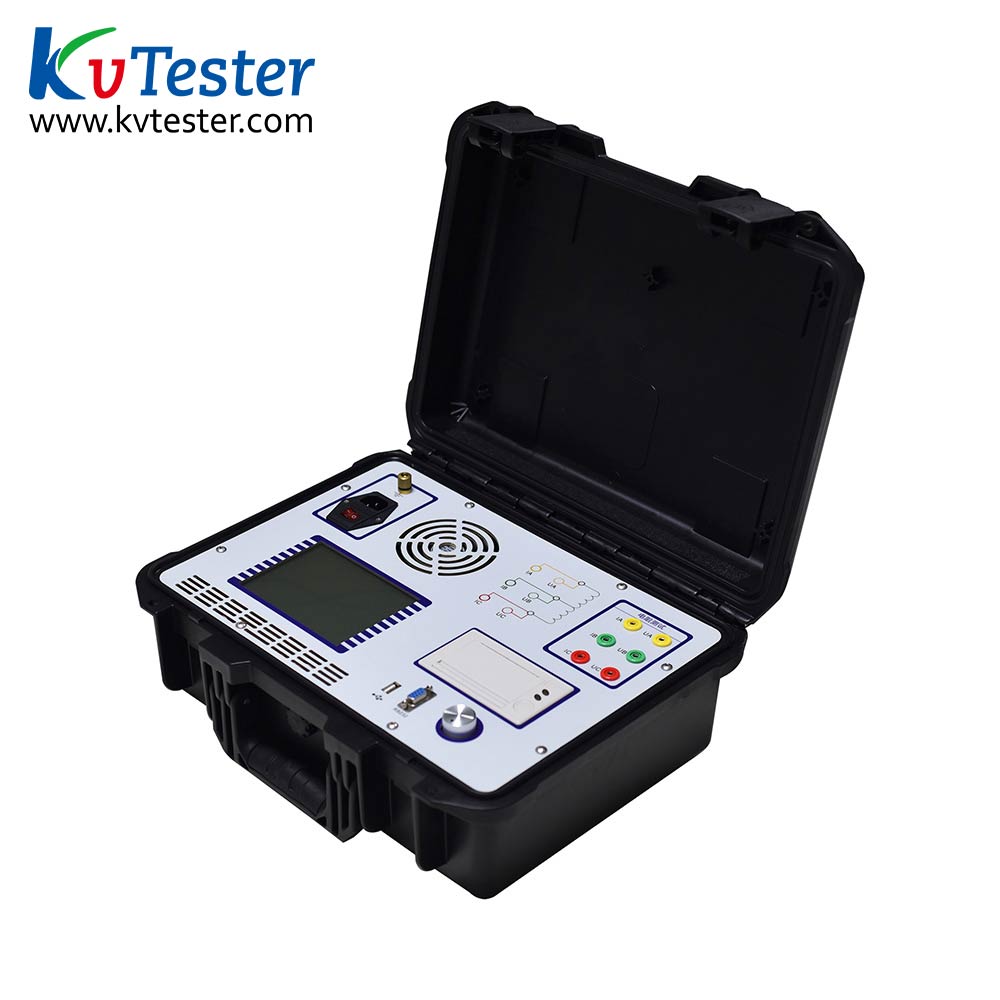

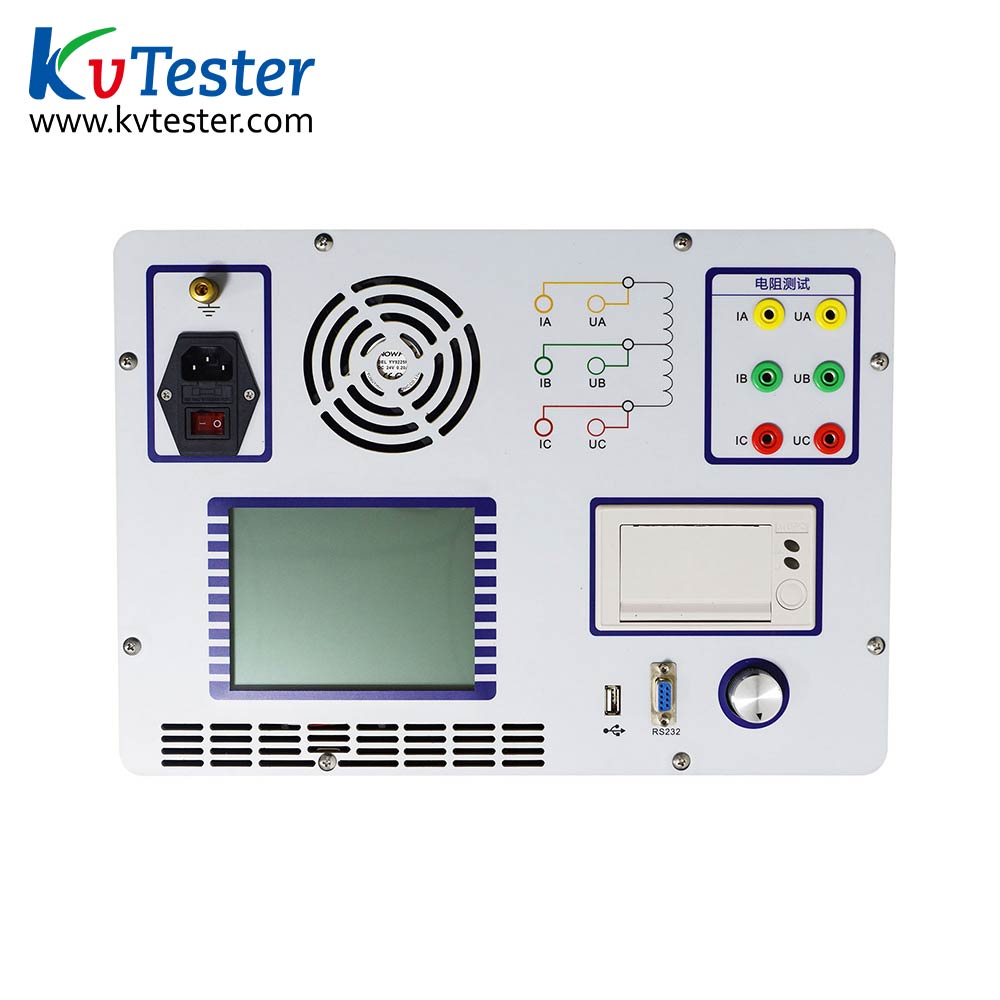

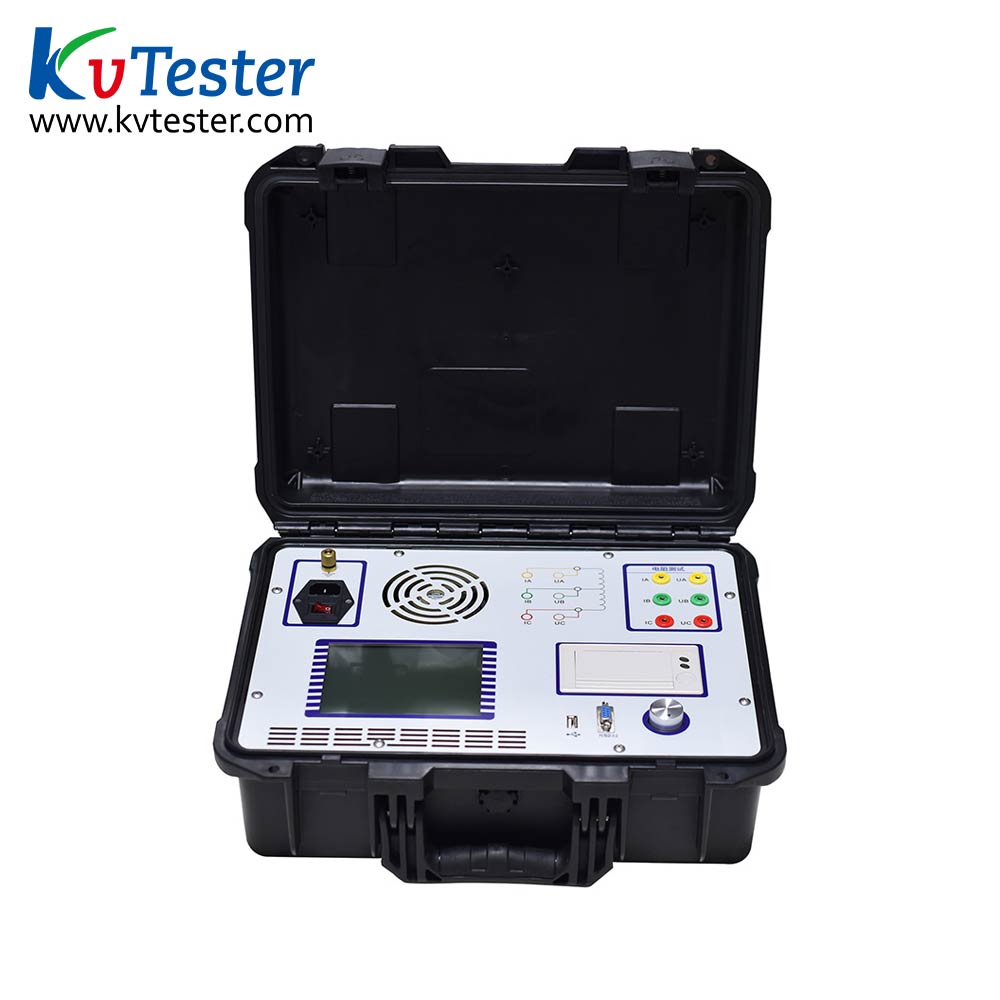

DC Resistance Tester (WIFI efficient version)

type:ZC-205CW
ZC-205CW DC resistance tester is optimized designed to test three-phase winding DC resistance of large-capacity transformer, is the latest generation of transformer DC resistance tester. ZC-205CW can test the three-phase winding DC resistance of the t
Online Service

TAGS:

  • Product Parameters
Type     ZC-205CW
Usage     DC resistance Test of transformer
Working power supply Output voltage     185Vac~250Vac
Allowable input voltage     85Vac~264Vac
Frequency     50/60Hz
Allowable frequency     45Hz~65Hz
Input power     1000W
Joint     Standard AC socket 60320
Maximum test current Single channel test     40A
Three channel test     20A
Measuring range Single channel test     1A:10mΩ~20Ω
    5A:1mΩ~4Ω
    10A:1mΩ~2Ω
    20A:1mΩ~1Ω
    40A:1mΩ~0.5Ω
Three channel test     1A:10mΩ~6Ω(Each phase)
    5A:1mΩ~1Ω(Each phase)
    10A:1mΩ~0.6Ω(Each phase)
    20A:1mΩ~0.3Ω(Each phase)
Measurement accuracy Single channel test     ±0.2%(Full scale)±2Words
Three channel test    ±0.2%(Full scale)±2Words
Resolution Single channel test     0.1µΩ
Three channel test     0.1µΩ
Other properties Display     LCD, High speed thermal printer
Data storage     255groups
Environmental conditions Operating temperature     -0℃~+40℃
Storage temperature     -10℃~+50℃
Relative humidity     5%~95%,No dewing
Physical characteristics Size     200×400×280mm3
Weight     ≈7kg(Excluding accessories)
WIFI Parameters Spectrum Range     2400~2483.5MHz
Antenna Pattern     Onboard PCB antenna
Output Power     13~18dBm
Security     WEP/WPA-PSK/WPA2-PSK
Receiving sensitivity     <=-70dBm
Certification     RoHS


  • Product Features
1、Test the YN three-phase winding DC resistance of transformer at the same time, greatly shorten the test time.
2、Quickly and accurately test the winding DC resistance of transformer
3、Perfectly protection function
4、Small and portable
5、LCD full English menu, simple and intuitive operation
6、Fast test speed, high accuracy, good data repeatability, strong anti-jamming ability
7、With real-time electronic clock, automatic recording of test date and time is beneficial to the preservation and management of experimental results
8、Panel thermal printer, can quickly print test results on the spot.
9、Data with power down storage and browsing function, can store 1000 groups of experimental results, can be transmitted with the computer.
10、Support WIFI function, can realize each test data synchronously in real time to the server without connecting the data line, can realize data analysis and management with the upper computer software.
