High Voltage Tester
Your location : Home > PRODUCTS > High Voltage Tester

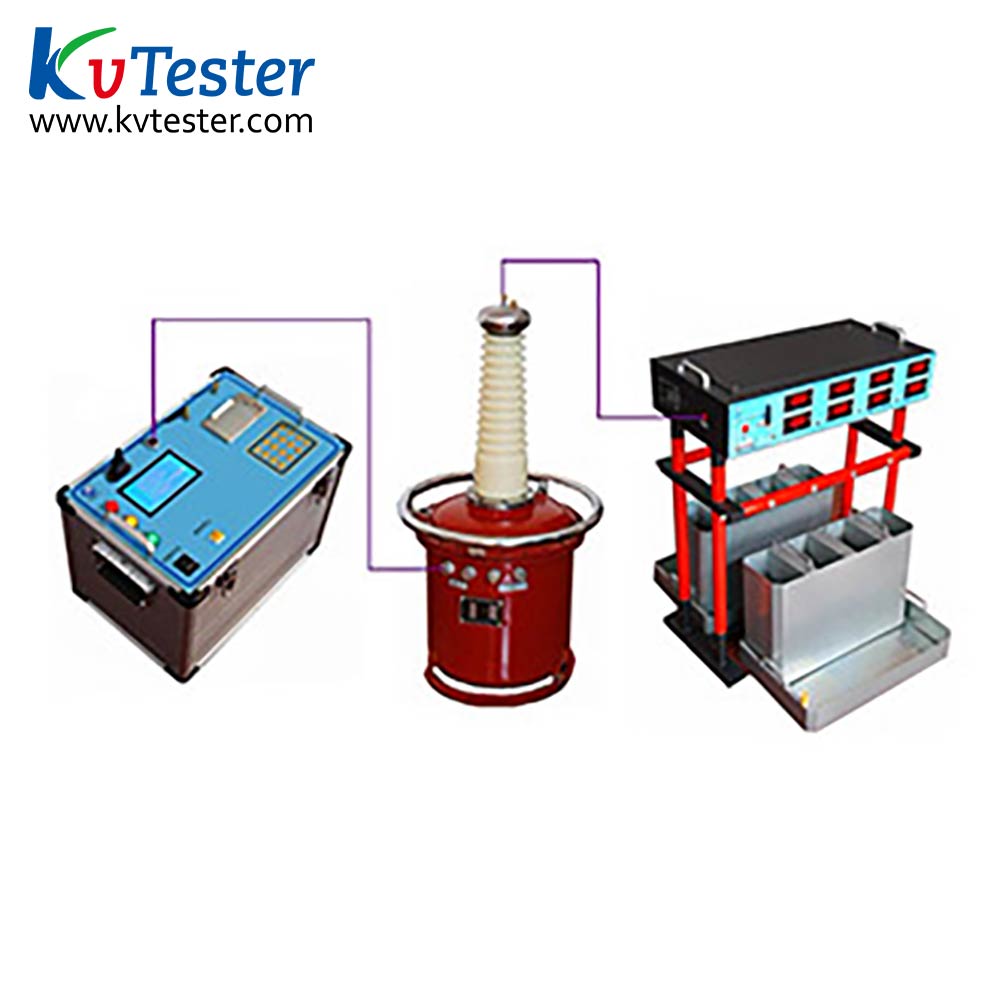

Insulating Boots(Gloves)Withstand Voltage Test Equipment

type:ZC-505
Online Service
  • Product Introduction

    The test device is a special equipment for batch test of insulating boots (gloves). It can also test safety tools and instruments, such as insulating rods, insulating screwdrivers, insulating pads, etc. It is designed and produced by our company according to the test requirements of insulating boots (gloves) and the opinions of users. The product adopts advanced microelectronic processing technology, and the whole use process can be set in advance. The Chinese interface is simple and clear. After all test items are set, the test will be conducted automatically without manual intervention. It effectively solves the past non-standard test, improves work efficiency and ensures work safety, and is an ideal special equipment for insulating boots (gloves).

  • Product Parameters
Working power supply AC 220V 50Hz
The output voltage 0 ~ 30kV (customizable 50, 100kV)
Nominal capacity 3kVA (customizable 5, 10kVA)
The environment temperature -10℃~+50℃
Operating box volume 350×220×370mm
weight 35kg


  • Product Features
    1. Instruments can be carried out the test for 8pcs insulated boots or insulated gloves at the same time, and measure the leakage current of each test product.
    2. The dry tesing is placing small ball inside of the insulated shoes, get rid of the traditional irrigation way which is not easy to dry .
    3. Measuring the leakage current is displayed on the high pressure side to ensure the accuracy of the measured current value.
    4. High and low voltage separate, which is greatly protect the personal safety.
    5. Each tested product has a breaking mechanism, any one breakdown or more than the value of the leakage current, the tested product will be automatically out of the test, and does not affect other tested products for testing.
    6. Insulating boot test has a special 304 metal grounding tray, insulated gloves test has a special container, easy to operate.
