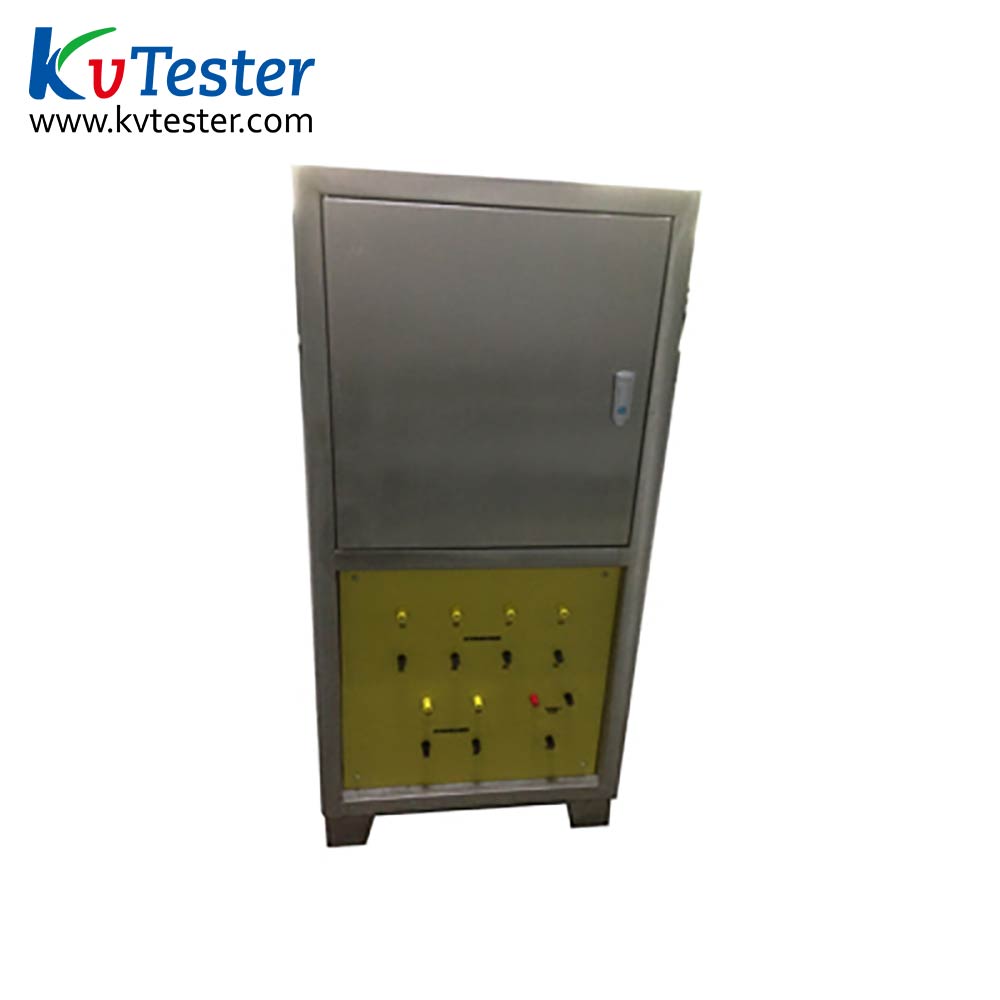

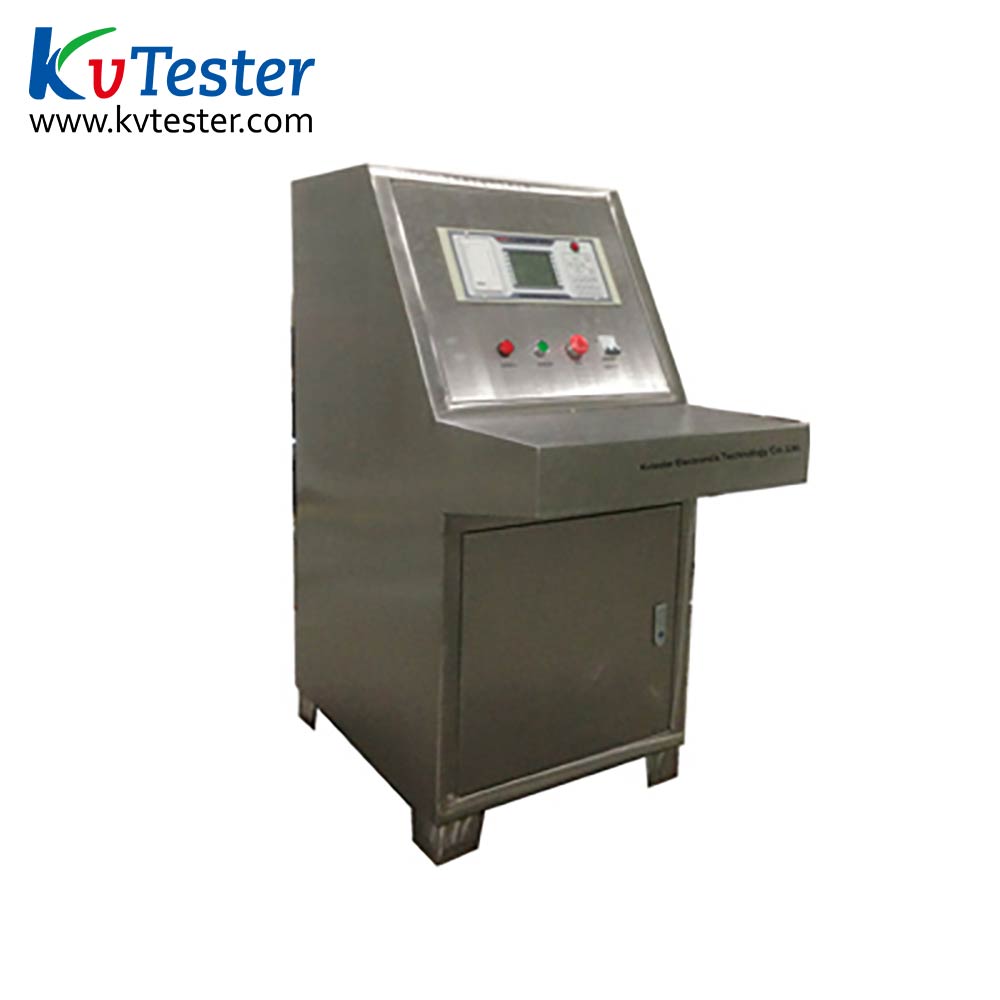

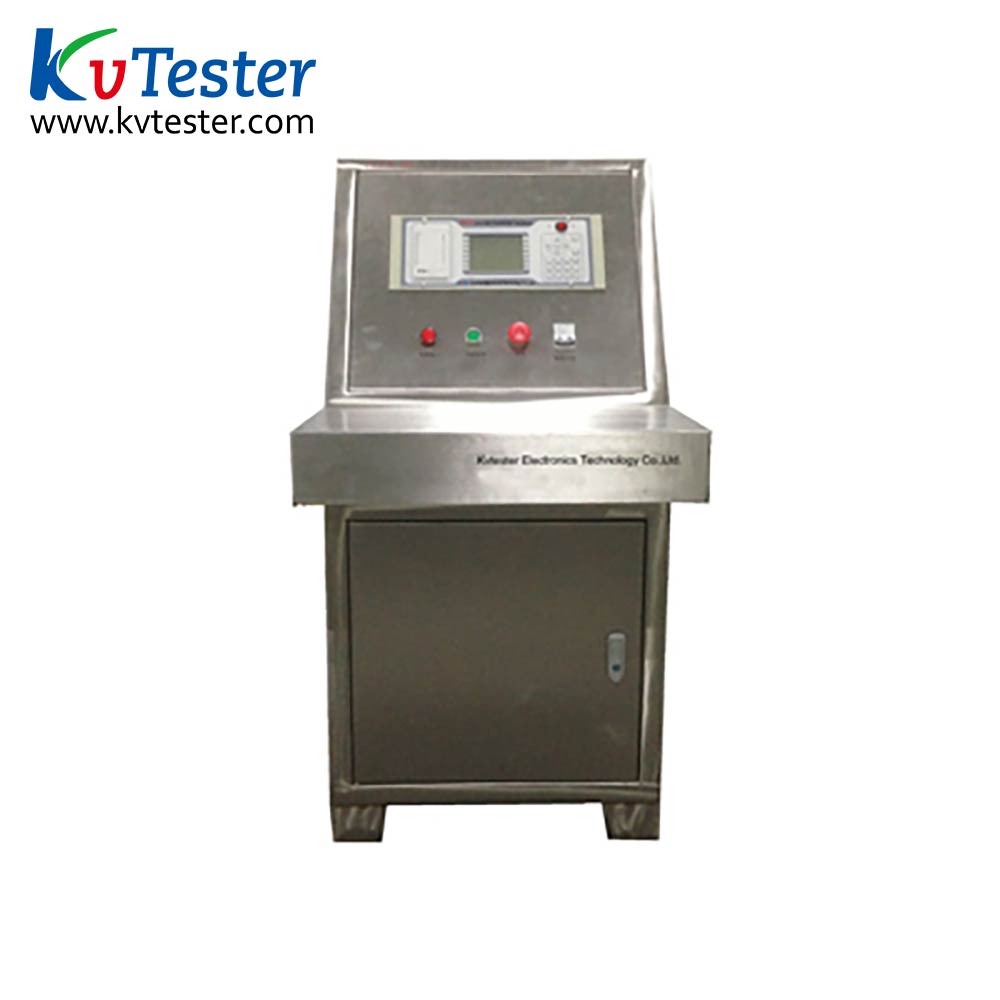

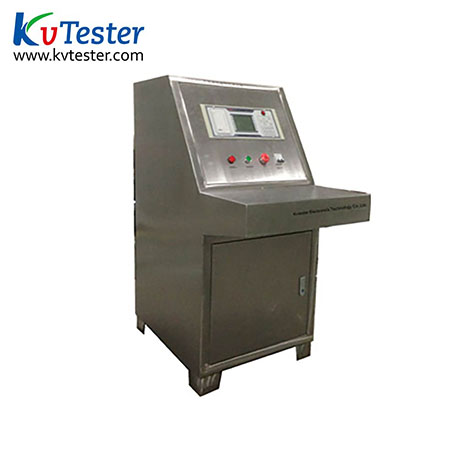

Automatic Transformer Test Bench

type:ZCLC-6
Online Service

TAGS:

  • Product Introduction

The multi-channel transformer excitation characteristic tester is the latest enhanced excitation characteristic tester launched by our company. The instrument adopts the most advanced high-speed microprocessor technology, with more powerful functions, superior performance and easier to use. It has the characteristics of high reliability, simple operation, high precision, compact and portable.It’s also at the leading level in the domestic at present.

  • Product Parameters
Type ZCLC-6
Function Measurement of PT excitation characteristics and no-load characteristics
Power supply Input voltage 185Vac~250Vac
Allowable input voltage 85Vac~264Vac
Frequency 50/60Hz
Allowable frequency 45Hz~65Hz
Input power 40VA
Connect Standard AC socket 60320
AC Voltage Measuring range 0~300V
Resolution ratio 0.001V
Test accuracy 0.2%±0.001V
AC Current Measuring range 0~20A
Resolution ratio 0.001A
Test accuracy 0.2%±0.001A
Active Power Measuring range 0~6kW
Resolution ratio 0.001kW
Test accuracy 0.5%±0.001kW
Frequency Measuring range 40~75Hz
Resolution ratio 0.001Hz
Test accuracy 0.2%±0.001Hz
Environment condition Operating temperature -10℃~+50℃
Storage temperature -25℃~+70℃
Relative humidity 5%~95%,No dew
Physical
characteristics
Size 415×225×200mm3
Weight ≈5kg(Do not include attachments)



  • Product Features
1.Full automatic acquisition , measurement ,display , storage , print all measured parameters and excitation characteristic data(voltage ,current ,equipment number , time ,etc.)
2.Wide range, can fully automatic and manual measurement of all transformer excitation data and characteristic curve.
3.Built-in large capacity range memory , storage test data, and the industry standard communication interface(RS232) uploaded to the PC machine and supporting software can realize data download ,automatic generation and editing the typical test report, facilitating technical management and archive.
4.Support 6 channel test , once time wire connection can be automatically completed 6 transformers test , greatly increasing the efficiently of testing.
5.Support to capture the 18 sampling point setting , and can accurately capture the corresponding measuring point.
