Clamp harmonic power meter

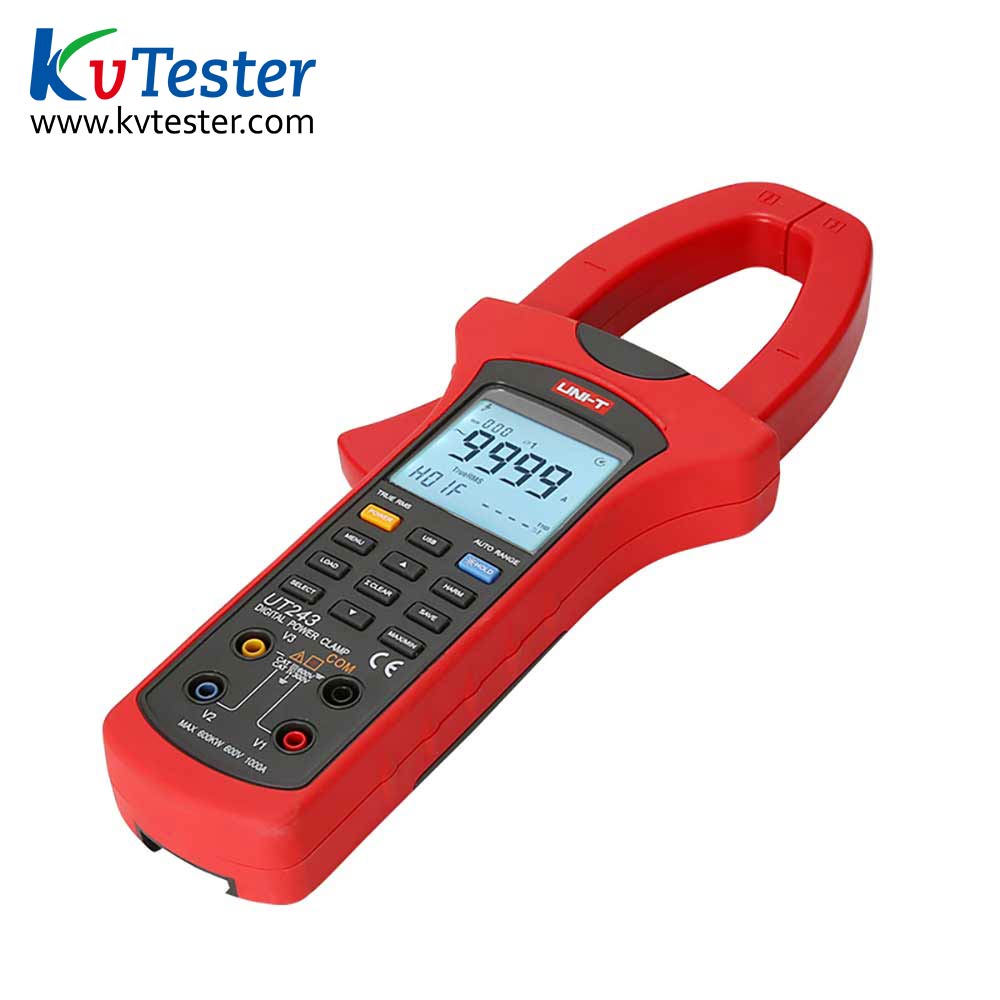

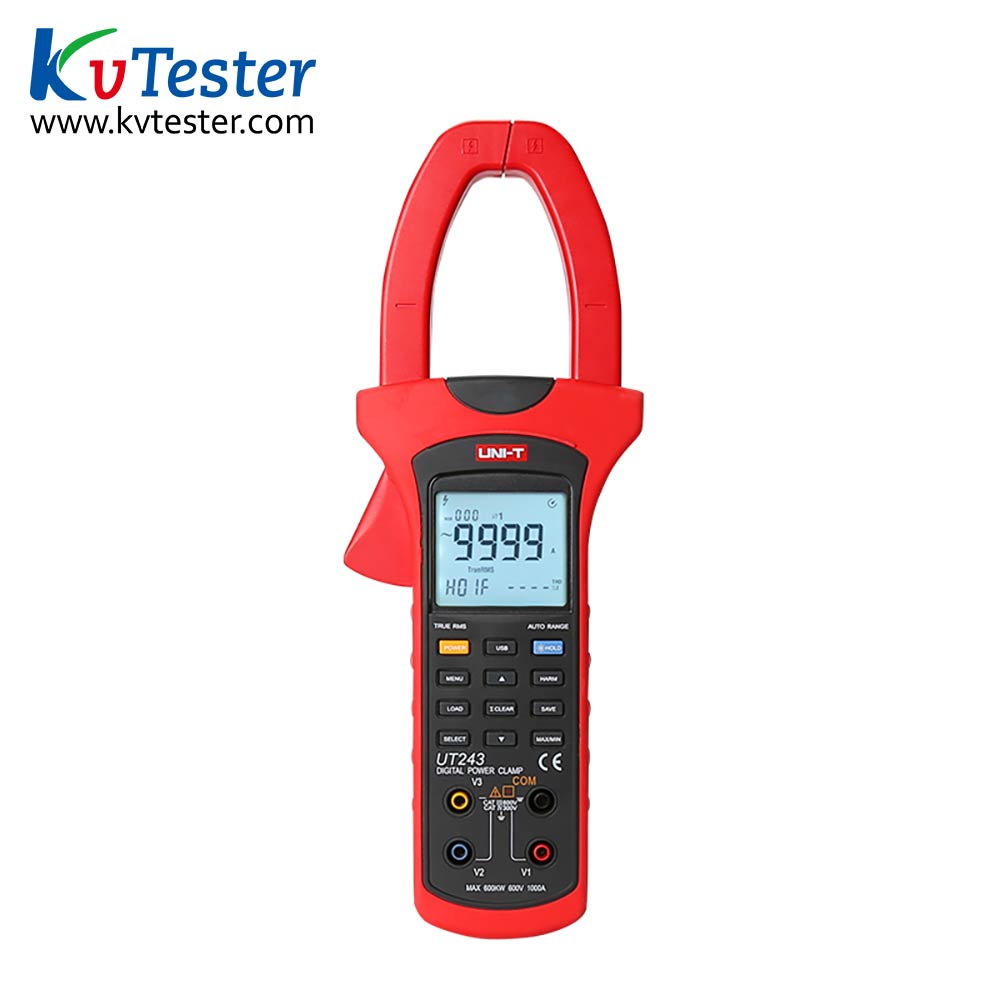

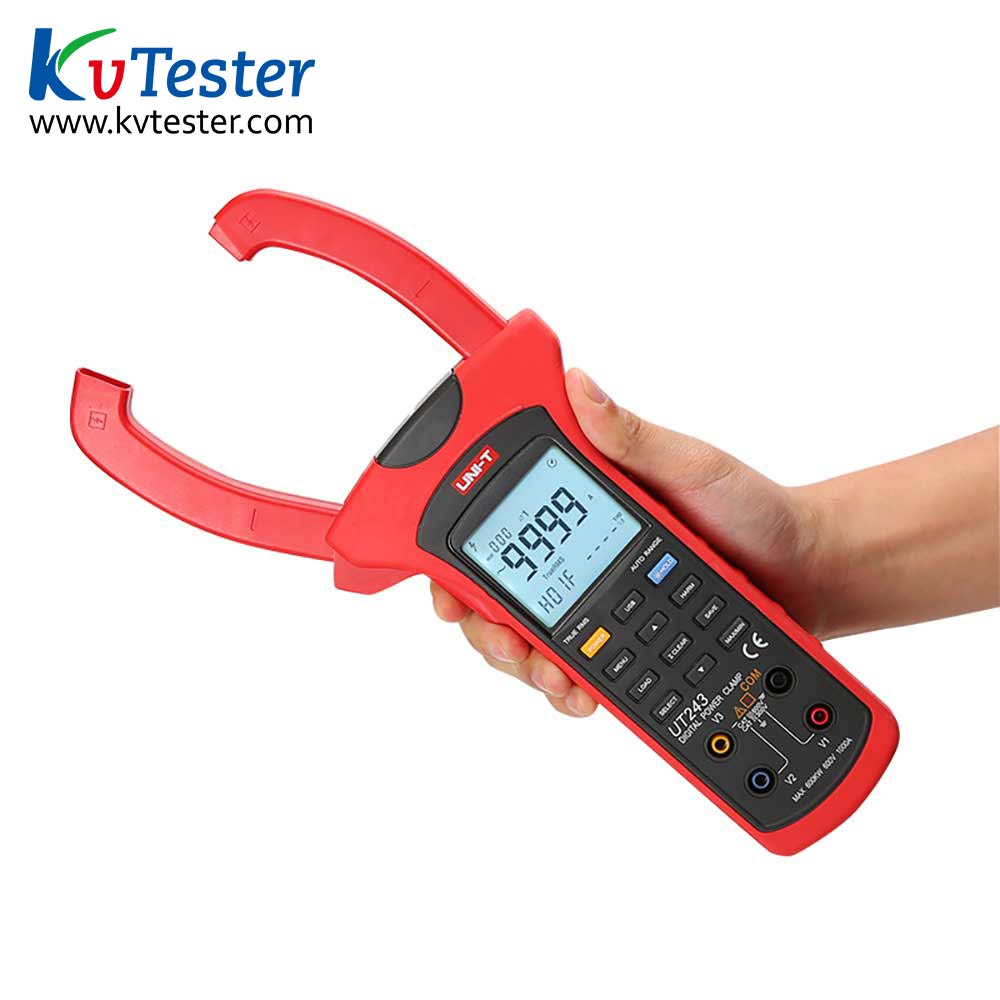

UT243 is a digital three-phase clamp power/harmonic meter integrating digital ammeter, power measurement and harmonic measurement. It is composed of four channels of voltage, current, power and harmonic and a micro-chip microcomputer system.

The energy part (harmonic) in the power supply system other than the power frequency (50Hz) is generated by the distortion of the fundamental current when the sinusoidal voltage is applied to the nonlinear load (such as UPS power supply, switching power supply, converter, rectifier, inverter, etc.). If the harmonic wave is too large, it will cause high-frequency interference to the electrical equipment, which may cause damage or even burn down the equipment.

The U1243 instrument has the function of measuring three-phase total power, total harmonic distortion rate and single harmonic component. It is applicable to the measurement and maintenance of various regulated power equipment and power supply lines, as well as the evaluation of power quality, three-phase power measurement and harmonic analysis users.

1. Three-phase three-wire, three-phase four-wire and single-phase line input measurement

2. Measurement of true RMS of voltage and current

3. 9999 word count, double display LCD screen, can display multiple groups of parameters at the same time

4. It can accurately measure the active power, reactive power and apparent power with 20 harmonics

5. It can accurately measure the total harmonic distortion rate and each harmonic component of voltage/current signal within 20 times

6. Support one-button extraction of electric energy (kWh), accurately grasp the power consumption ink

7. It is easy to use with automatic range conversion circuit and panel key operation

8. Stored data: * 999 groups, single/continuous record or read back data can be set

9. Three-phase power accumulation, automatic calculation of three-phase total power; Phase sequence detection: positive sequence/reverse sequence/phase loss display

10. Function setting mode, automatic closing time, backlight automatic closing time and harmonic default frequency can be set

11. Maximum/minimum measurement mode; Data retention; White backlight; Low voltage diffuse display

12. Equipped with USB communication recording interface and special Windows graphics analysis software
