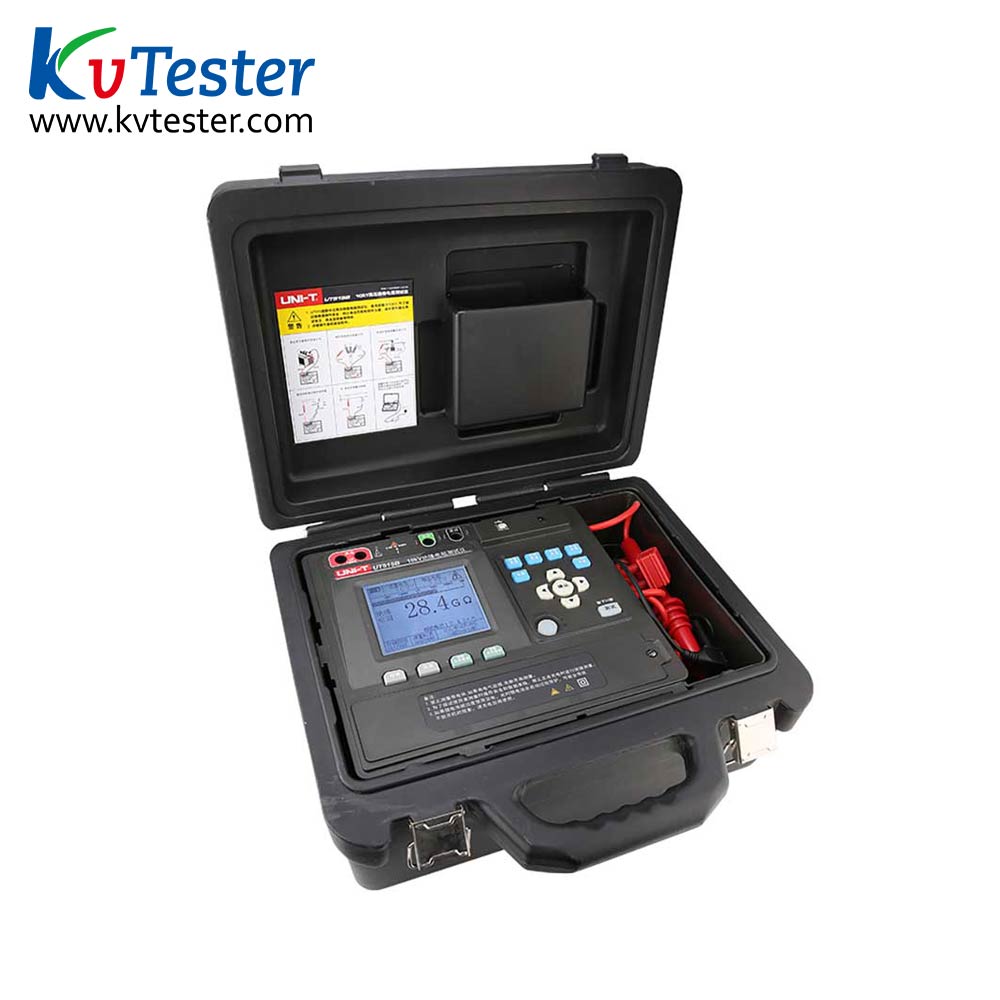

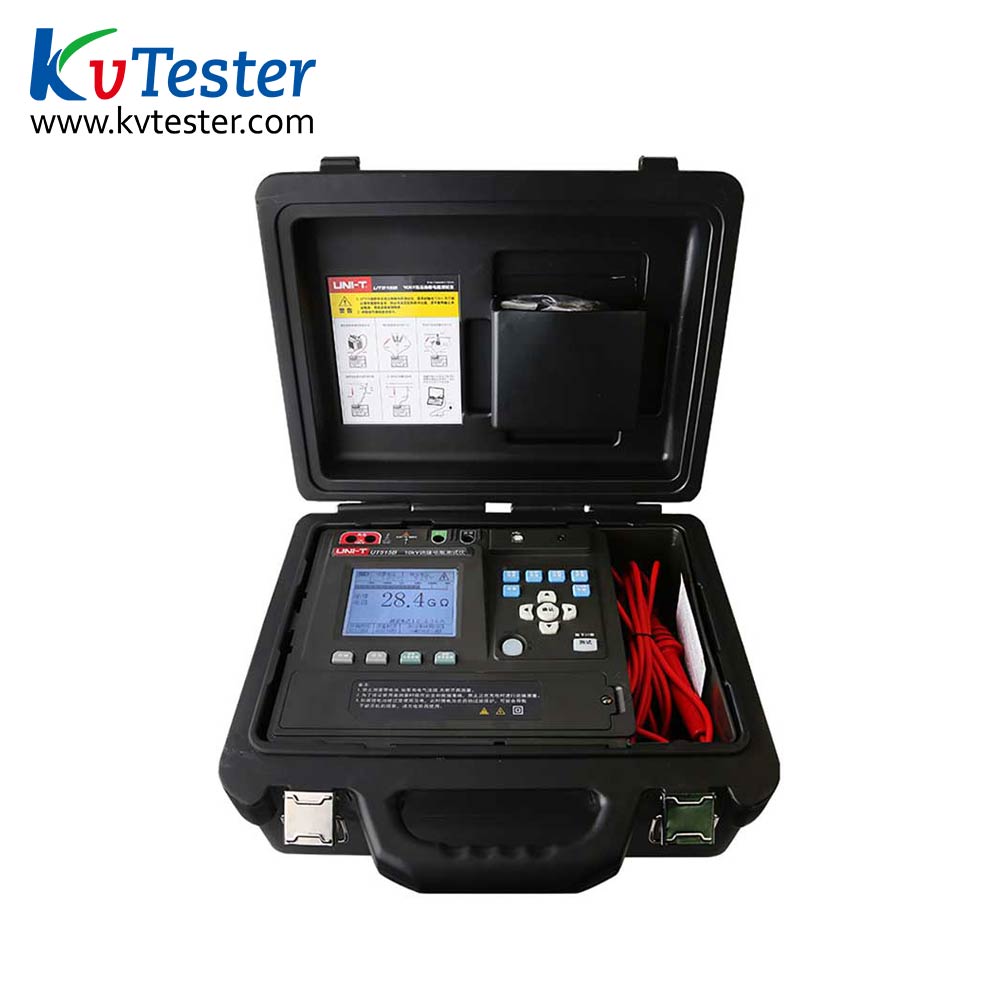

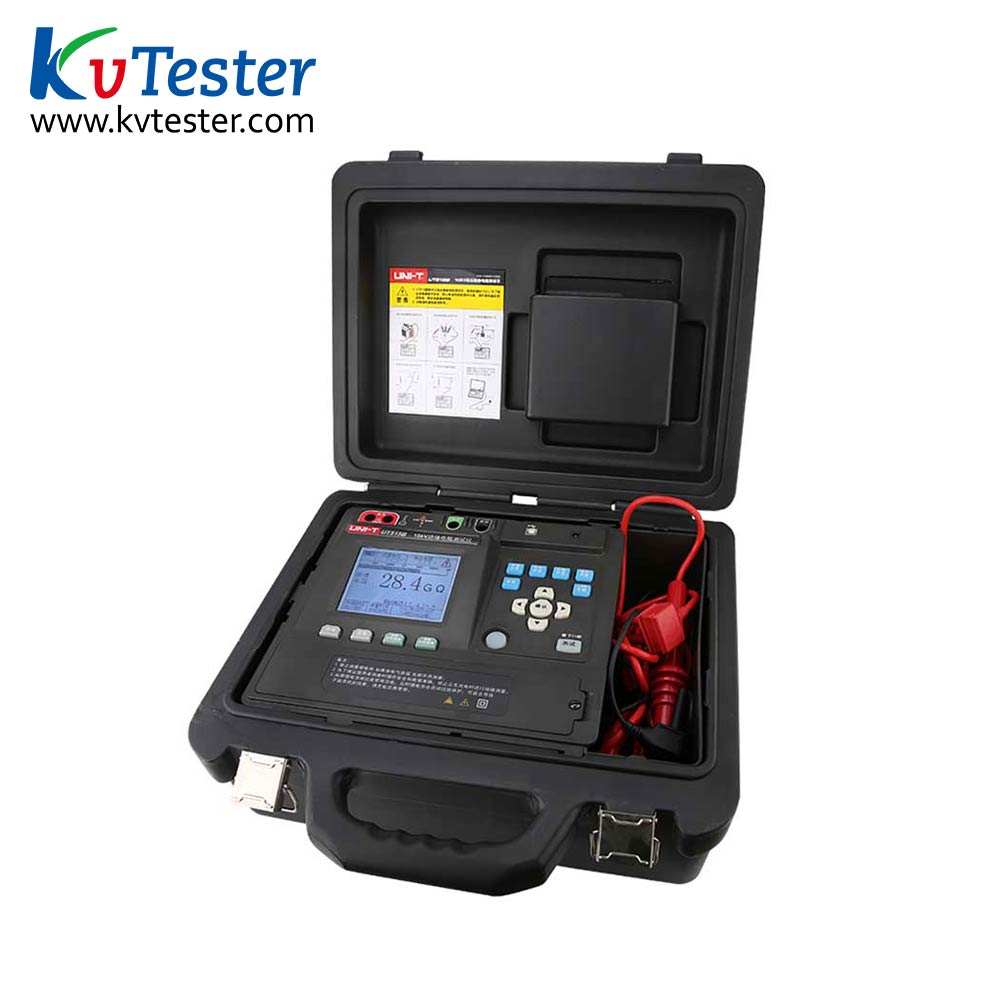

10kV insulation resistance tester

UT515B 10kV digital high voltage insulation resistance tester is an intelligent insulation test instrument. The whole circuit design adopts microcomputer technology design as the core, combines large-scale integrated circuit and digital circuit, and cooperates with powerful measurement and data processing software to complete the measurement of insulation resistance, voltage and other parameters, with good performance and simple operation. With 500V, 1000V, 25005000V, 10000V range; The output of each range is set with 10% step trimming voltage, and the test data can be saved in the device memory, downloaded through PC software or transmitted to PC terminal in real time for data analysis; Full-key operation, electronic digital display, time-saving and labor-saving, one key can complete the test

1. 5.1 inch industrial display (320x240) digital display, more intuitive

2. 10kV voltage output, insulation resistance 10T Ω, short circuit current 5mA

3. Automatic absorption ratio (DAR) and polarization index (PI) coefficient

4. Step function: each range can be stepped by 10%

5. USB data transmission, data analysis through PC software

6. 999 groups of data storage

7. Rechargeable lithium battery: 14.8V 5200mAh (equipped with special charger input 110~220V 50Hz~60Hz output 14.8v 2A)

8. The insulation value and test current in the test can be displayed at the same time

9. Key with light indication: the power key has its own green light indication, and the high-voltage output test key has its own red light warning indication

10. Automatic discharge: when testing the insulation resistance of capacitive load, the charge stored in the capacitance circuit will be automatically released after the test is completed, and the discharge progress can be displayed

11. LCD backlight function: the backlight function helps to work in dim position or at night
