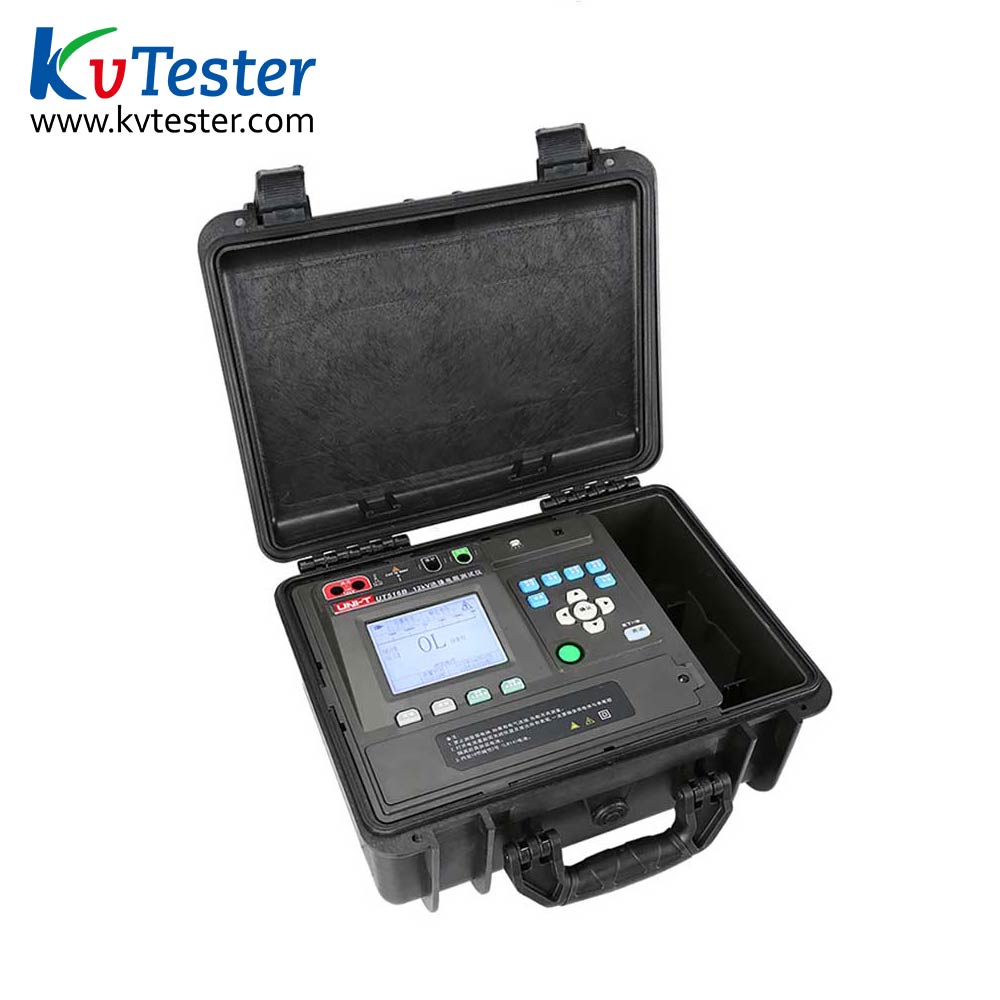

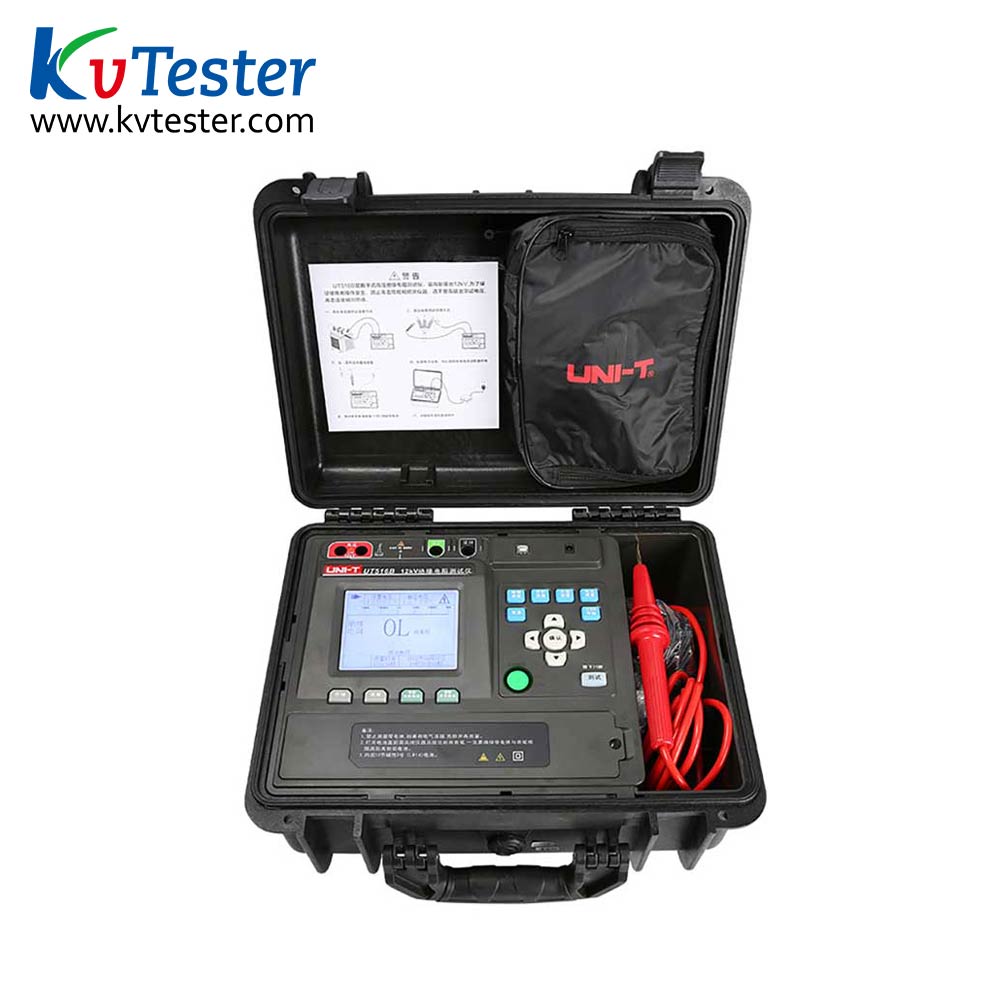

12KV insulation resistance tester

UT516B is an intelligent insulation testing instrument. The circuit design of the whole machine adopts microcomputer technology design as the core. It combines large-scale integrated circuits and digital circuits, and with powerful measurement and data processing software, to complete the measurement of insulation resistance, voltage and other parameters, with good performance and simple operation. It is widely used in the measurement and maintenance of power equipment and power supply lines, and is an indispensable instrument for the installation and maintenance measurement of telecommunications, electricity, meteorology, computer rooms, oil fields, and electromechanical equipment.

1. 5.1 inch industrial display (320x240) digital display, more intuitive

2. 12kV voltage output, insulation resistance 10T Ω

3. Automatic display of absorption ratio (DAR) and polarization index (PI) coefficient

4. Automatic leakage current display

5. Step function: each range can be stepped by 10%

6. USB data transmission, data analysis through PC software

7. 999 groups of data storage

8. Timer measurement mode can be set, insulation resistance value can be set, and out-of-tolerance prompt is available

9. The insulation value and test current in the test can be displayed at the same time

10. Key with light indication: the power key has its own green light indication, and the high-voltage output test key has its own red light warning indication

11. Automatic discharge: when testing the insulation resistance of capacitive load, the charge stored in the capacitance circuit will be automatically released after the test is completed, and the discharge progress can be displayed

12. LCD backlight function: the backlight function helps to work in dim position or at night
