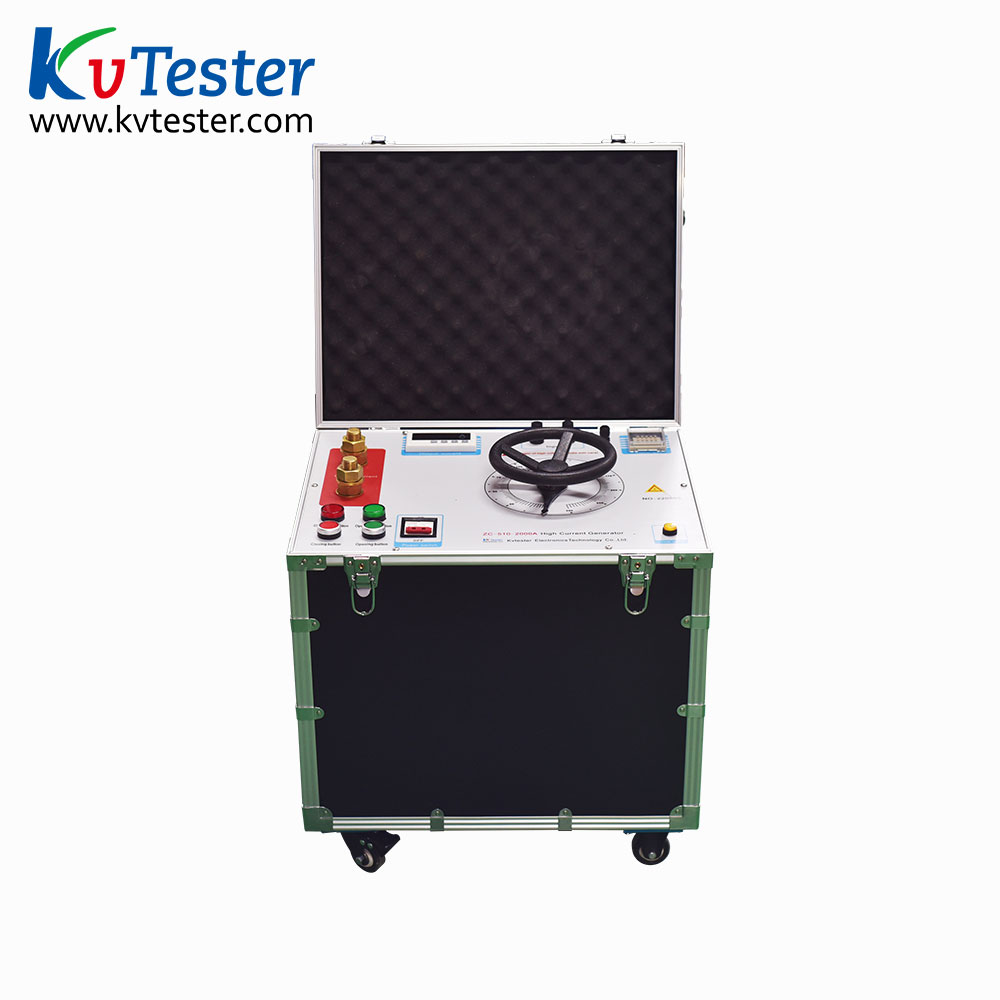

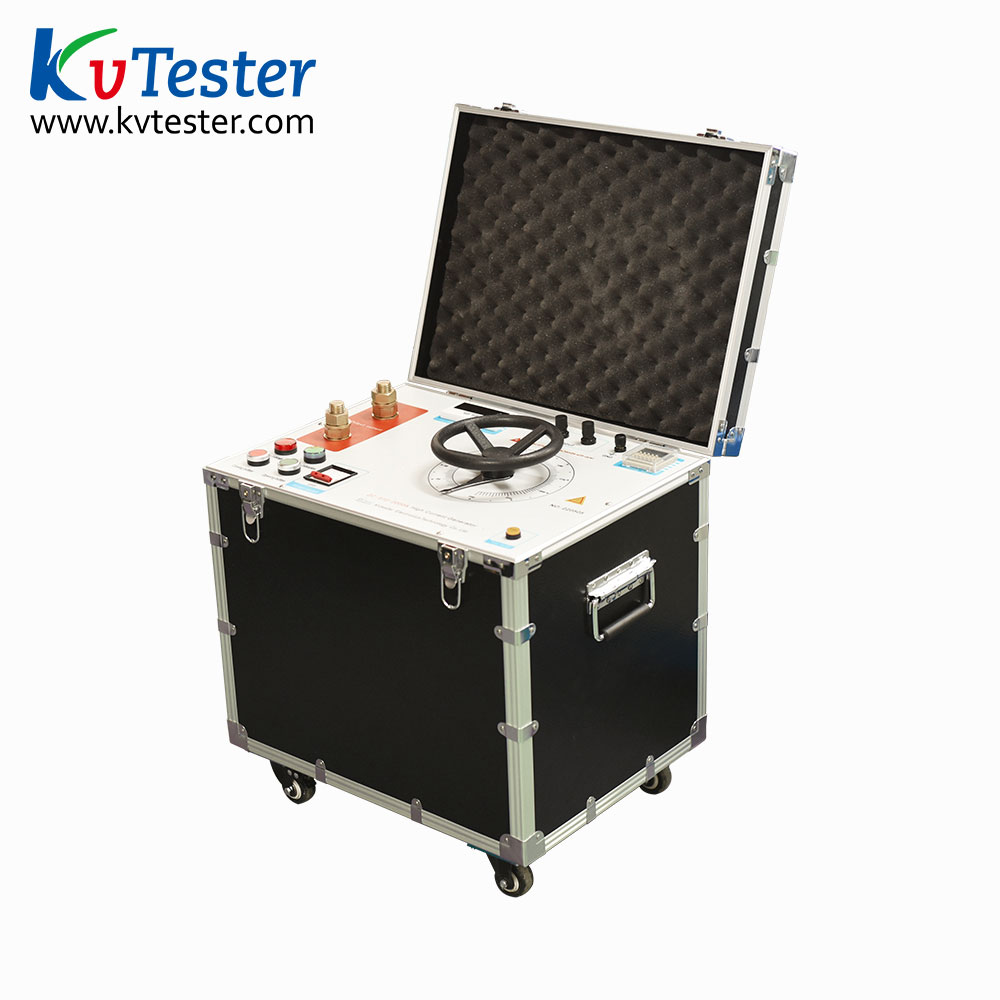

ZC-510A-2000A High Current Generator is a necessary equipment in places where large current is required in electrical commissioning. It is used in power plants, transformation and distribution stations, electrical manufacturers, scientific research, laboratories and other units. It belongs to short-term or intermittent working system. It has the characteristics of small volume, light weight, good performance and convenient use and maintenance.

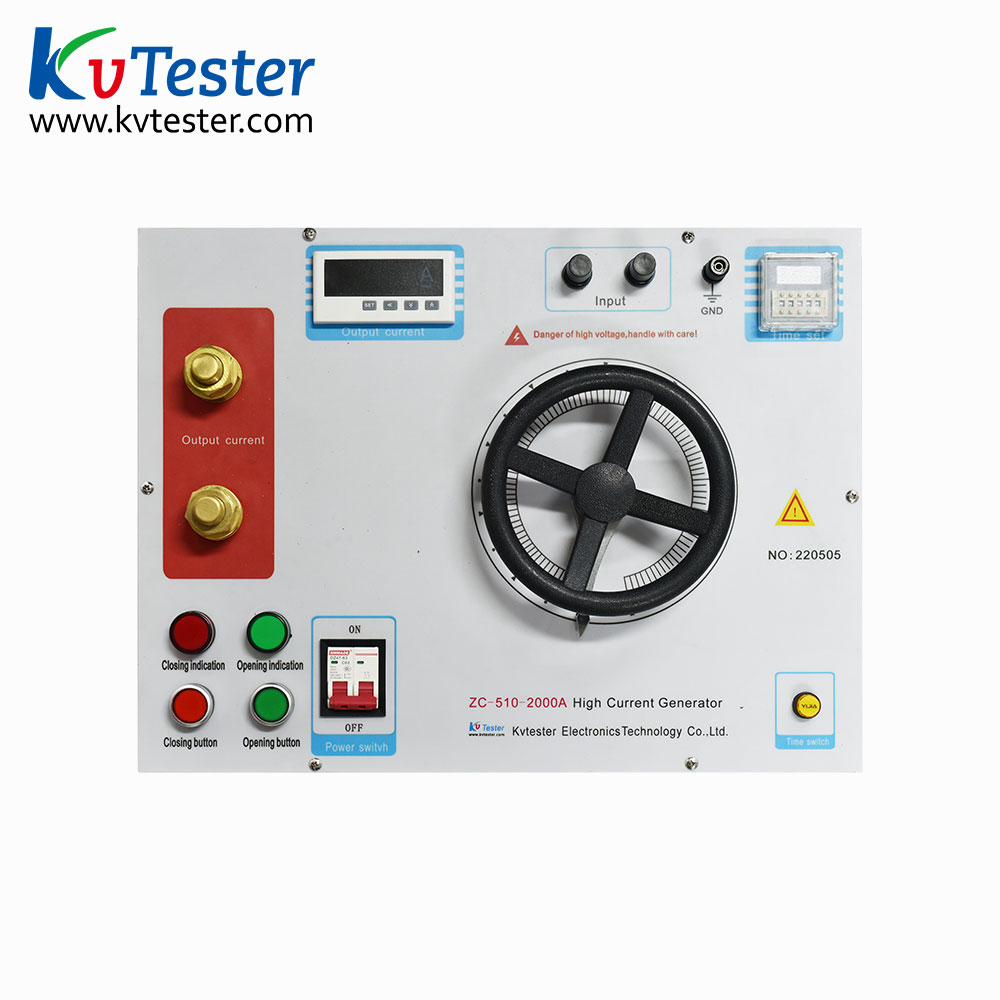

This product belongs to JT box structure, which is composed of instrument indicator panel and operation panel. Green indicator refers to power signal and red indicator refers to working signal. The operation panel consists of start button (red), stop button (green) and working system.

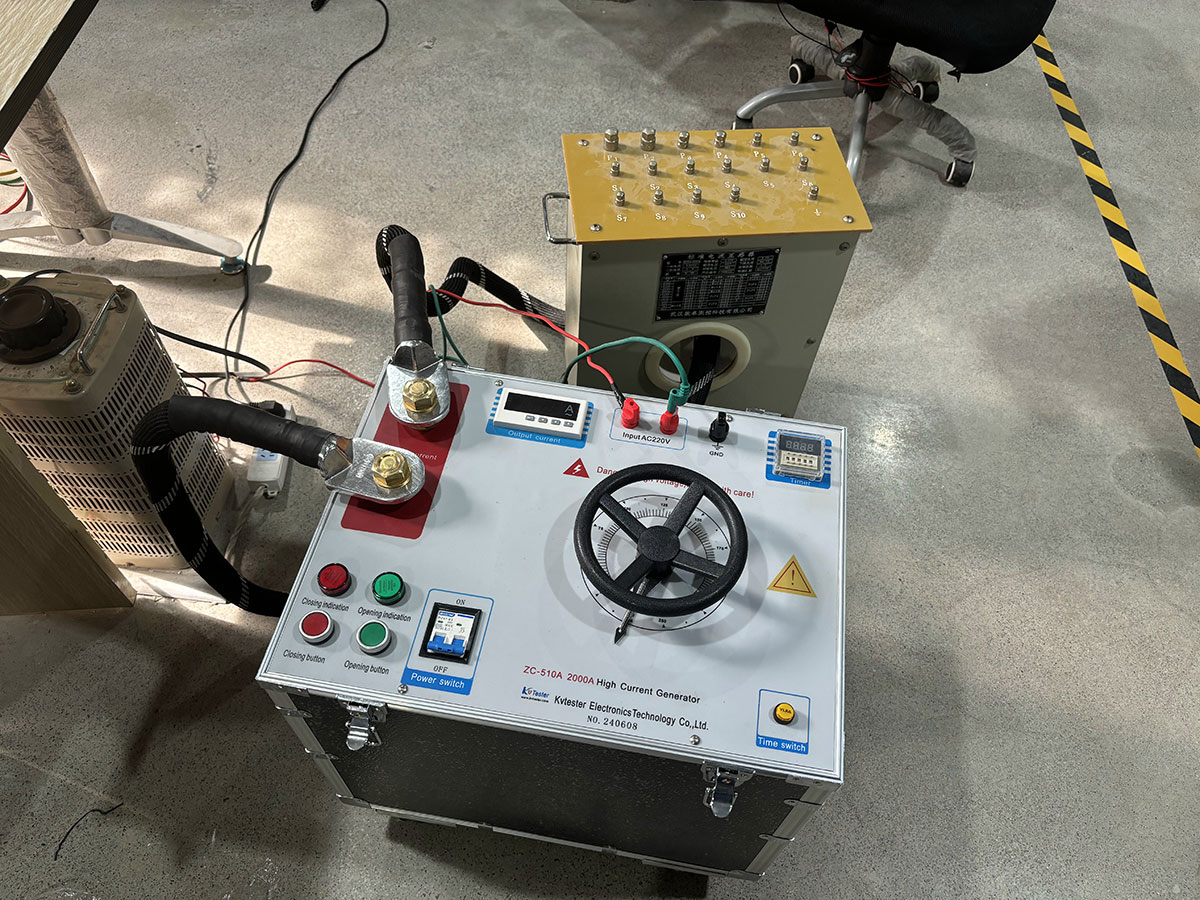

When conducting high current test, correctly connect the working circuit according to the circuit diagram of the product. Firstly return the voltage regulator to zero, and then press the start test to button, then hold the handle of the voltage regulator and slowly rotate the hand wheel of the voltage regulator clockwise and watch the ammeter until the required current value. After the test reaches the set value, immediately return the hand wheel of the voltage regulator to zero counterclockwise, press the stop button and cut off the power supply.
