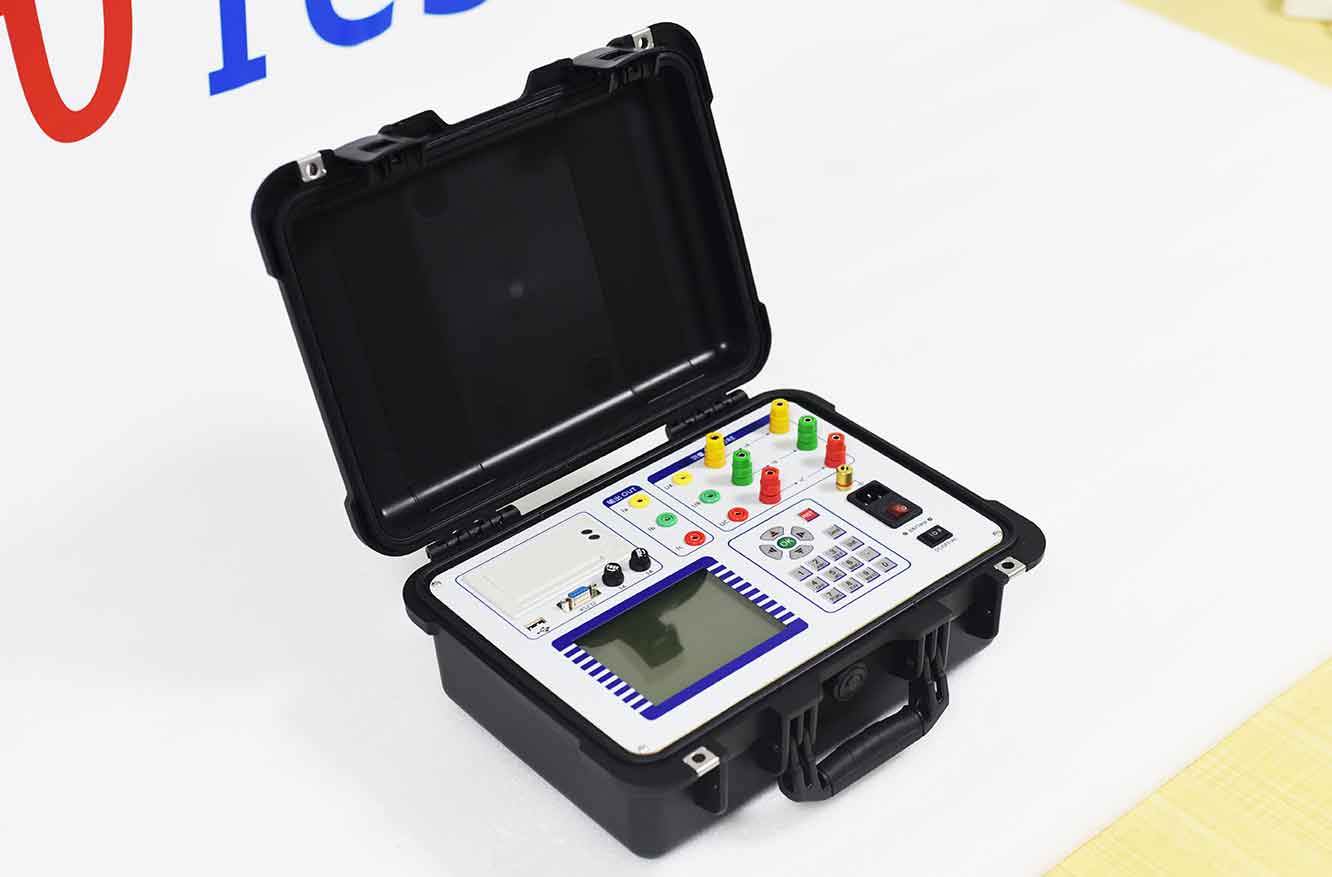

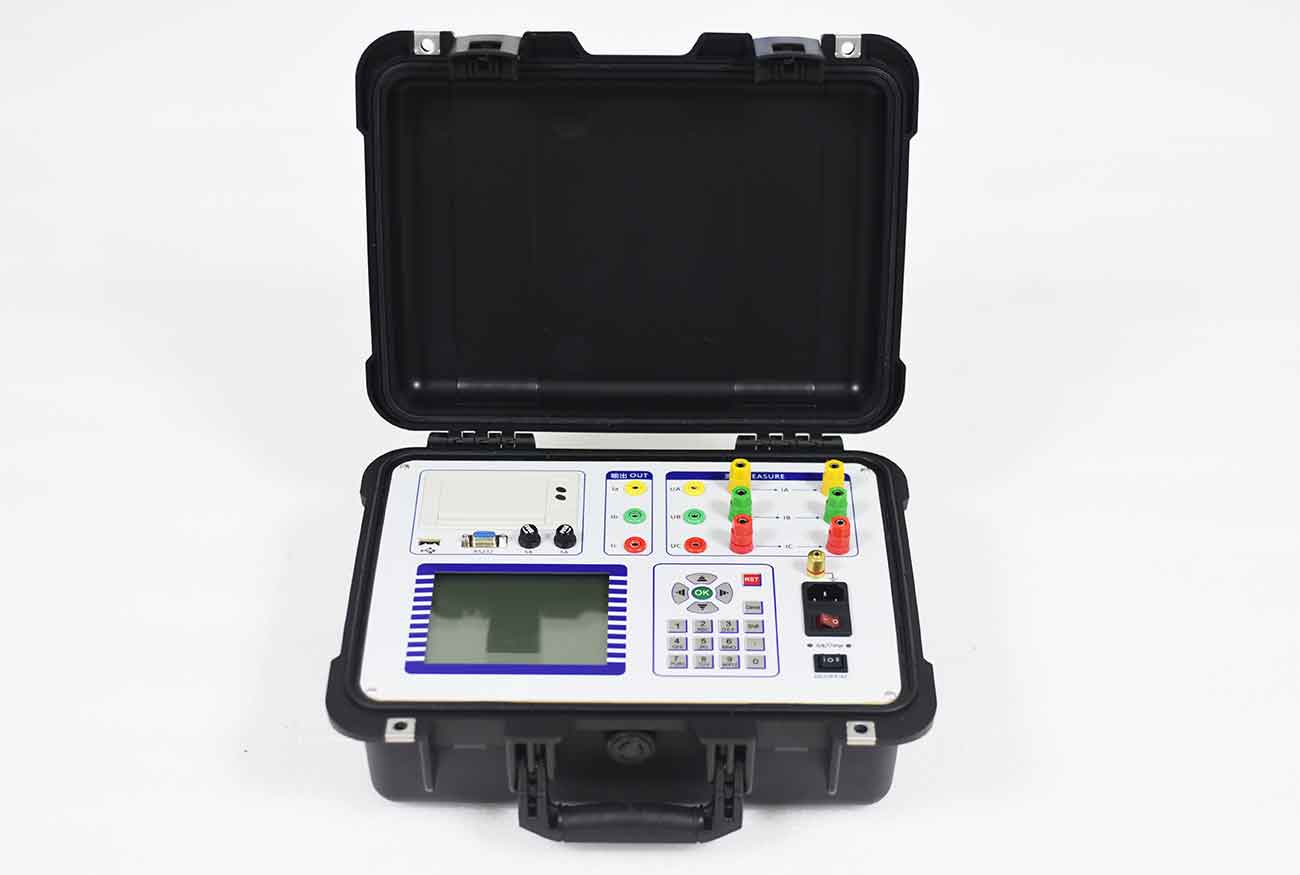

ZC-202B Transformer Capacity and Empty Load Tester is a new type of instrument developed and designed by our company specifically for the problem of poor power users evading basic electricity bills and increasing capacity without authorization. It is a high-precision instrument used for measuring characteristic parameters such as transformer capacity, no-load, and load. This instrument is a multifunctional measuring instrument, equivalent to the usual two types of testing instruments: transformer capacity tester and transformer characteristic parameter tester. It can accurately measure a series of power frequency parameters such as capacity, type, no-load current, no-load loss, short circuit (load) loss, impedance voltage, etc. of various transformers. This product has many advantages such as small size, light weight, high measurement accuracy, good stability, and simple operation. It can completely replace the previous method of using multiple meters to measure transformer losses and capacity, making wiring simpler, testing and recording more convenient, and greatly improving your work efficiency.
Product characteristics
1. It can accurately measure the capacity of various distribution transformers, making it convenient and accurate.
2. It can measure the no-load current, no-load loss, short-circuit voltage, and short-circuit (load) loss of transformers.
3. The instrument automatically switches range internally, allowing for a wide range of voltage and current measurements, and simple wiring.
4. When conducting no-load and load tests on three-phase transformers, the instrument can automatically judge whether the wiring is correct and display the vector diagram of three-phase voltage and current.
5. A single machine can complete the measurement of load experiments at full current of distribution transformers below 1000KVA; The measurement of load test for distribution transformers below 3150KVA can be completed at one-third of the rated current (at one-third of the rated current, the instrument can be converted to load loss parameters at rated current).
6. All test results are automatically corrected accordingly. The instrument can automatically perform various calibrations, such as waveform correction, temperature correction, non rated voltage correction, and non rated current correction, to improve the accuracy of test results.
7. 320 × 240 large screen, high brightness LCD display
8. The instrument can be preset by the user with 40 sets of test sample parameters, and these parameters can be deleted and added at any time as needed, making it very convenient to use.
9. It is allowed to connect external Voltage transformer and current transformer for extended range measurement, and can measure the tested object of any parameter.
