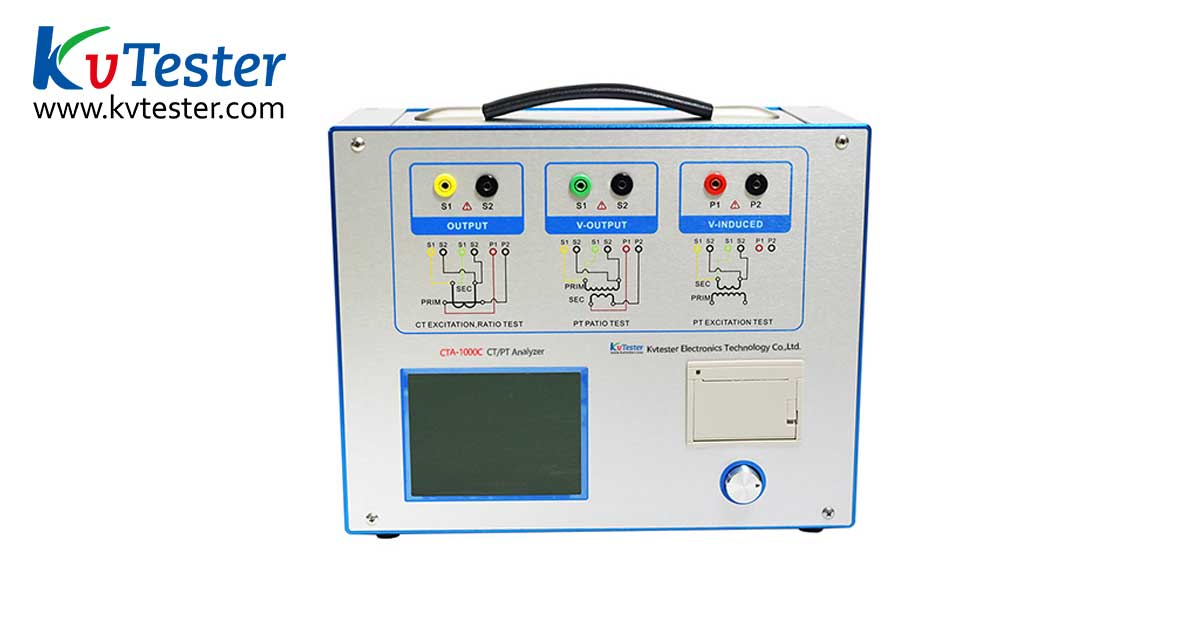

CTP-1000C variable frequency transformer comprehensive tester is a new generation of innovative CT and PT testing instrument developed on the basis of the traditional transformer volt ampere characteristic ratio polarity comprehensive tester based on the Pressure regulator, voltage booster and current riser, and after extensive listening to user opinions, a large number of market research and in-depth theoretical research. The device adopts high-performance DSP and FPGA, advanced manufacturing technology, ensuring stable and reliable product performance, complete functionality, high automation level, high testing efficiency, and leading level in China. It is a professional testing instrument used for transformers in the power industry.
The main application environment of the device:
1. Suitable for transformer calibration in power research institutes;
2. Suitable for factory calibration by transformer manufacturers;
3. Meet the preventive testing requirements of the power sector;
4. Meet the handover test of engineering units and cabinet enterprises.
When using the CTP-1000C CT/PT tester, it is necessary to pay attention to the following safety precautions to avoid personal injury and prevent damage to this product or any other products connected to it.
1. As a safety measure, the instrument is equipped with a protective grounding terminal. Before the test, the grounding terminal on the side of the device should be reliably grounded.
2. Prevention of falling: Do not place this instrument on an unstable platform or desktop to prevent it from falling and being damaged.
3. Use appropriate power cords: 220VAC, 50/60Hz, and 10A or above power cords should be used.
4. Ensure good heat dissipation: The fan and ventilation holes on the side of the instrument are designed for ventilation and heat dissipation, please do not block them.
5. Prevent short circuits: Do not let any foreign objects fall into the chassis to avoid short circuits.
6. Properly connect and disconnect: Do not connect or disconnect the test leads while the equipment is being tested.
7. Do not operate without the instrument cover: if the cover or panel has been removed, do not operate this product.
8. Use appropriate fuses: This device uses a 12A fuse.
9. Avoid contact with exposed circuits and live metals: When the product is powered, do not touch exposed contacts and parts.
10. When there is a suspicious malfunction, do not operate: if there is a suspicion of damage to this product, please have our company's maintenance personnel inspect it and do not continue operating.
11. Operating environment: Do not operate in damp or explosive environments.
12. This instrument is a precision electronic instrument. When using it outdoors, please pay attention to preventing high temperature environments such as scorching sun exposure, and do a good job of blocking the scorching sun and ventilation to prevent the instrument from overheating or causing a decrease in measurement accuracy.
13. Product transportation: During transportation, please lay a cushion or protective material such as sponge on the outside of the instrument to prevent vibration and turbulence from damaging the instrument or reducing its accuracy.
