The transformer comprehensive characteristic test bench is suitable for factory testing and assessment of the main electrical performance of power transformers. It is easy to operate, safe to use, and the main project of factory testing. Next, let's talk about the characteristics of the transformer comprehensive characteristics testing platform.
Using a color display and operating all Chinese prompts, real-time monitoring of the entire experimental process is achieved. It integrates experimental wiring display, data acquisition, analysis and processing, measurement control, storage, printing, and protection, and the entire process of the experiment is automatically completed. It has outstanding advantages of high efficiency and precision:
1. Equipped with LCD backlight display screen, displaying 18 parameters such as three-phase voltage and current simultaneously; Replacing pointer instruments with digital instruments, all test data is displayed in real-time (locked) on the screen, avoiding errors caused by various factors such as parallax, conversion, and calculation during the test process. Improve testing accuracy. Especially to completely solve the difficulty of operators reading multiple meters and recording multiple sets of data at the same time, ensuring the accuracy and reliability of experimental data.
2. The data processing adopts automatic storage and microcomputer printing methods, with beautiful and standardized data tables, neat and clear handwriting. All experimental data is filled in the corresponding tables in real time, avoiding manual copying and recording processes, ensuring the authenticity and reliability of the data. Users can also set their own printing format as needed.
3. This test bench also has the functions of waveform distortion correction, test wire resistance correction, and transformer error correction.
4. The test bench can be made into desktop, portable, simple, standard, and convenient for use in different occasions according to user needs.
5. Multi screen menu operation, easy to operate, automatic calculation of various parameters;
6. Voltage current ratio can be set to directly display measured values;
7. The test bench uses an Access database to store raw data, which can conveniently store all parameters, test data, environmental temperature, test date, and other information of the tested equipment together, forming an equipment archive for future query and analysis.

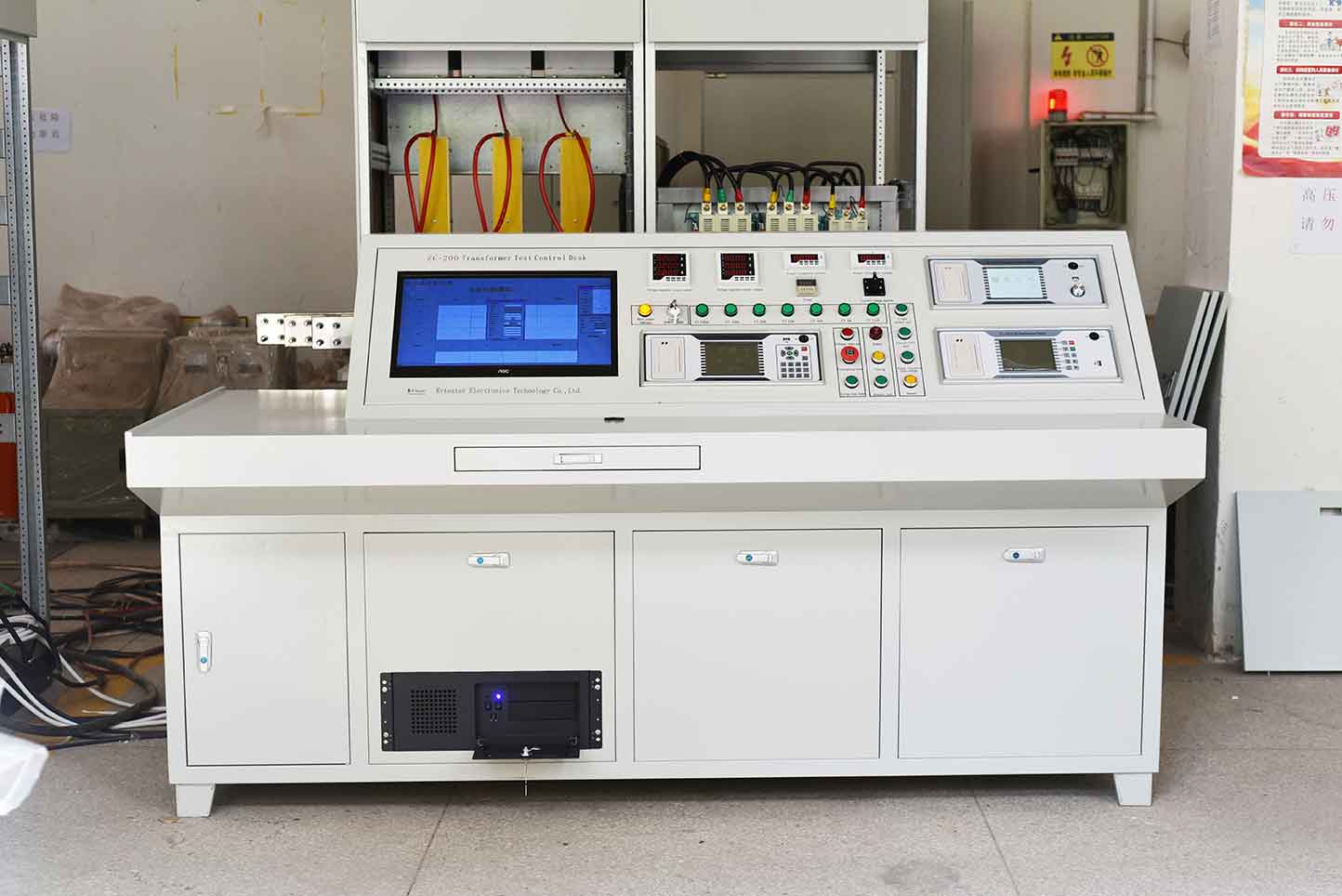

The KST-200 transformer comprehensive characteristic test bench is mainly used to test the no-load and load characteristics of power transformers and distribution transformers. The measurement part of the device is controlled by a high ji microcontroller, and the digital display, no-load, and short-circuit test data are synchronously sampled by the microcontroller, avoiding the separate readings of the voltmeter, ammeter, and power meter in traditional testing methods and avoiding errors caused by manual calculations.
Kvtester Electronics Technology Co.,Ltd. is a high-tech enterprise specializing in power testing, testing, research and development, production, and sales of testing equipment. It has been engaged in the electrical testing industry for many years, and its products are of high quality. We welcome customers to come and purchase.
8. Capable of measuring power within a low power factor range;
9. Strong anti-interference, with overload alarm indication, line connection error protection, and functions such as overvoltage and overcurrent protection.
