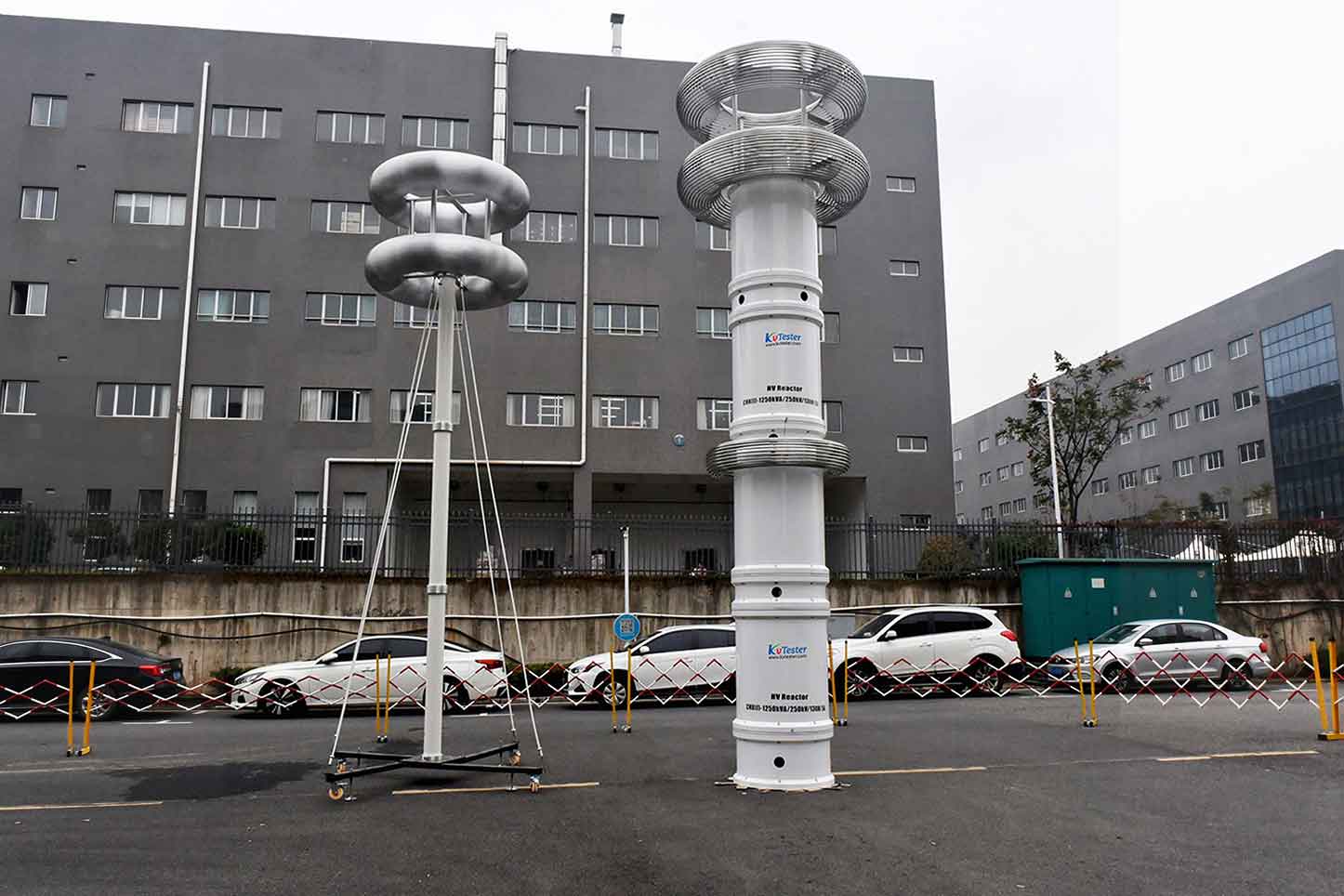

The frequency conversion series resonance testing device is a specialized equipment used for frequency conversion resonance testing of large capacity transformers and transformers in high-voltage power systems. It can be used to determine the insulation level and performance of transformers and transformers under power frequency voltage. The selection of frequency conversion series resonance test equipment involves multiple factors, including test objects, test requirements, instrument parameters, etc. The following will provide a detailed introduction to the key selection points of the variable frequency series resonance testing device.
1、 Test object
Firstly, it is necessary to clarify the test subjects. The frequency conversion series resonance test is mainly applicable to large capacity transformers and transformers in high-voltage power systems. Therefore, it is necessary to determine the rated voltage, rated capacity, and other special requirements of the test object during selection. According to the parameters determined by the test object, the rated voltage and rated capacity of the test device can be determined.
2、 Test requirements
Select a suitable frequency conversion series resonance testing device according to the test requirements. The test requirements include parameters such as test voltage, test time, and test frequency. The test voltage refers to the maximum output voltage that the test device can generate, which should be determined based on the rated voltage of the test object and the highest voltage required for the test. The test time is determined based on the duration required for the test. The test frequency refers to the highest output frequency that can be generated by the frequency conversion series resonance test device, which should be determined based on the power frequency of the test object and the highest frequency required by the test.
3、 Instrument parameters
In addition to the test objects and requirements, it is also necessary to consider the instrument parameters of the variable frequency series resonance test device. The instrument parameters include the output power, output current, frequency range, frequency conversion accuracy, etc. of the frequency converter. The output power should be determined based on the rated capacity of the test object to ensure that the test device can provide sufficient power for testing. The output current should be determined based on the rated current of the test object to ensure that the test device can generate sufficient current for testing. The frequency range should include the minimum and maximum frequencies required for the test to meet the needs of different test requirements. Frequency conversion accuracy refers to the deviation between the output frequency of the frequency converter and the set frequency, which should be minimized to ensure the accuracy of the test.
4、 Safety performance
When selecting models, safety performance should also be considered, including functions such as overload protection, leakage protection, and short circuit protection. Overload protection can automatically stop or limit output power when the rated power is exceeded, to avoid overloading and burning the equipment. Leakage protection can automatically cut off the power supply in case of equipment leakage, ensuring the safety of users. Short circuit protection can automatically cut off the power supply when the equipment is short circuited, preventing equipment damage.
5、 Quality and reliability
When selecting equipment, consideration should be given to its quality and reliability. Choose manufacturers with good reputation and reputation, understand their actual testing situation and user feedback, and ensure the quality and reliability of the equipment.
6、 Economy
When selecting models, it is also necessary to consider economy, that is, the balance between the price and performance of the equipment. Choose cost-effective equipment based on your actual situation and budget.
When selecting models, you can also refer to relevant standards and specifications, consult professional equipment suppliers or engineers, understand the market's product and technology development trends, comprehensively consider various factors, and choose the suitable frequency conversion series resonance equipment.
