The transformer short-circuit impedance tester is a device used to measure the short-circuit impedance of transformers. Short circuit impedance is an important parameter of transformers, which reflects the electrical performance of transformers under short circuit conditions. This type of tester usually uses certain measurement methods and technical parameters to accurately measure. The measurement range usually includes the range of voltage and current, while accuracy refers to the accuracy of the measurement results. In addition, the tester may also have other technical parameters, such as impedance, power, etc. In short, the transformer short-circuit impedance tester is an important testing equipment that can help us understand the electrical performance of transformers and ensure their normal operation. When using, attention should be paid to issues such as measurement range, accuracy, usage conditions, and data processing.
The application scope of short-circuit impedance tester mainly covers the following aspects:
① Transformer testing:
The short-circuit impedance tester is mainly used to measure the short-circuit impedance of transformers, which is one of the important parameters of transformers. By measuring the short-circuit impedance, the electrical performance of the transformer can be understood and the presence of faults or defects can be determined.
② Power system analysis:
In the power system, short-circuit impedance is one of the important indicators reflecting the electrical performance of the system. Short circuit impedance tester can be used for power system analysis, helping engineers understand the operating status of the system, optimize system configuration, and improve the stability and reliability of the power system.
③ Preventive maintenance:
By conducting regular short-circuit impedance tests on transformers, potential faults or problems can be identified in a timely manner, enabling preventive maintenance, avoiding the occurrence of faults, and extending the service life of transformers.
④ New equipment acceptance:
For newly installed transformers or other electrical equipment, short-circuit impedance testers can be used for equipment acceptance testing to ensure that the equipment meets design requirements and operating conditions.
In summary, short-circuit impedance testers have a wide range of applications in power systems, transformer manufacturing and maintenance, and other fields. It can not only be used for testing and analysis of transformers, but also for analysis and optimization of power systems, providing strong guarantees for the stable operation of power systems.

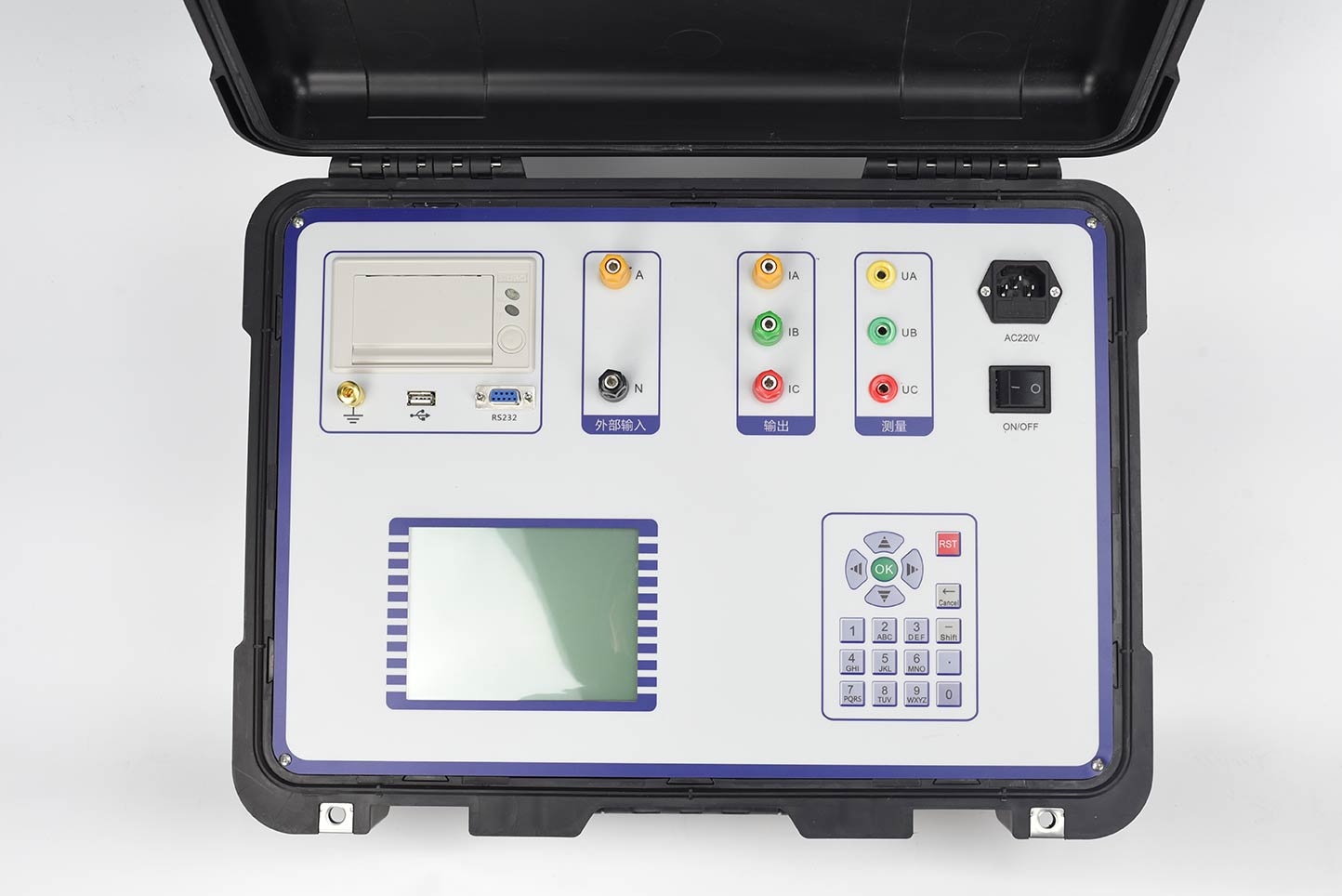

ZC-204B Transformer short-circuit impedance tester has the internal adjustable power output and do not need the outside pressure regulator, only need to provide 220V power supply can be tested, especially suitable for the field of 110kV level and above the main transformer for low voltage short circuit impedance measurement.
