Ultra Low Frequency High Voltage Generator is a device specifically designed to generate ultra-low frequency high voltage signals. It is widely used in scientific research, industry, and medical fields, such as experimental research, power equipment testing, and medical imaging.
The ultra-low frequency and high voltage generator mainly consists of a generator part and an amplifier part. In the generator section, the ultra-low frequency and high voltage generator utilizes a time-based circuit or oscillator to generate stable ultra-low frequency signals, which can usually be adjusted in frequency and amplitude to meet the needs of different applications. The amplifier part is responsible for amplifying the low-power signal generated by the generator to the desired high voltage level. The commonly used amplifier types include power amplifiers, transformers, and common mode amplifiers. In addition, the ultra-low frequency high-voltage generator also has a frequency modulation output function, and its output frequency can be adjusted. Meanwhile, in order to ensure the stability and safety of the output signal, the ultra-low frequency and high voltage generator requires a stable power supply and reliable protection mechanism during operation.
The working principle of an ultra-low frequency and high voltage generator mainly involves signal generation, modulation, power amplification, boost, feedback, and stability control.
Firstly, the generator generates a stable ultra-low frequency signal through an internal oscillator or time base circuit. The frequency of these signals can usually be adjusted within a certain range to meet the needs of different experiments and applications. At the same time, the generator also has signal modulation function, which can adjust the amplitude, phase and other parameters of the signal to adapt to different application scenarios.
Next, the generated signal is amplified by a power amplifier. The power amplifier is responsible for amplifying low-power signals to a level sufficient to drive subsequent boost circuits. Subsequently, the boost circuit utilizes the principle of electromagnetic induction to boost the low voltage signal to the desired high voltage level. During this process, the ultra-low frequency high-voltage generator adopts multi-stage boosting technology to ensure voltage stability and reliability.
At the same time, in order to ensure the stability and accuracy of the output voltage, the ultra-low frequency high-voltage generator is also equipped with feedback and stability control mechanisms. The feedback circuit monitors the output voltage in real-time and compares it with the set value. When the output voltage deviates from the set value, the feedback circuit will send a control signal to adjust the working status of the power amplifier and boost circuit, so that the output voltage can quickly recover to the set value.
In addition, the ultra-low frequency high-voltage generator also has various protective measures, such as overvoltage protection, overcurrent protection, and overheating protection, to ensure the safe operation of the equipment. These protection mechanisms can quickly cut off the power supply or adjust the working status in case of equipment abnormalities, preventing equipment damage or accidents from occurring.
In summary, the ultra-low frequency high-voltage generator achieves stable and reliable generation and output of ultra-low frequency high-voltage signals through the collaborative work of signal generation and modulation, power amplification and boost, feedback and stability control, and other links. This type of equipment has broad application prospects in fields such as scientific research, industry, and medicine.
The ultra-low frequency high-voltage generator is a device used to generate ultra-low frequency high-voltage signals, and its application fields are quite extensive. The following are the main application areas of ultra-low frequency high-voltage generators:
1. Research experiments: In the field of scientific research, ultra-low frequency and high voltage generators are key experimental equipment such as particle accelerator experiments and high-voltage gas discharge experiments. Its principle can be selected according to specific needs, such as transformer principle, voltage doubling circuit principle, and pulse discharge principle, to achieve high voltage output. At the same time, it can also be used for high-voltage experiments, electric field experiments, and air ion experiments, providing stable and reliable high-voltage sources for scientific researchers.
2. Industrial applications: In the industrial field, ultra-low frequency and high voltage generators are often used for testing power equipment, such as voltage withstand tests on power cables and insulation voltage withstand tests on large power transformers. Its characteristic is that there is no damage to the tested cable, and it can also test cables that have begun to age but are still usable. In addition, it can also be used for insulation material testing and control of high-voltage protection devices to ensure the normal operation of industrial equipment.
3. Medical applications: In the fields of medicine and biology, ultra-low frequency high-voltage generators also have some special applications. For example, it can be used for electrical stimulation therapy and cell fusion experiments, providing technical support for medical research and treatment.
Overall, ultra-low frequency high-voltage generators play an important role in scientific research, industry, and medicine, providing stable and reliable high-voltage signals for various experiments and applications. However, due to its working characteristics, strict adherence to operating procedures is required during use to ensure safety.

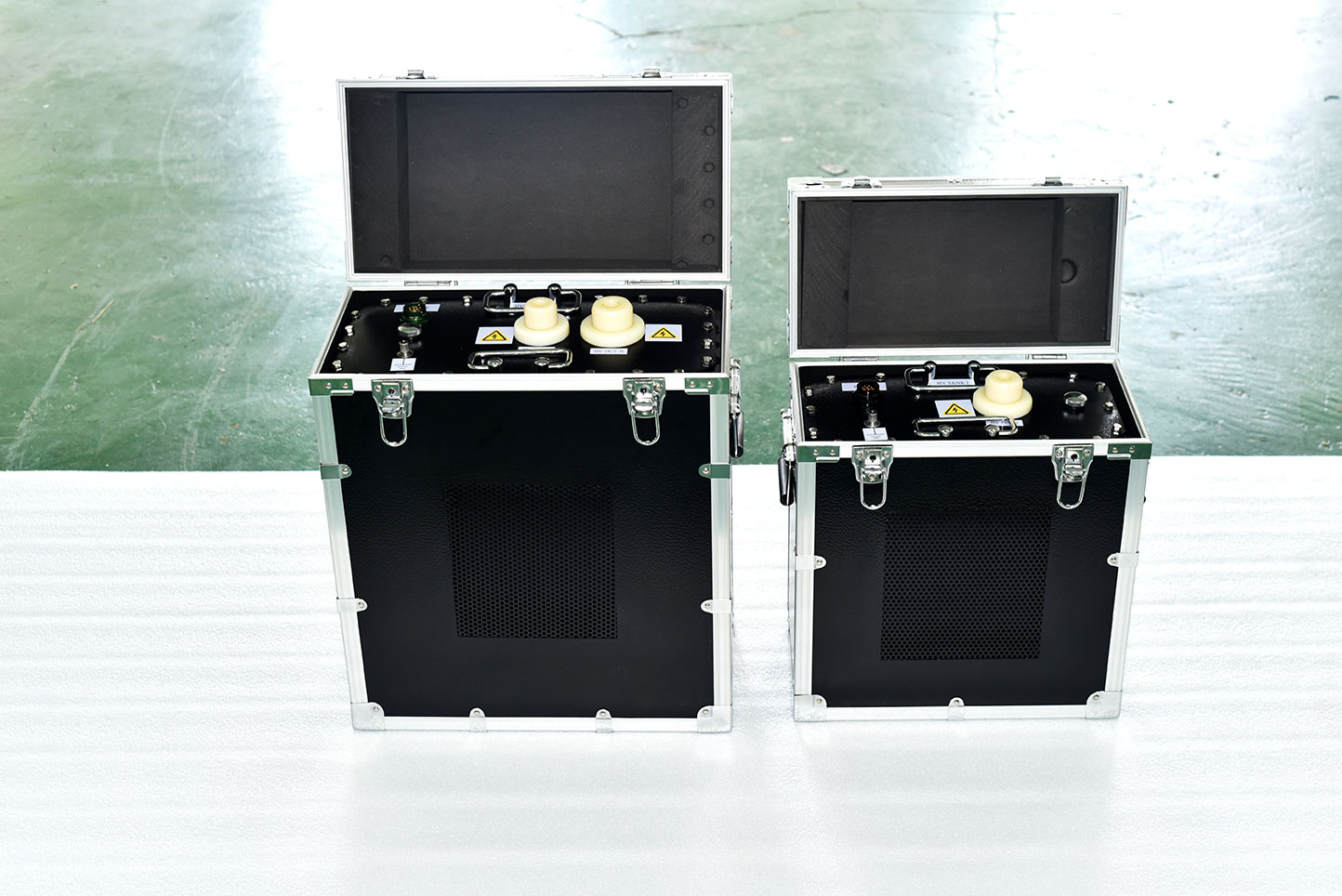

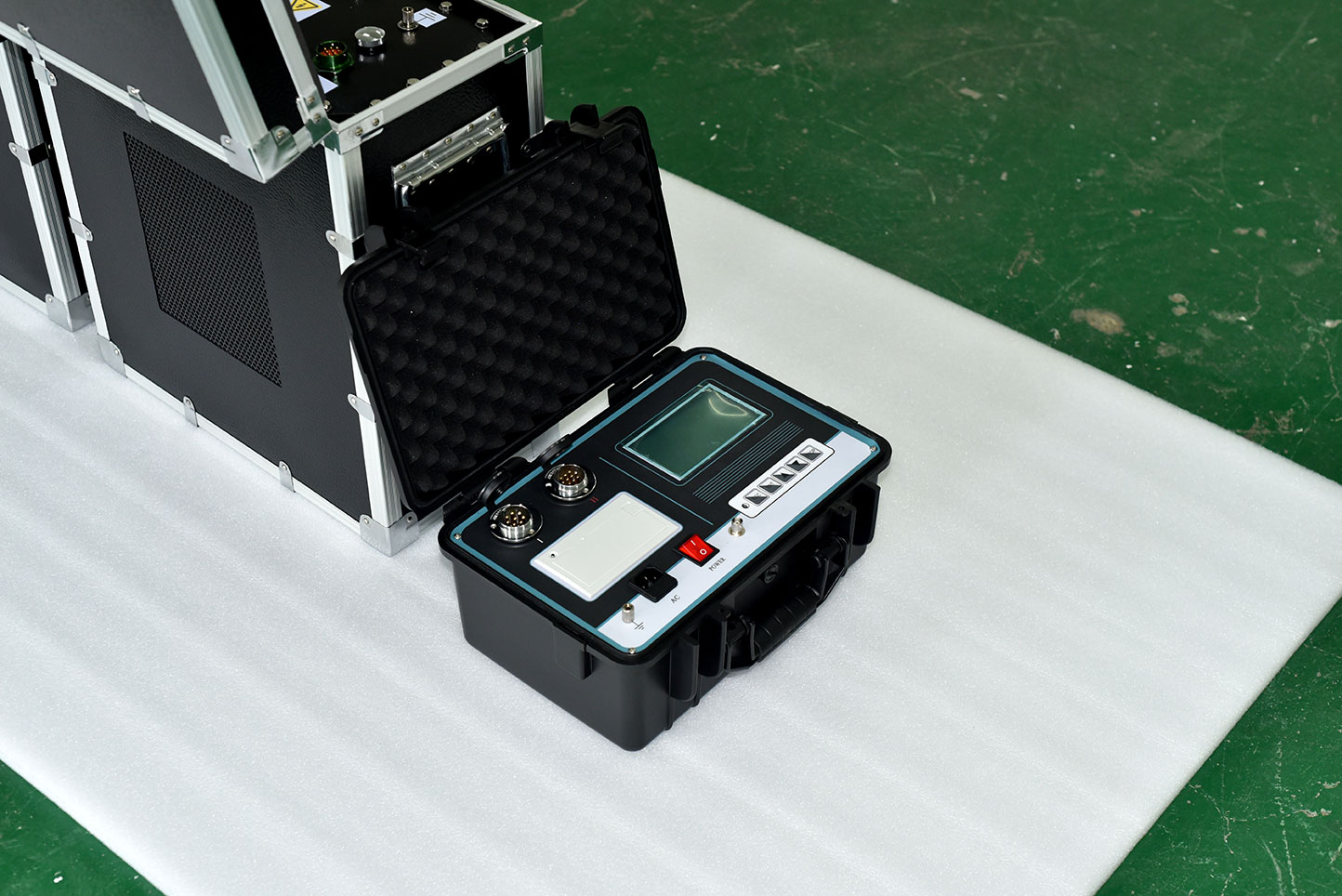

The ZC-524 B ultra-low frequency and high voltage generator combines modern digital frequency conversion advanced technology and adopts microcomputer control. The boosting, lowering, measurement, and protection are fully automated, and manual intervention can be performed during the automatic boosting process. Due to its full electronic design, it has a small size, light weight, large screen LCD display, clear and intuitive display, and a printer that outputs test reports. The design indicators fully comply with the standards of the power industry and are very convenient to use.
