The correct operation of the microcomputer relay protection tester is the key to ensuring testing accuracy. Here are some key steps and precautions to help you operate the microcomputer relay protection tester correctly:
1. Preliminary preparation:
① Check if the device is in normal working condition, including whether the power cord, test cable, and other connections are secure.
② Select the appropriate testing mode and parameter settings according to the testing requirements.
③ Ensure that the microcomputer relay protection tester is reliably grounded to prevent static damage.
2. Connect test object:
① Connect the test wires to the input and output terminals of the relay protection device to be tested, ensuring a stable and correct connection.
② During the connection process, avoid poor contact or wiring errors.
3. Conduct testing:
① According to the testing requirements, select the corresponding testing mode and parameter settings, and start the testing instrument for testing.
② During the testing process, closely monitor the display screen of the testing instrument to ensure the accuracy and stability of the test data.
③ If encountering abnormal situations, such as abnormal test data or equipment failure, the power should be immediately cut off and troubleshooting should be carried out.
4. Analyze test results:
① After the test is completed, conduct in-depth analysis of the test results to ensure the accuracy and reliability of the data.
② If any abnormal situations are found, record and handle them in a timely manner to ensure the safe and reliable operation of the system.
5. End of work:
① After the test is completed, restore the testing instrument to its initial state and disconnect it from the test object.
② Clean up the site, organize testing data, and summarize testing experience and lessons learned.
During the entire operation process, the following precautions should also be taken:
① It is prohibited to plug and unplug data cables with power. Before connecting data cables, the computer and tester host should be turned off.
② To prevent static electricity induction during the operation of the tester, the main unit should be reliably grounded through a grounding terminal before the test.
③ Pay attention to safety, especially when dealing with high voltage output, to avoid the occurrence of electric shock accidents.
④ It is prohibited to apply external voltage and current to the voltage and current output terminals of the tester to prevent damage to the tester.
⑤ Please do not repair the equipment on your own. In case of any abnormal operation, please contact the manufacturer in a timely manner.
Following the above steps and precautions can ensure the correct operation of the microcomputer relay protection tester, improve the accuracy of testing, and ensure the safety of equipment and personnel.

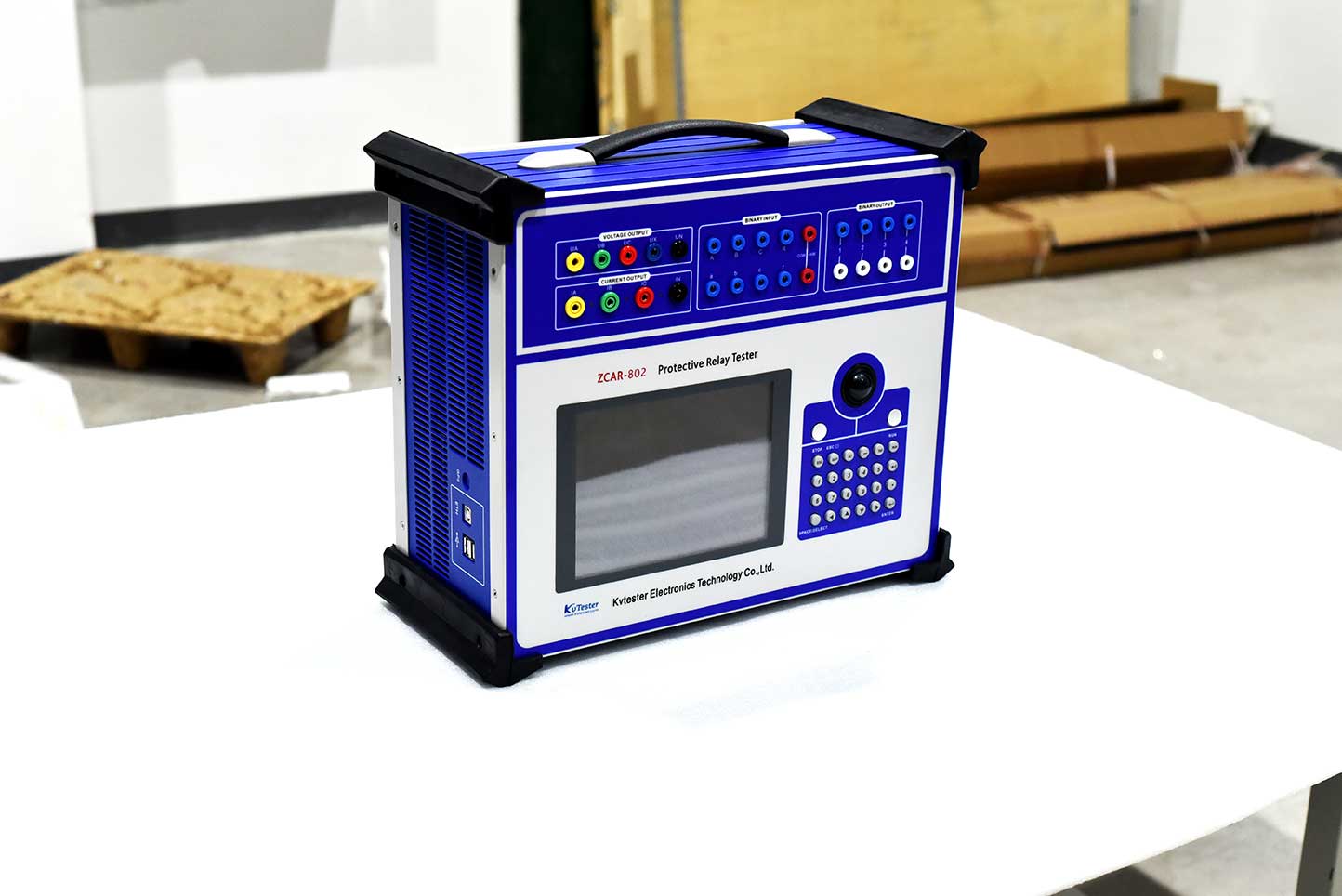

ZCAR-802 microcomputer relay protection tester is an important test tool to ensure the safety and reliability of power system operation.adopted modern latest new digital technology, high precision electronic parts, micro system with new circuits and new structure.It Can independently complete test of microcomputer protection, relay protection, excitation, measurement, fault recording and other professional fields tests, widely used in electric power, petrochemical, metallurgy, railway, aviation, military and other industries of scientific research, production and electrical test site.
