The daily usage skills and maintenance of partial discharge detectors mainly include the following aspects:
1. Usage Tips
① Preparation for startup: Ensure that the partial discharge detector is well grounded, connect a 0-220V power supply, and set the display mode to "oval" (default).
② Discharge calibration: Use a calibration pulse generator to calibrate before applying the test voltage. The measurement box should be as close as possible to the high voltage end of the test sample. Adjust the amplifier gain knob to ensure that the injected pulse height is appropriate (about 2cm on the oscilloscope screen), and ensure that the digital voltmeter reading matches the injected known amount of electricity.
③ Test operation: Connect the power supply of the high-voltage test circuit, slowly increase the test voltage, and pay attention to the voltage at which continuous discharge occurs for the first time, which is the starting voltage of partial discharge. By operating the "Start Phase Selection" (Elliptical Rotation) button switch, place the discharge signal in the elliptical position that is most conducive to observation.
④ Choose the appropriate detection location: Ensure that the probe of the detector can contact all the parts that need to be detected to obtain the most accurate detection results.
⑤ Pay attention to environmental interference: There may be various interferences in the testing environment, and these interferences should be minimized or avoided as much as possible, such as electromagnetic interference, mechanical vibration, etc.
2. Maintenance skills
① Regular cleaning: Regularly clean the casing and display screen of the partial discharge detector to prevent dust and dirt from entering the interior of the instrument.
② Check cables and connectors: Regularly check whether the cables and connectors of the instrument are intact, and replace them in a timely manner if there is any damage.
③ Storage environment: The instrument should be stored indoors in a dry, ventilated, and non corrosive gas environment, with an ambient temperature of -20~60 ℃ and a relative humidity not exceeding 85%.
④ Avoid direct sunlight and high temperatures: When using outdoors, try to avoid direct sunlight exposure to the display screen and ensure that the instrument is not exposed to high temperatures.
⑤ Regular calibration: Regularly calibrate and test the instrument to ensure its accuracy and reliability.
⑥ Maintenance and upkeep: The maintenance and upkeep of instruments should be carried out by trained and competent personnel, and untrained personnel are not allowed to disassemble them without authorization.
Following the above usage and maintenance techniques can ensure the accuracy and reliability of the partial discharge detector, improve detection efficiency, and extend the service life of the instrument.

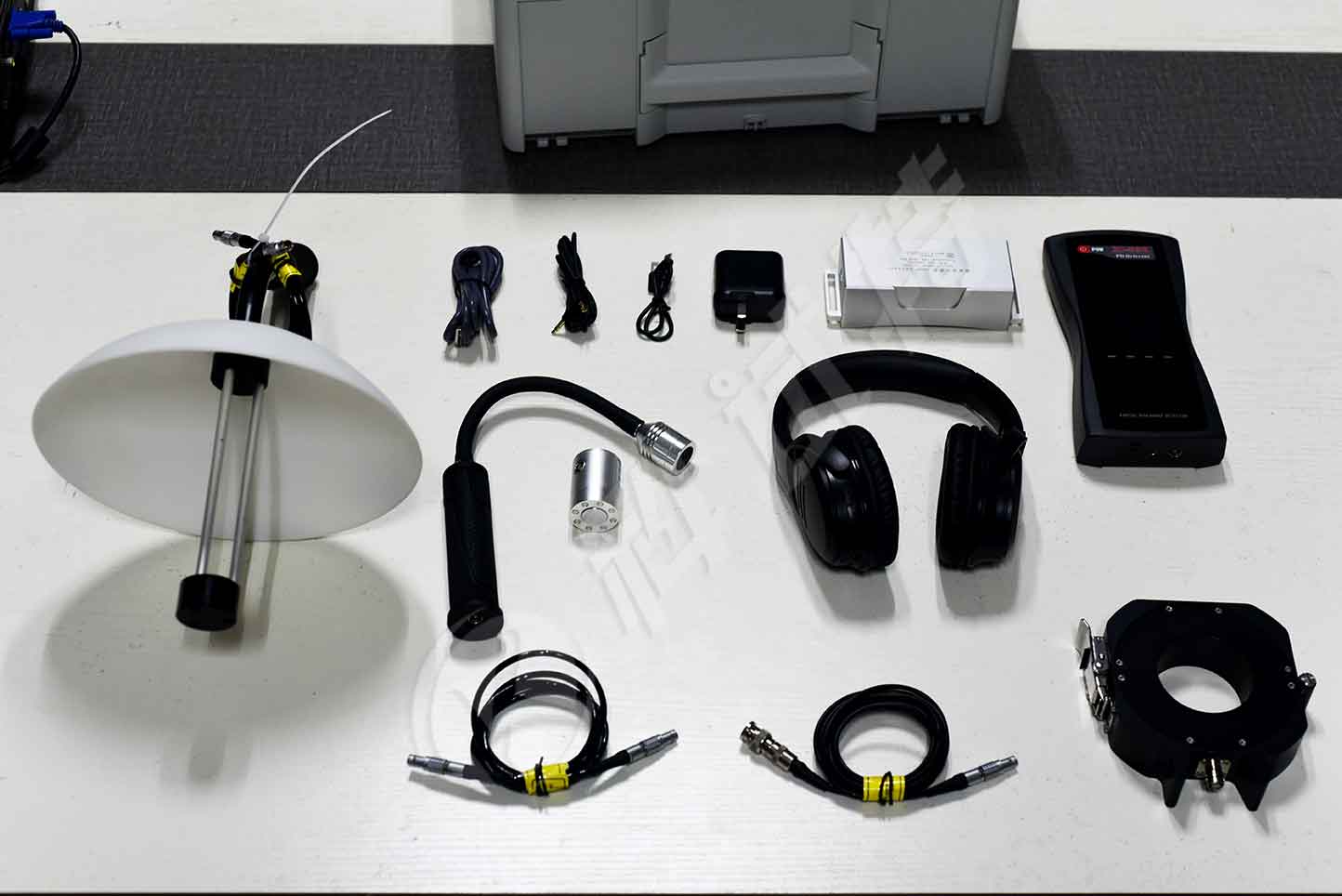

ZC-830 Partial Discharge Detector with portable structure and embedded signal receiving and data processing module, has multiple analysis modes and can conveniently measure the UHF signals and the ultrasonic signals generated by the partial discharge of the electric equipment. Compared with similar products, this product has convenient operation and strong function.Besides the embedded ultrasonic sensor, the host machine of the product is also configured with an external sensor interface for connecting UHF sensor, TEV sensor and external ultrasonic sensor thereto. The uniform interface is adopted for convenient and simple operation.This product widely used in theater testing of power systems, including insulation status testing of high-voltage switchgear, ring-network cabinets, voltage/current transformers, transformers (including dry-type transformers), GIS, overhead lines, cables, and other equipment.
