As the core testing tool of the power system, the relay protection tester covers the entire process of power generation, transmission, distribution, and industrial use. The following analysis will be conducted from three dimensions: industry segmentation, testing types, and technological evolution:
1. Industry segmentation application scenarios
① Power system
Substation debugging: Verify the startup logic of busbar protection, transformer protection, and line protection (such as differential protection and distance protection).
Troubleshooting: By simulating faults such as short circuits and grounding, locate the cause of the protective device's misoperation or refusal to operate.
Routine maintenance: Regularly test the action time and return value of the protective device to ensure equipment reliability.
② Rail Transit
Traction power supply system: Test the response speed of feeder protection and rail potential limiting device (such as 0.1 second action requirement).
Signal system: Verify interlocking logic to prevent train shutdown due to protection misoperation.
③ New energy generation
Photovoltaic/wind farm: Test inverter protection and low voltage ride through (LVRT) function to ensure grid stability.
Energy storage system: Verify the overcharge and overdischarge protection logic of the battery management system (BMS).
④ Industrial users
Petrochemical/Steel: Test the protection of large motors and backup automatic switching devices to avoid major production accidents caused by power outages.
Data center: Verify the UPS system switching time (such as completing the switch within 10ms) to ensure power supply continuity.
2. Test type and application depth
① Basic functional testing
Action value test: Verify the activation threshold of the protection device (such as the action current of overcurrent protection).
Action time test: Measure the time from the occurrence of a fault to the action output of the protective device (such as differential protection<30ms).
② Complex scene simulation
Multiple fault superposition: Simulate three-phase short circuit+ground fault, test the priority logic of the protection device.
Harmonic interference test: Inject 5th and 7th harmonics to verify the anti-interference ability of the protection device.
③ Special industry needs
DC system: Test the fast fuse action characteristics of DC feeder protection (such as<5ms).
Microgrid: Simulate islanding operation and grid switching to verify the coordination of protection devices.
3. New scenarios brought about by technological evolution
① Digital relay protection
IEC 61850 protocol testing: Verify GOOSE message transmission delay (e.g.<4ms) to ensure communication reliability in digital substations.
Sampling Value (SV) Test: Simulate the output of the merging unit and test the sampling accuracy of the protection device.
② Intelligent substation
Network storm test: Inject abnormal messages to verify the network security protection capability of the protection device.
Synchronized clock test: Verify the time accuracy of IRIG-B code to ensure time synchronization of all equipment in the station.
③ New energy grid connection
Broadband oscillation test: Simulate the sub synchronous oscillation caused by wind farm grid connection to verify the suppression ability of the protection device.
Island detection: testing the fast disconnection function of inverters in the event of grid faults.
4. Future application trends
① AI assisted testing
Fault prediction: Analyze test data through machine learning to predict the aging trend of protective devices.
Intelligent testing solution: Automatically generate test sequences to reduce manual configuration time.
② 5G communication testing
Verify the reliability of 5G communication modules in protective devices (such as low latency, high bandwidth transmission).
③ Virtual power plant testing
Simulate distributed energy access and test the scheduling and protection coordination of virtual power plants.
summarize
The application scenarios of relay protection testers have expanded from traditional power systems to emerging fields such as new energy, rail transit, and data centers. The testing requirements have been upgraded from single function verification to complex scenario simulation and digital communication verification. In the future, with the development of smart grid and energy internet, the tester will face the challenges of higher precision, faster response and more complex test scenarios, and needs continuous technological innovation to meet the needs of the industry.

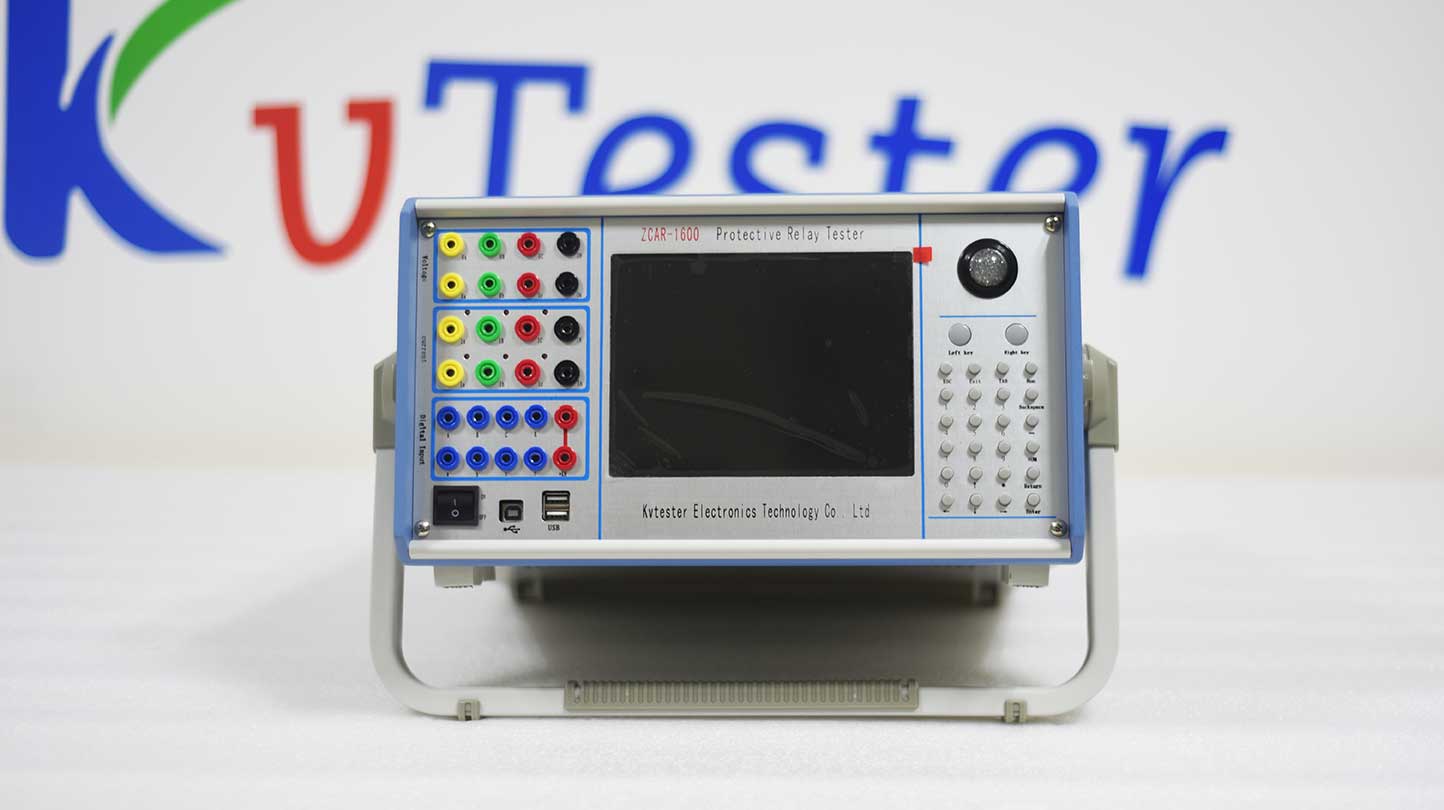

ZCAR-1600 microcomputer relay protection tester adopts high performance industrial PC as the control microcomputer and Windows operating system can be run on it directly.The whole process of the test and the test results are displayed on the liquid crystal display screen. English interface, Clear, intuitive and convenient.
ZCAR-1600 microcomputer relay protection tester is an important test tool to ensure the safety and reliability of power system operation.With the rapid development of computer technology, microelectronics technology and power electronics technology, it is an inevitable trend to launch new high performance relay protection test equipment by applying the latest technical achievements. ZCAR-1600 microcomputer relay protection tester is developed based on the standards of Technical conditions of microcomputer relay protection test device which was published by electric power department originally, referenced and summarized development and production experience, adopted modern latest new digital technology, high precision electronic parts, micro system with new circuits and new structure.It Can independently complete test of microcomputer protection, relay protection, excitation, measurement, fault recording and other professional fields tests, widely used in electric power, petrochemical, metallurgy, railway, aviation, military and other industries of scientific research, production and electrical test site.
