CT parameter analyzer is a multifunctional current and voltage transformer characteristic tester designed according to iec60044-1 / gb1208, iec60044-2gb1207, iec60044-6 / gb16847 and c57.13. The tester can obtain the excitation characteristic, excitation parameter, smash ratio, smash ratio error, polarity, coil resistance and hysteresis loop of current transformer. The high inflection point voltage of current transformer can be measured Up to 60kV. This paper introduces CT / Pt parameter analyzer in detail.

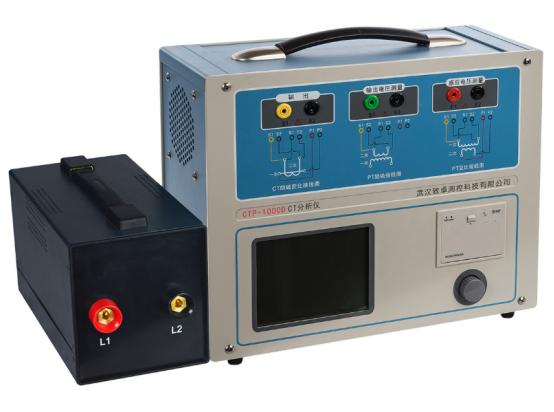

Ctp-1000d CT / Pt parameter analyzer is a new generation of innovative CT and Pt testing instrument developed by Zhizhuo measurement and control company based on the traditional transformer volt ampere characteristic ratio polarity comprehensive tester of voltage regulator, booster and current riser, which widely listens to the user's opinions, after a lot of market research and in-depth theoretical research. The device adopts high-performance DSP and FPGA, advanced manufacturing technology, which ensures the product stable and reliable performance, complete function, high automation, high test efficiency, and is at the leading level in China. It is a professional test instrument used for transformer in the power industry.
And ctp-1000d CT / Pt parameter analyzer can check the ratio difference and angle difference of transformer and allow the error. Ctp-1000d CT / Pt parameter analyzer can also test and analyze CT transient characteristics and analyze the influence of CT state characteristics on relay protection device. It can also be used for PT excitation characteristic test, Pt turn ratio detection, Pt polarity verification, PT secondary winding resistance measurement, PT secondary load measurement.
Ctp-1000d CT / Pt parameter analyzer can be used in the following occasions:
1. It is suitable for Electric Power Research Institute to carry out transformer calibration;
2. It is suitable for the factory calibration of the transformer manufacturer;
3. Meet the preventive test of power sector;
4. Meet the handover test of engineering units and panel and cabinet enterprises.
The above are some basic features of ctp-1000d CT / Pt parameter analyzer. It can be seen that ctp-1000d CT / Pt parameter analyzer is a practical instrument with comprehensive functions and convenient on-site flow test. It can also be exported by U disk and can store 1000 groups of test data. At the same time, it is easy to carry and test. It is also very easy for novices to master. It is very worth purchasing.
