The zc-506 electronic multiple frequency withstand voltage device developed by our company is designed and manufactured to meet the further needs of power workers. It has been proved by the majority of users that its operation is simple, its performance is reliable, and it can better meet the needs of induction withstand voltage test of transformers and transformers.

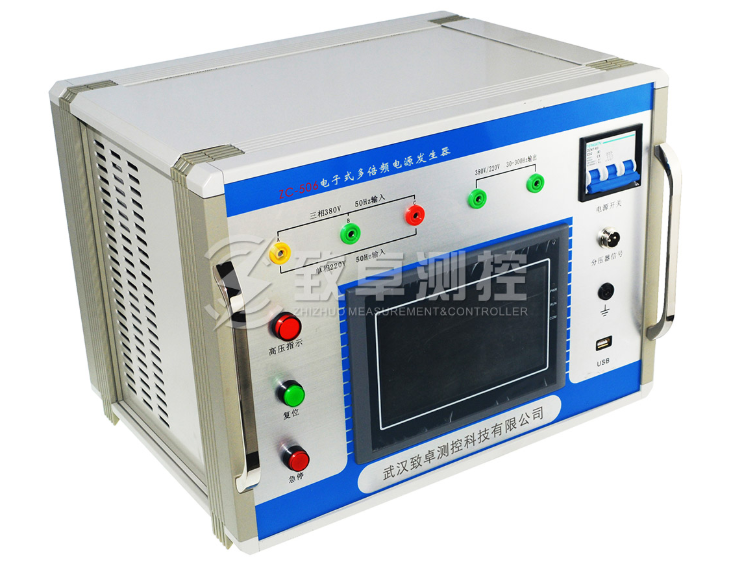

Zc-506 electronic multiple frequency withstand voltage device
Now let's introduce the functional characteristics of zc-506 electronic multiple frequency withstand voltage device, so that you can fully understand zc-506 electronic multiple frequency withstand voltage device
Zc-506 electronic multiple frequency withstand voltage device has the following features:
(1) Test number: used to distinguish and record different tests, setting range: 1-30000.
(2) Test frequency (Hz): set the output frequency, setting range: 20-300
(3) PT ratio: set the PT ratio of the tested object
(4) Capacity rise voltage (%): set the capacity rise voltage percentage of Pt, setting range: 0.5 ~ 15.5%
(5) Test high voltage (kV): set the target voltage value of boosting at high voltage side during test
(6) Step up amplitude (V): set the amplitude of single step step step up when the host voltage output
(7) Current protection (a): set the current limit value of the output of the main unit, if it exceeds the secondary limit value, turn off the output automatically
(8) Withstand voltage time (seconds): set the time for timing when the boost voltage reaches the target value. When the value is exceeded, the host will automatically turn off the output
(9) Voltage detection: set the sampling point to detect the output voltage of the high voltage side during the test.
Low voltage side: use the output voltage of the host, Pt transformation ratio and capacity rise voltage to calculate the output voltage value of the high voltage side.
High voltage side: use the output value of the voltage divider to calculate the output voltage value of the high voltage side (the transformer ratio of the voltage divider is 1000 by default)
(10) Test mode: set the control mode of test output
Automatic: in the test interface, click "start test", the host will automatically boost to the target voltage value,
Then, automatic timing, when the withstand time is up, the output will be automatically turned off
Manual: in the test interface, after clicking "start test", you need to manually click "increase voltage" and "decrease voltage" to adjust the output voltage value. When the voltage is increased to the target value, it will automatically count, and when the voltage withstand time is up, it will automatically turn off the output
As can be seen above, zc-506 electronic multiple frequency withstand voltage device has complete and powerful functions, and its safety performance is also very reliable, which is worth purchasing. If you do
