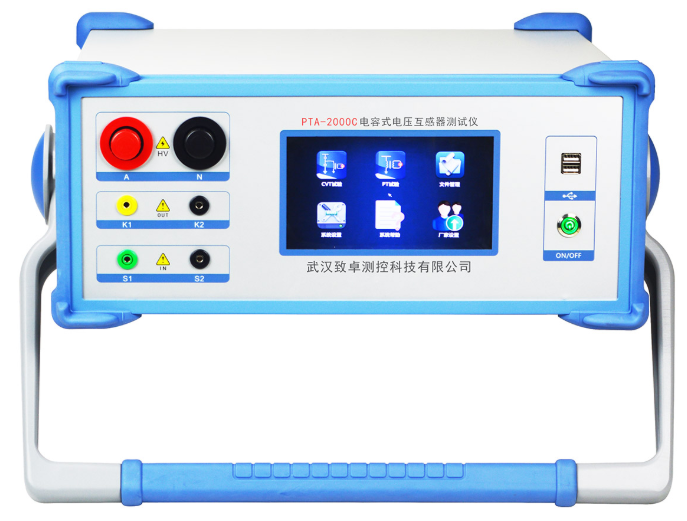

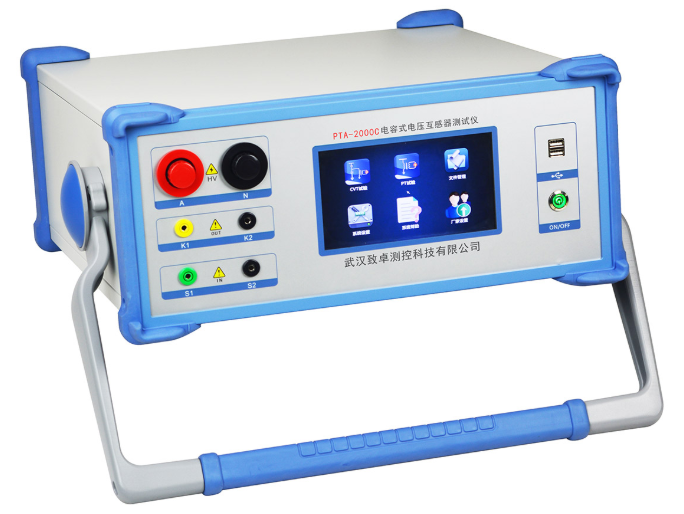

Pta-2000c capacitor voltage transformer tester is a new generation of innovative Pt testing instrument developed on the basis of traditional transformer calibration device based on voltage regulator, booster and series resonance, which widely listens to the user's opinions, after a lot of market research and in-depth theoretical research.
The device adopts high-performance DSP + FPGA, advanced arm industrial control computer and advanced manufacturing process, which ensures the stable and reliable product performance, complete function, high degree of automation, high test efficiency and leading level in China. It is a professional test instrument used for transformer in the power industry.
Pta-2000c capacitor voltage transformer tester panel introduction:
Device panel description

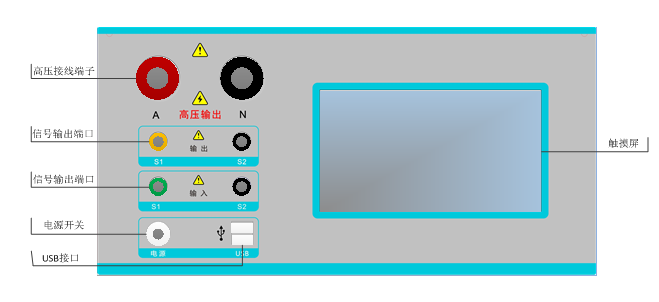

Front layout

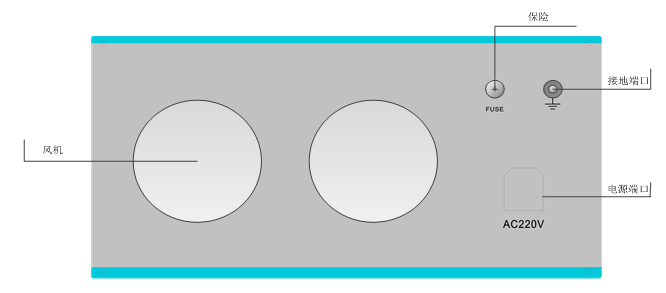

Rear panel layout

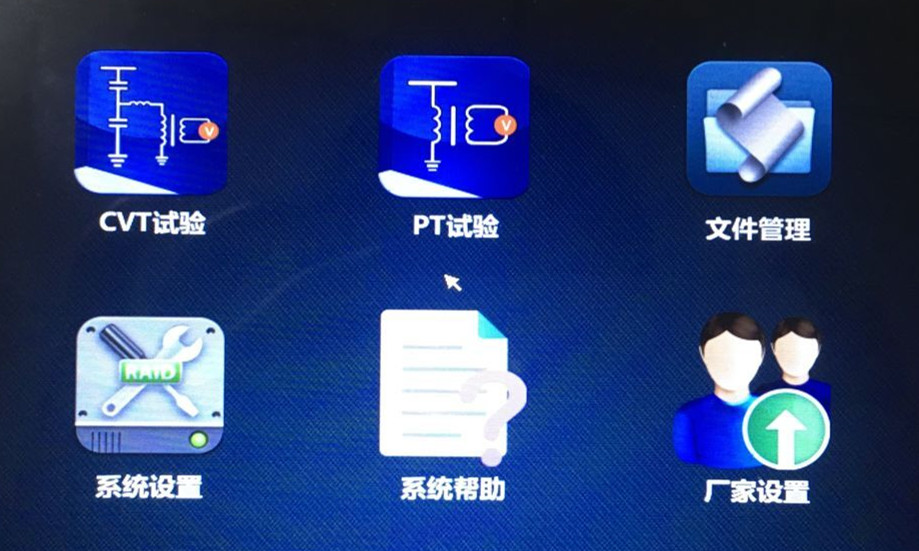

There are five functional modules in the main interface after startup as shown in the figure
Main interface diagram of power on
CVT test: conduct various tests of capacitive Pt;
PT test: carry out various tests of voltage transformer;
File management: query, export and delete the saved test records
System setting: set system parameters and test standards;
System help: display system software and hardware information and test wiring diagram;
