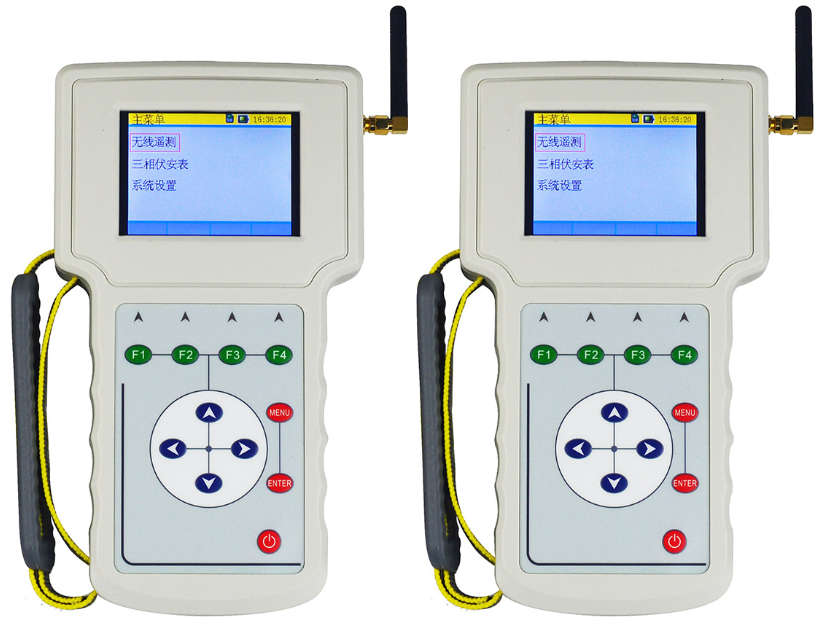

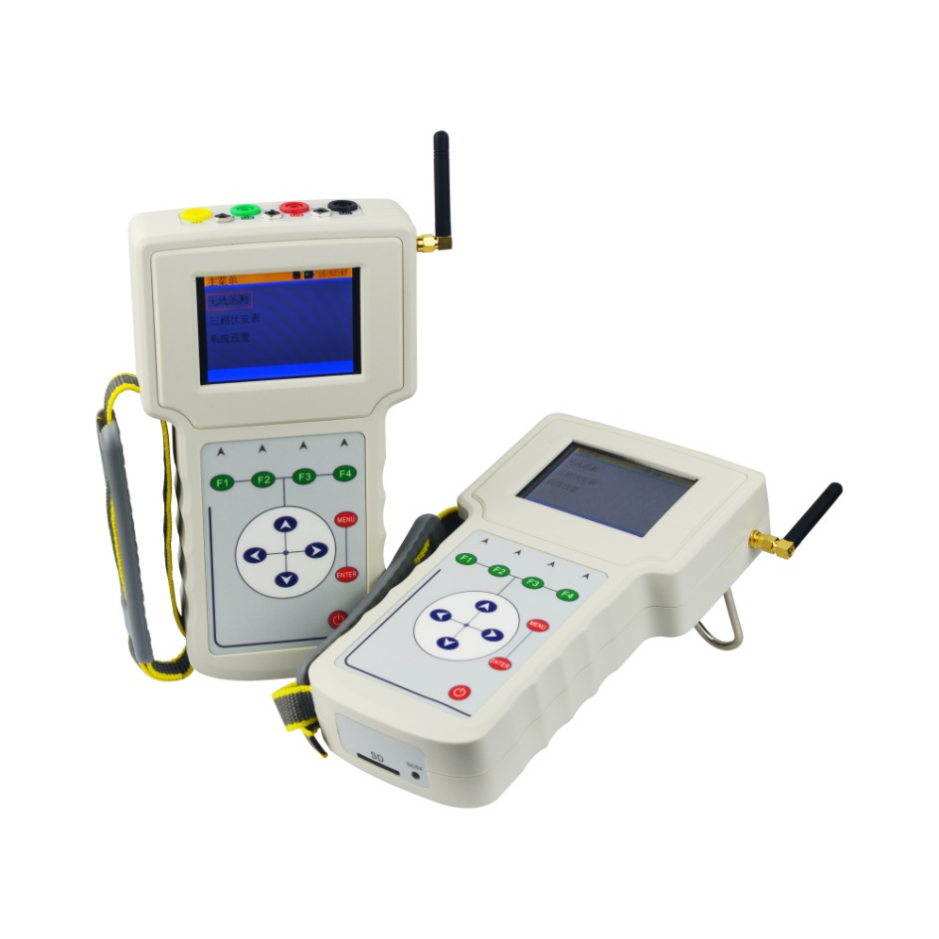

Zc-650 protection circuit vector analyzer is a new generation instrument developed by our company with the latest technology. It is composed of two handheld measuring terminals, which can measure six voltage, current amplitude and phase synchronously wirelessly, and can also be used as a three-phase volt ampere phase meter separately.
Zc-650 protection loop vector analyzer adopts key press operation, can automatically switch the range, realize large capacity storage, and can display vector diagram, which is very suitable for differential detection, start-up test field use such as electric energy measurement, electric power inspection, power transformation maintenance, relay protection, etc. It can be used as training tool and teaching instrument for wiring discrimination in electric power colleges. At the same time, it is also suitable for large-scale power consumption enterprises such as chemical industry, metallurgy, mining, railway, etc.
This paper will take the page of "three-phase volt ampere" function of zc-650 protection loop vector analyzer as an example to introduce the use interface of the instrument.
1. Function indication

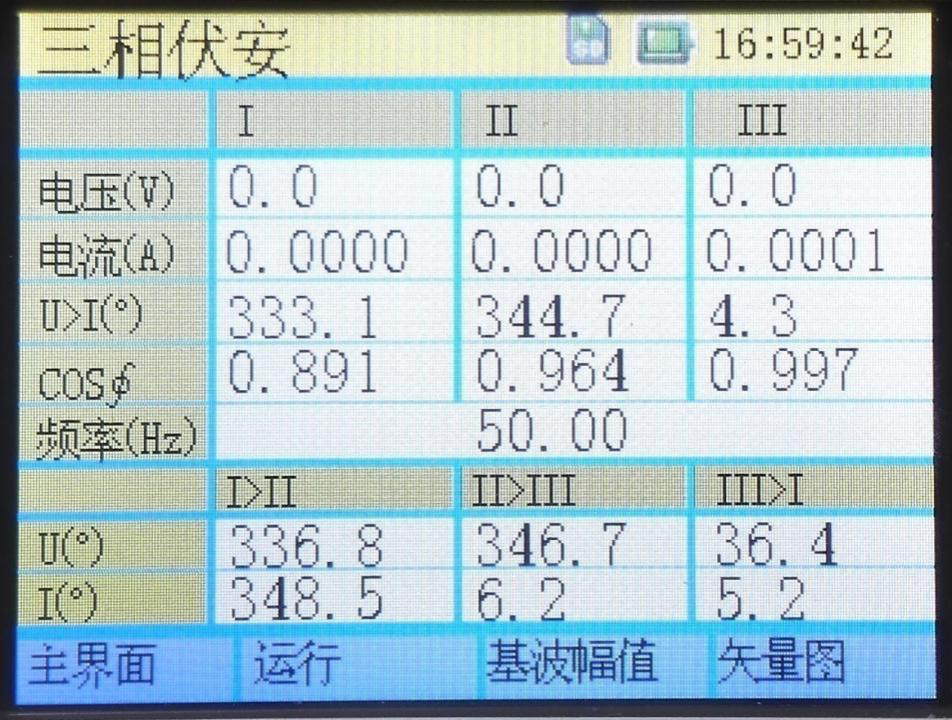

The "three-phase volt ampere" in the upper left corner of the interface in Figure 2 indicates the current measurement function.
2. Status icon indication
There are two status icons in the upper part of the interface in Figure 2, which respectively represent SD card status and battery power status.
Figure 2
3. Time indication:
The upper right part of the interface in Figure 2 is the time display area, indicating the current time.
4. Function key prompt
At the bottom of Figure 2 is the function key prompt area, indicating the functions of F1, F2, F3 and F4. If the corresponding area of a key is empty, it means that the key does not work in this interface. As shown in this interface, F1 means to return to the main interface, F2 means to stop refreshing the page, F3 means to be in the basic wave amplitude measurement state, F4 means to enter the vector diagram interface.
5. Display operation area
The middle part of the above interface is the display operation area, where the measurement results are displayed and the parameter settings are changed.
6. Status icon description
SD card status description:
indicates no SD card is detected
, indicating SD card is detected.
Battery state description:
,
,
,
,
respectively, indicates that the battery power is from low to high. If it is currently charged, it will display, one by one
,
,
,
.
Do you understand the interface of zc-650 protection loop vector Analyzer? If you have any questions, you can consult our online customer service at any time. We will answer them for you in detail.
