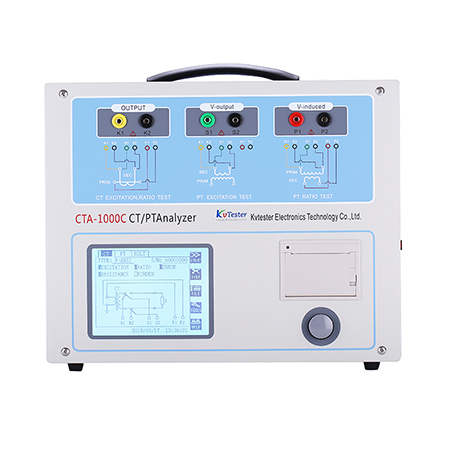

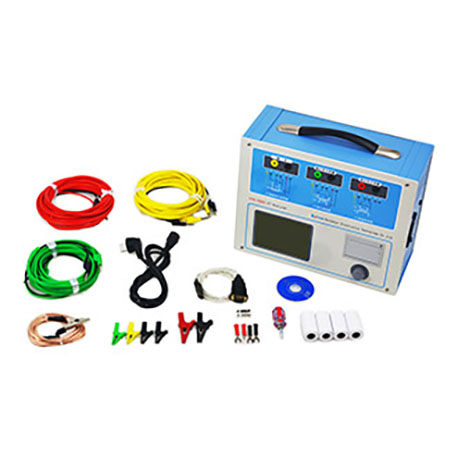

CT Analyzer

type:CTA-1000(Not Available)
Online Service
  • Product Introduction
         The CT analyzer automatically determines all relevant current transformer values and compares the results to the selected criteria. After 10 years of testing and development experience with our technicians, this CT analyzer can evaluate current transformers in accordance with IEC or IEEE standards in just a few seconds with the push of a button.
         It facilitates rapid and economical field testing and calibration of metering and protection current transformers. Current transformers, high voltage transformers and switchgear manufacturers are also testing with CT analyzers during development and production.


  • Product Parameters
Type CTA-1000C
Usage CT,PT
Reference standards GB1207-2006, GB1208-2006, GB16847-1997
IEC60044-1, IEC60044-6, IEC61869-2-2012
Output 0~180Vrms,12Arms,36A(peak value)
Voltage measurement accuracy ±0.1%
CT Ratio Range 1~40000
accuracy ±0.05%
PT Ratio Range 1~40000
accuracy ±0.05%
Phase Range ±2min
accuracy 0.5min
DC resistance Range 0~300Ω
accuracy 0.2%±2mΩ
Burden Range 0~1000VA
accuracy 0.2%±0.02VA
Power supply AC220V±10%/AC110V±10%,50/60Hz
Environmental Conditions Operating temperature: -10℃~50℃
Humidity:≤90%
Weight and Dimensions Dimensions:365mm×290mm×153mm
Weight:≈10kg



  • Product Features

   1. Wide range of measurements:

Current Transformer (CT)Voltage Transformer (PT)
CT ratio and phase-angle accuracy PT excitation and saturation
CT accuracy for different burdens Burden impedance
CT winding resistance PT polarity
CT inductance (saturated and unsaturated) Winding resistance Saturated and non-saturated inductance
CT excitation characteristics
ALF and FS (direct and indirect)
Burden impedance

CT residual magnetism


   2. The highest measurement accuracy of the CT analyzer: 0.05% / 2 minutes during field calibration;
   3. Easy to use. The CT Analyzer can test all types of single-rate and multi-ratio current transformers and evaluate current transformers in seconds with the push of a button.

   4. CT analyzers can be automatically evaluated according to IEC and IEEE standards;

   5. CT analyzer debugging time is short (automatic test time <2 minutes);

   6. Excellent workplace safety - test runs up to 180V;

   7. CT tester is small in size and light in weight (<9kg / 19.8lbs), which is convenient for on-site testing;

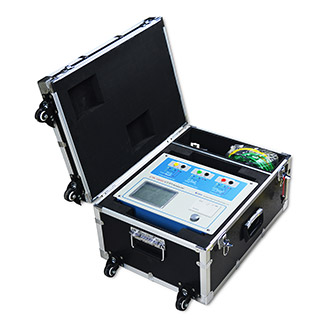

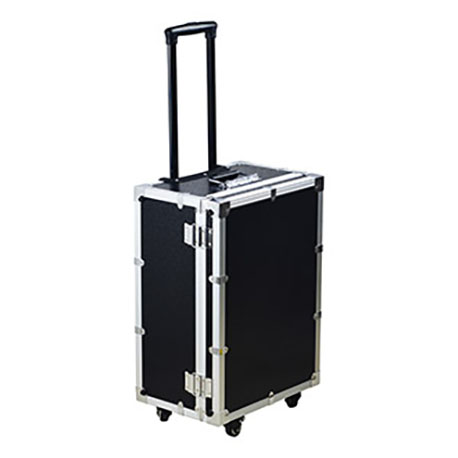

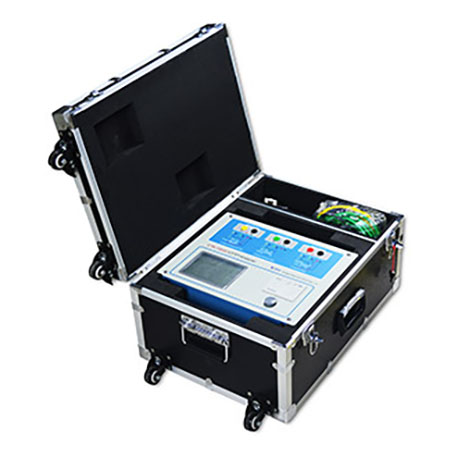

   8. CT analyzer adopts professional pull box design, which is easy to carry and anti-vibration.
Applications
    The following values can be determined using the CT/PT Analyzer:
    1. CT:
    (1) Accuracy of the ratio and phase angle, taking into consideration the nominal burden and connected burden
    (2) CT excitation and saturation
    (3) Burden impedance
    (4) Winding resistance Saturated and non-saturated inductance
    (5) CT polarity
    2. PT:
    (1) PT excitation and saturation
    (2) Burden impedance
    (3) Winding resistance Saturated and non-saturated inductance
    (4) PT polarity
