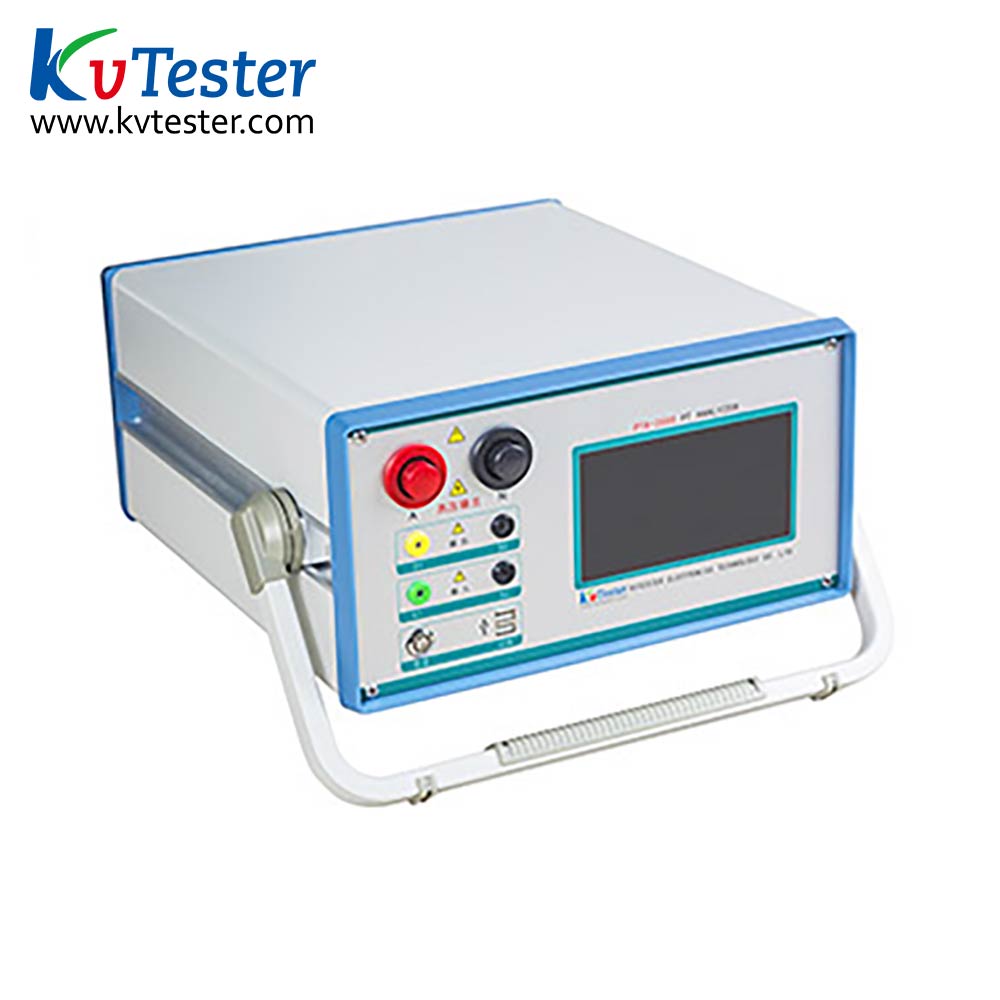

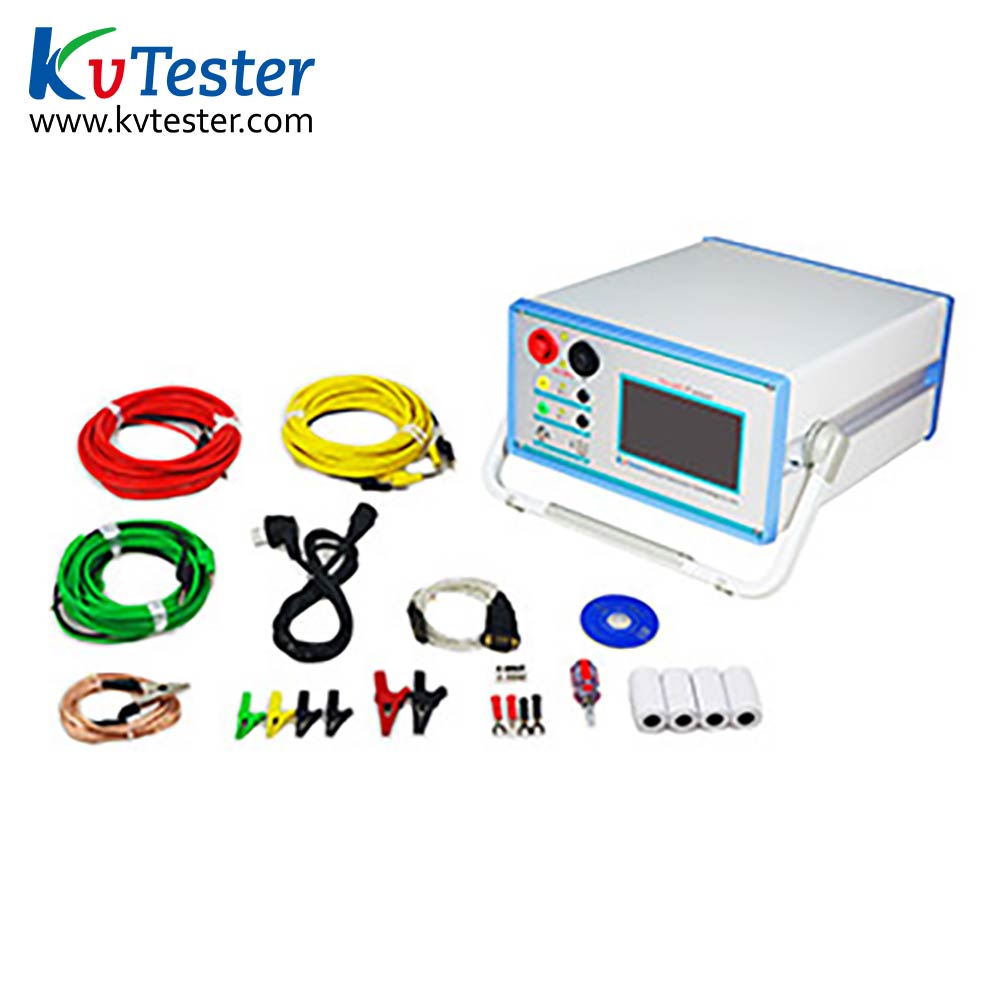

PT Analyzer

type:PTA-2000
Online Service

TAGS:

  • Product Introduction

   The PTA-2000 PT Analyzer breakthrough the traditional method of comparative testing,and no need to standard PT(VT) , voltage regulator, booster,burden on site. It establishes the mathematical model of PT(VT) and obtains its excitation characteristics and error data by analytical method.
    Device adopts high performance DSP+FPGA and ARM industrial computer, advanced manufacturing technology, to ensure stable and reliable product performance, complete functions, high degree of automation, high testing efficiency, in the domestic leading level, is professional testing instrument for transformer in electric power industry.

  • Product Parameters
Type PTA-2000
Usage PT:excitation characteristic,ratio,polarity,secondary winding resistance test etc.
Working power supply Input voltage 185Vac~250Vac
Input voltage(allowable) 85Vac~264Vac
Frequency 50/60Hz
Frequency(allowable) 45Hz~65Hz
Input power 800VA
Connection Standard AC socket 60320
PT ratio
accuracy
Ratio 1~350 0.03%(typical value)
Ratio 350~1100 0.05%(typical value)
Ratio>1100 0.07%(typical value)
Phase measurement Resolution 0.01min
Accuracy 2min
Secondary winding resistance test Range 0Ω~500Ω
Resolution 1mΩ
Accuracy 0.5%±2mΩ(Guaranteed value)
AC load measurement Range 0VA~1000VA
Resolution 0.01VA
Accuracy 0.5%±0.05VA
Output Low-voltage output 0~120V 5Arms, current:12A(peak)power:600VA
High-voltage output 0~3000V
Environment condition Operating temperature -10℃~+50℃
Storage temperature -25℃~+70℃
Relative humidity 5%~95%,No dew
physical characteristics Size 365mm×290mm×155mm
Weight ≈18kg(not include attachments)


  • Product Features
      1. The pta-2000 PT analyzer can realize the error detection of voltage transformers without the need of resonance booster, standard voltage transformer, load box, calibration instrument and other equipment, which greatly reduces the workload of on-site calibration errors.
      2. The test range is wide, can test the voltage level of 6kV~800kV electromagnetic voltage transformer.
      3. Using internal  0.01 level standard voltage transformer, low voltage transformer error measuring by difference test method, and using different frequency measurement technology, nonlinear error of PT conversion 50Hz, finally get the error of transformer. Instrument test level can reach 0.05 level. During the testing process, the maximum generation of test voltage is not more than 3kV, to ensure the safety of the field test.
      4. The test wiring ,operation is simple and easy to learn, just according to the guide prompt operation can easily complete transformer calibration work greatly improve the test efficiency. Test time is short, less than 5 minutes.
      5. The software algorithm is accurate, the accuracy of measurement data to further improve the intelligent judgment connection status, prompt connection error, wrong polarity ratio, etc..
      6. Automatic test data for the whole, and to determine whether the ultra poor, super bad data using anti black display, the data characteristics of the mutual inductor intuitive and clear.
      7. Large memory can store the test data of up to 10000.
      8. The use of aluminum chassis, with good anti-interference, and to ensure the safety of the operation personnel and equipment safety in the field of high voltage test.
      9. Using high resolution and large size 8 inch true color liquid crystal display, outdoor strong light under the clear display, with touch screen auxiliary operation, simple and quick, full Chinese display operation, easy to understand.
