Insulation & Earth Resistance Tester

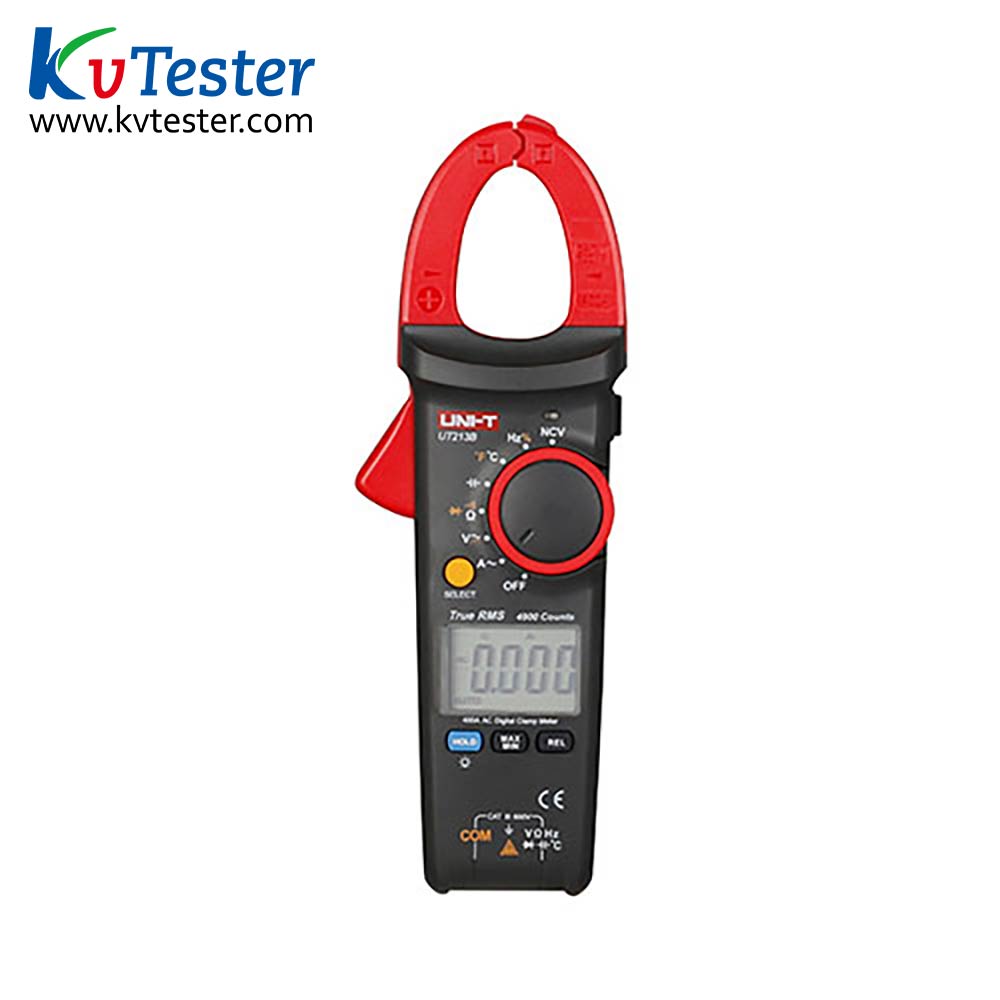

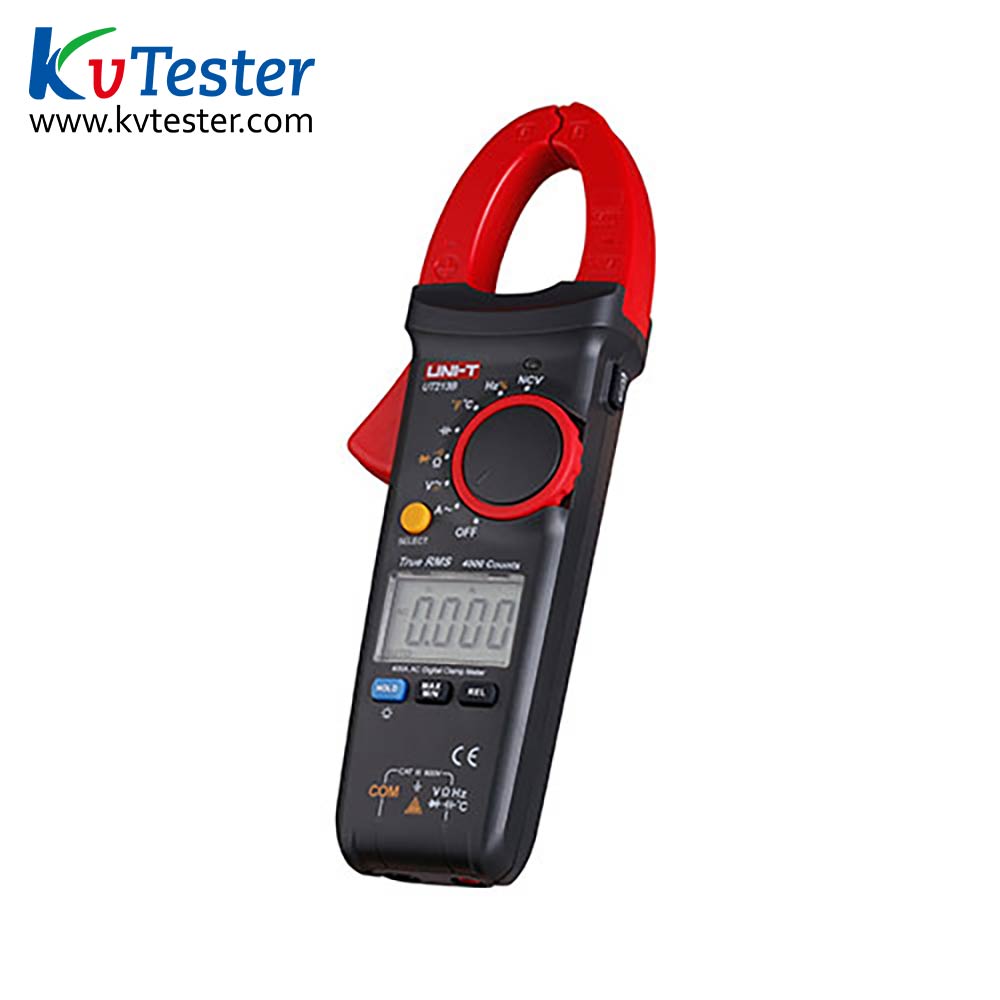

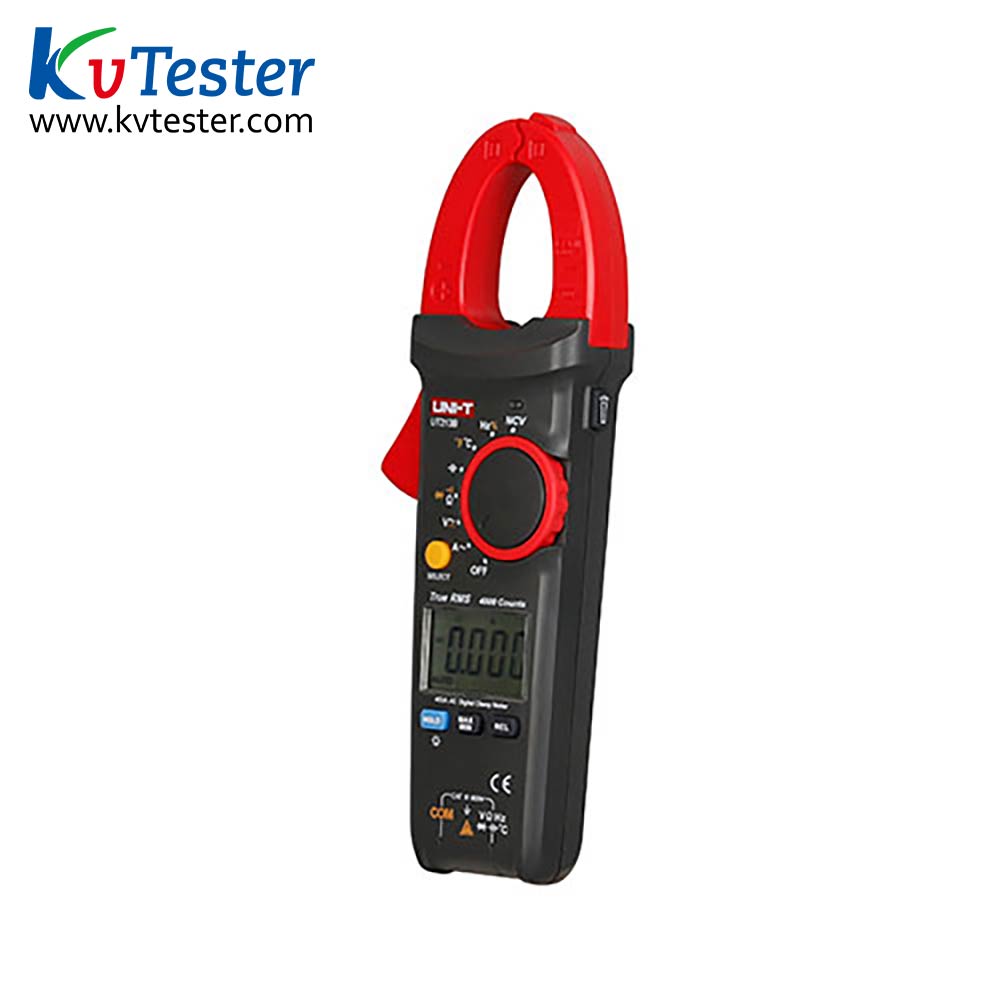

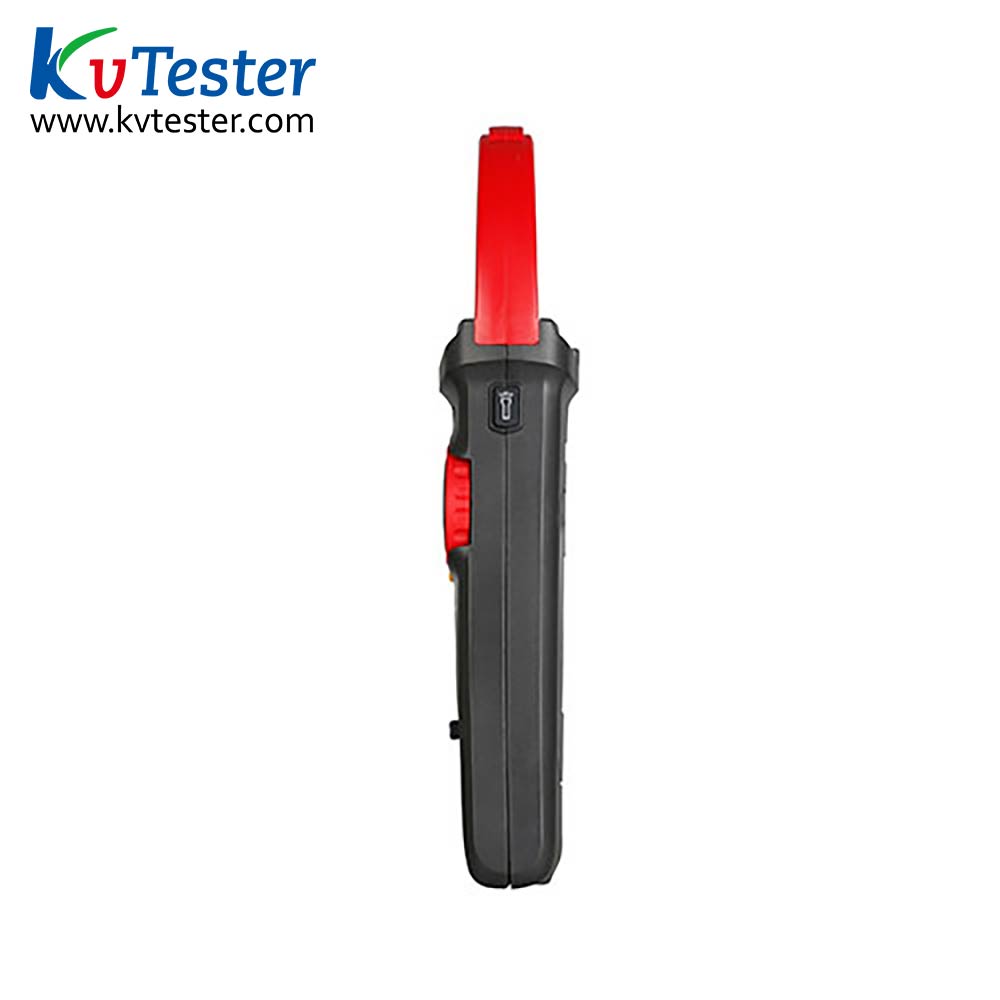

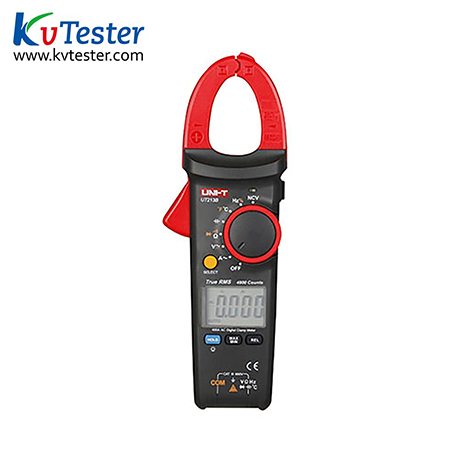

400A digital clamp meter

type:UT213B
Online Service

TAGS:

  • Product Introduction

UT213 series true effective digital clamp meter, maximum 400A AC current detection, complete functions, complete basic measurement functions of AC and DC voltage, resistance, capacitance, frequency, temperature, etc., built-in flashlight and LCD backlight, still unaffected in dim working environment. With Hall effect sensor, UT213C can detect AC and DC current, CTA III 600V, safe and durable, compact design, and can be operated by one hand.


  • Product Parameters
Basic functionRangeAccuracy
Model
UT213AUT213BUT213C
AC current(A)4A/40A/400A±(1.8%+9)±(1.8%+9)
40A/400A

±(2.5%+5)
DC current(A)40A/400A

±(2.0%+3)
AC voltage (V)4V/40V/400V/600V±(1.2%+5)±(1.2%+5)±(1.2%+5)
DC voltage (V)400mV/4V/40V/400V/600V±(0.8%+1)±(0.8%+1)±(0.8%+1)
Resistance (Ω)400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ±(1.0%+2)±(1.0%+2)±(1.0%+2)
Capacitance (F)50nF/500nF/5uF/50uF/100uF±(4.0%+5)

40nF/400nF/4uF/40uF/400uF/4mF/40mF
±(4.0%+5)±(4.0%+5)
Frequency (Hz)10Hz~1MHz±(0.1%+4)±(0.1%+4)±(0.1%+4)
Maximum value display
399939993999
Opening size
30mm30mm30mm
Diode test
约1.5V约3V约3V
Fuselage size220x75x40mm
Fuselage weight280g(UT213A/B)   231.7g(UT213C)


  • Product Features

1. Hall effect sensor AC/DC current 40A/400A measurement (UT213C only)

2. Automatic range, more rapid and effective measurement

3. The maximum display is 3999 words of reading, and the sampling rate is 3 times per second

4. True RMS, effective expression of abnormal AC signal (only UT213B/C)

5. With NCV non-contact AC power test function

6. With frequency and duty cycle measurement function

7. Flashlight function, suitable for night or dark work

8. With K-type point temperature probe temperature measurement function (only UT213B/C)

9. LCD backlight function can effectively read in dark environment

10. Through the impact strength test, it can withstand the impact of one meter on the ground
