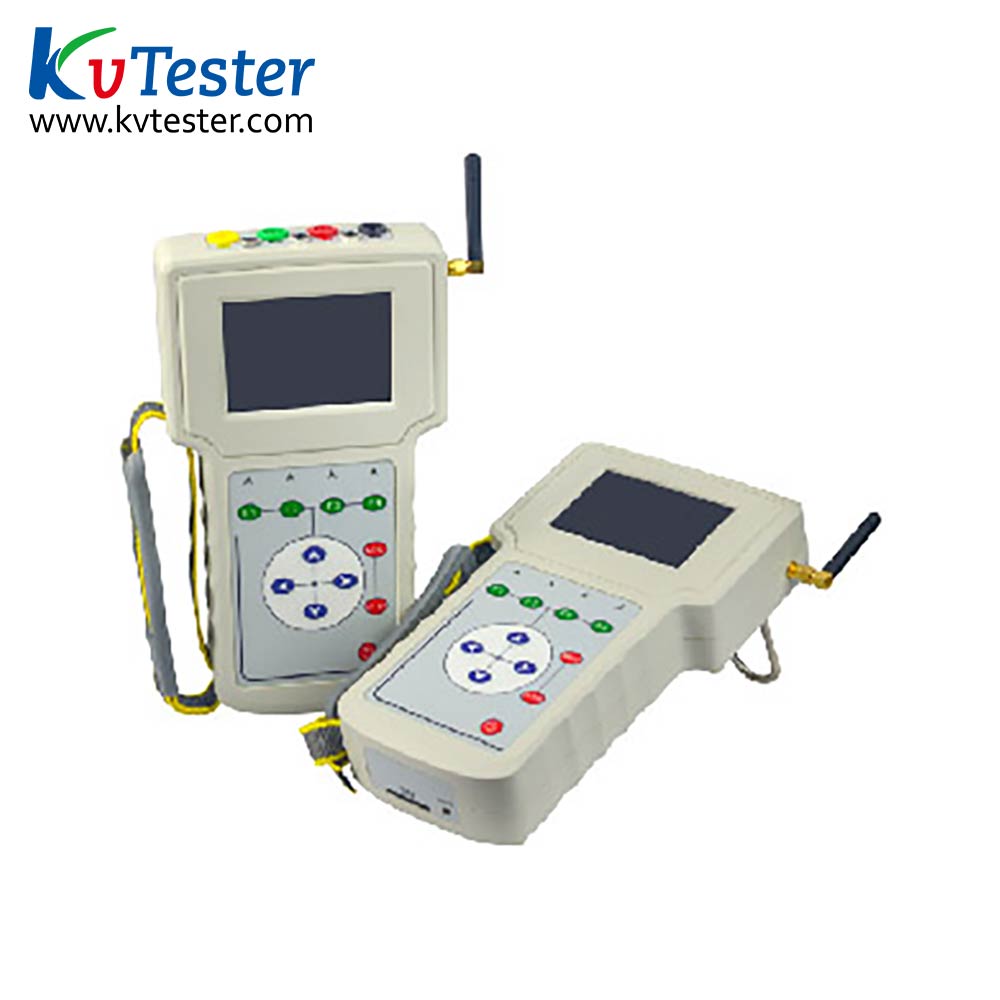

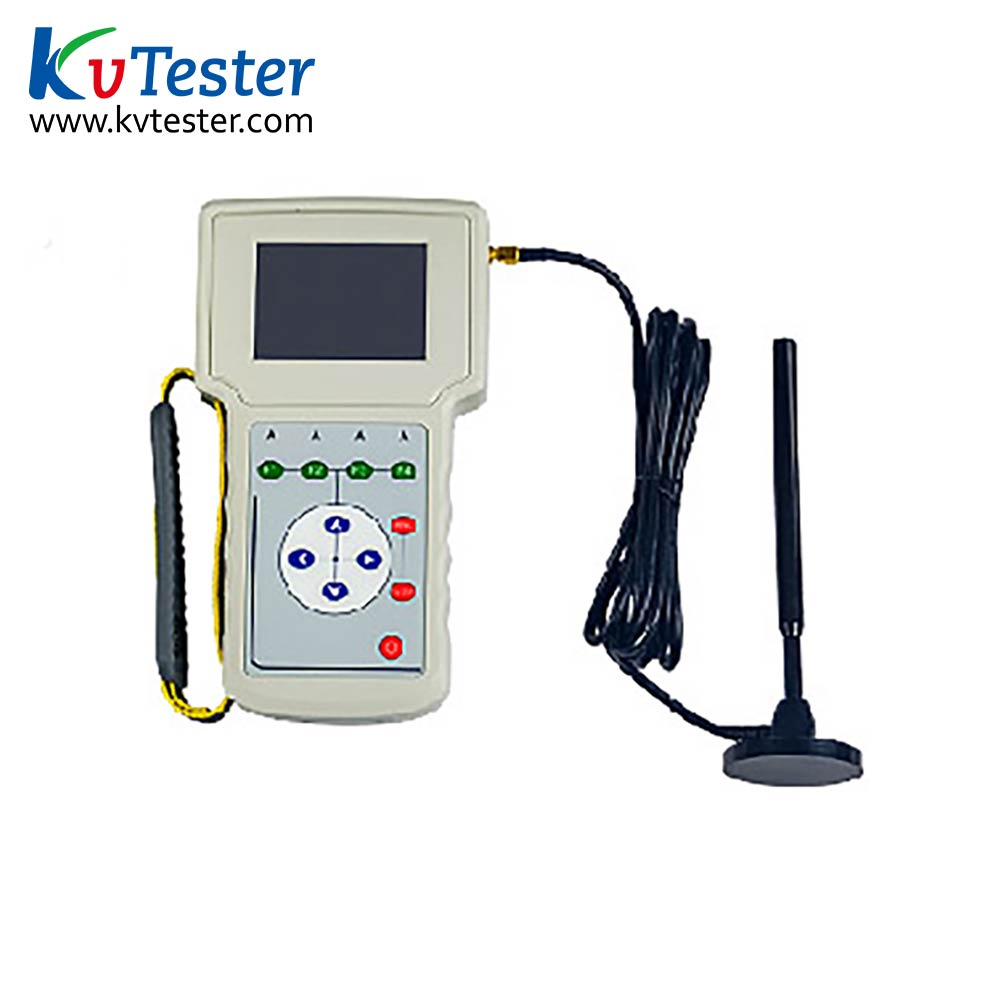

Hand held secondary load online tester

type:ZC-106A
Online Service

TAGS:

  • Product Introduction
ZC-106A hand-held secondary load online tester is also called secondary load online tester and secondary load tester of transformer. The hand-held secondary load online tester is mainly used to test the secondary load impedance parameters of current transformer and voltage transformer (CT / PT).

The secondary load on-line tester is also called secondary load tester, secondary load on-line tester of transformer, secondary load tester, secondary load tester of transformer, ZC-106A hand-held secondary load on-line tester, which has the advantages of small volume, light weight, convenient carrying and accurate testing.

  • Product Parameters

Model

ZC-106A

Test purpose

CT / PT secondary load impedance measurement

Working power supply

Input voltage

185Vac ~ 250Vac

Frequency

50 / 60Hz

Input power

40VA

Connector

standard DC plug

Voltage

Measuring range

0.1V ~ 420v

Measurement error

0.5% x numerical reading + 5 words

Current

Measurement range

0.001A ~ 6A

measurement error

0.5% x numerical reading + 5 words

PT secondary load impedance

Measurement range

0.1 ~ 50Ω

Measurement error

1% + 2 words

CT secondary load impedance

Measurement range

0.1 ~ 50Ω

Measurement error

1% + 2 words

environment condition

Operating temperature

- 20 ℃ to + 50 ℃

Storage temperature

- 20 ℃to + 50 ℃

humidity

Relative humidity: 5% - 95%, no condensation

physical characteristics

size

Handheld terminal : 135 x 240 x 55mm3

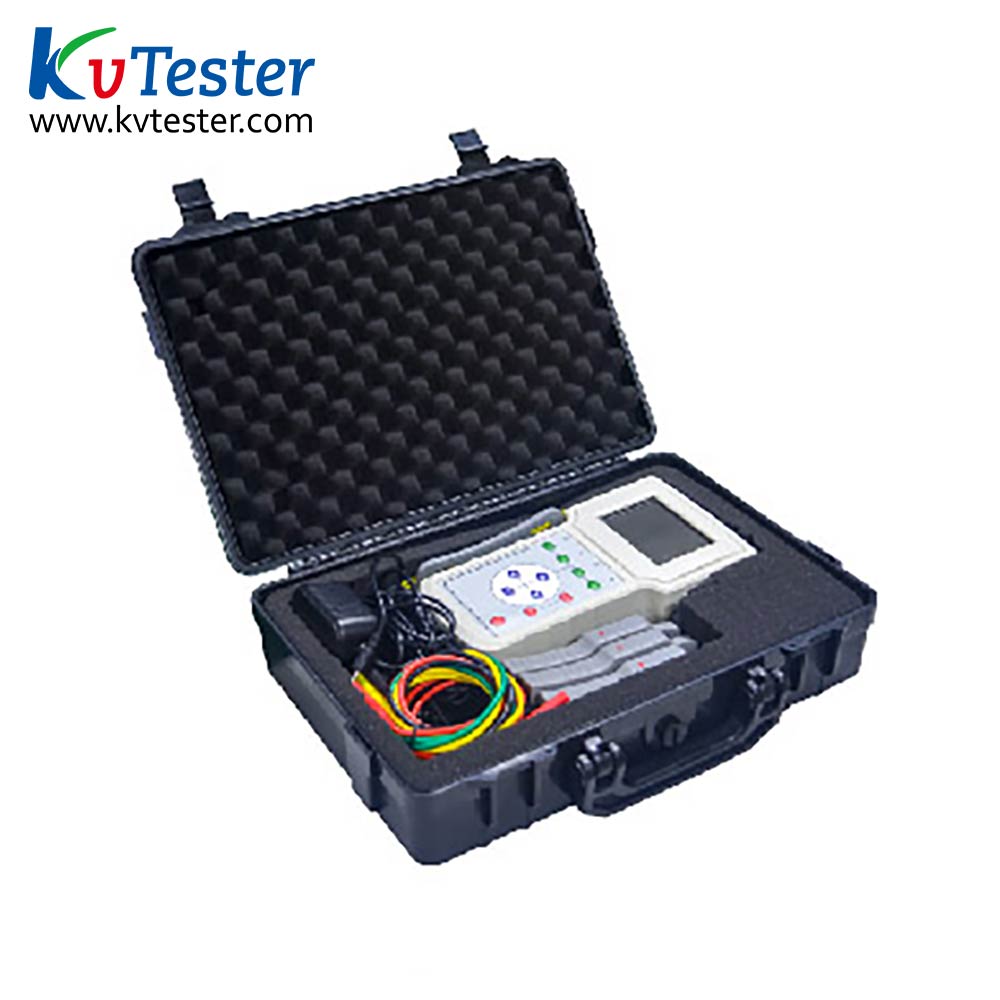

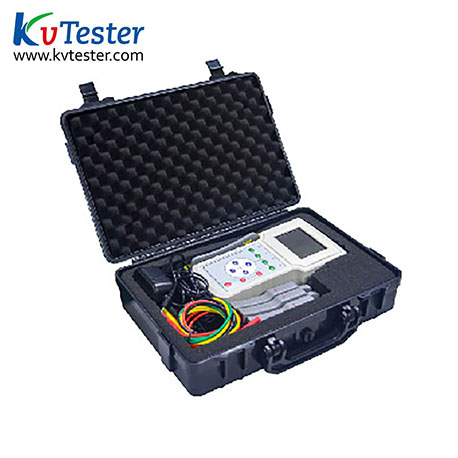

Outer packing box: 390x 290x 105mm3

weight

Handheld terminal: 1kg (excluding accessories

Total weight: 2.5kg (including accessories)

  • Product Features
1. It can measure the secondary load in single phase or three phases simultaneously;
2. Hand held design, small size, light weight, accurate test;
3. The current measurement does not need to disconnect the circuit, and uses the current clamp to test;
4. On line measurement of PT secondary circuit conductance, admittance and admittance;
5. The resistance, reactance and impedance of CT secondary circuit are measured on line;
6、 SD card upgrade procedure;
7. The built-in SD card can store data records in a large amount;
8. Wide operating temperature range - 20℃ ~ 50 ℃
