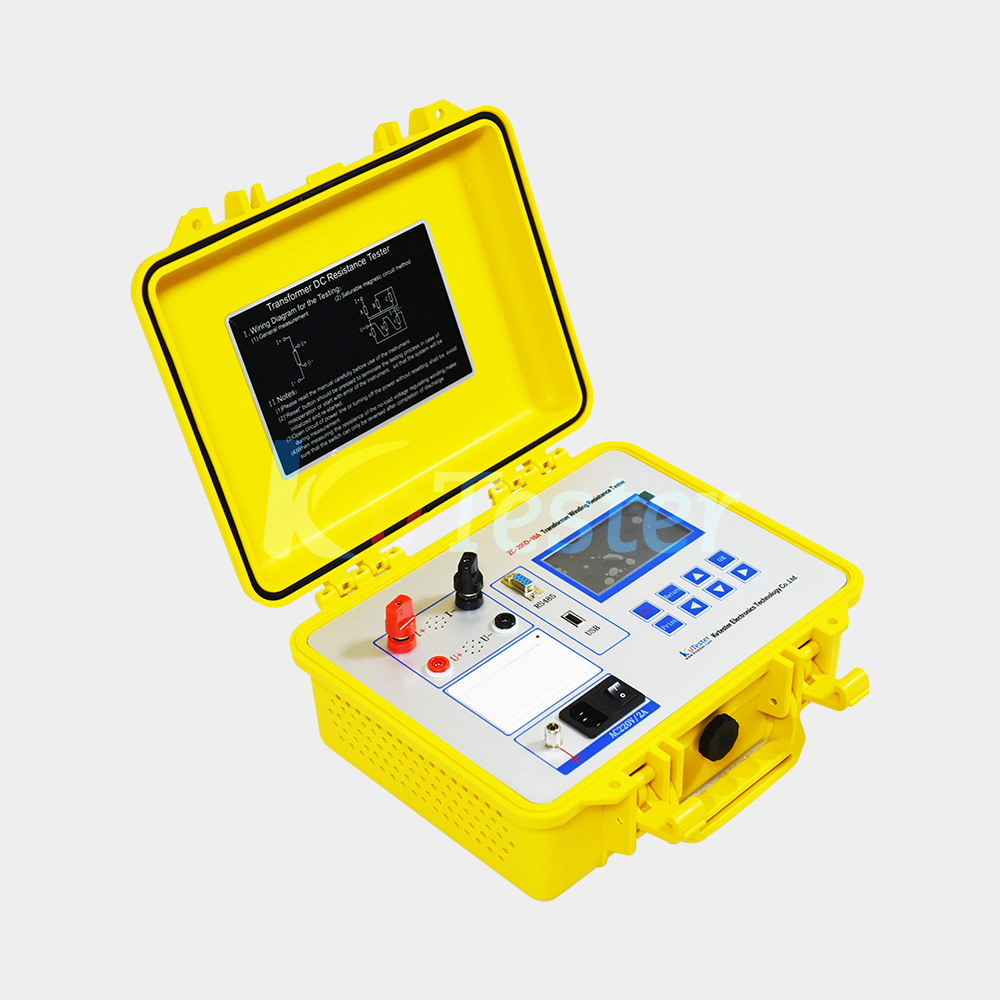

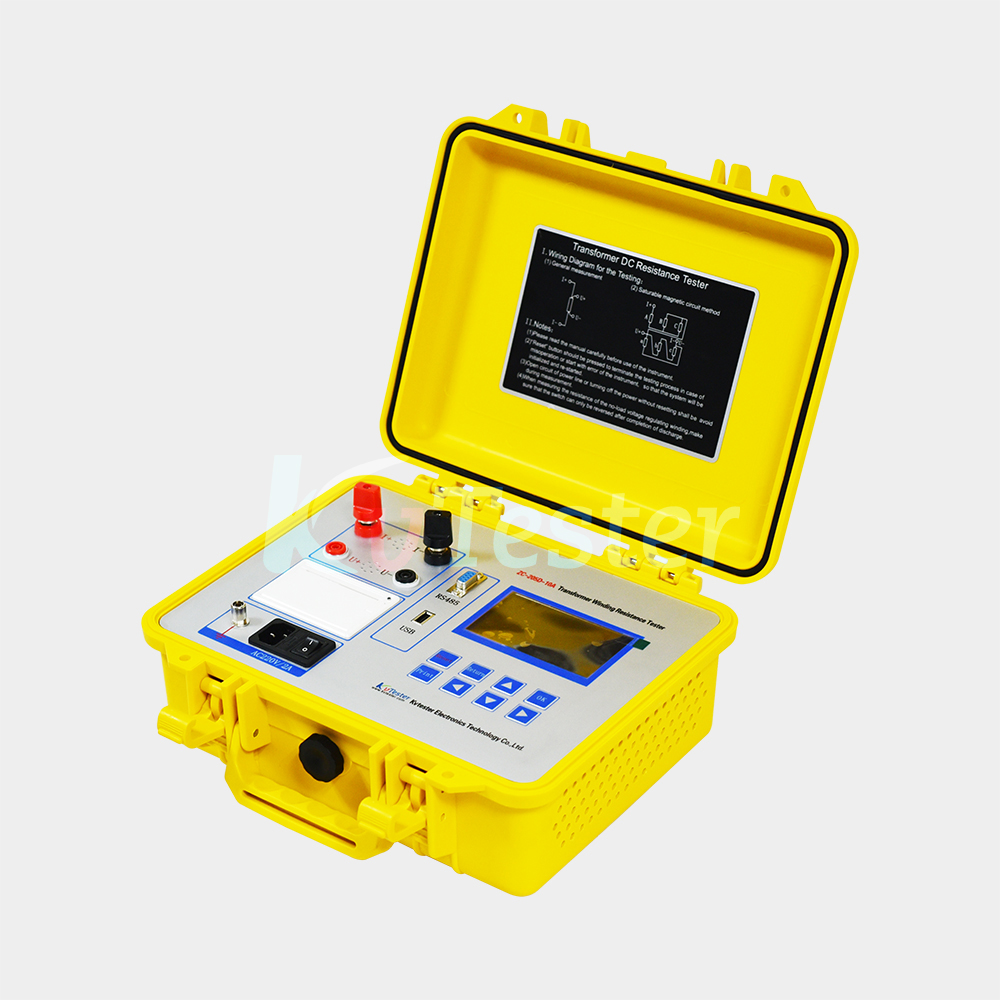

Transformer Winding Resistance Tester

ZC-205A-10A DC resistance tester is a test instrument developed by our company in order to meet the needs of rapid measurement of DC resistance of inductive coil. The instrument adopts new power supply technology and has the characteristics of small volume, light weight, large output current, wide range, digital display and so on. The whole machine is controlled by single chipmicrocomputer, which automatically completes the functions of self inspection, data processing and display, and has the functions of automatic discharge and discharge indication. The instrument has the advantages of high precision and simple operation, and can realize the rapid measurement of direct resistance.

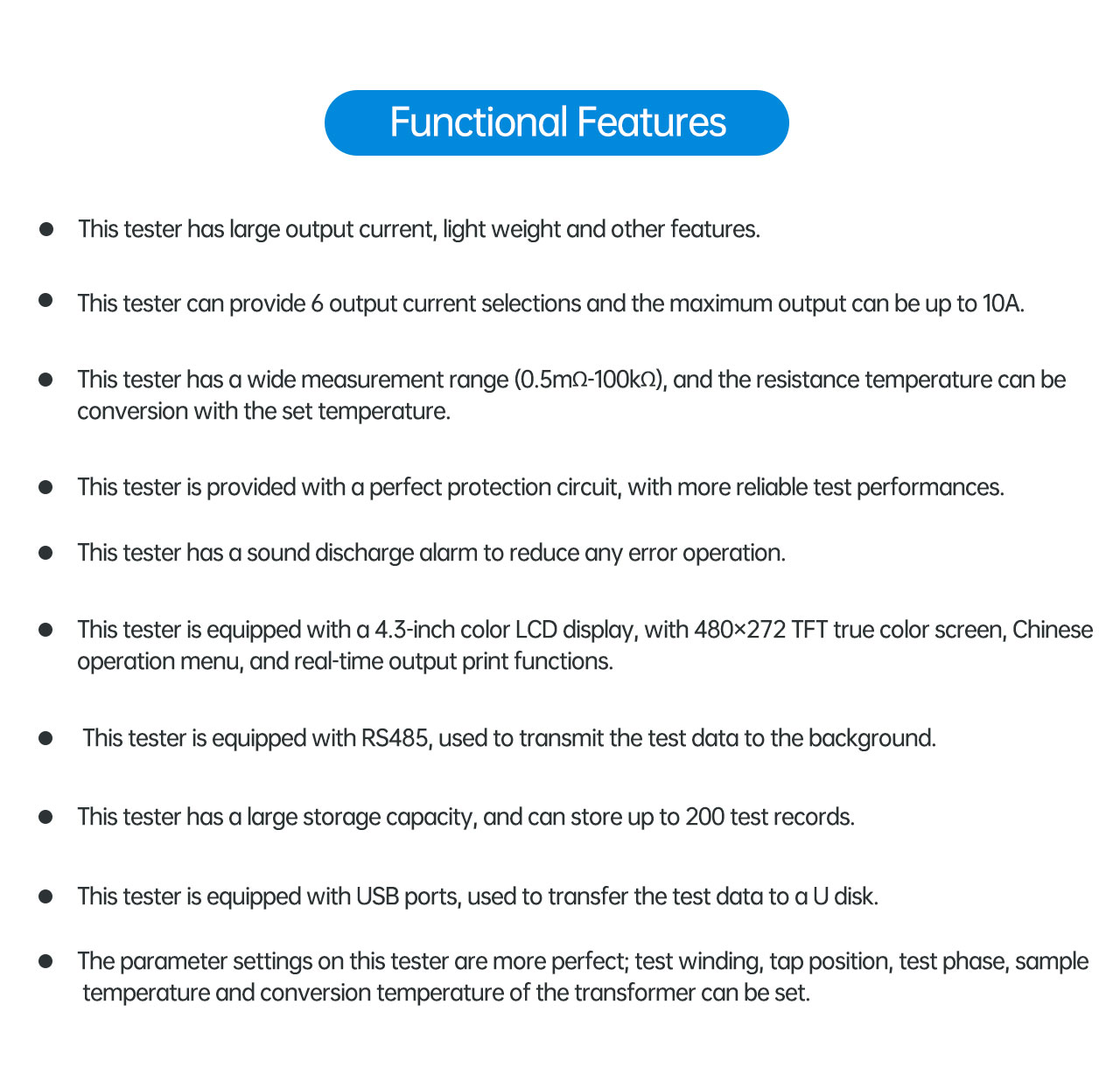

1. This tester has large output current, light weight and other features.

2. This tester can provide 6 output current selections and the maximum output can be up to 10A.

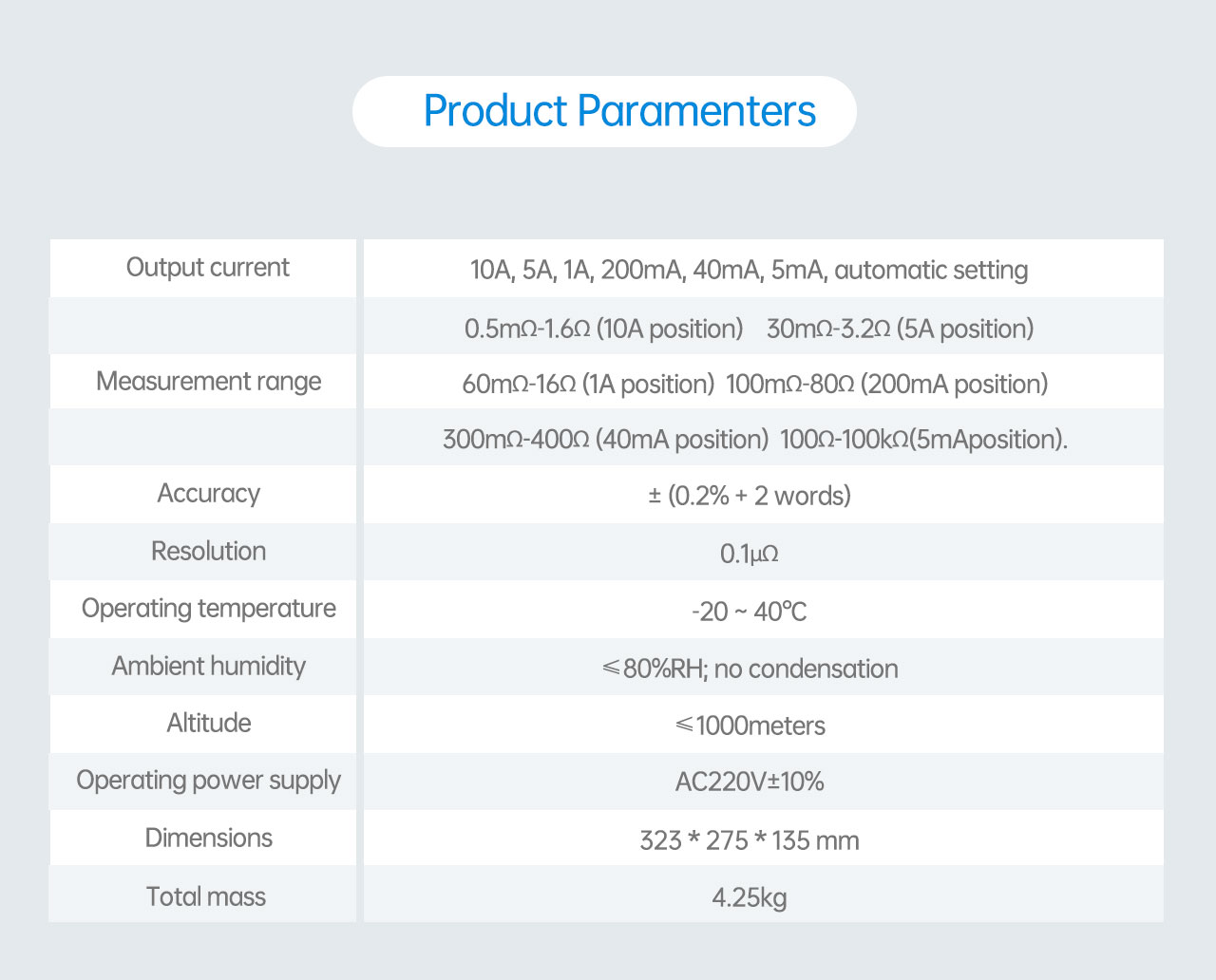

3. This tester has a wide measurement range (0.5mΩ-100kΩ), and the resistance temperature can be conversion with the set temperature.

4. This tester is provided with a perfect protection circuit, with more reliable test performances.

5. This tester has a sound discharge alarm to reduce any error operation.

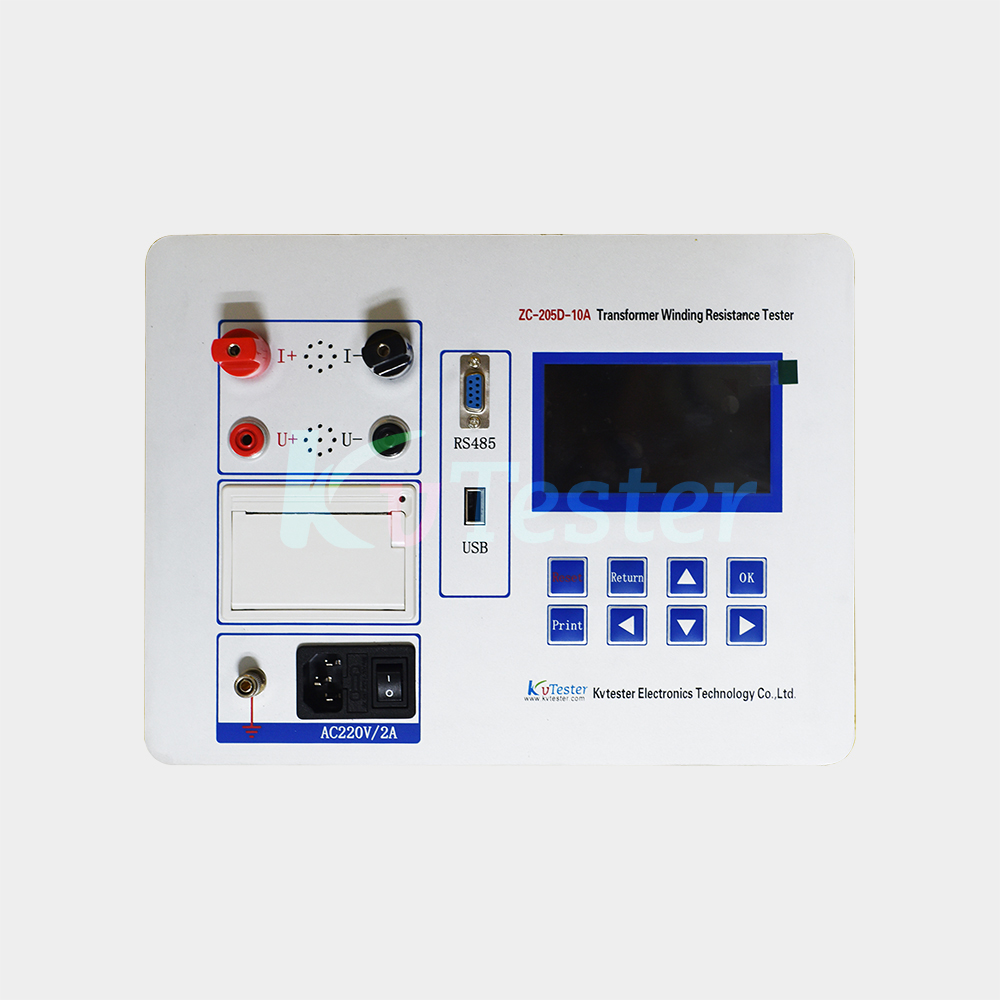

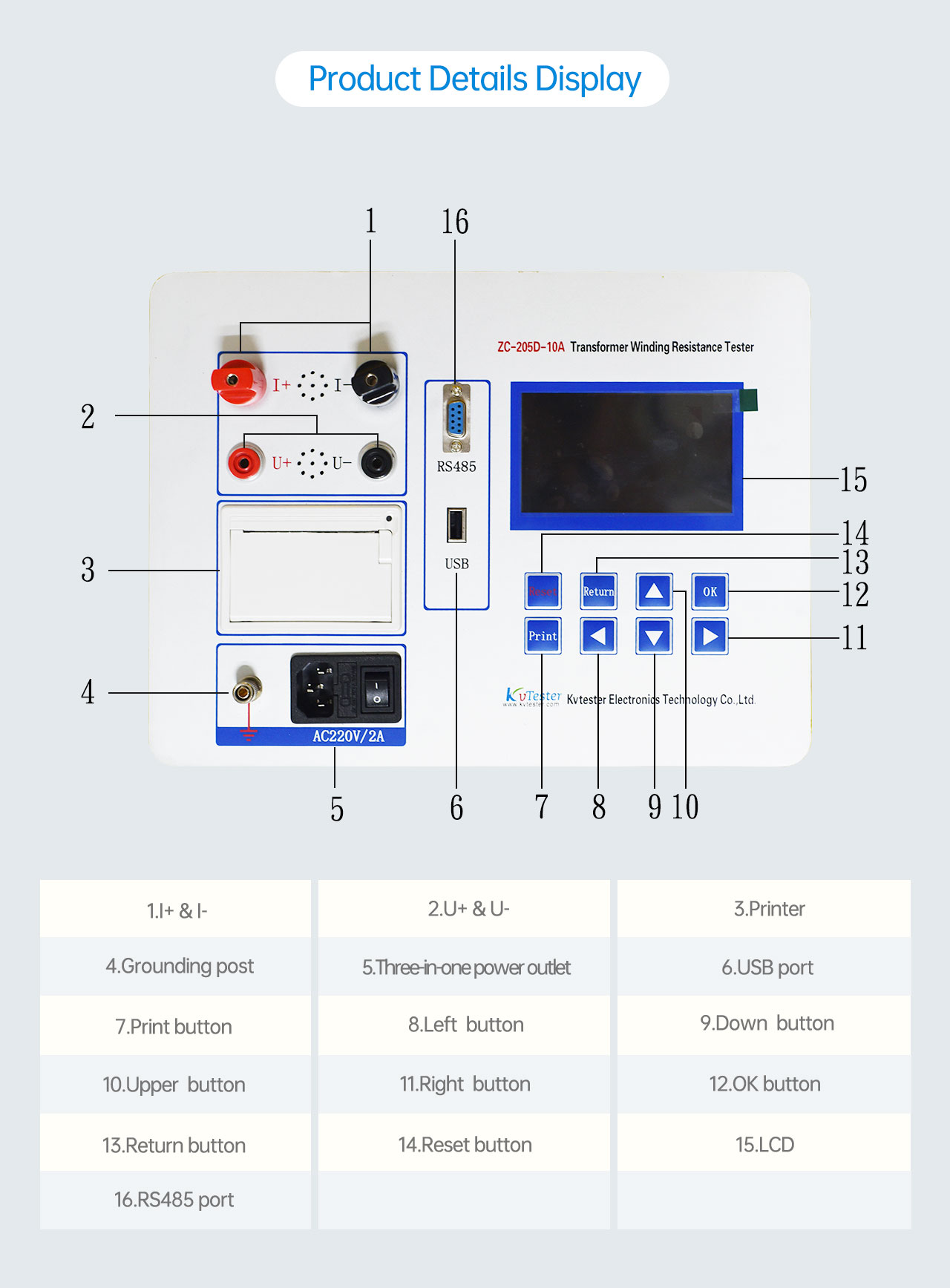

6. This tester is equipped with a 4.3-inch color LCD display, with 480×272 TFT true color screen, Chinese operation menu, and real-time output print functions.

7. This tester is equipped with RS485, used to transmit the test data to the background.

8. This tester has a large storage capacity, and can store up to 200 test records.

9. This tester is equipped with USB ports, used to transfer the test data to a U disk.

10. The parameter settings on this tester are more perfect; test winding, tap position, test phase, sample temperature and conversion temperature of the transformer can be set.
