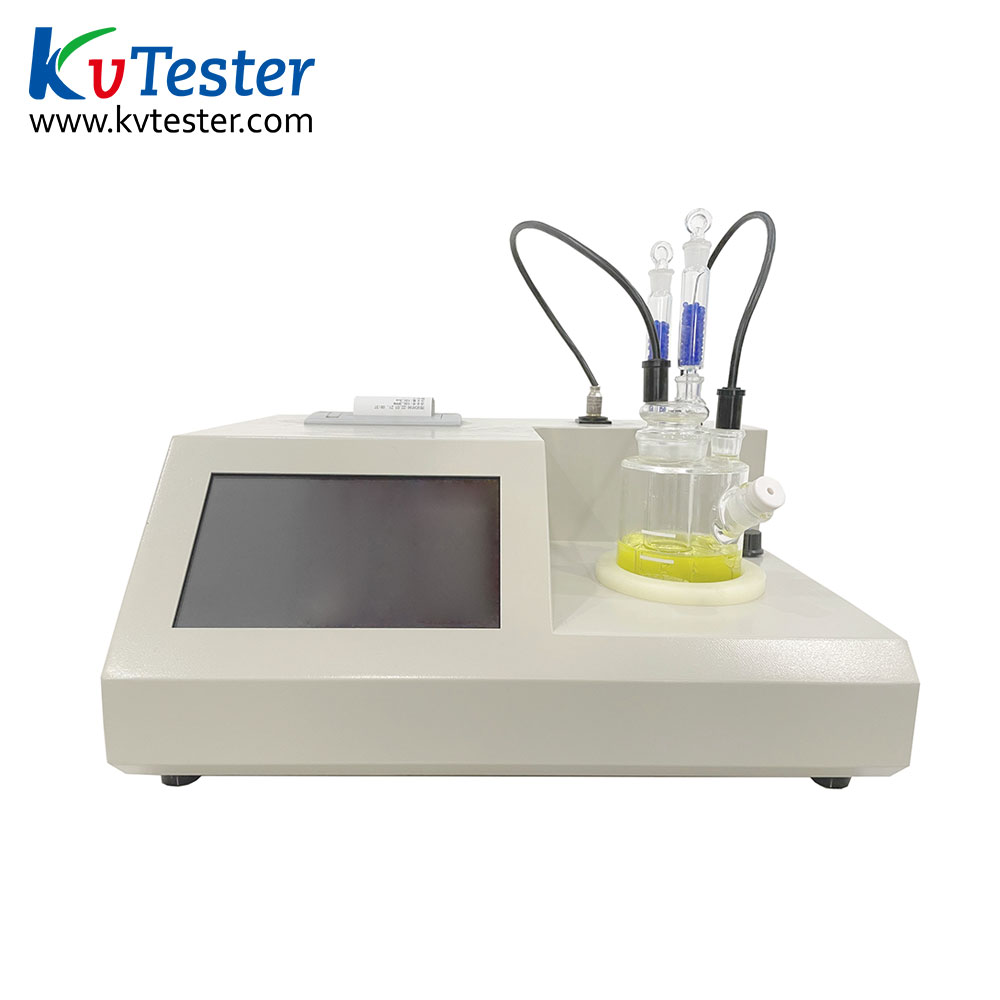

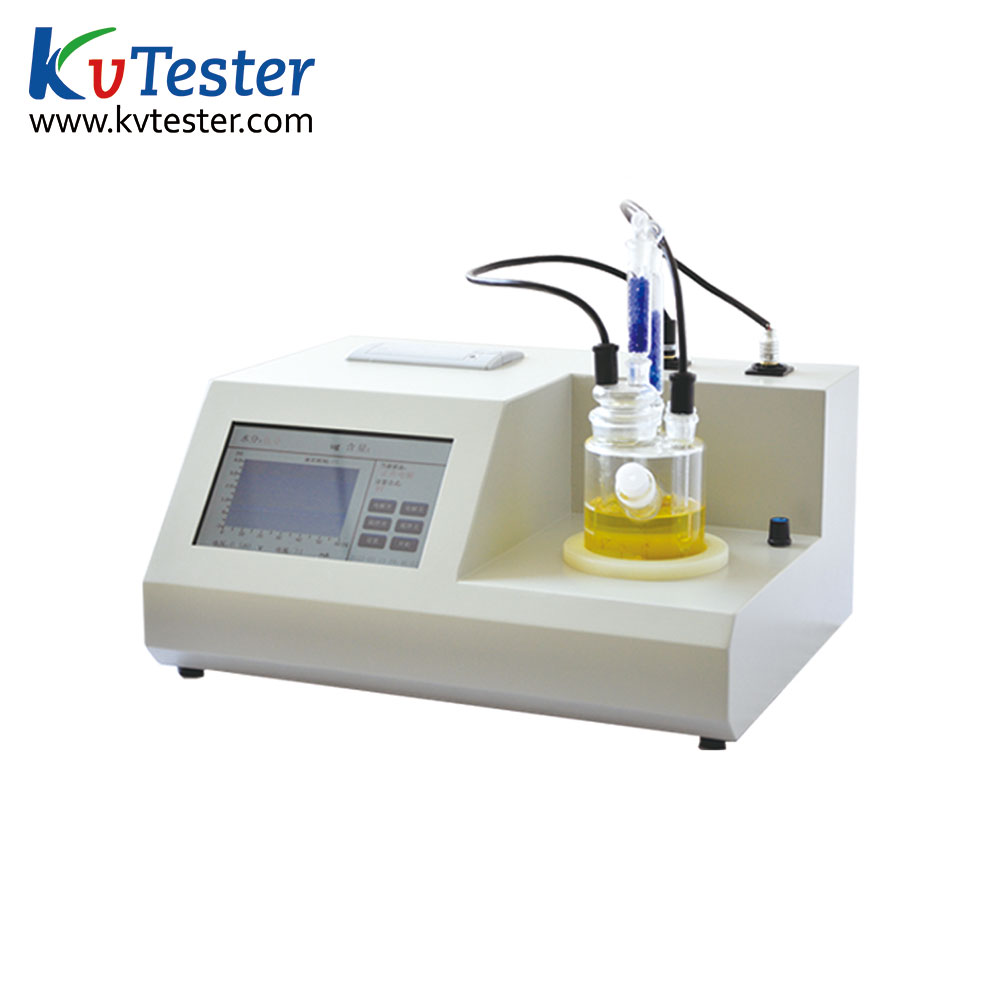

Trace Moisture Tester

type:ZC-212A
Online Service
  • Product Introduction

Karl Fischer Coulomb titration is the most reliable method to detect trace moisture for different substances, which was utilized successfully by trace moisture titrator. What’s important, this instrument is able to work more reliably and conveniently by using the most advanced control circuit and 32 bit embedded microcontroller processor as the master control core and utilizing embedded mini operating system. Character with fast analyzing speed, simple operation, high precision and strong automatism, the trace moisture titrator has been widely used in the industry of petroleum, chemical, power, railway, pesticide, medicine and environmental protection.

  • Product Parameters
Titration methodCoulometric titration(Coulomb analysis)
DisplayColor LCD touch screen
Electrolytic current control0~400mA automatic control
Measurement scope

1ug~200mg

Sensitive valve0.1µg H2O
Accuracy10µg~1000µg±3µg    More than 1mg but not greater than 0.3%


PrinterMiniature thermal printer
Power supply220V±10%、50Hz
Power< 40W
Ambient temperature5~40℃
Ambient humidity≤ 85%
External dimension380×310×180
WeightAbout 6kg


  • Product Features

1、The 32-bit embedded microprocessor is used as the main control core to embed the mini operating system.

2、0-400ma automatic detection, high precision, fast measurement speed, stable and reliable.

3、The motherboard adopts high-quality SMT components with high integration, simple operation and long service life

4、Contains 4 calculation formulas, and the measurement results are automatically converted to the required units and can be converted to each other.

5、Color touch screen, full numeric keyboard, more concise operation, convenient and quick data calculation.

6、With graph curve analysis to help analyze water content trend.

7、Switching between Chinese and English at any time.
