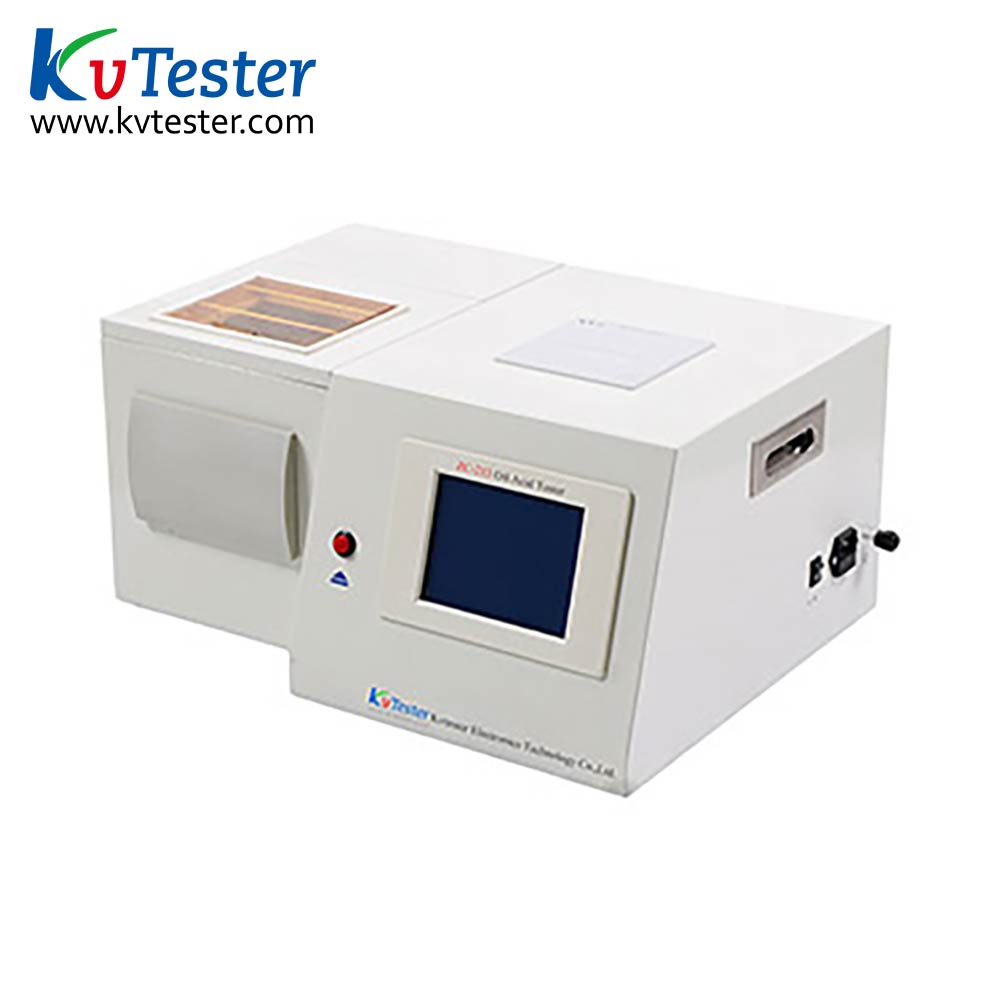

Oil Acid Tester

type:ZC-213
Online Service
  • Product Introduction

     The oleic acid tester is produced according to GB/t264-83 standard, which is used to test acid values of transformer oil, turbine oil, etc. The PC control system can improve work efficiency and reduce the harm of organic solvents and chemicals to human body. The transformer tester has the advantages of simple operation, strong anti-interference ability and good stability.

  • Product Parameters
Power supply AC220V±20% 50Hz±10%
Acid value test range 0.0001-0.5000mgKOH/g
Minimum resolution 0.0001 mgKOH/g
Accuracy If acid value between 0.001 to 0.1000 mgKOH/g,
error range 0.02mgKOH/g
If acid value between 0.1000 to 0.5000 mgKOH/g, error range 0.05mgKOH/g
Overall dimension 420x270x260 (mm)
Ambient temperature 5-40℃
Relative humidity <85% RH
Weight about 9kg.


  • Product Features
   1.320*240 LCD touch screen, user-friendly interface.
   2. Neutralization titration principle, to complete liquid charge, titrate, stir, determine the titration end point automatically under normal temperature. LCD screen can show the test result and print.
   3. Color sensor can match up the test titration end point, the judgment of end condition is reliable.
   4. Waste liquor cup is no need.
   5. Peristaltic pump control the charging of extract liquor and neutralized liquor.
   6. History record query, automatic memory function of test result , automatic storage of historical records with time. Data will not lose if power off and to be saved more than 10 years.
   7. Calendar clock with temperature compensation, automatic record the date and time.
   8. Reagent is not exposed to air, to avoid the solvent evaporation and CO2 influence. User do not need contact solvent by hand, to reduce the organic solvent and chemicals harm to human body.
   9. Simple operation. Input data according to the screen prompt, the instrument can complete acid value test automatically.
   10. Instrument test one sample or 2-6 samples continuously.
   11. This transformer tester has RS232 interface for convenient communication with PC.

   12. This transformer tester is a thermal printer with offline printing function.
