Oil Tester
  • Product Introduction

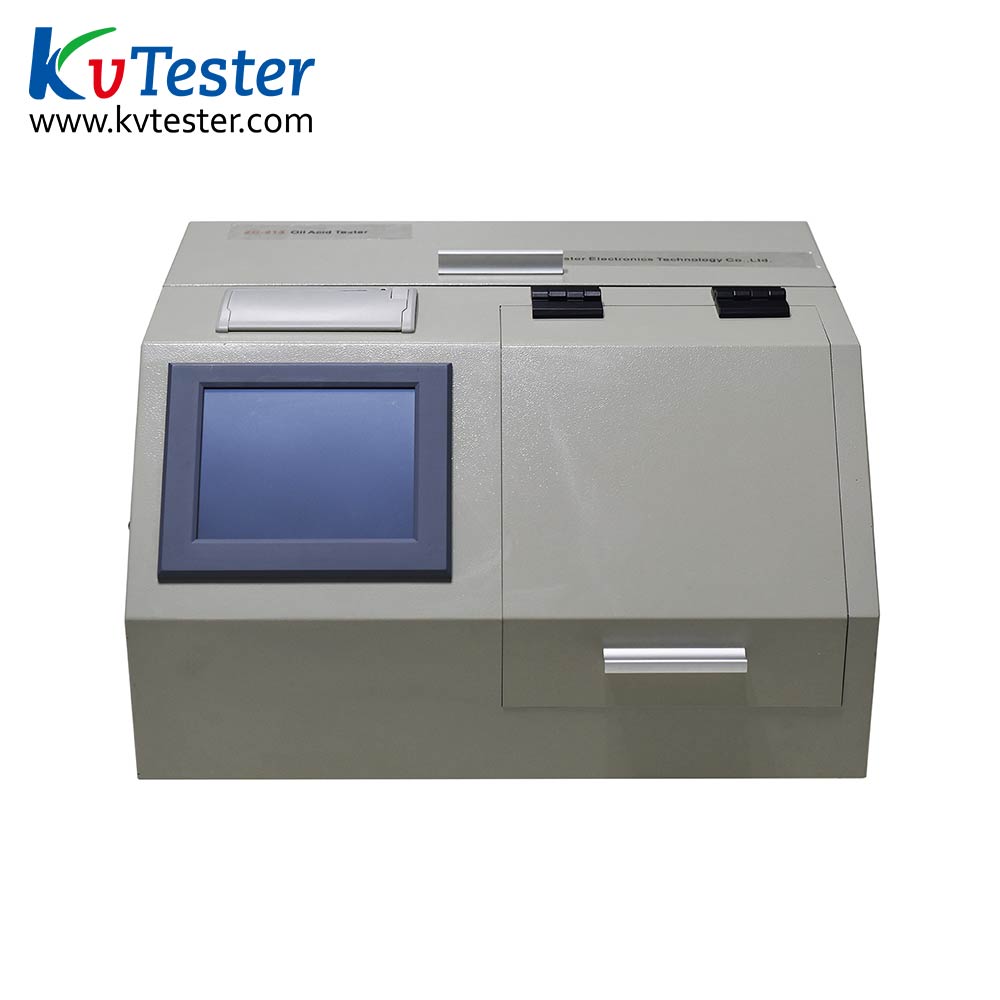

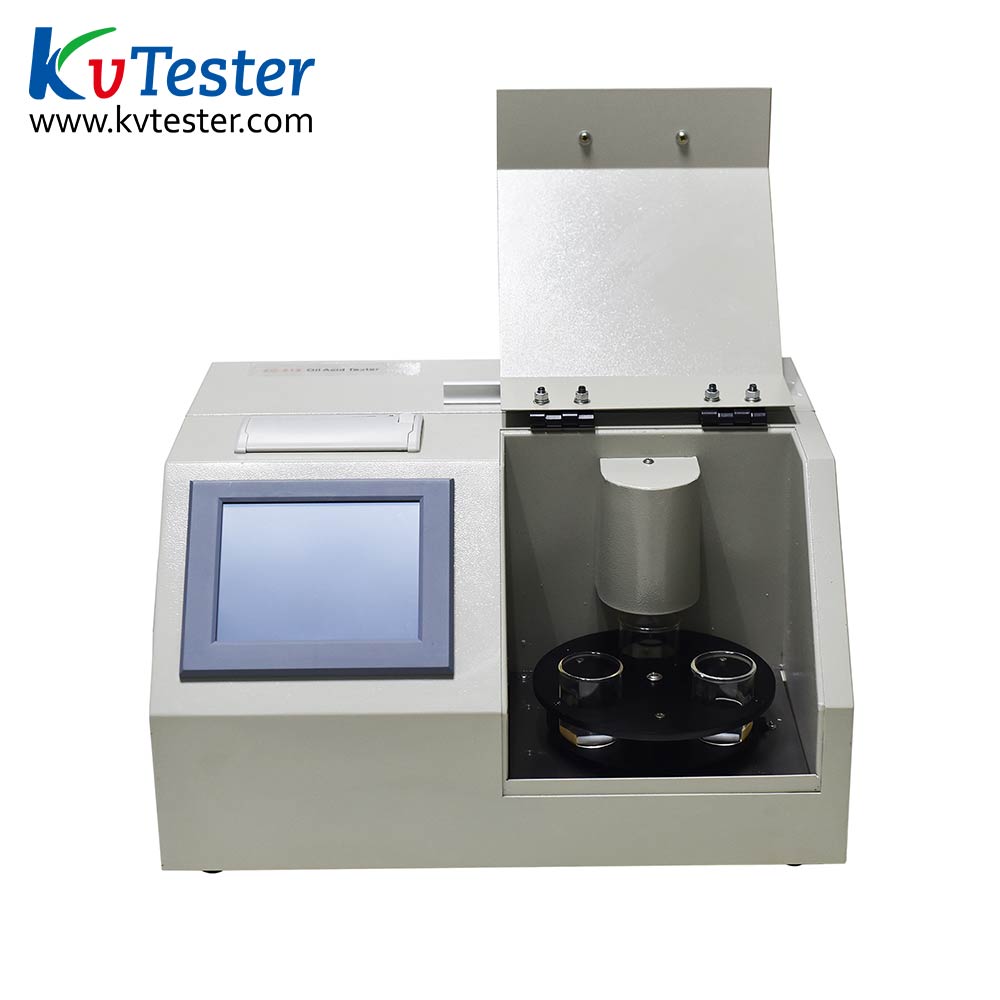

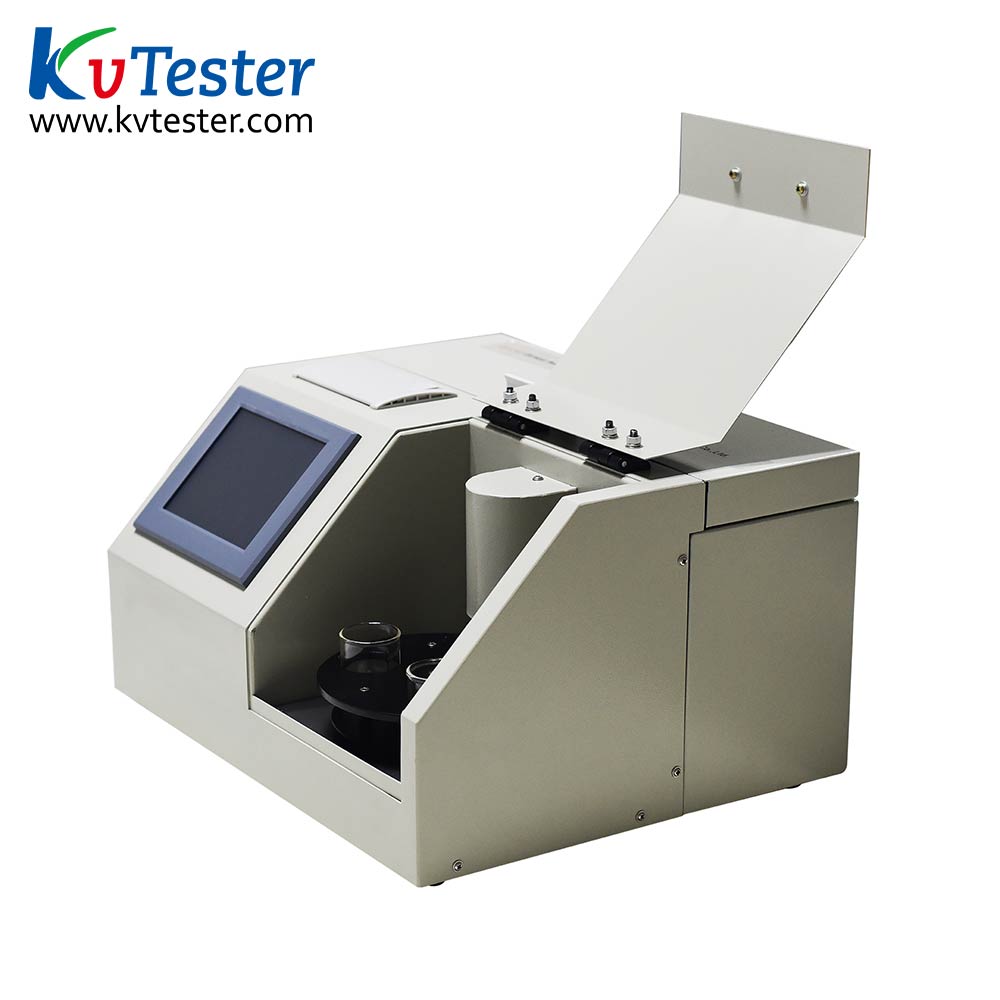

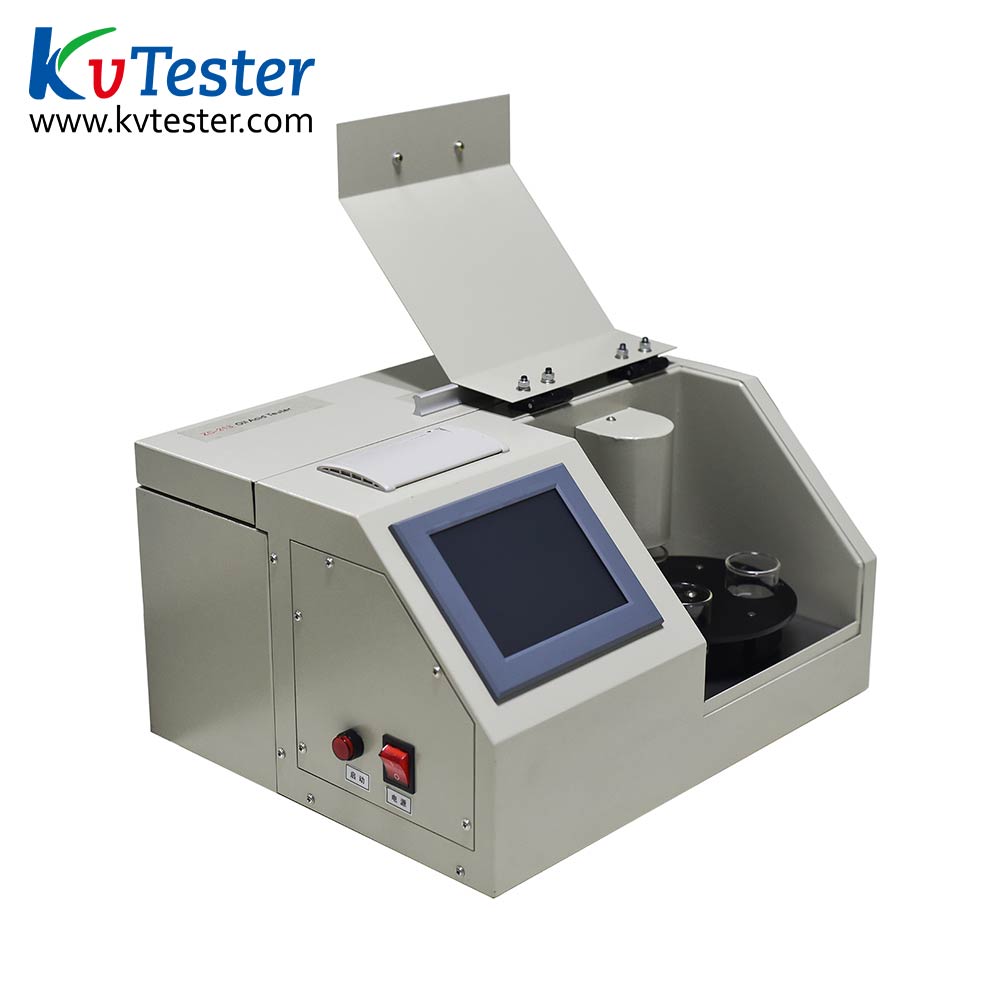

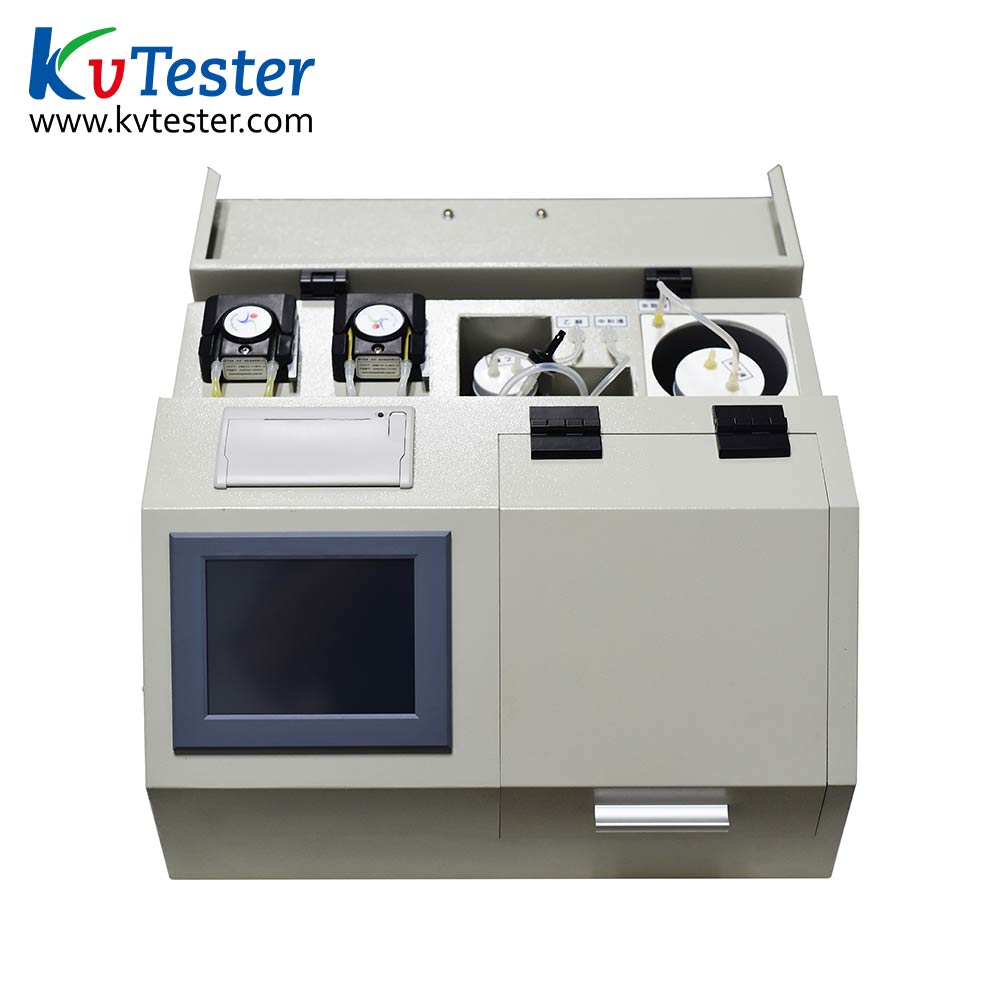

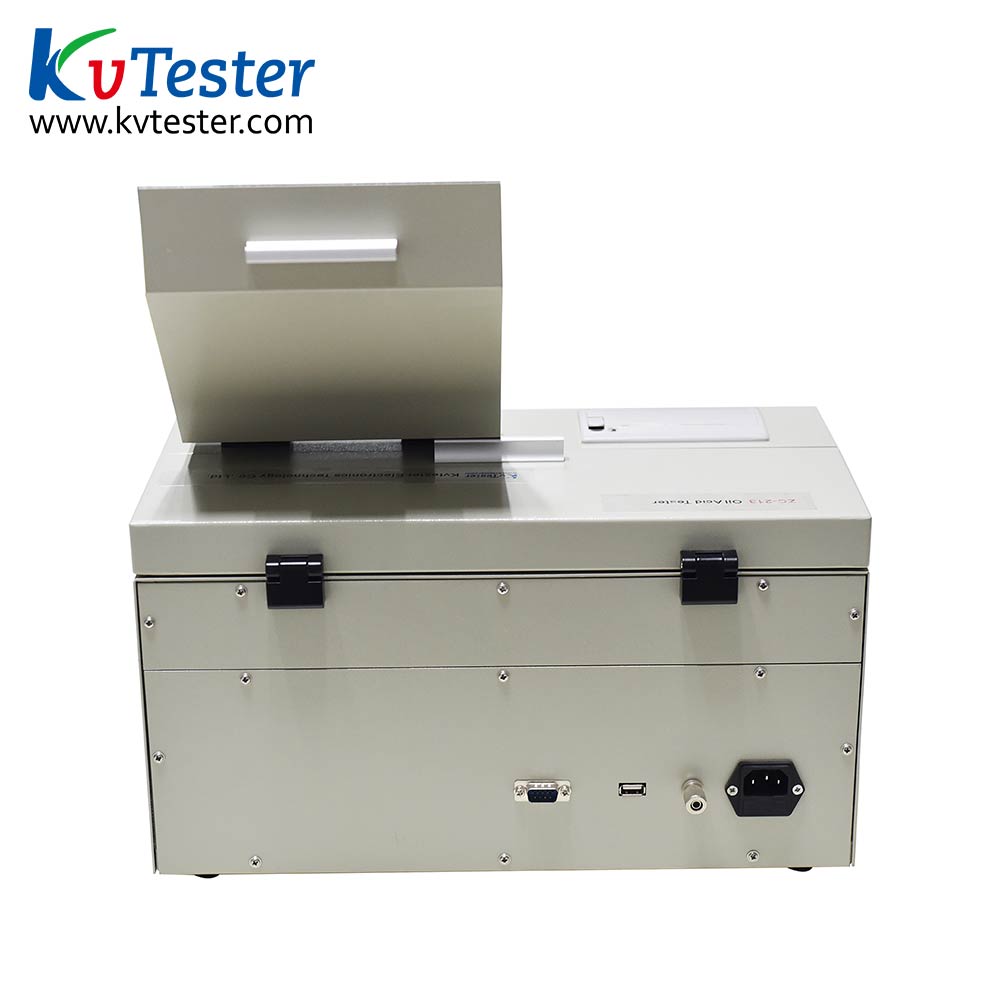

ZC-213A transformer oil acid tester is a fully automatic measuring instrument which adopts the extraction method to accurately detect the insulating oil acid value.This instrument can improve the working efficiency and test accuracy, and at the same time ensure the safety of the body by reducing the operator's contact with the samples and reagents.


  • Product Parameters

Test range

0.0021mg KOH/g

Test error

≤±0.001mg KOH/g

Repeatability

≤0.002mg KOH/g

Ambient temperature

1045

Relative humidity(RH)

≤85%RH

Voltage supply

AC220V/50Hz

Power

50W


  • Product Features

1.   Three-cup integrated design.
2.   Automatically complete operations such as extraction agent addition, neutralization titration and end point discrimination, acid value calculation, data storage and print output.
3.   Automatic compound extraction liquid and neutralization liquid.
4.   Average testing period is 2 minutes.
5.   6-inch LCD touch screen.
6.   Power-off storage function, data storage up to 100 sets.
7.   Standard acid automatic calibration function, which eliminates system errors to the maximum extent, and ensures the accuracy of measurement results Built-in micro printer, both online and offline print function available.
8.   Large-capacity and high-efficiency carbon dioxide and water purification system to ensure the stability of the concentration of the neutralization solution Technical Parameter.
9.   Simple design, small size, easy operation.
10.  USB port to connection with PC.
