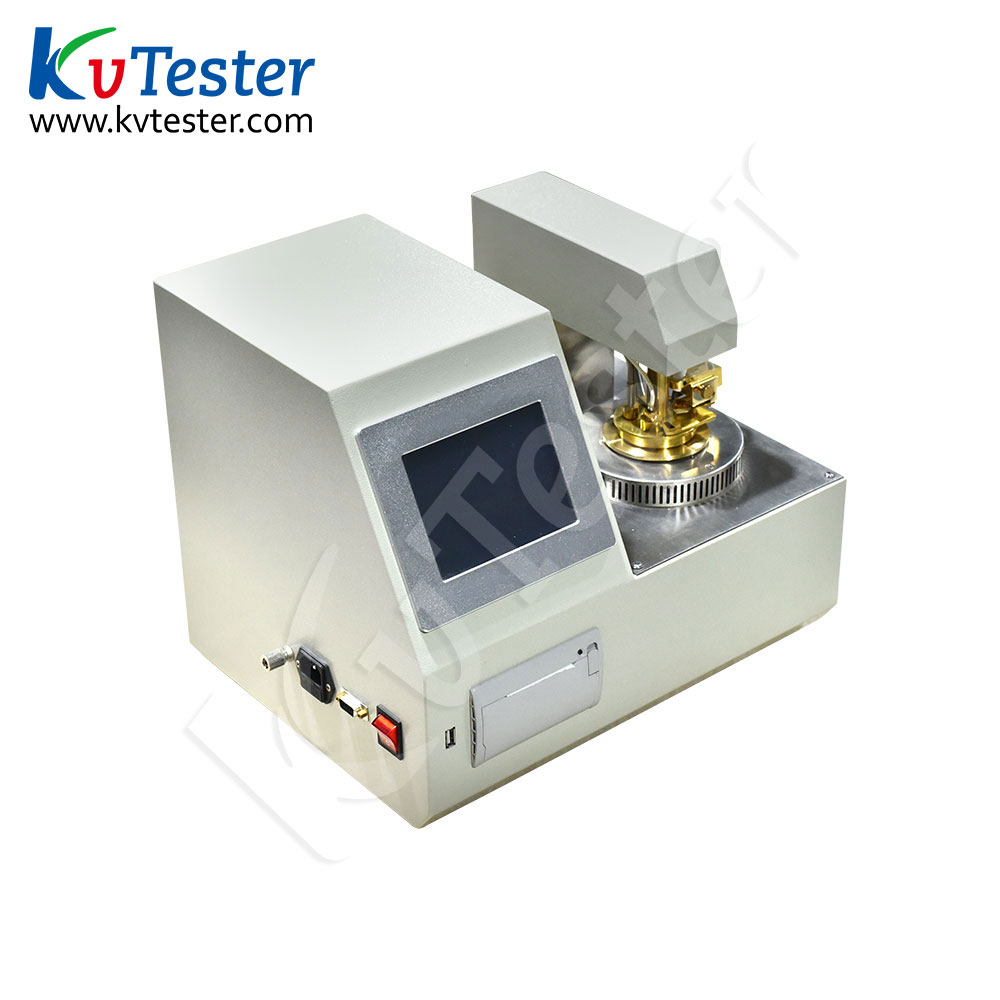

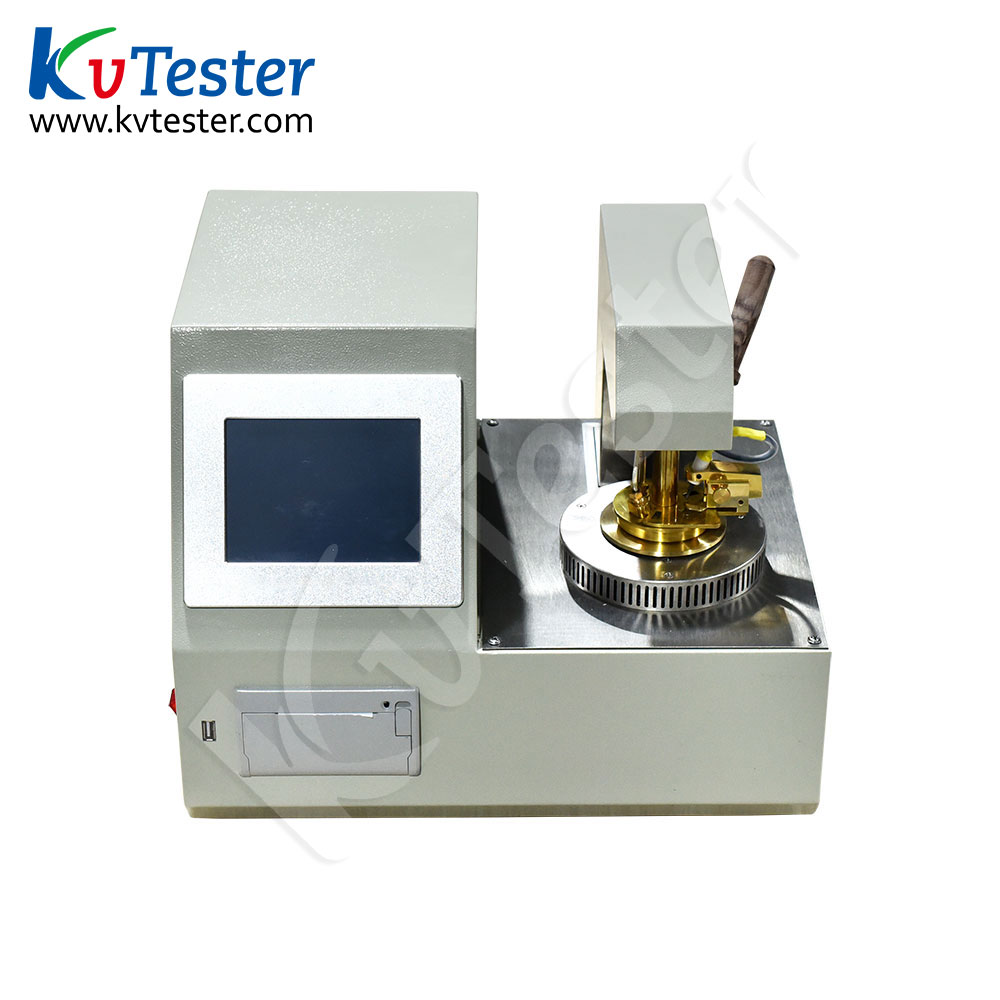

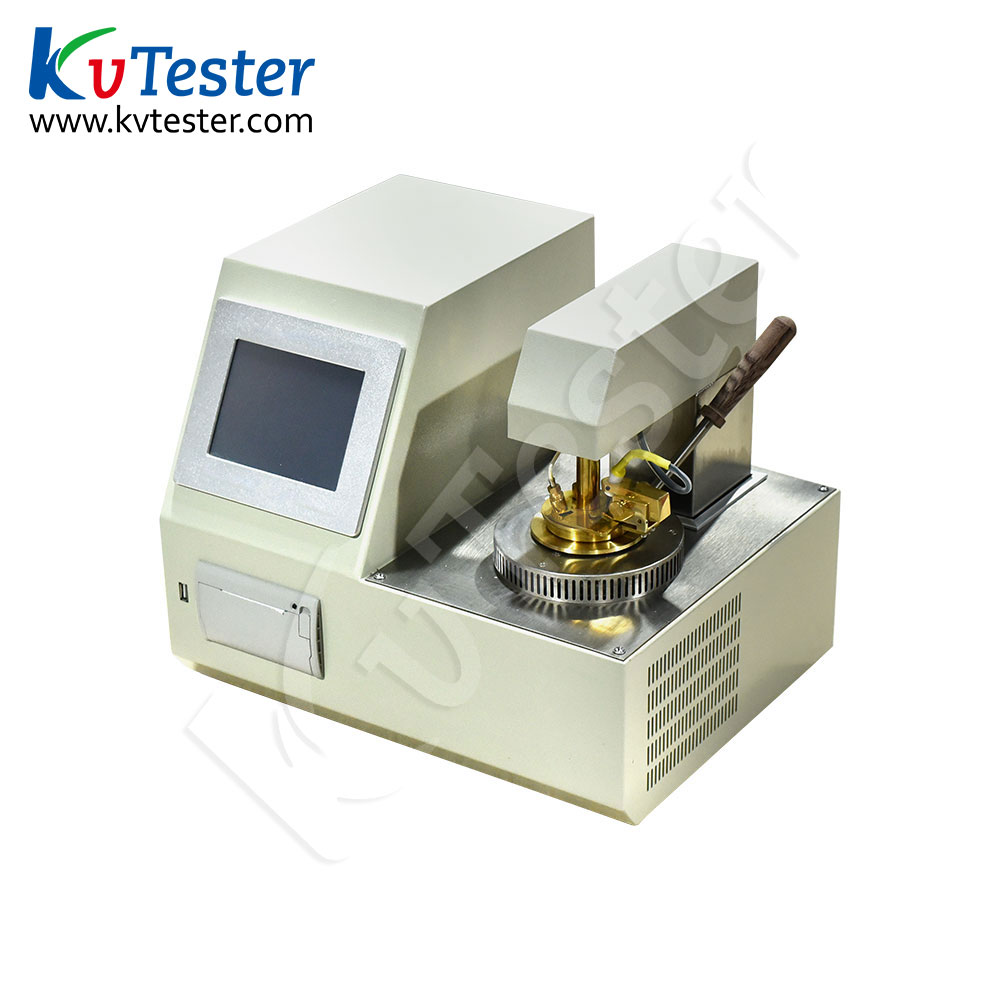

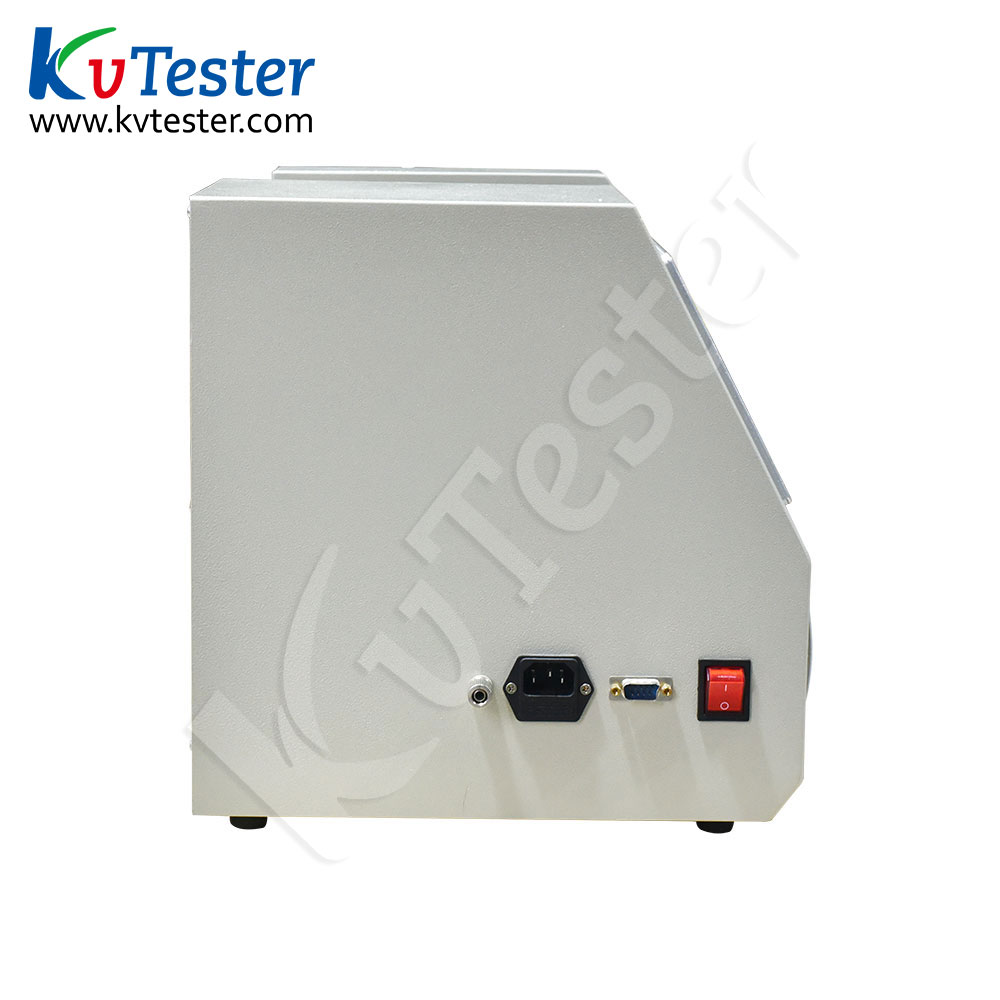

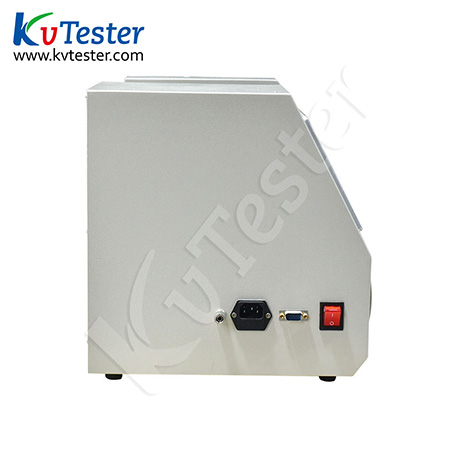

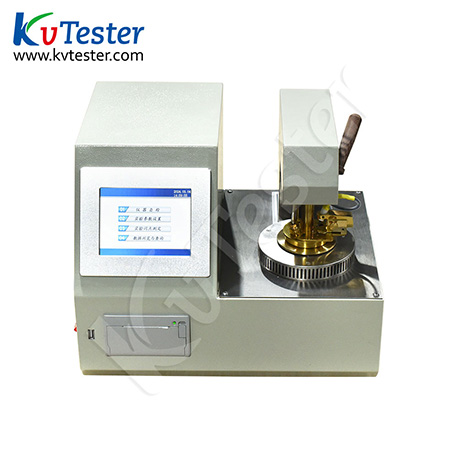

Closed-Cup Flash Point Auto-Tester

type:ZC-216
Online Service
  • Product Introduction

ZC-216 Insulating Oil Closed Flash Point Tester, using a color touch screen instead of keyboard operation. The instrument is mainly used to measure the closed flash point value of petroleum products. Adopting advanced foreign technology, displaying human-machine dialogue interface in full English, full screen touch button prompts for input, convenient and fast, open, fuzzy control integrated software, modular structure, in compliance with national standards, US standards, and other standards. Widely used in the railway, aviation, power, petroleum industry, and scientific research departments.

  • Product Parameters
Temperature measurementMeasurement range-49.9 ℃ -40.0 ℃
Repeatability0.029X (X-average of two consecutive test results)
Resolution0.1 ℃
Accuracy0.5%
Temperature measuring elementPlatinum resistor (PT100)
Flash detectionK-type thermocouple
Environmental temperature10-40 ℃
Relative humidity< 85%
Power supply voltageAC220V ± 10%
Power50W
Heating ratein compliance with national standards, US standards, etc
External dimensions390X300X302 (mm)
Instrument weight15kg



  • Product Features

1. Using a new type of high-speed digital signal processor, it works with high reliability and accuracy;

2. Detection, lid opening, ignition, alarm, cooling, printing, the entire experimental process is automatically completed;

3. Adopting platinum electric heating wire ignition method;

4. Automatic detection of atmospheric pressure and automatic correction of test results;

5. Adopting a newly developed high-power high-frequency switching power supply heating technology with high heating efficiency, adopting an adaptive PID control algorithm to automatically adjust the heating curve;

6. Automatic stop detection and alarm for temperature exceeding the limit;

7. Thermal sensitive micro printer, making printing more beautiful and faster, with offline printing function;

8. A history with time stamps can store up to 50 records;

9. Adopting a 640x480 color touch screen, with a Chinese character display interface and rich content;

10. Adopting full screen touch screen buttons for intuitive and convenient operation;

11. Multiple built-in execution standards are available for selection
