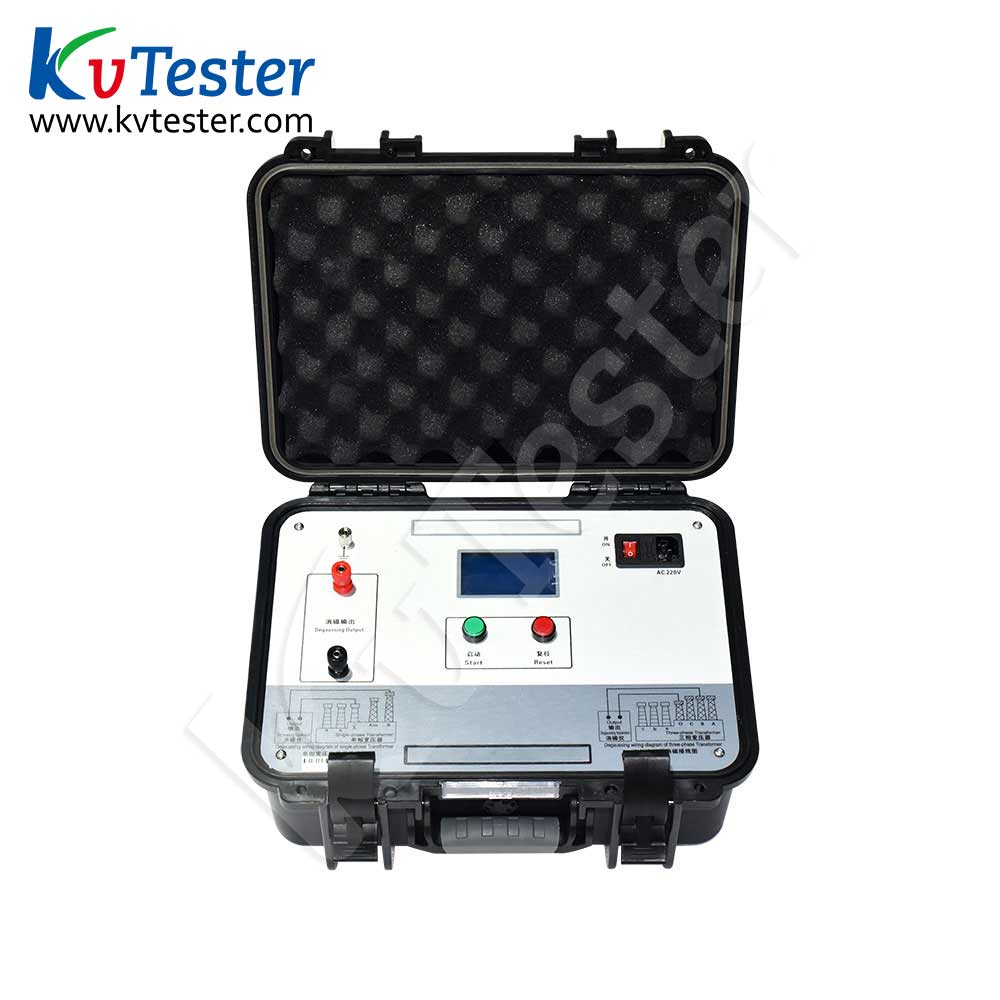

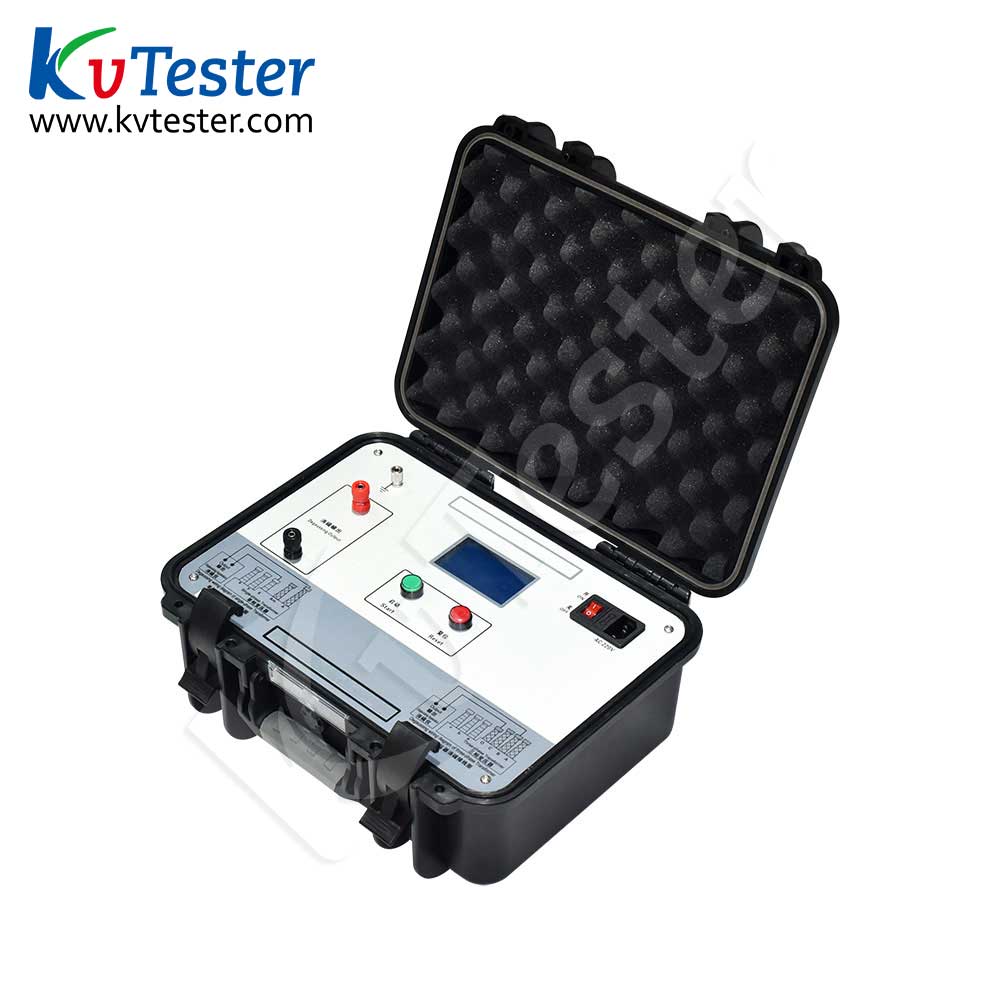

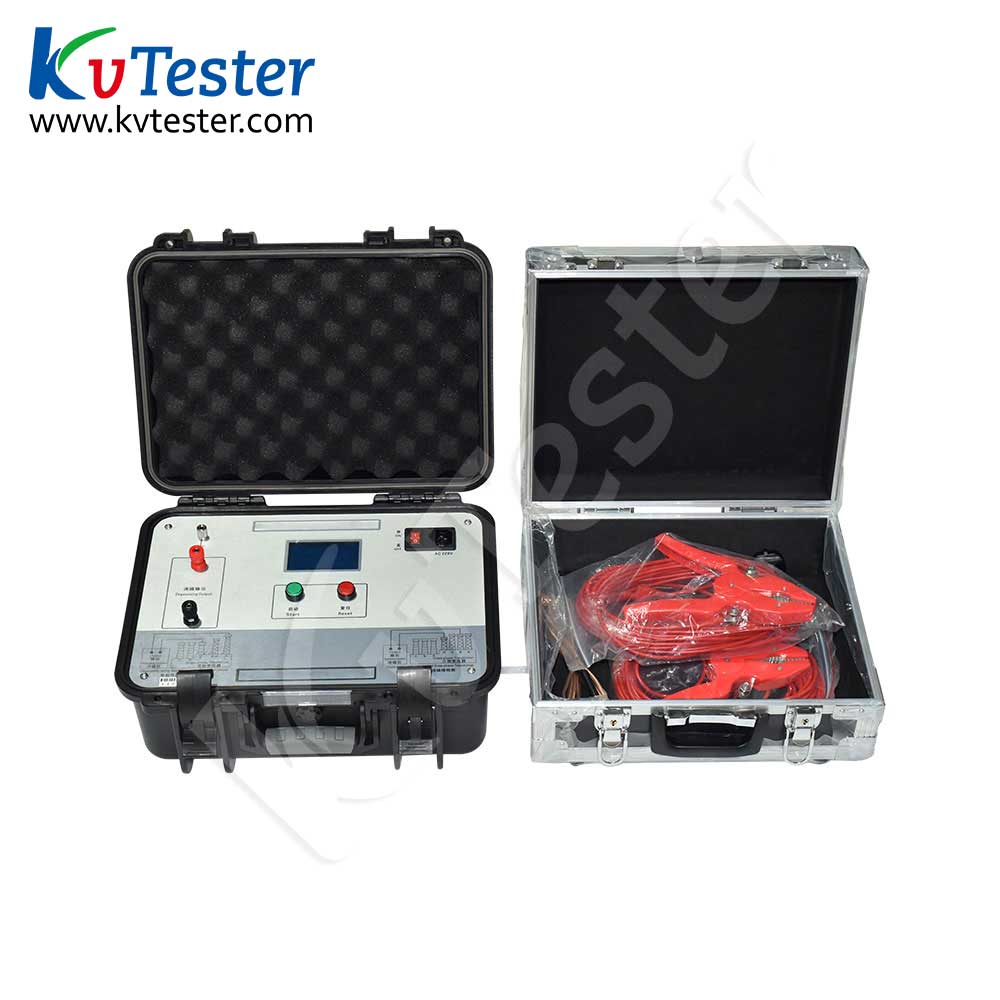

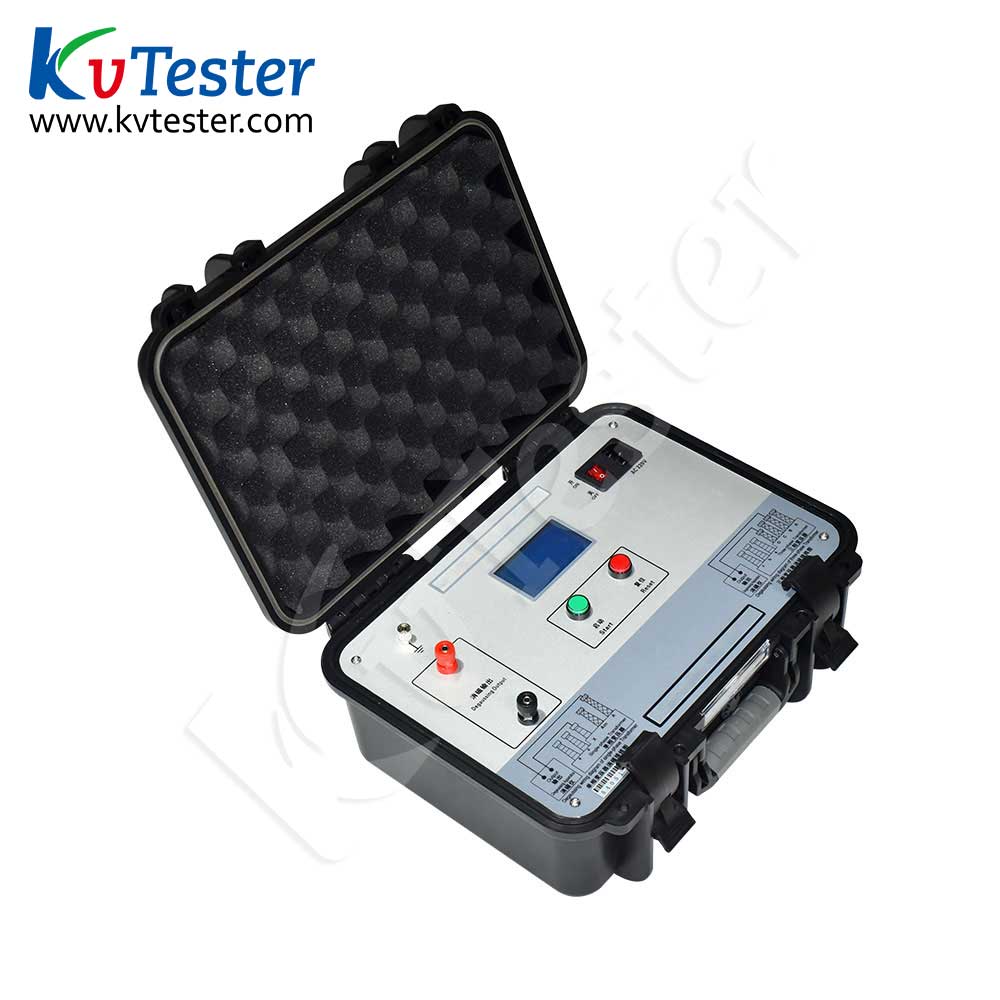

Transformer degaussing instrument

The ZC-227 power Transformer degaussing instrument is a specialized equipment for eliminating residual magnetization hazards after DC resistance testing of large power transformers. It plays an extremely important role in protecting power transformers from excitation inrush current impacts and ensuring safe operation. Due to the presence of residual magnetism, when the transformer is put into operation, the residual magnetism of the iron core saturates the transformer's half cycle, generating a large number of harmonics in the excitation current. This not only increases the reactive power consumption of the transformer, but may also cause misoperation of the relay protector, resulting in certain economic losses. So we must do demagnetization work before the transformer is put into operation to ensure the safe and normal operation of the transformer.

1. Adopting patented technology - DC frequency conversion attenuation principle;

2. Three phase transformers can achieve demagnetization by demagnetizing only phase B;

3. Equipped with automatic current stabilization judgment and 16 bit AD data acquisition and processing functions;

4. Equipped with manual/automatic demagnetization mode;

5. Fast demagnetization speed - increasing from 30 minutes to no more than 4 minutes per session;

6. Significant demagnetization effect - increased from 80% to over 90% in a single pass;

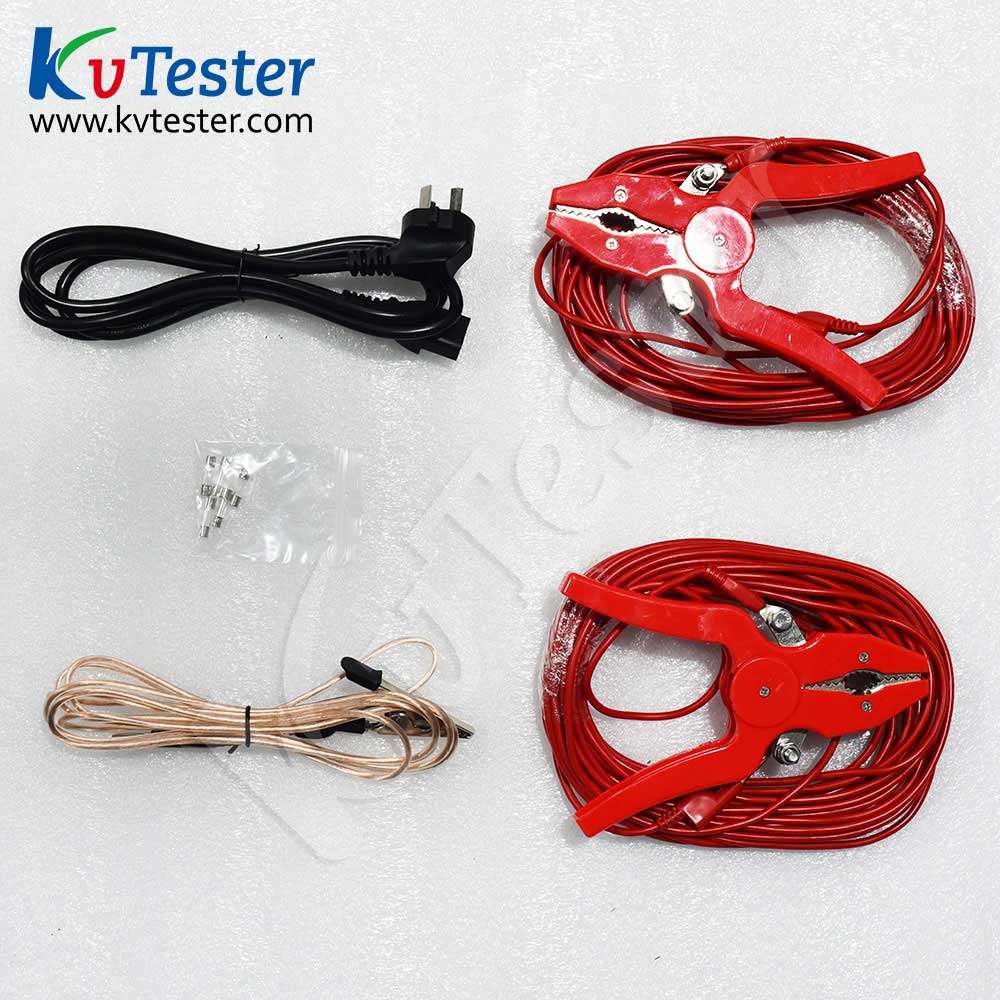

7. The current line that can be directly used for DC resistance testing is convenient for matching with DC resistance testing;

8. Clear interface and real-time display of demagnetization progress;

9. Suitable for eliminating residual magnetism before commissioning of large power transformers and transformers with a voltage of 35kV and above; Especially for large capacity transformers with voltage levels of 330kV and above;

10. This product has a small volume and light weight, making it very suitable for on-site use.
