Circuit Breaker (Switch) Tester

Circuit Breaker Analyzer

type:ZC-300B
Online Service

TAGS:

  • Product Introduction

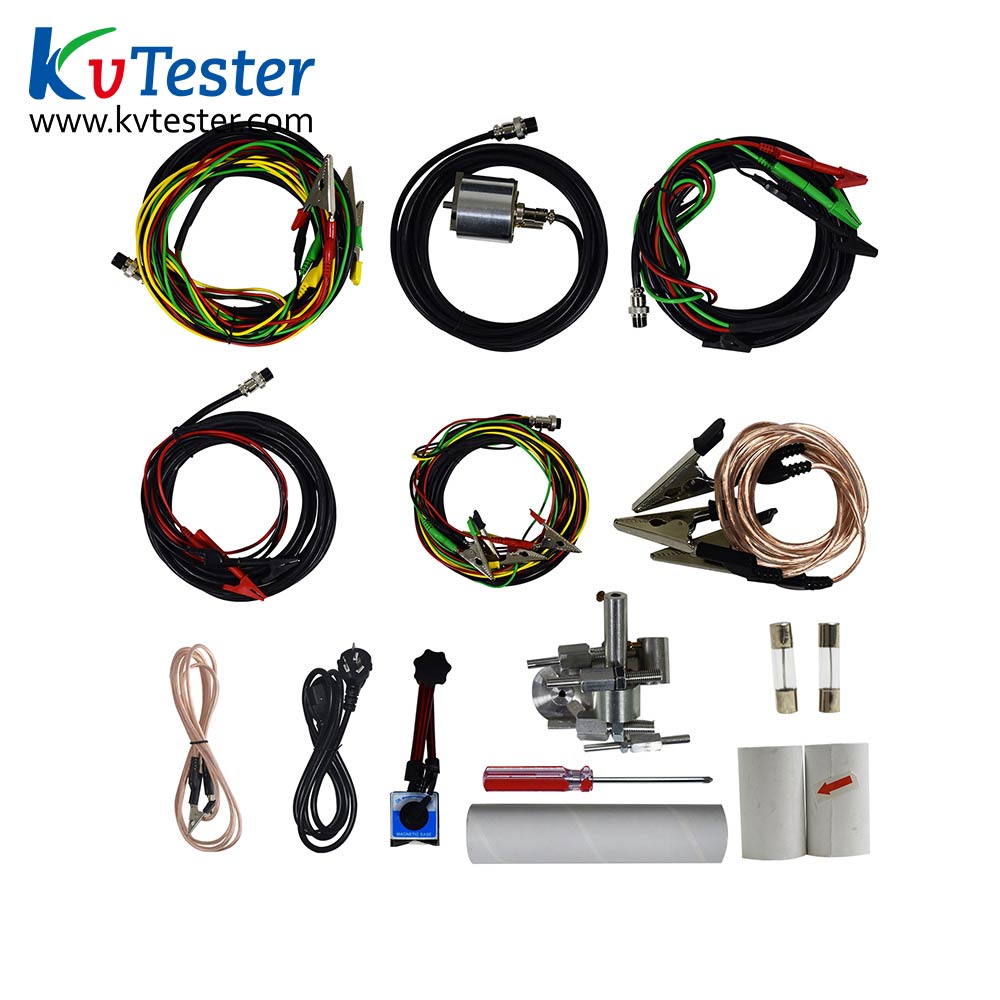

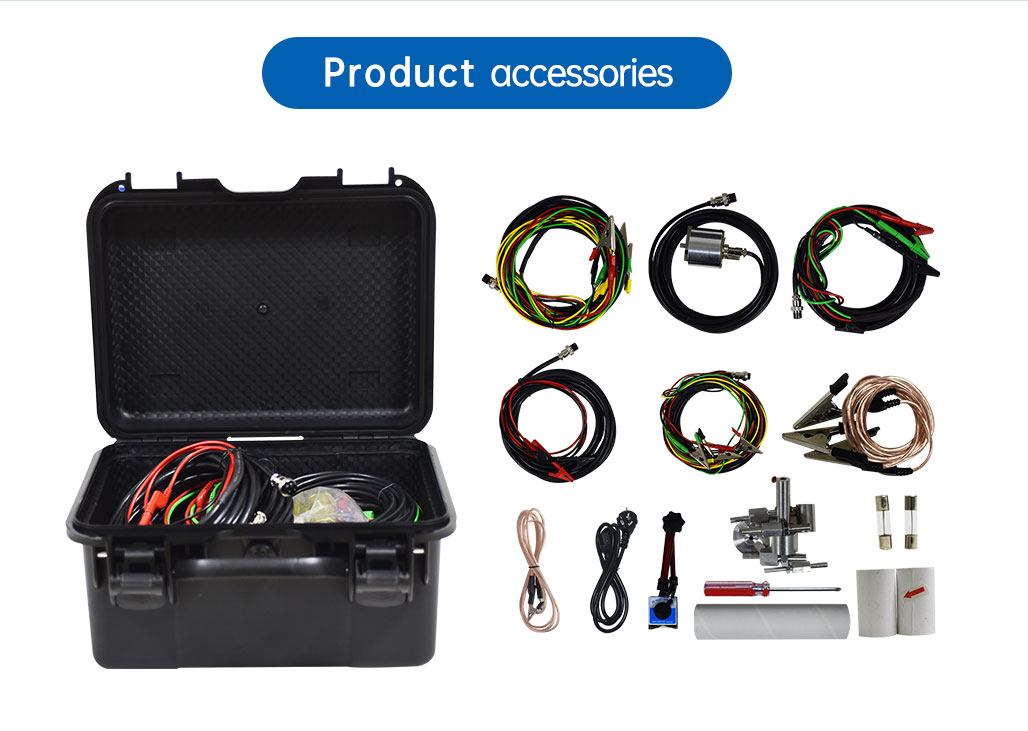

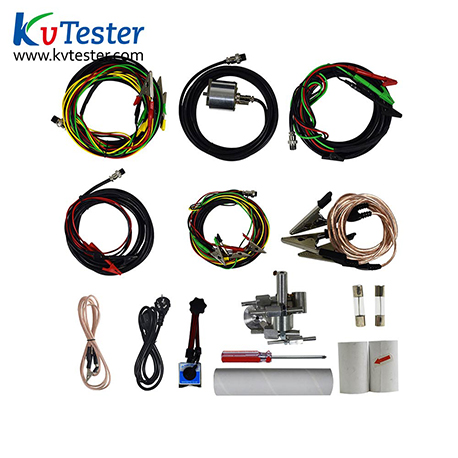

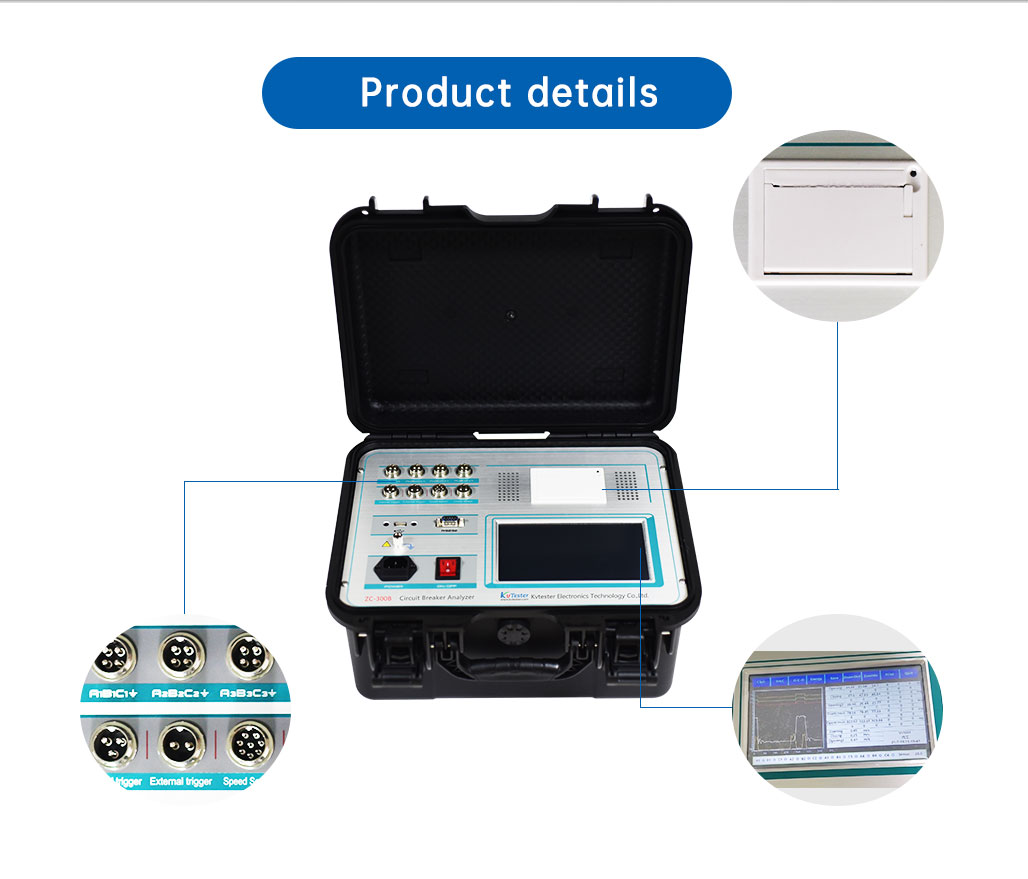

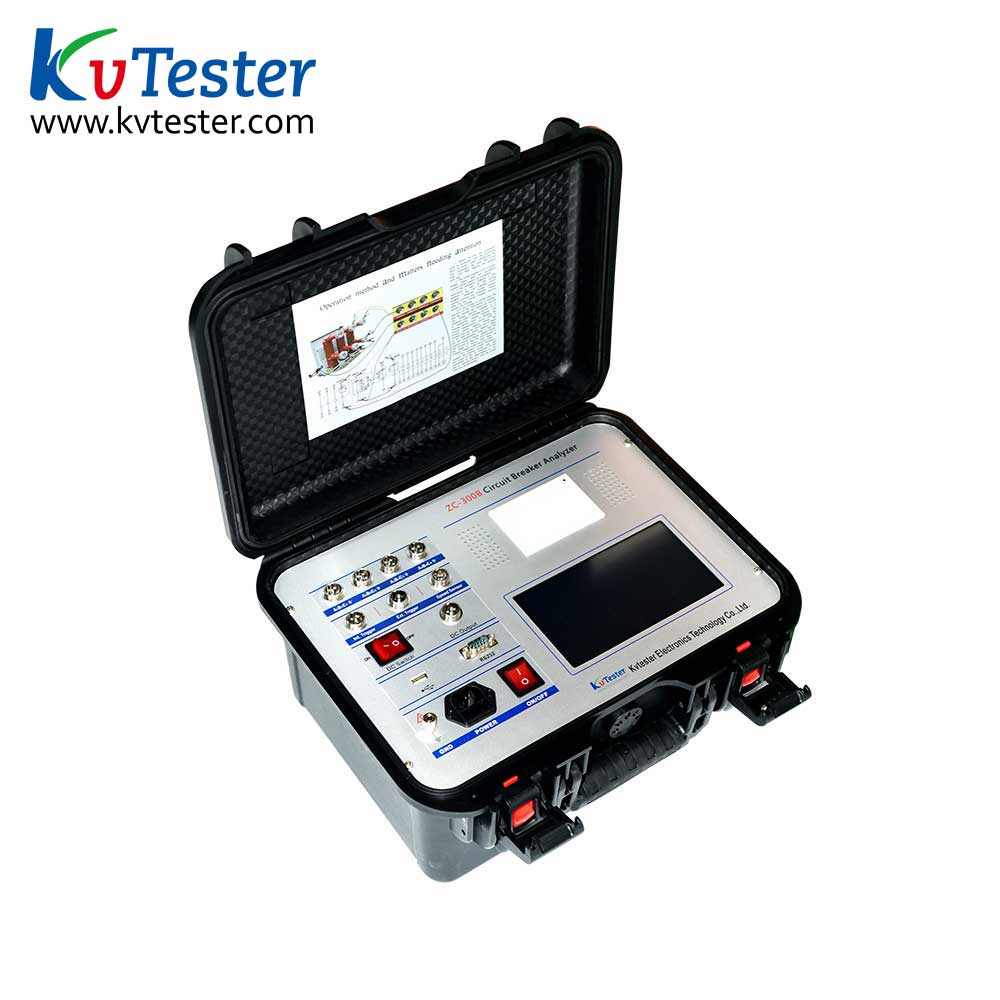

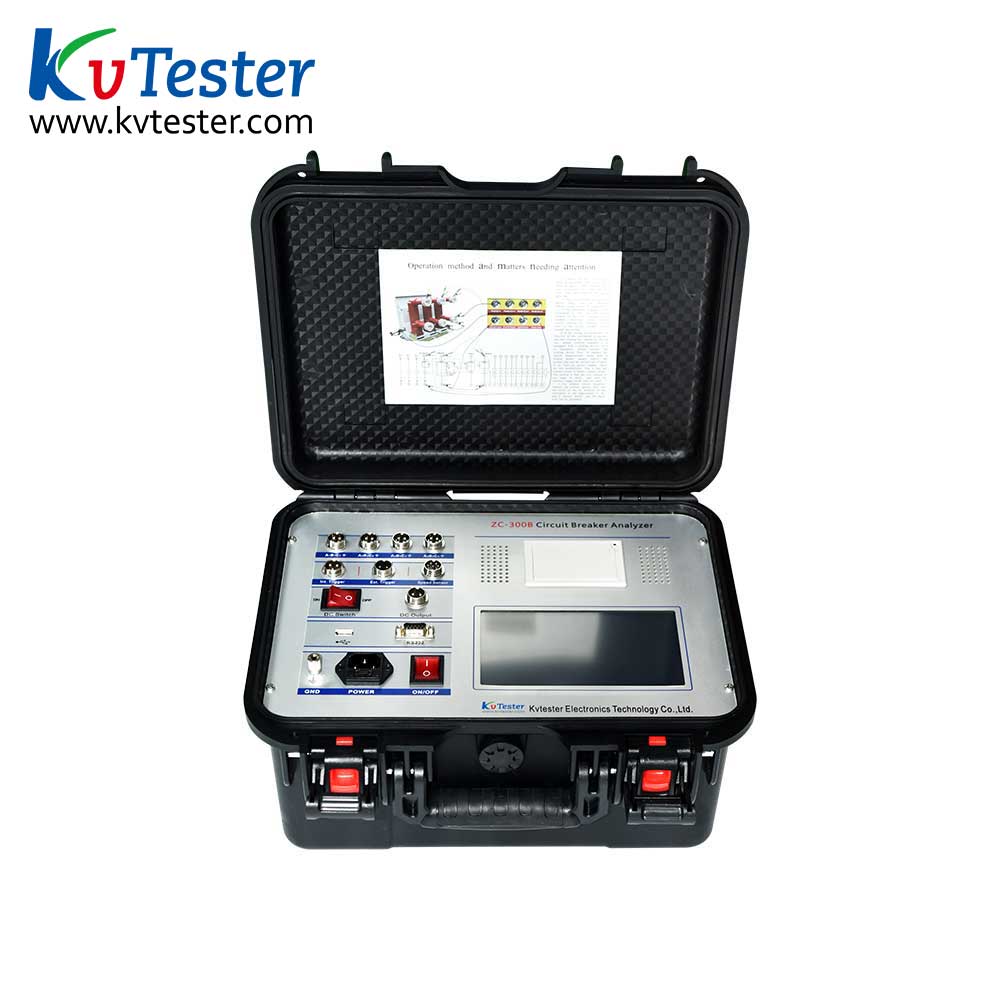

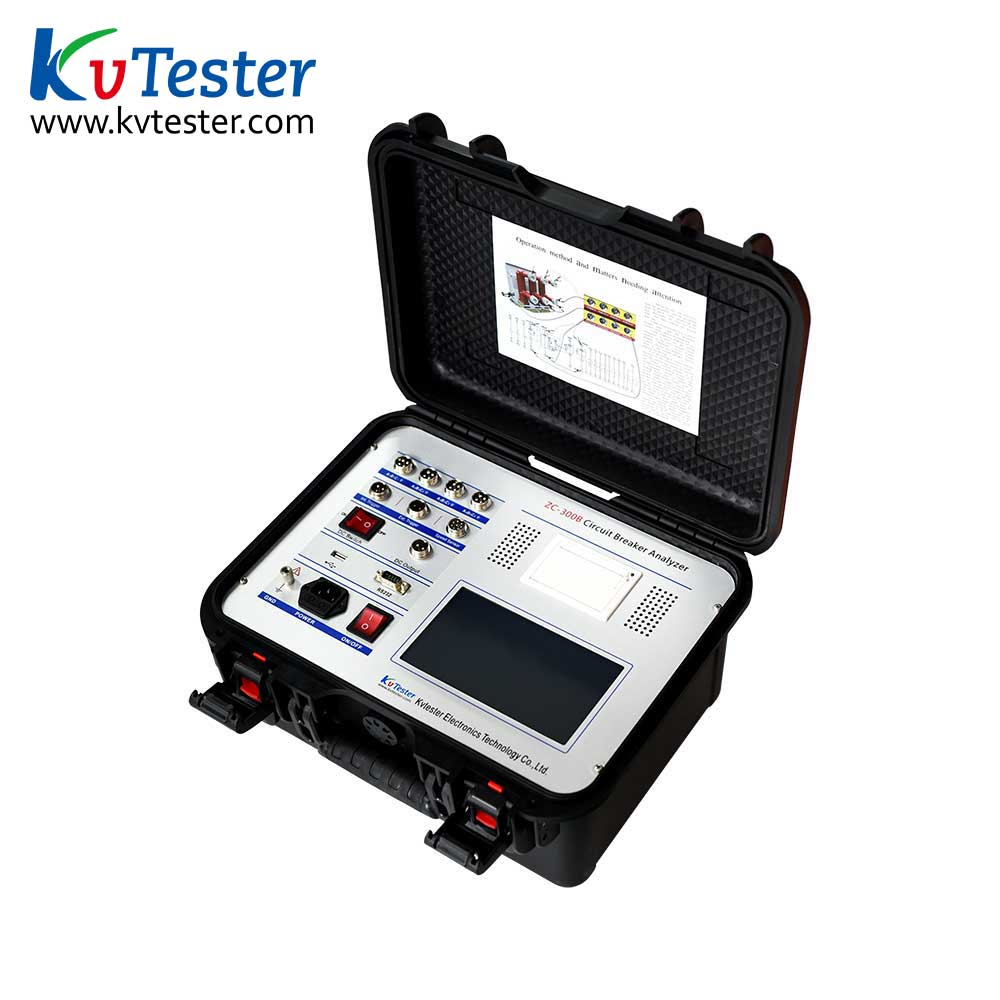

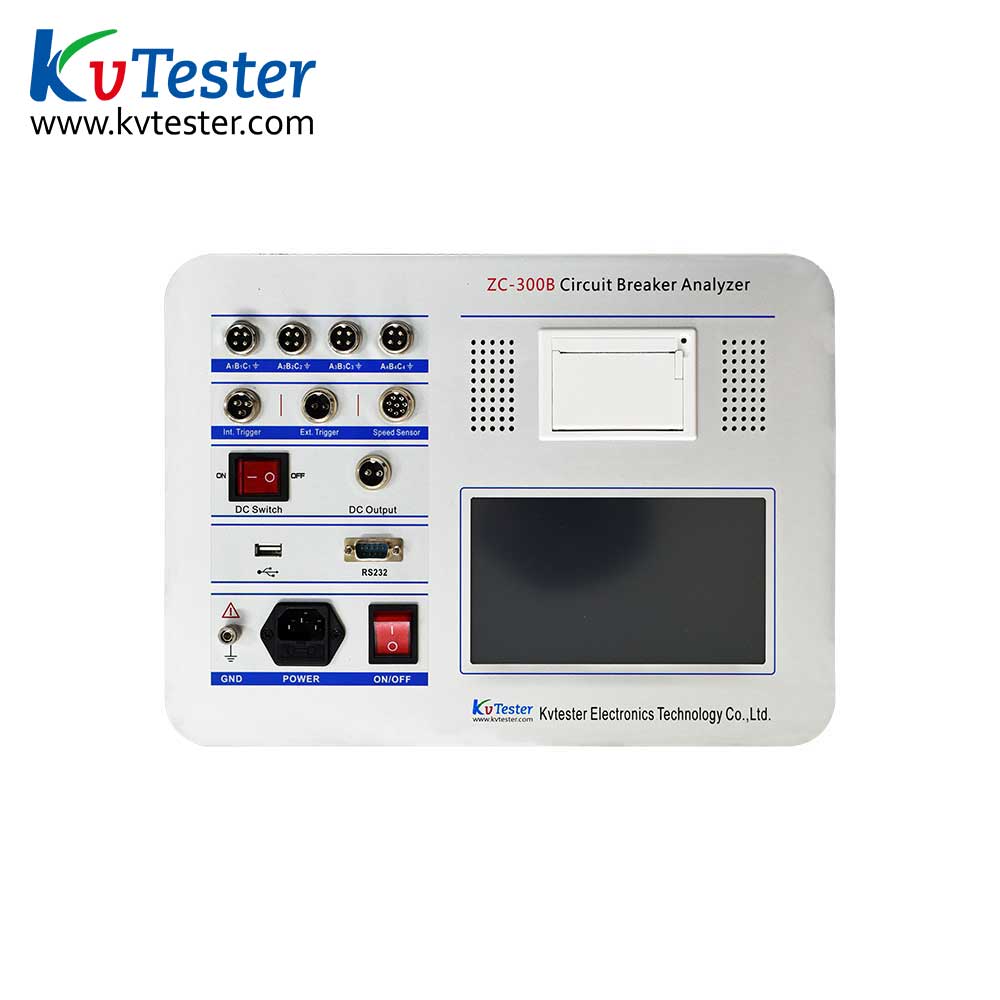

        ZC-300B circuit breaker analyzer can be used to test and measure the mechanical characteristic parameters of high voltage switch ( such as vacuum, six fluoride, less oil, oil and other power systems. The measurement data is stable, strong anti-interference ability, can be in the 500KV level and below the power station to do experiments, wiring is convenient, simple operation, is the most convenient tool for high-voltage switch maintenance test.

  • Product Parameters
Time measurement
12 channel
The inherent opening (closing time)
Opening (closing) in different phases
Opening (closing) in different period
The closing (opening) bounce time (bounce)
Test range
0.01ms~10000ms
Accuracy  within 1ms~100ms
 accuracy 0.5%±2words
 >100ms
 accuracy 1%±2 words
Velocity measurement
breaking(just close)velocity
 Speed range
1mm sensor 0.01~25.00m/s,
 0.1mm sensor 0.001~2.50m/s,
0.5ºangle sensor0.01~25.00m/s
Universal sensor
 0.01~10.00m/s
Stroke measurement:
Moving contact stroke (stroke)
 Contact travel (opening)
   Overshoot stroke or reverse stroke (overshoot)
 Sensor measurement range
 Linear displacement sensor 50mm,resolving power:0.1mm,stroke 0.1~50mm
  Linear displacement sensor 300mm,resolving power:0.1mm,stroke 10~300mm
   Linear displacement sensor 500mm,resolving power:1mm,stroke10~500mm
 Current measurement
The maximum current value of the opening (closing) coil be displayed.
Display
320×240 LCD screen, adjustable contrast
 Data storage
can store 100 sets of measurement data
Printer
 high speed thermal printer
Power
AC/DC 220V ±10%;50Hz ± 2%
DC power supply
output voltage: 20~265V continuously adjustable, output current:≤15A (short time)

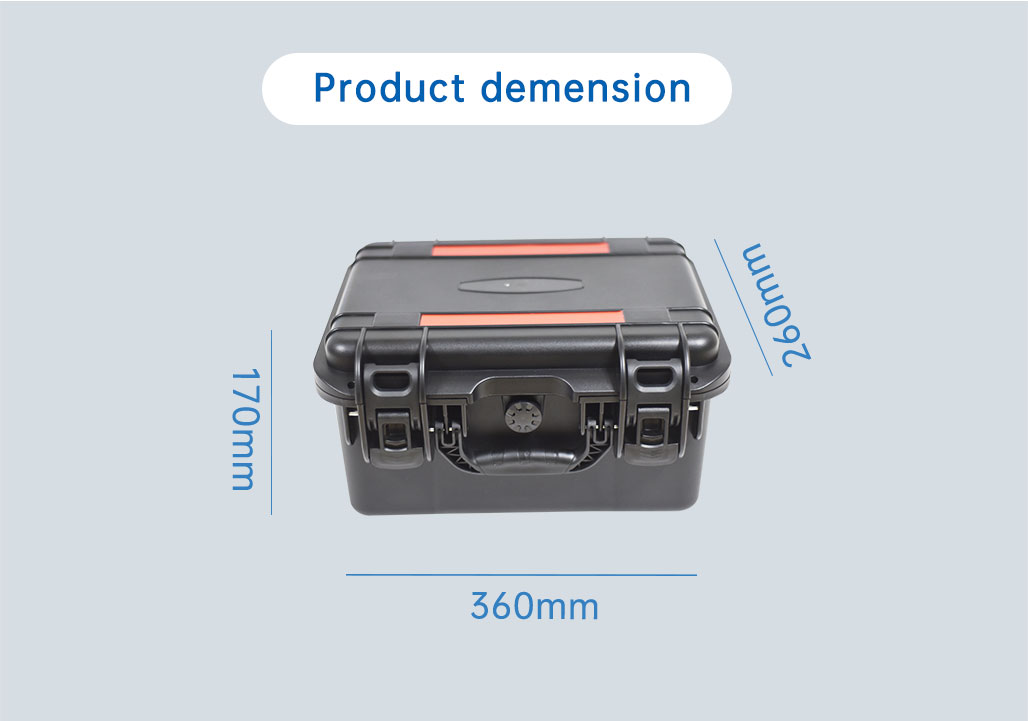

Size
360mm×250mm×140mm
Environment
360mm×250mm×140mm -10℃~+50℃
Relative humidity
≤90%


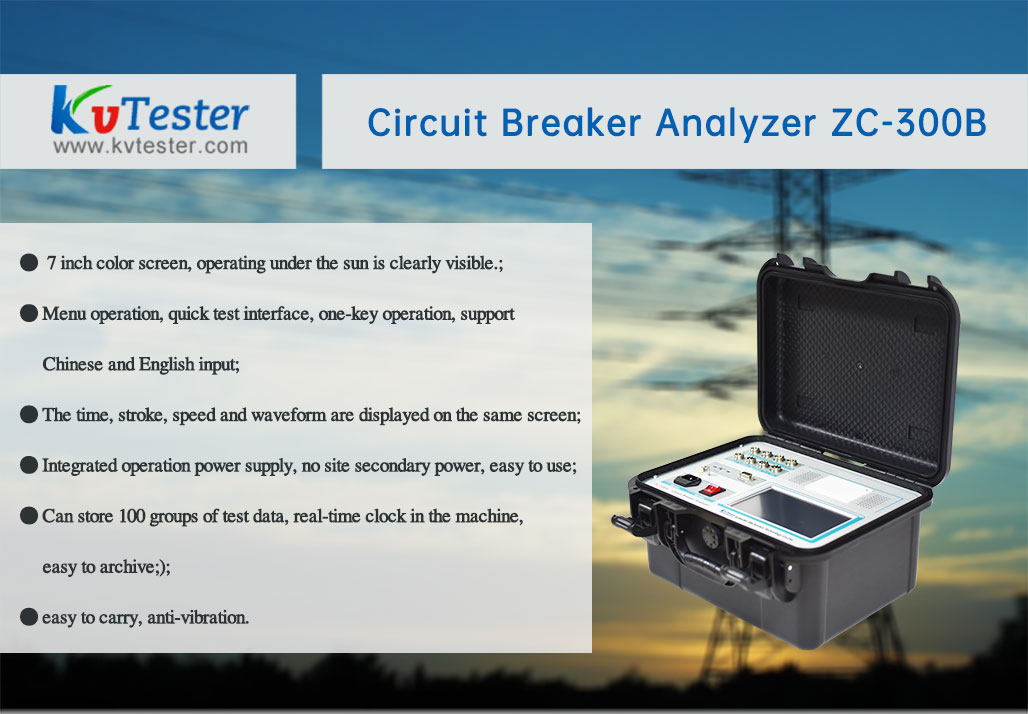

  • Product Features
    1. The instrument can automatically identify the contact opening and closing state, and according to the reference state corresponding to the contact tip and operation.
    2. Independent 12 fracture, can detect and indicate the connection state of the fracture, facilitate the user to check the wiring
    3. The tester can store 50 groups of test results.
    4. Large screen LCD (320 * 240) LCD display, advanced gray screen, without reflection or black in the sun, and English characters graphic menu.
    5. Operation tips, user-friendly menu interface, easy to operate.
    6. The instrument has powerful function of graphic analysis, and the waveform and measurement data are displayed on the same screen.
    7. The utility model has the function of time delay protection, and the coil voltage can be automatically cut off after the circuit breaker is operated.
    8. The instrument can be divided into electric and manual test.
    9. For high and low voltage test, automatically find the lowest open or closing voltage.
    10. Reclosing test, can do parameters test for open-closing, closing-open and open-closing-open etc.
    11. Vacuum contactor (Single coil) parameter measurement.
