Circuit Breaker (Switch) Tester

Contact Resistance Tester

type:ZC-302D-200A
Online Service
  • Product Introduction

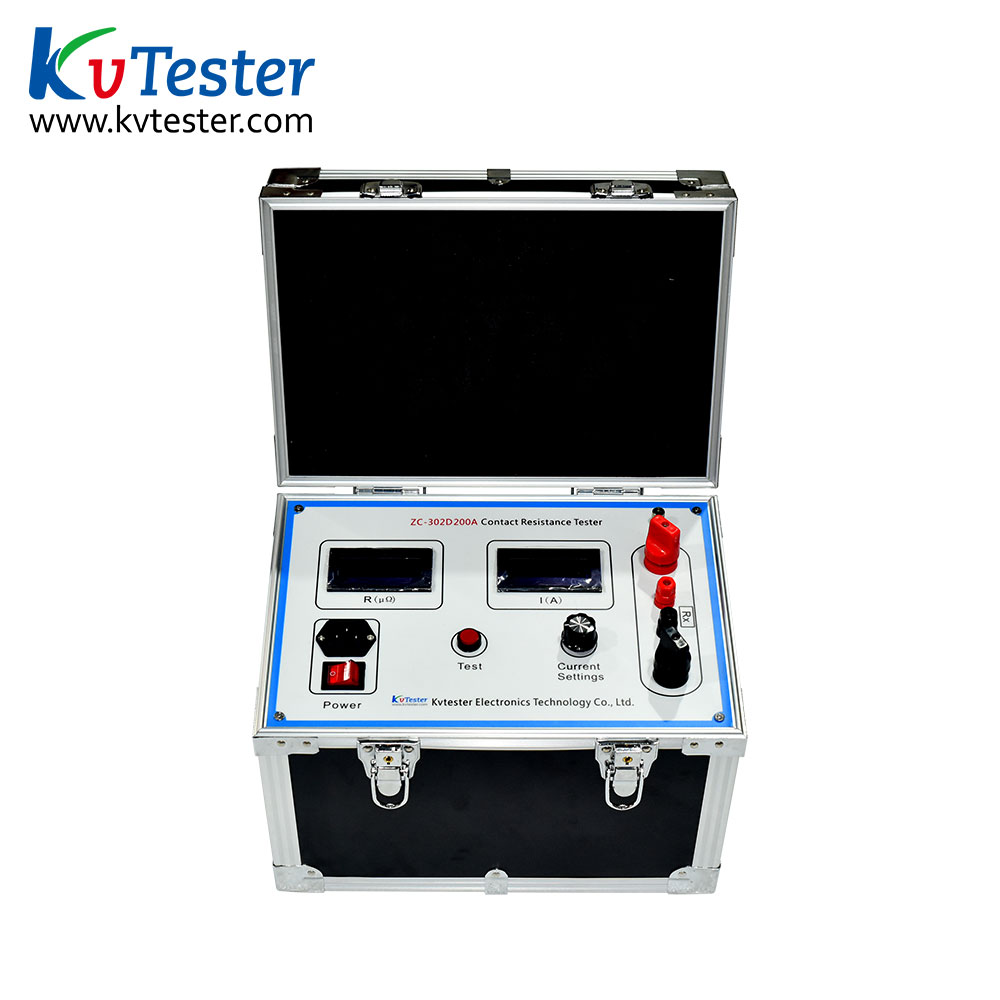

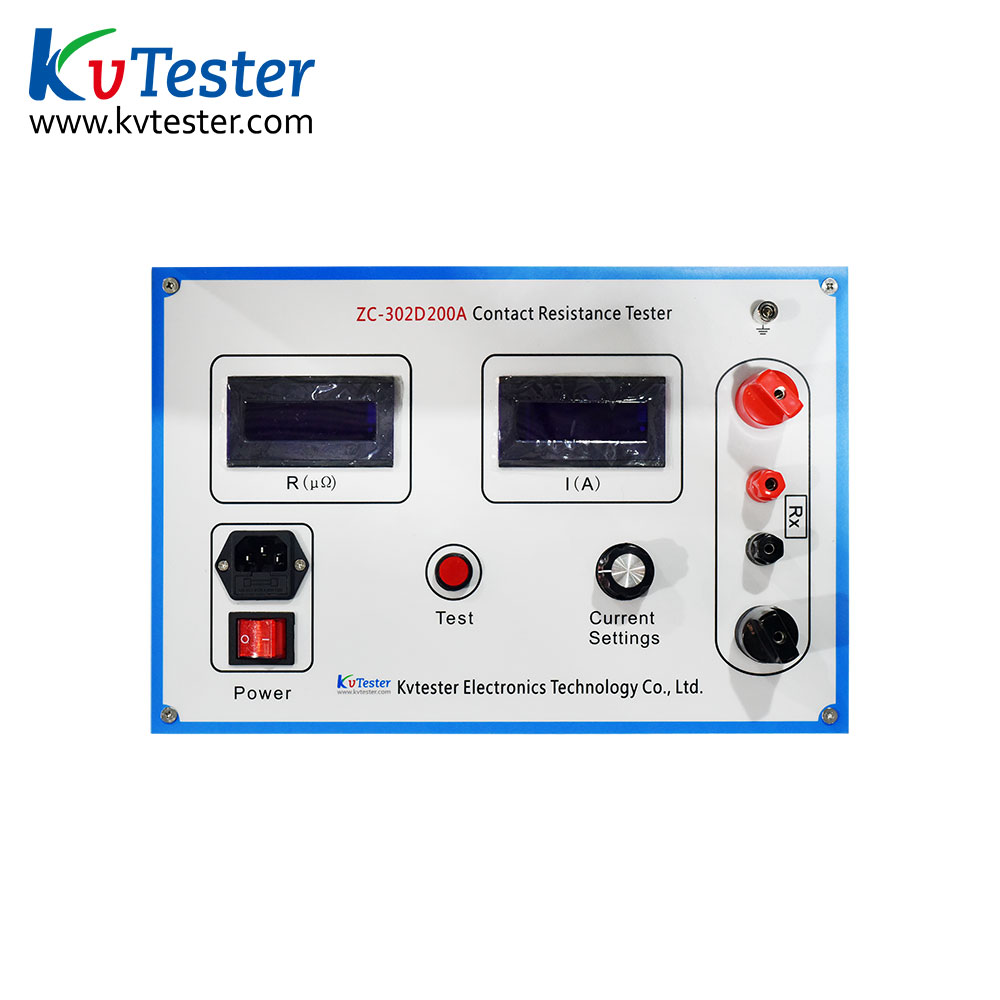

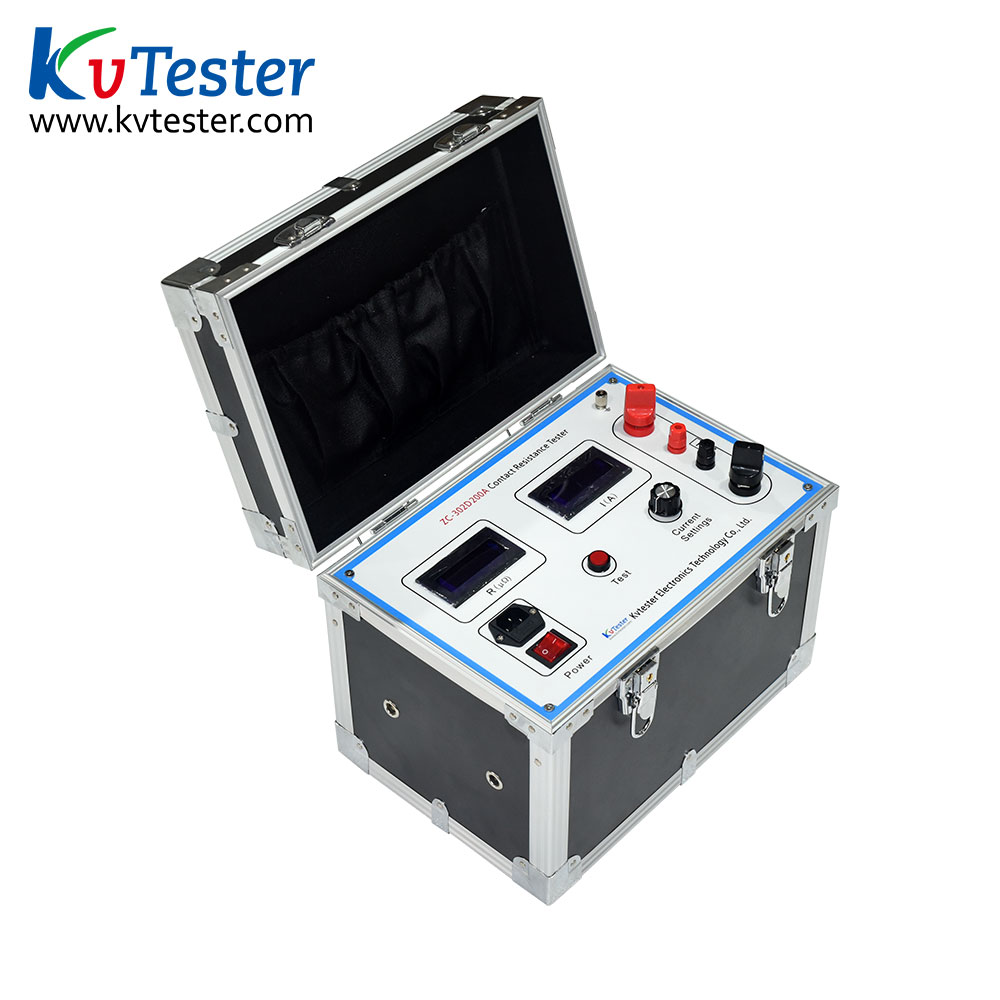

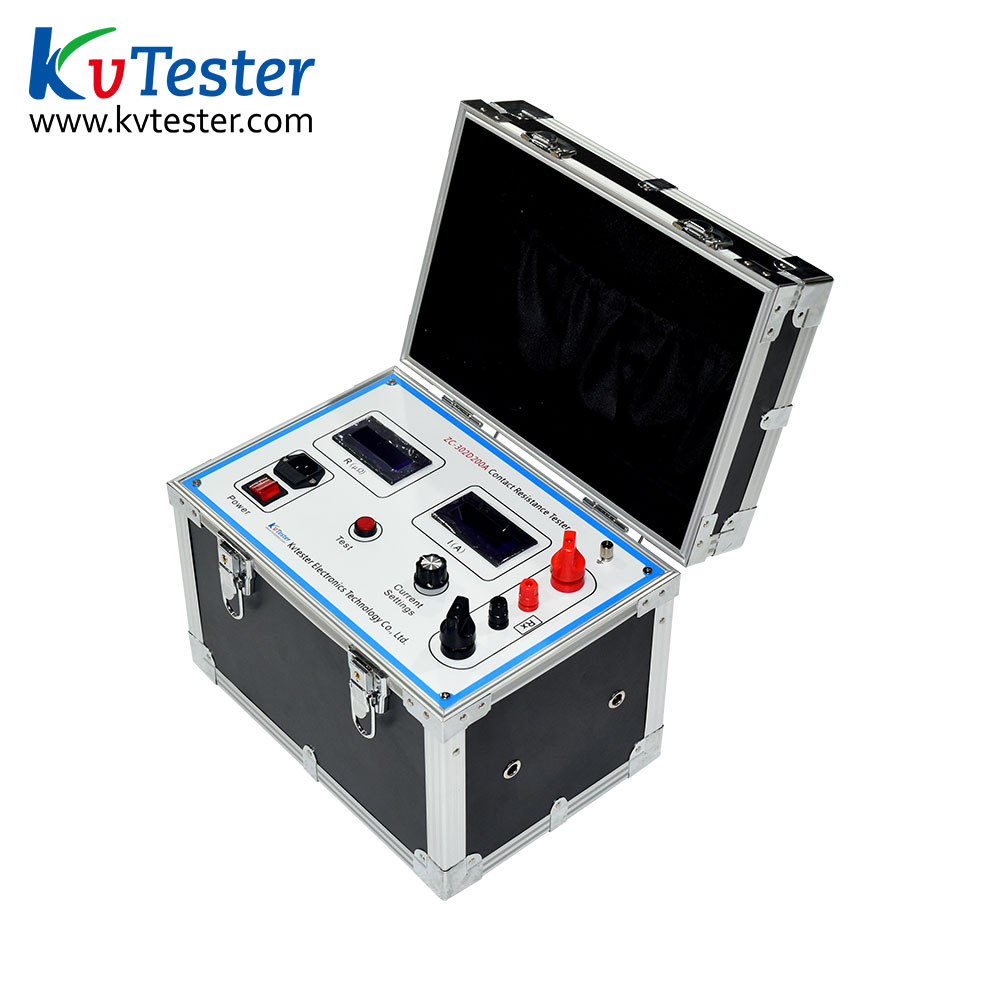

ZC-302D-200A Contact Resistance Tester is suitable in high-precision measurement of high-voltage switches’ resistances. It also helps in measurement of equipment that have high current and micro resistivity.

  • Product Parameters
Measurement range1 ~ 1999μΩ
Resolution1μΩ
Test current0 ~ 200A
Accuracy0.5% ±1d
Power SupplyAC220V±10%  50/60Hz
Work environmentTemperature: - 10℃~40℃   Humidity: ≤80 %RH
Size345*235*285 mm
Weight7.5Kg (Accessories excluded)


  • Product Features

1、High current:

The tester can output sequential high current which overcome the difficulties in instantaneous current of pulsed power. It can effectively Breakdown the oxide layer between the switches and then get more precise results

2、Strong anti-interference ability:

The last number of test data showed in the LCD screen ranges ±1 even in strong Interference situation

3、Long service life:

All of the precise resistances used in the tester can reduce The temperature’s impact on the measurement results and military connectors can enhance vibration resistance

4、Convenience:

Smaller and lighter
