SF6 Gas Leak Detection and Analysis

SF6 Dew Point Tester

type:ZC-311
Online Service
  • Product Introduction

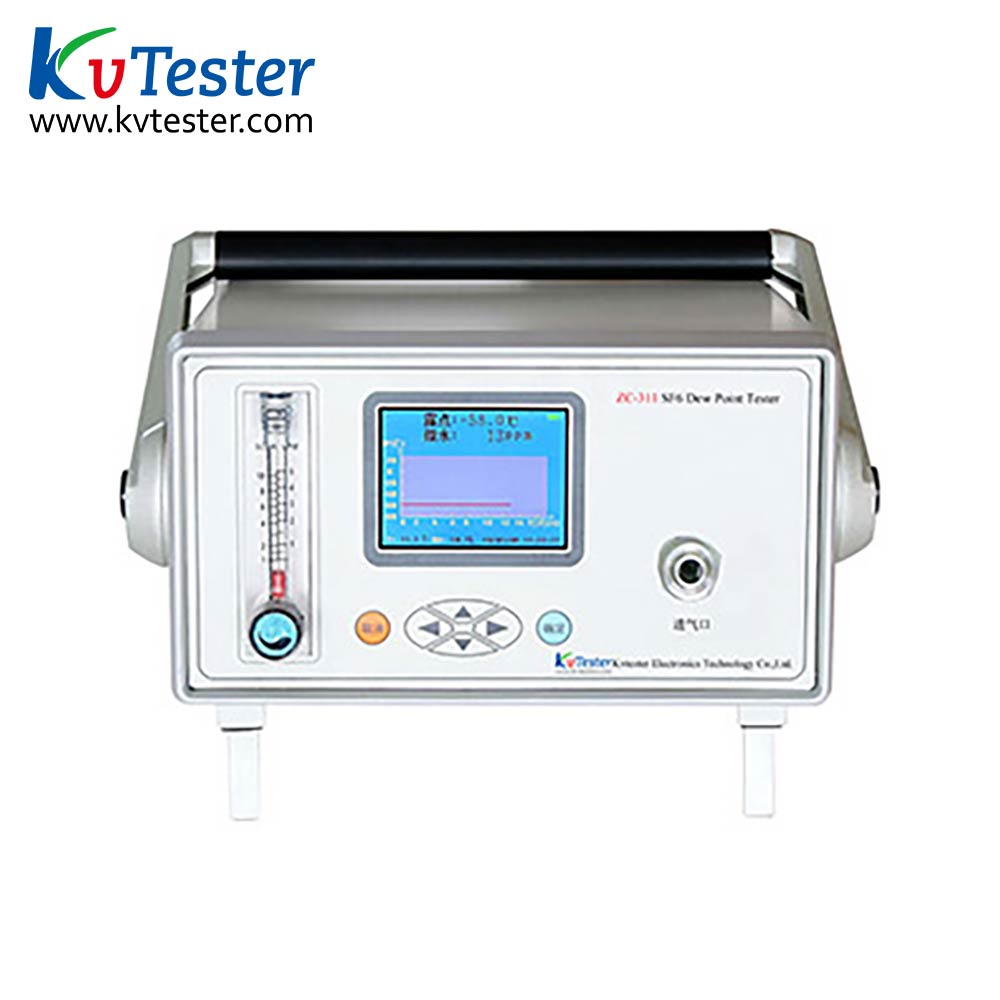

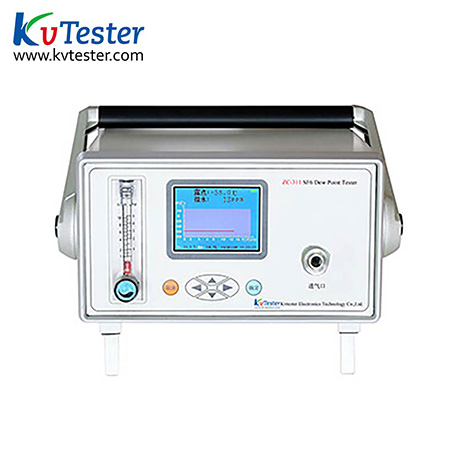

      ZC-311 SF6 Dew Point Tester is advanced ,intelligent. It is advanced in principle, degree of automation, convenience, especially it adopts Europe Standard technique, to ensure the data to be accurate and steady. This equipment with large measurement range, fast response, short test time, clearly display,easy to operate. This instrument applies to power system, petroleum chemical enterprise, metallurgical industry, research institute to test humidity of the air, nitrogen, inert gases and others gases which not included corrosive medium, especially to test the humidity of the SF6.

  • Product Parameters
Dew point Range -60℃~+20℃
Accuracy ±2℃(-60℃~+20℃)
Time <3minutes (+20℃)
Working Temperature -40℃~+60℃
Humidity 0~100% RH
Power AC 220V
built-in rechargeable battery
Battery Performance At least 20 hours of charging provides 10 hours continuous work
Weight 3kg
Dimension 250mm×100mm×300mm
  • Product Features
    1. Portable design:With less weight, it can be moved or used more easily.
    2. Quick test:It can be used right after the switching on and gets the value of moisture.
    3. Saving gas in less time:Only 2L (101.2Kpa) gas is needed during the test.
    4. Self-locking joint:Self-locking joint from Germany is adapted to ensure security and to avoid gas leak.
    5. Data storage:A high-capacity design is used to store at most 50 groups of testing data.
    6. Clear display:On the LCD screen you can read values of dew point, minim moisture, environment temperature,environment moisture,time, date and battery level, etc.
    7. RS232 joint:It can be connected to a serial printer to acquire the needed data.
    8. Built-in power supply:A rechargeable lithium battery is used to ensure a ten-hour continuous work of the sensor.
