SF6 Gas Leak Detection and Analysis

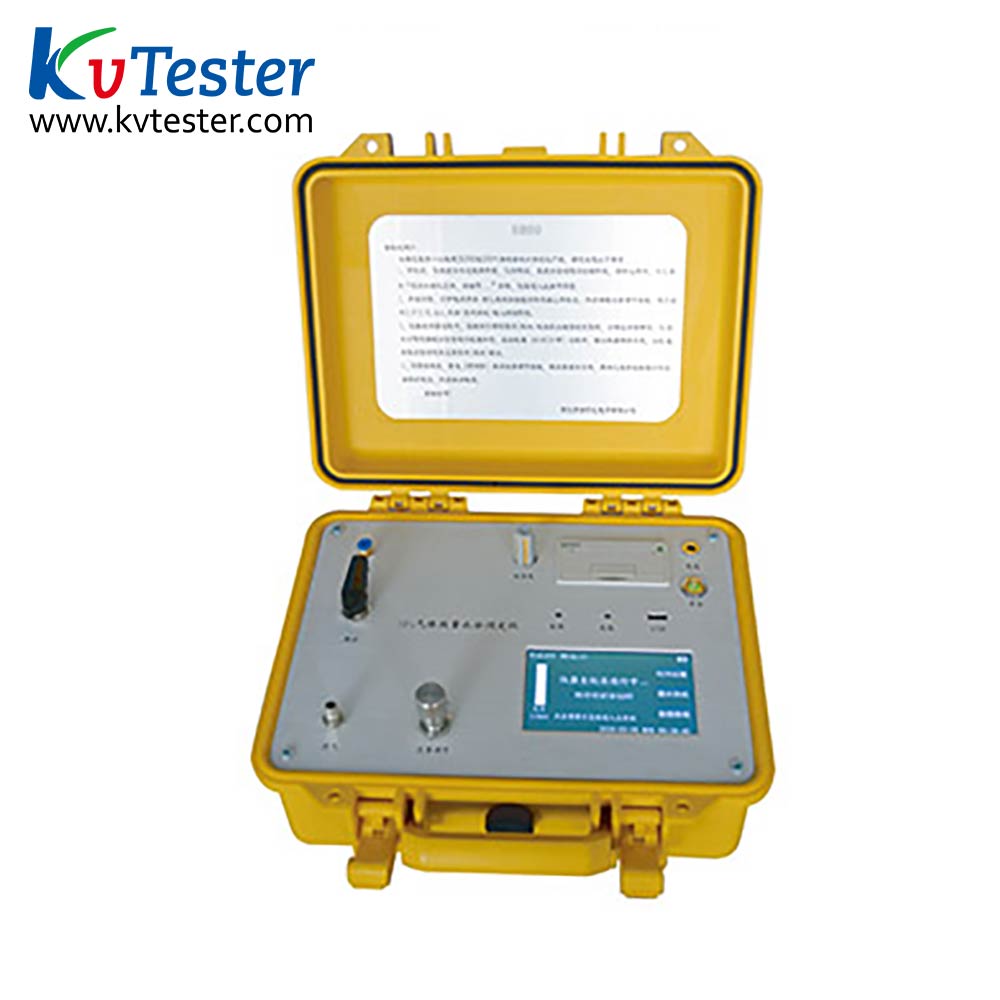

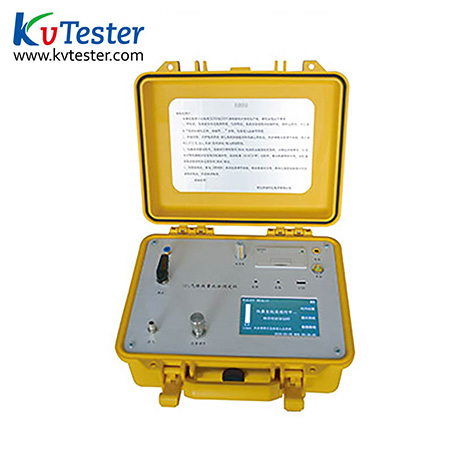

Sf6 Gas Moisture Dew Point Analyzer

type:ZC-311A
Online Service

TAGS:

  • Product Introduction

       ZC-311A SF6 Gas Dew Point Tester is advanced ,intelligent. It is advanced in principle, degree of automation, convenience, especially it adopts Europe Standard technique, to ensure the data to be accurate and steady. This equipment with large measurement range, fast response, short test time, clearly display, easy to operate.

  • Product Parameters
The dew point Measuring range -60 degree Celsius to +20 degree Celsius
Environment temperature  - 40 degree Celsius to +60 degree Celsius
Environment humidity  0 to 100% RH
Battery Performance charging time 20 hours or more, can be used for 10 hours
Weight 3 kg
Size 250 * 100 * 300 mm3
Working temperature  - 40 Celsius to +80 Celsius


  • Product Features
     1,Portable design: the instrument lighter, carry, easy to use.
     2,Measuring fast: no need to wait after the instrument boot-strap, instantly measure, quickly get humidity value.
     3,Saves gas quickly. Gas consumption when measured only 2L (101.2kPa) around.
     4,Self-locking connector: use the German original installation import self-locking joint, safe and reliable, and no leakage.
     5,Data storage: use the large capacity design , can store up to 50 groups of test data.
     6,Clear display: LCD display directly to the dew point, moisture (ppm), ambient temperature, humidity, time and date, battery power, etc.
     7,RS232 interface: can be connected with a serial printer, print the data.
     8,Built-in power supply: built-in 4 ah rechargeable lithium battery, a sufficient continuous work for 10 hours.

Please leave the product information you want to know!
