SF6 Gas Leak Detection and Analysis

SF6 Precision moisture meter

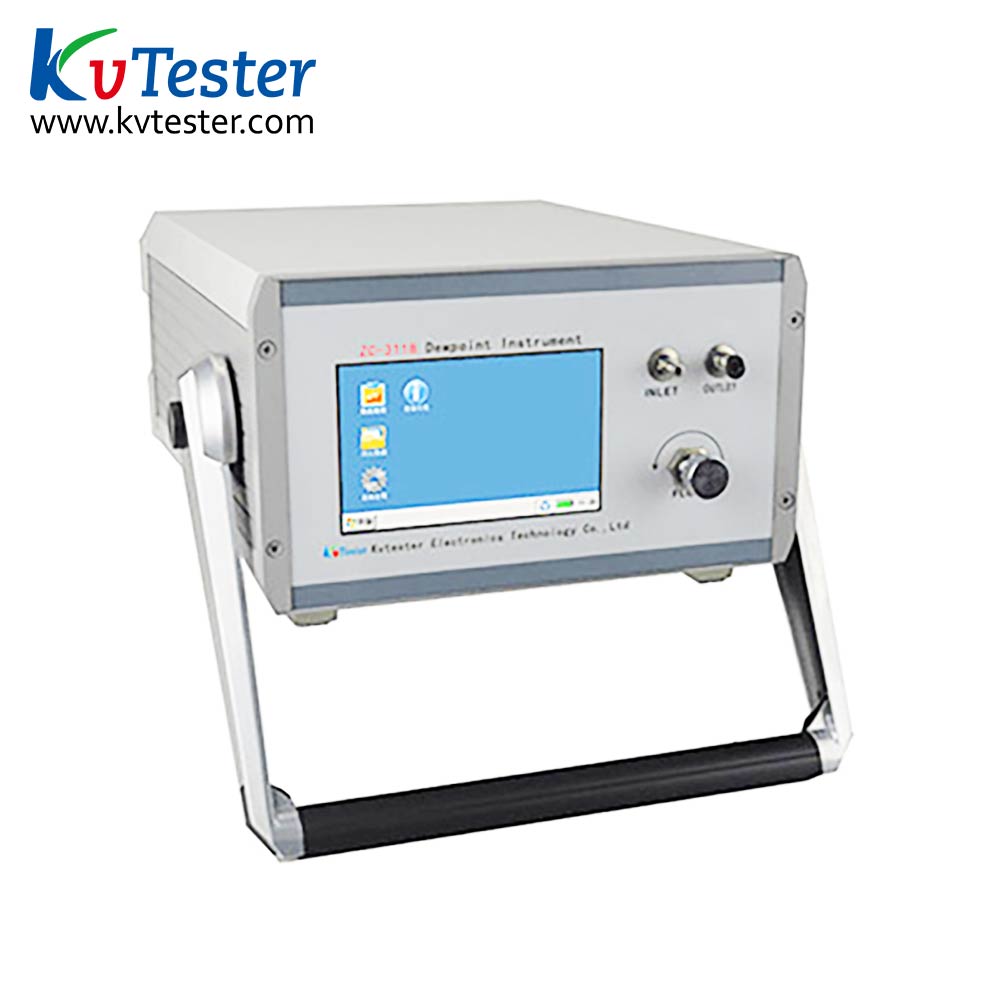

type:ZC-311B
Online Service
  • Product Introduction

    ZC-311B SF6 Micro moisture meter in the whole range measurement accurate and reliable, and has excellent long-term stability, it is not affected by dust particles and most of the chemical pollution, very suitable for the use of industrial environment.
    It is in low dew point and do need to control industrial environment is an ideal choice. It has chemicals to remove options, which makes the instrument in the environment of high concentrations of chemicals and detergents can be accurate and stable measurement, to ensure the accurate and check every time interval between measurements. This function can be performed online through the control system, can also according to the pre-set time interval to perform on a regular basis.

  • Product Parameters
Dew point Measuring range     -80 ℃~+20℃
Accuracy of measurement    ±1℃(-80℃~+20℃)
    0.5℃(-50℃~+20℃)
The resolution of the     0.01℃
The power supply     AC 220V
    The built-in rechargeable battery
pressure     0~1MPa
The weight of the     3.5kg
size     25mm0×100mm×300mm
Working temperature     -40℃~+80℃


  • Product Features
    1. 5.6 -inch color touch screen, good repeatability, response speed, simple operation, easy to carry.
    2. Internal stainless steel pipe: effectively prevent instrument piping secondary pollution.
    3. Full range of single point method, multiple point method humidity calibration, measurement of zero point in the process of automatic calibration of patent technology.
    4. Self-locking joint: adopt imported self-locking joint, safe and reliable, no leakage.
    5. Data storage: can store 100 set of test data.
    6. Shows clear: LCD display directly micro water (PPM), dew point, environment temperature, battery, etc.
    7. Built-in power: built-in rechargeable lithium battery, a full 8 hours can work continuously.
