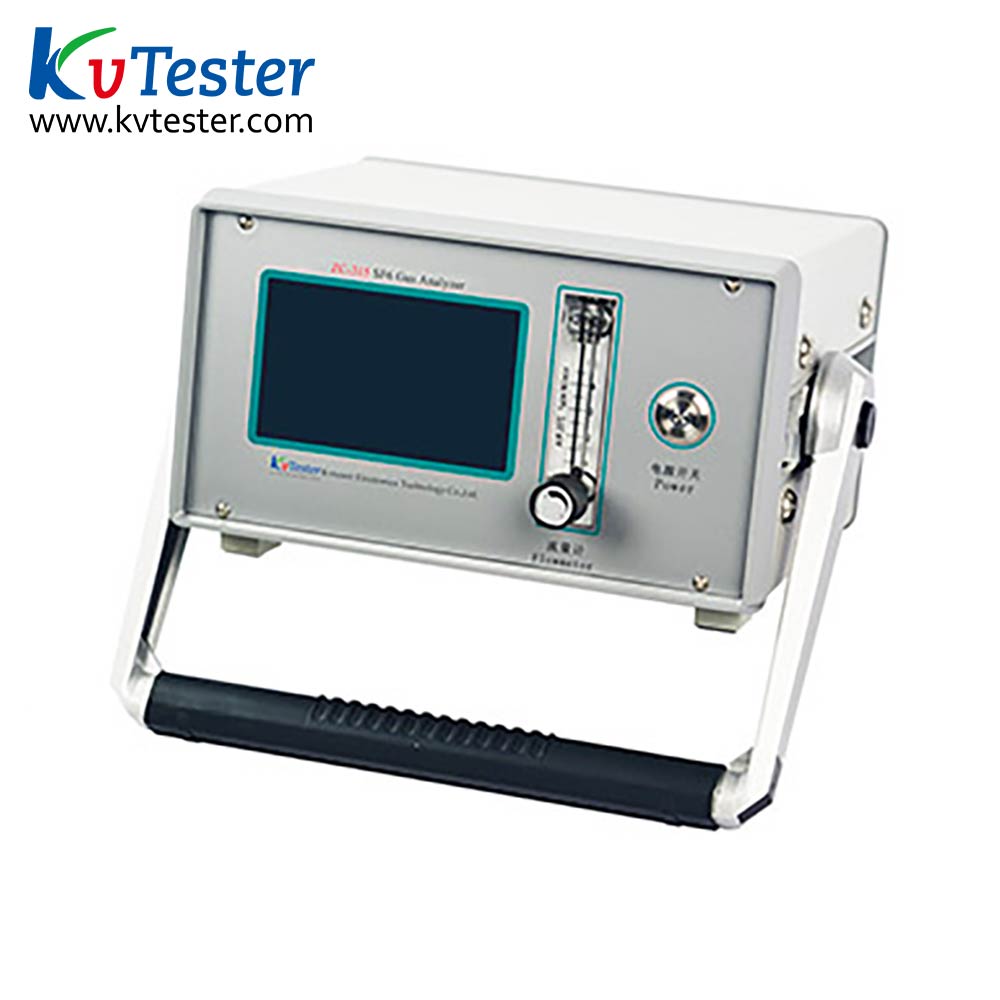

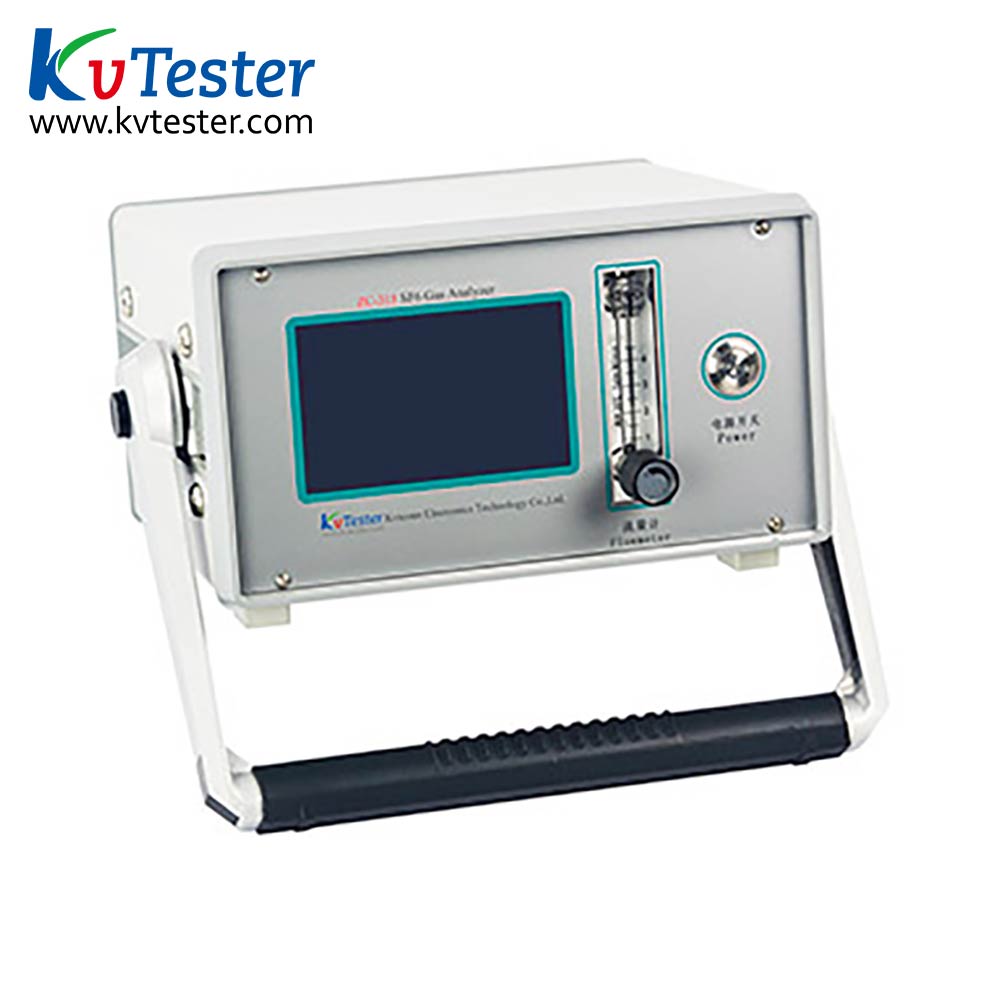

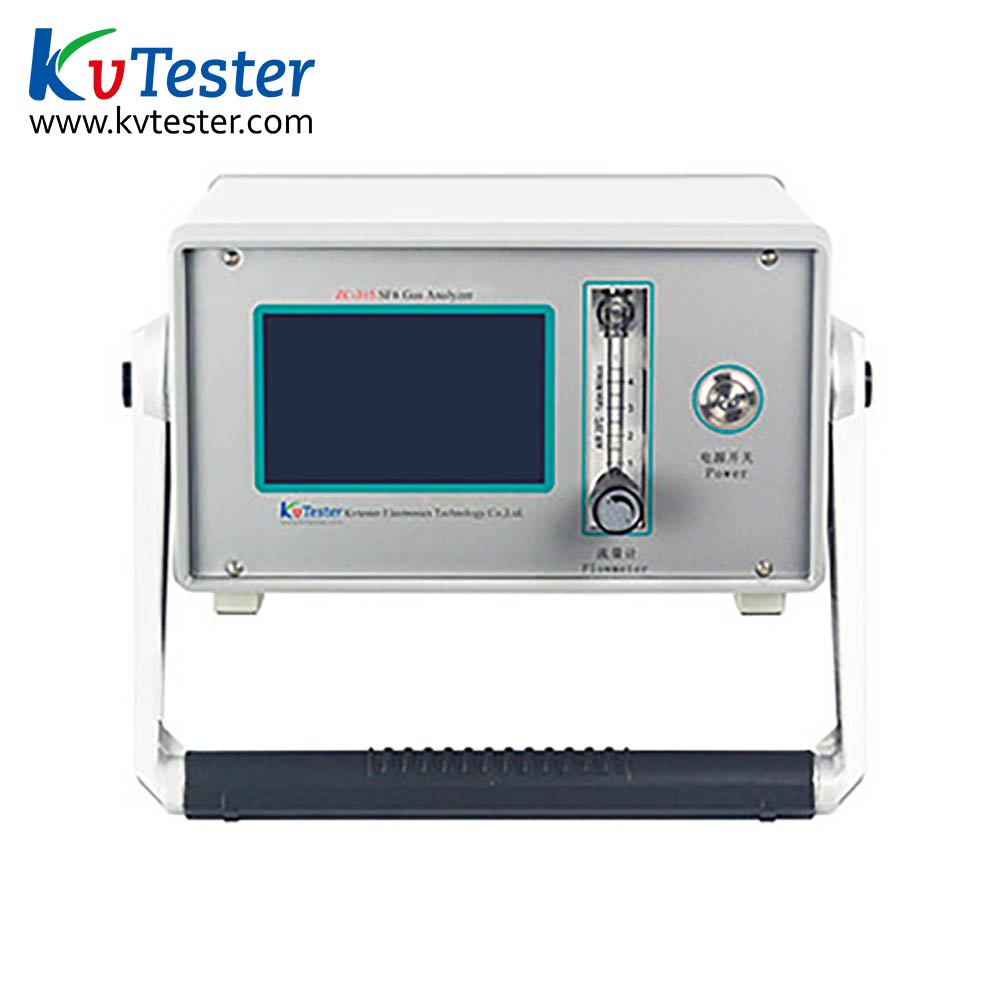

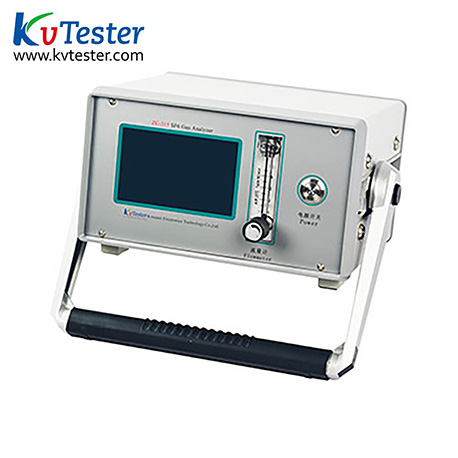

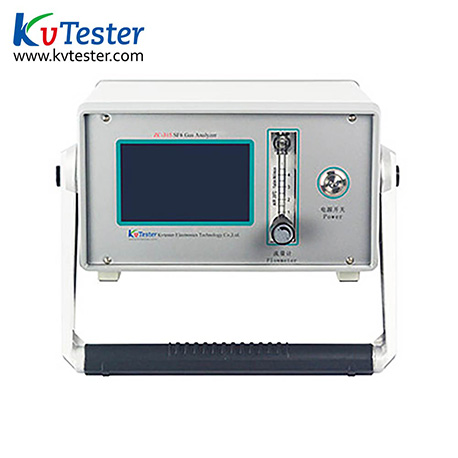

SF6 Gas Analyzer

type:ZC-315
Online Service

TAGS:

  • products
  • ZC-315
    • Product Introduction

         ZC-315 SF6 Gas Purity Analyzer adopts thermal conductivity sensor with high stability and high precision, according to the difference in thermal conductivity of gas, it can accurately and quickly measure the content of random one gas of two mixture gases. Unique technique of wide-range temperature compensation is adopted, so as to guarantee the measurement precision of instrument. It can monitor gas purity.

    • Product Parameters
    Measuring range: 0~100% (percentage composition of SF6)
    Measuring precision ±0.1%
    Resolution 0.1%
    Response time 015s
    Sampling system built-in pressure maintaining valve, filter and electronic mass flowmeter
     Sampling flux 0.5~0.8L/min
    Continuous working duration  8 hours (by lithium ion battery)
    Ambient temperature -40ºC~+80ºC
    Dimension 320 x 270 x 140mm
    • Product Features
        1. Thermal conductivity sensor with high stability and high precision
        2. Full-range temperature compensation, quick response, high precision and steady performance
        3. Real-time curve display
        4. Operation and control by color touch screen
        5. Storage and printing of measured data
        6. Intelligent display of electricity quantity and intelligent charging protection
