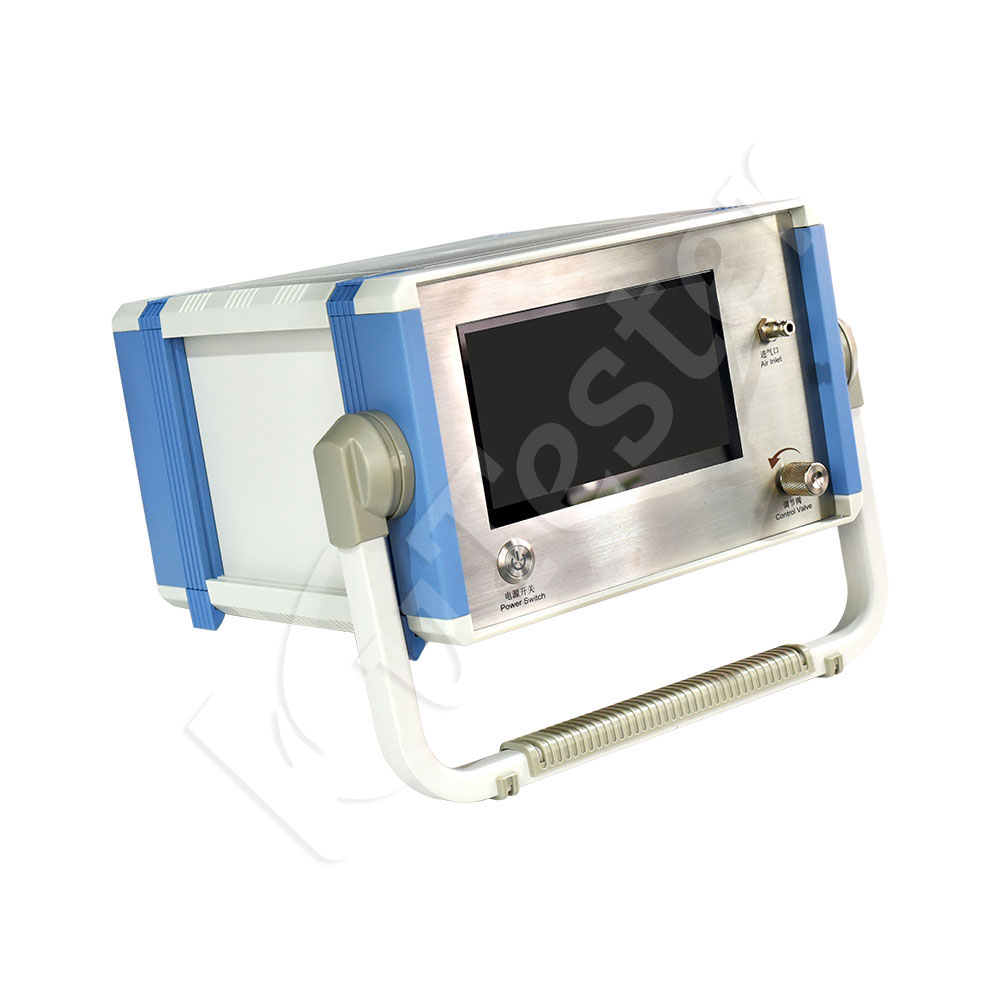

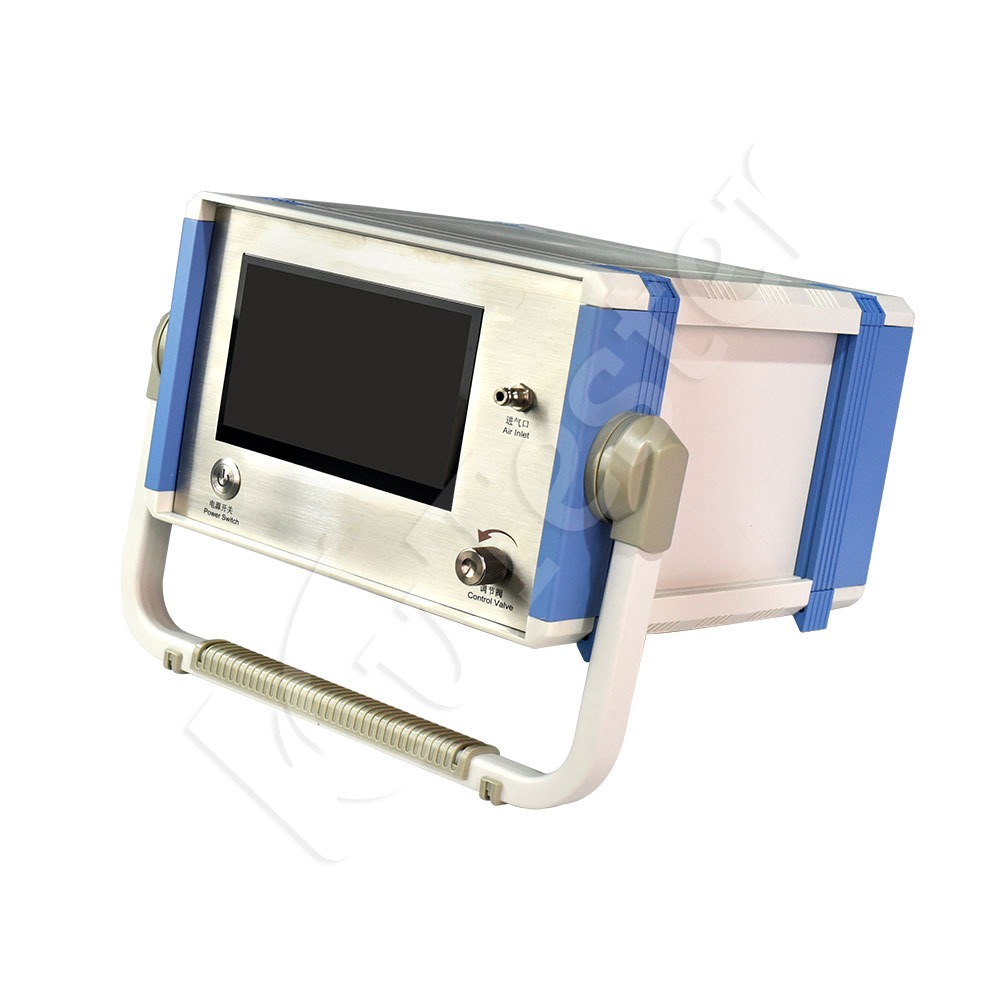

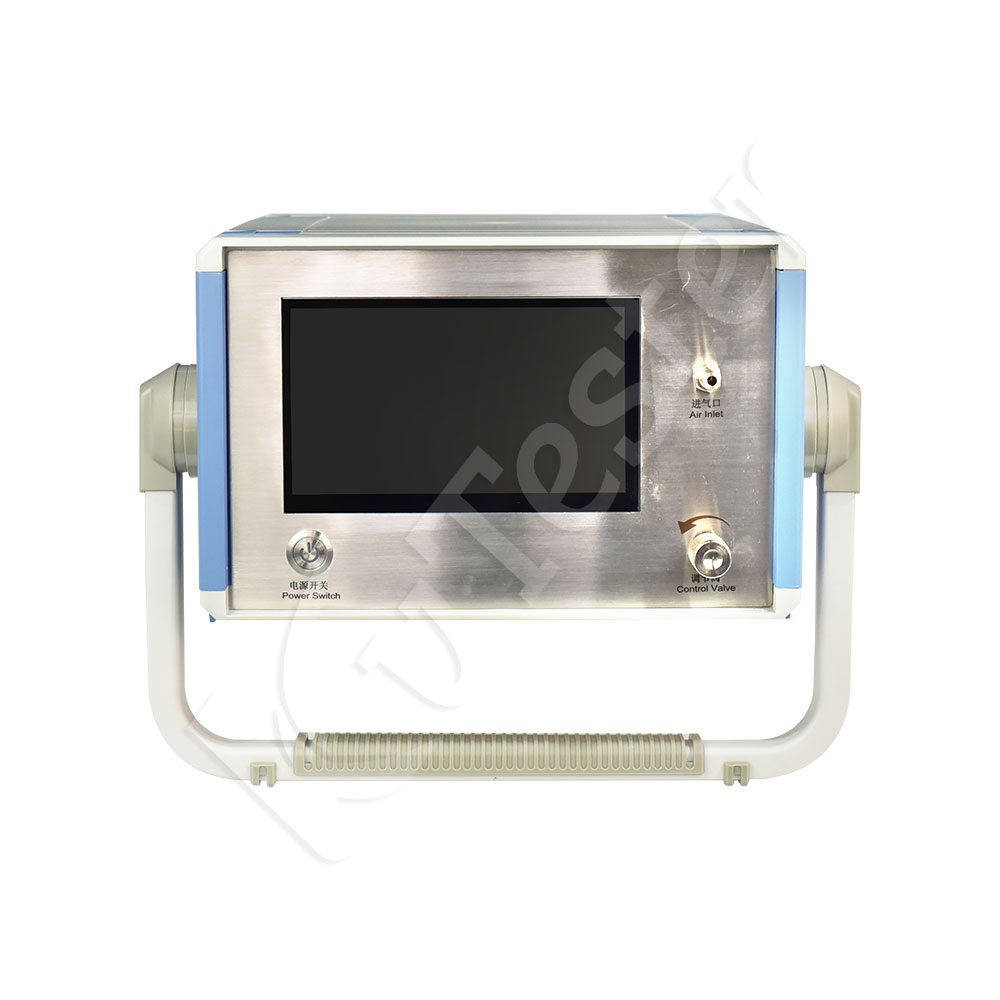

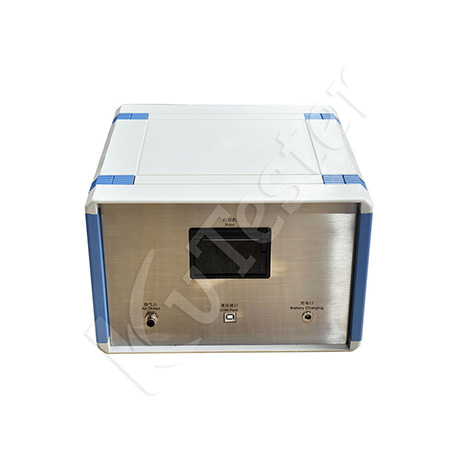

SF6 gas comprehensive tester

ZC-318 SF6 gas comprehensive tester is a set of SF6 humidity, SF6 purity, SF6 decomposition products testing in one, the original three instruments to achieve the function, concentrated in one instrument. One on-site measurement can complete the three indicators detection, greatly saving the gas in the equipment, reducing the user's workload and improving the work efficiency.

The excellent performance of SF6 gas comprehensive tester is due to the use of the best sensors from abroad; pure imported high-precision humidity sensors are used for humidity, thermal conductivity sensors with temperature compensation are used for purity, and the decomposition products are also imported from Europe. Color LCD display, real-time display of various parameters, full touch, fool operation, mass information storage, built-in rechargeable battery, AC and DC dual-purpose.

1.Self calibration: the sensor probe can automatically calibrate the zero point, automatically eliminate the system error caused by zero point and drift, and ensure the accuracy of each measurement.

2.Easy to operate, super large touch LCD screen, simple operation of WYSIWYG type.

3.Optional equipped with pipeline cleaning device, automatic cleaning of internal pipeline after test, improve test speed and accuracy.

4.Fast gas saving: after the machine is started and in the measurement state, the dew point measurement time is about 3 minutes.

5.Self locking joint: the original imported self-locking joint is used, which is safe and reliable without air leakage.

6.Data storage: it adopts large capacity design and can store up to 1000 groups of test data.

7.Clear display: 7-inch large touch LCD directly displays dew point, micro water (PPM), SF6 purity, SO2, H2S, Co, HF content, ambient temperature, humidity, time and date.

8.Built in large capacity rechargeable lithium battery, which can work continuously for more than 12 hours in one charge.
