Circuit Breaker (Switch) Tester

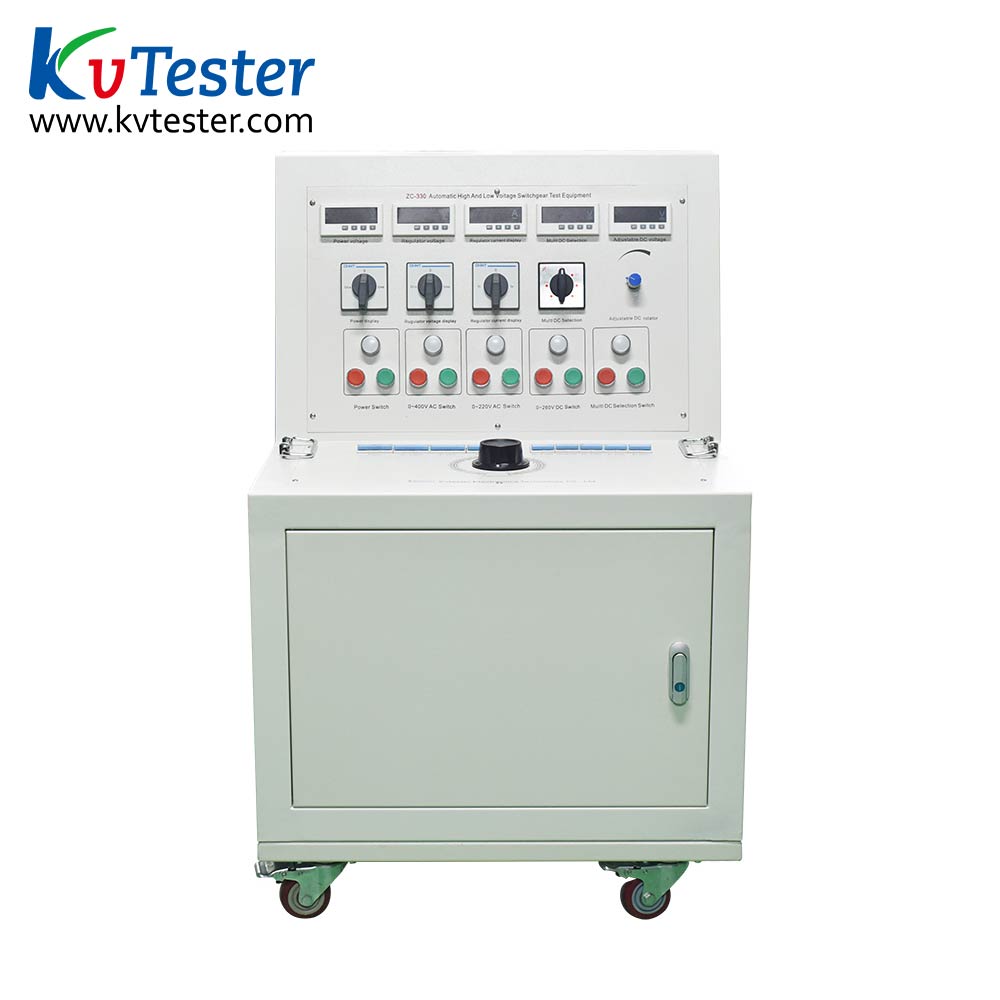

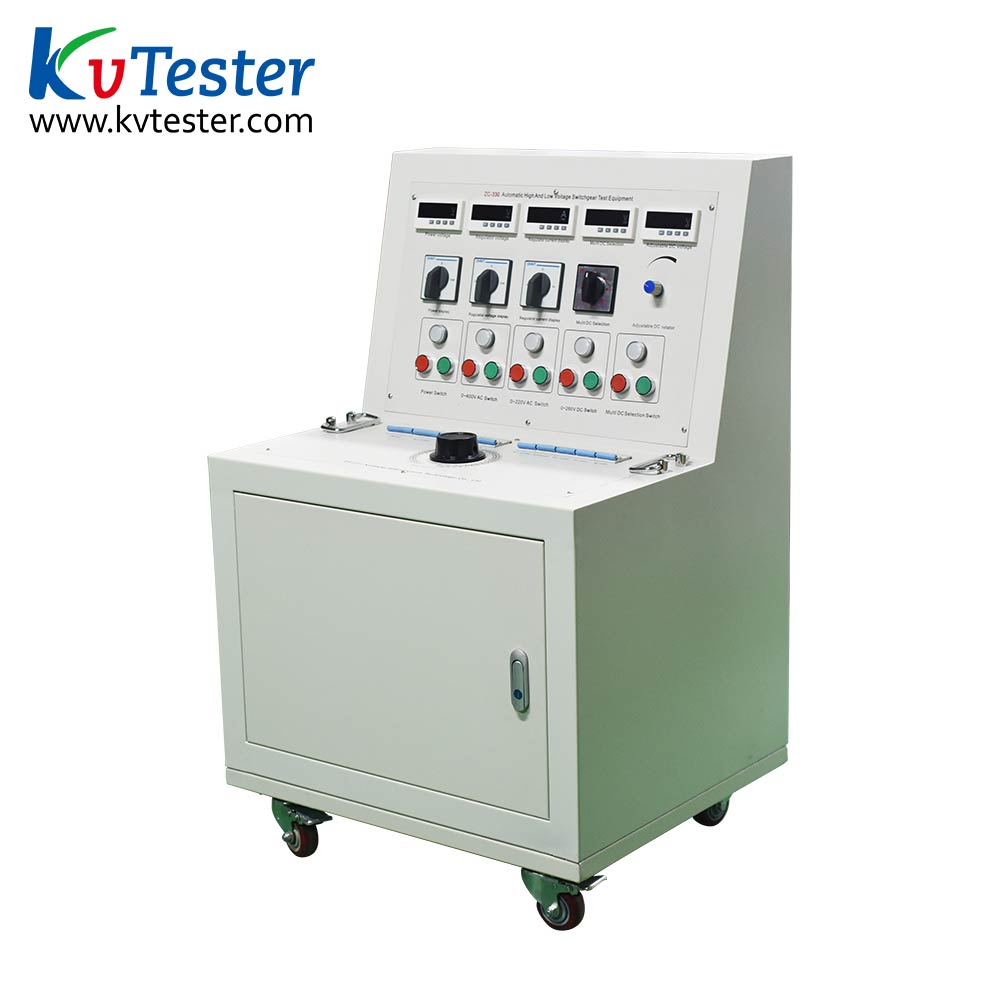

HV/LV Switchgear Test Equipment

type:ZC-330
Online Service
  • Product Introduction

    ZC-330 HV/LV Switchgear Test Equipment is provided for manufacturers to do different energizing tests of HV/LV Switchgear before delivery. It can supply a variety of AC and DC power supplies, which is convenient to measure the switchgear and improve work efficiency.

  • Product Parameters

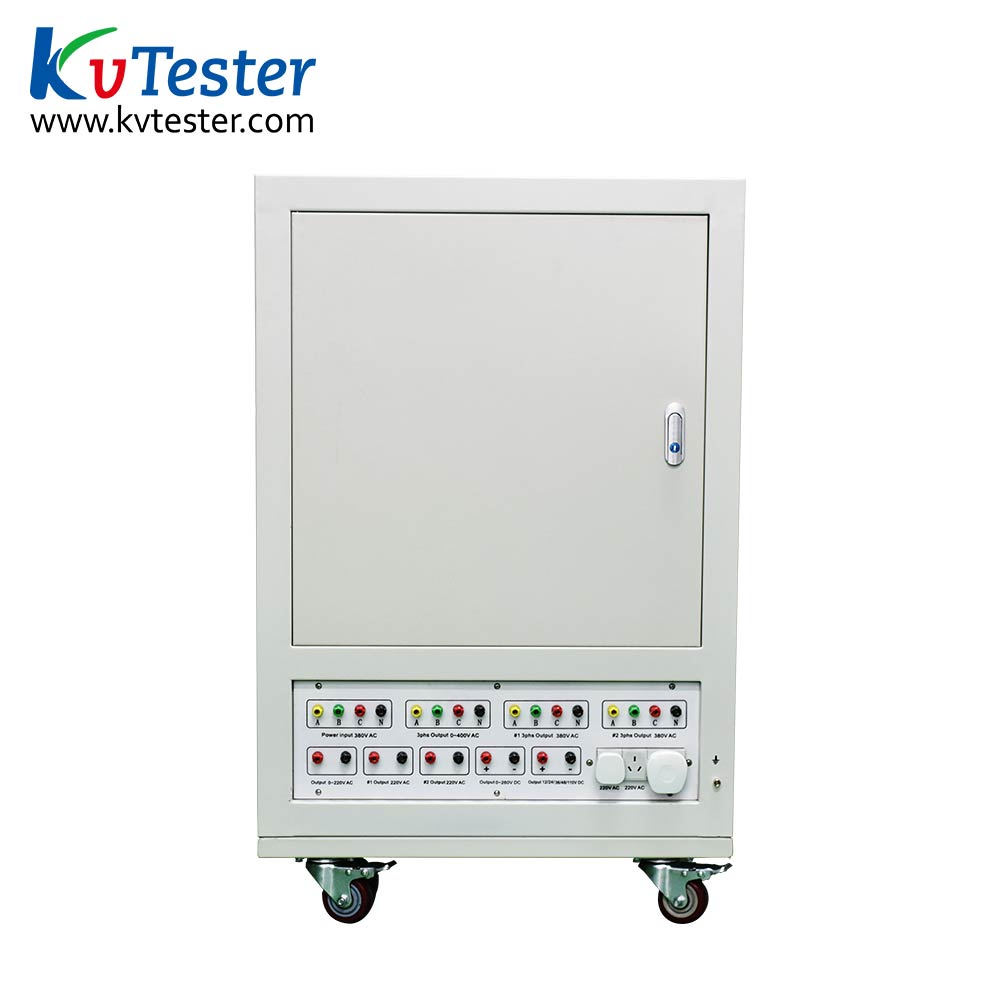

Input Power three-phase four-wire AC 380V
Output Voltage and Current Three-phase AC 100V output (fixed value)
Three-phase AC 0~10A output (<100V, adjustable value)
AC voltage output AC 0~400V,220V,current less than 10A
DC operating voltage output DC 0~260V
Fixed DC voltage 24V,36V,110V,220V output
Single-phase AC 220V output(fixed value,socket)
Three-phase AC 380V output(fixed value,terminal)
Dimension 800mm×640mm×1150mm
Weight: 120kg
  • Product Features
  1. Integrated multi AC, DC power supply.

  2.  Convenient to measure the switchgear and improve work efficiency.

  3. 1.Items 2/3/4/5/7 in the technical parameters are controlled by independent contactors, and an air switch is connected in series before the output wire terminal as short-circuit protection.According to user requirements, 2/3 of the parameters cannot be closed at the same time, and there is an interlock-when adjusting the AC current, the AC voltage cannot be adjusted, and vice versa:when adjusting the current and voltage, the fixed output is not used, and vice versa. Please pay attention to use, so as not to damage the regulator. It is best to have only one set of power outputs working at a time.

  4. 2.In the technical parameters, 5 is not controlled by the contactor, as long as the main power switch is closed, the branch circuit breaker of this item can be used, and each DC fixed output can be switched by a changeover switch

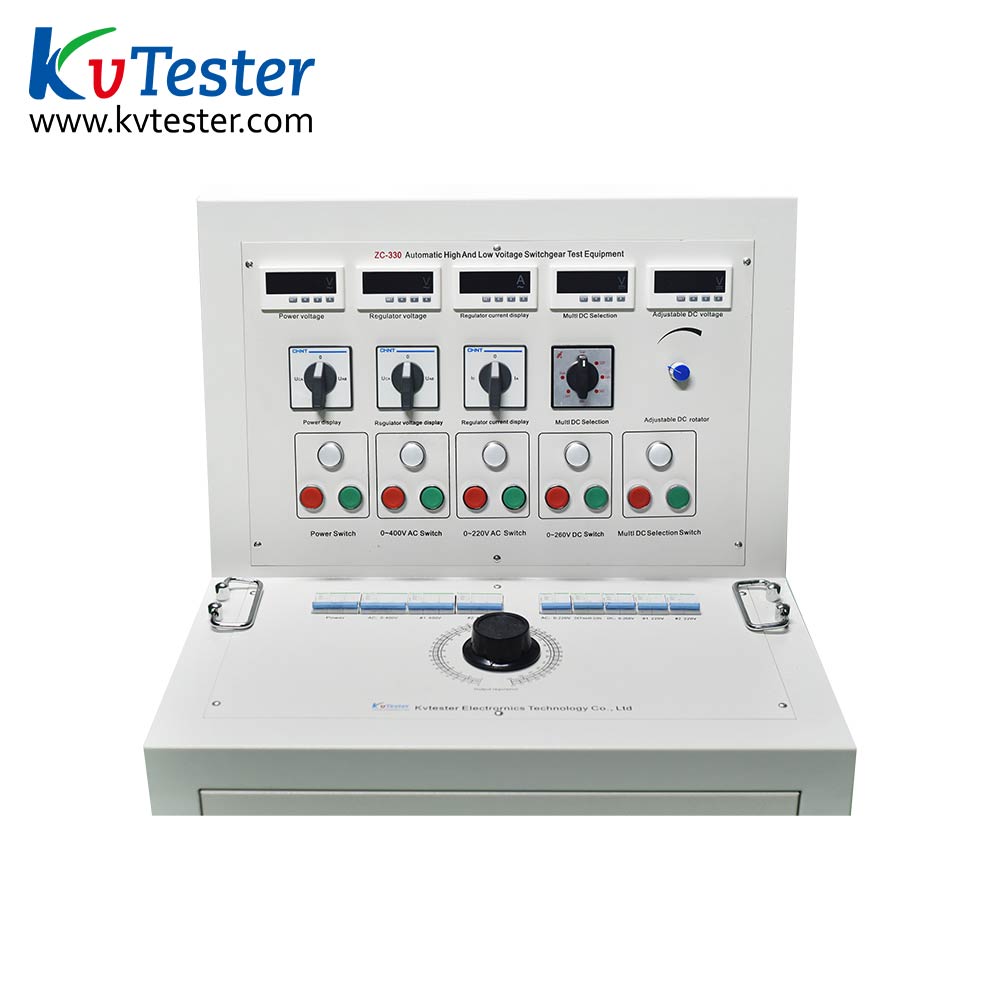

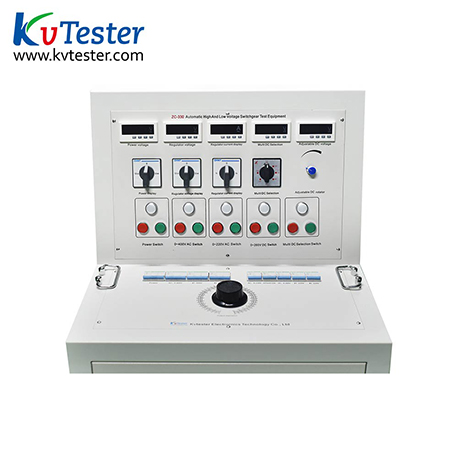

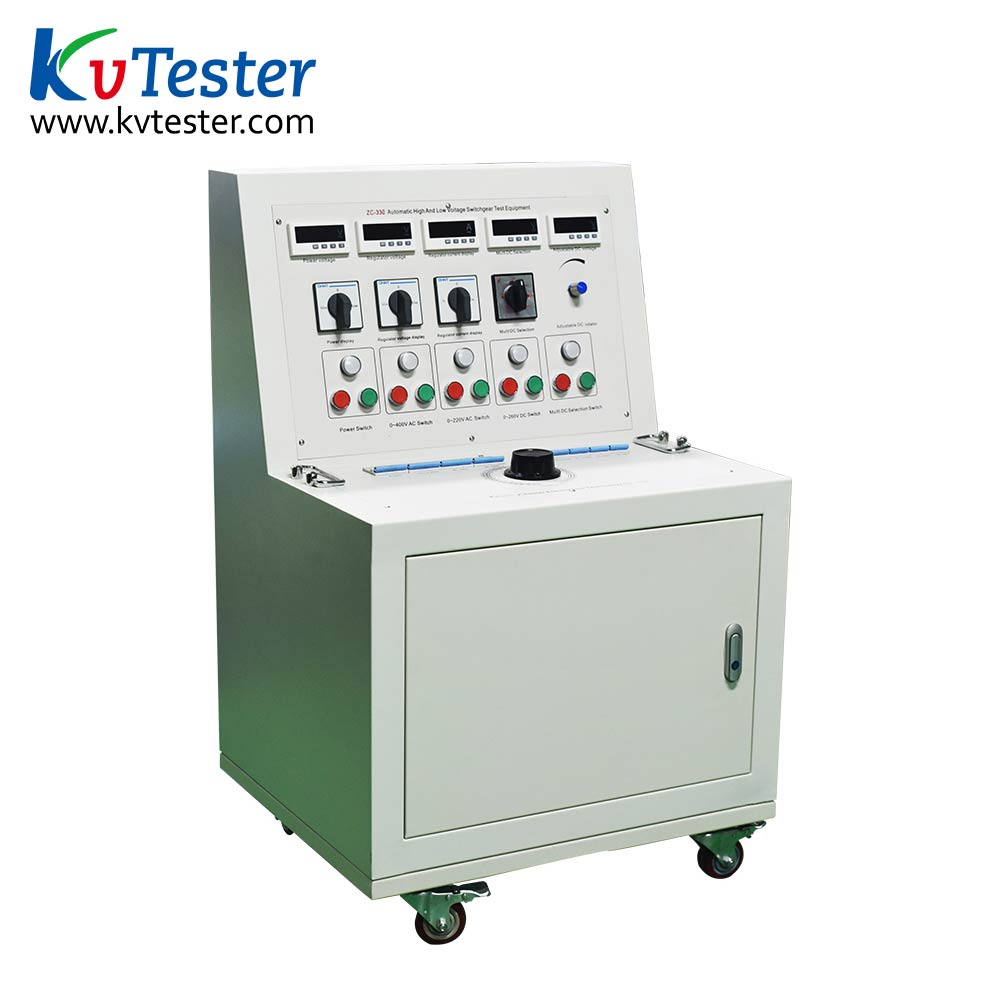

  5. 3. Five three-phase changeover switches K1, K2, K3, K4, K5 respectively control the three-phase power supply indication on the panel, three-phase AC operating voltage switching,three-phase AC current 10A switching, fixed output 100V three-phase switching, DC fixed Output switching.
