Insulation & Earth Resistance Tester
Your location : Home > PRODUCTS > Insulation & Earth Resistance Tester

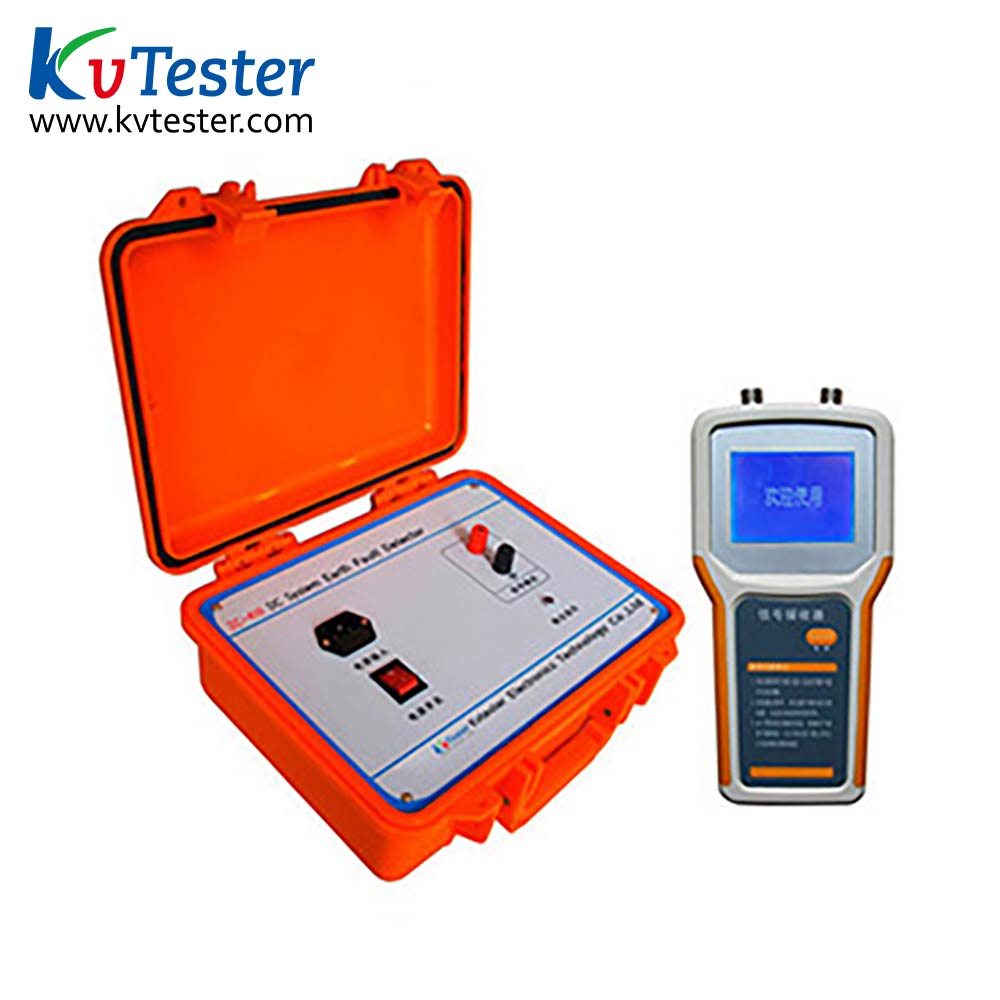

DC System Earth Fault Detector

type:ZC-410
Online Service

TAGS:

  • products
  • ZC-410
    • Product Introduction

        ZC-410 DC System Earth Fault Detector applies to all DC system in any voltage class, equipped with high-precision tester, expanded the tested range and strengthened the anti-interference ability by processing many kinds of signal. Adopted excellent method of calculation and advanced Fuzzy control calculation theory, show us the advancement of the measured circuit branch by numerical value, which reflect the superiority of artificial intelligence sufficiently. Correctly detect the position of the earthing contact each time.

    • Product Parameters
    Signal generator: Output signal frequency     2.5Hz
    Signal no-load output voltage    ±20V±5%
    Signal voltage amplitude error     ＜5%
    Output terminal shock resistance capability      400V DC impulse
    Supply voltage     AC220V±10%
    Voltage frequency     50Hz±5%
    Input insurance     2A
    Dimension     275×225×100mm
    Signal receiver Signal current measurement sensitivity     0.5mA
    Display of receiver     number 0～19
    Dimension     195mm×100mm×30mm
     Dimension     38mm×69mm×30mm
    • Product Features
        1. Easy to use, customers can directly operate only need turn on the power switch.
        2. Safe and reliable, do not need power off the charger or other power source, without effects to DC system.
        3. Applies to various voltage class, DC system 220V, 110V, 48V, 24V.
        4. Wide range of application, any power plant, transformer substation, colliery, chemical plant and others power supply departments.
