High Voltage Insulation Resistance Tester

type:ZC-430C
Online Service

TAGS:

  • Insulation Resistance Tester
  • Digital insulation resistance tester
    • Product Introduction

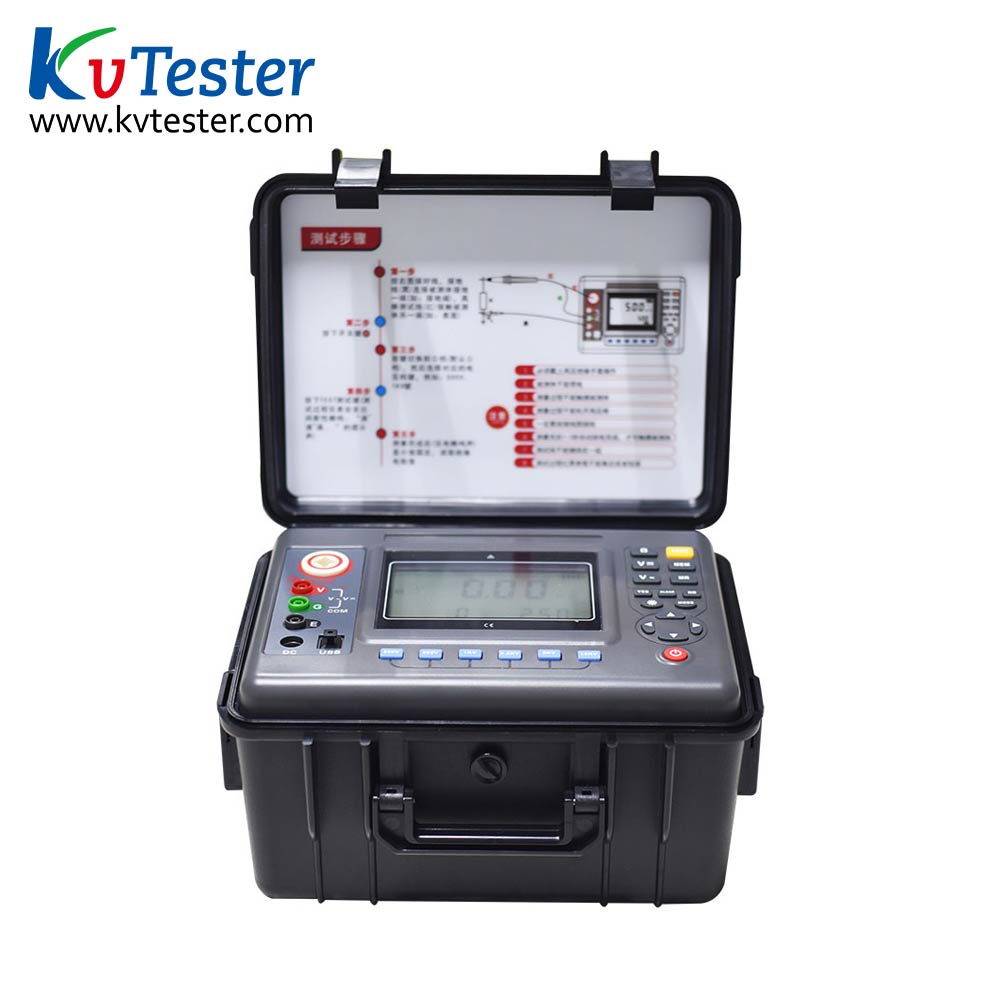

    ZC-430C Digital insulation resistance meter also known as megohmmeter, high voltage insulation resistance tester, etc., for the insulation resistance test. The instrument has a large LCD screen gray backlit display, data storage, data access, alarm, automatic shutdown and other

     functions. At the same time, it also has the function of measuring DC voltage, AC voltage, absorption ratio and polarization index of DC

    voltage. It is suitable for measuring the resistance value of various insulating materials and the insulation resistance of transformers, motors, cables and electrical equipment.At the same time, it can output a variety of different voltage levels with the step-adjusting voltage function.


    • Product Parameters
    Rated test voltage 50V、100V、250V、500V、1000V、2500V、5000V
    Measuring range  0～10TΩ
    Output voltage error±5%
    Short circuit currentAbout 5mA
    Accuracy levelGrade 3.0
    Basic error of lower half range ±(2% · Rx+1d)
    Basic error of upper half range ±(3% · Rx+2d)
    Display range and error of leakage current 0.1nA～9.9mA，5%
    Absorption capacitance display range and error  0.1pF～99μF，5%
    Temperature measurement error  ±0.5℃
    Air humidity measurement error±2%RH
    Power supply14.8V lithium battery
    One time charging service time of batteryAbout 30 days
    Insulation resistance﹥500MΩ
    Power frequency withstand voltage  AC 10.0kV 50Hz 1min
    Operating temperature and humidity  0℃～+40℃；≤85% RH
    Storage temperature and humidity-20℃～+50℃；≤90% RH

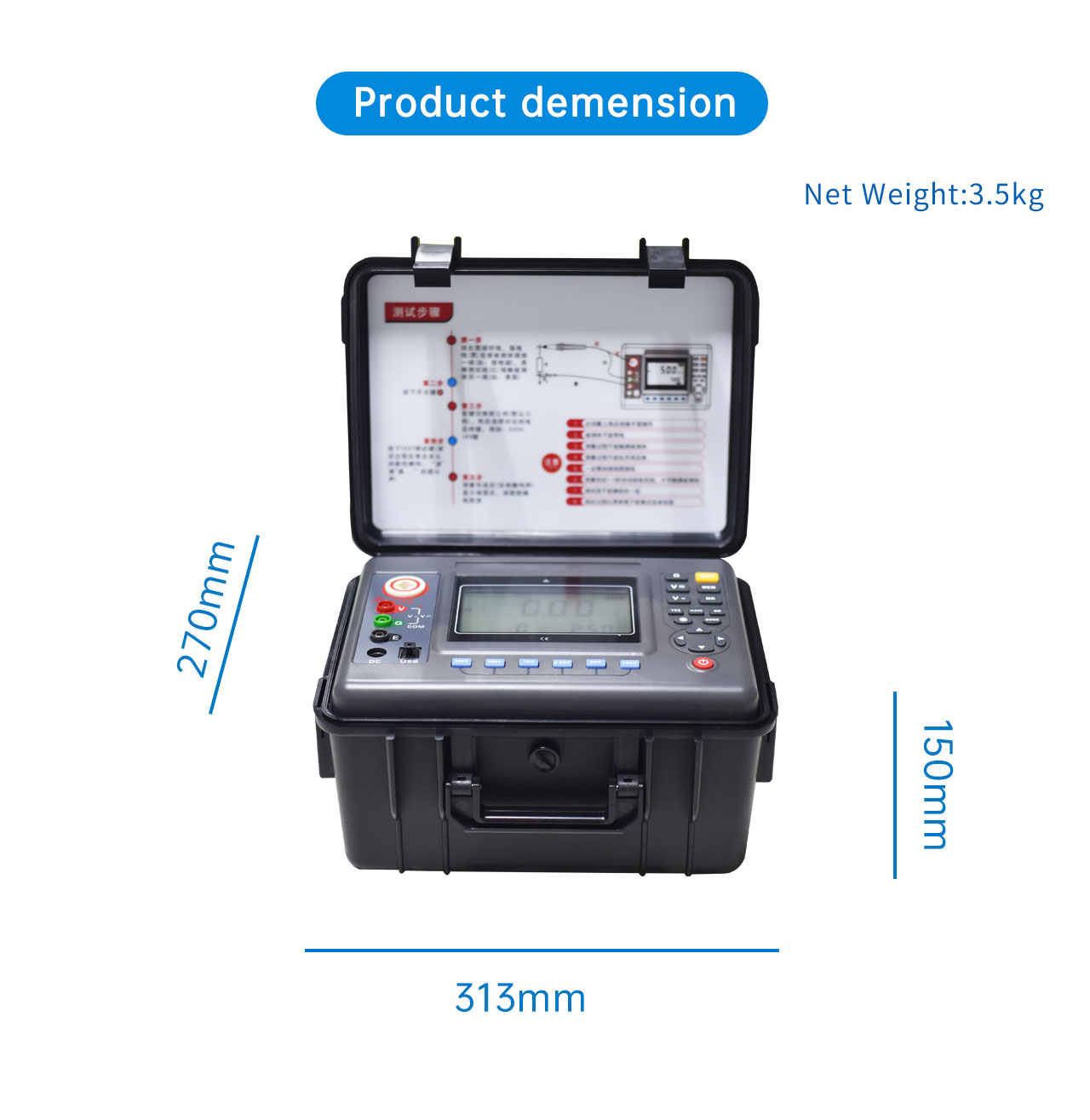

    Outline size 300×270×150mm3
    Weight3.5kg


    • Product Features

    1. It adopts microcomputer control, menu operation and large screen LCD dot matrix display, with stable performance. It is an intelligent instrument.


    2. It has strong anti-interference ability and is suitable for measuring in strong electromagnetic interference environment.


    3. There are seven voltage output gears: 50V, 100V, 250V, 500V, 1.0kv, 2.5KV and 5.0kv.


    4. The output high voltage can also be adjusted continuously in a full range from 0V.


    5. Automatically measure R15, R60 and R600, automatically calculate the absorption ratio and polarization index, and display the leakage current and absorption capacitance at the same time.


    6. The measurement range is 0 ~ 10t Ω, and the range is automatically switched. Leakage current and capacitance can be measured.

    • Product Video

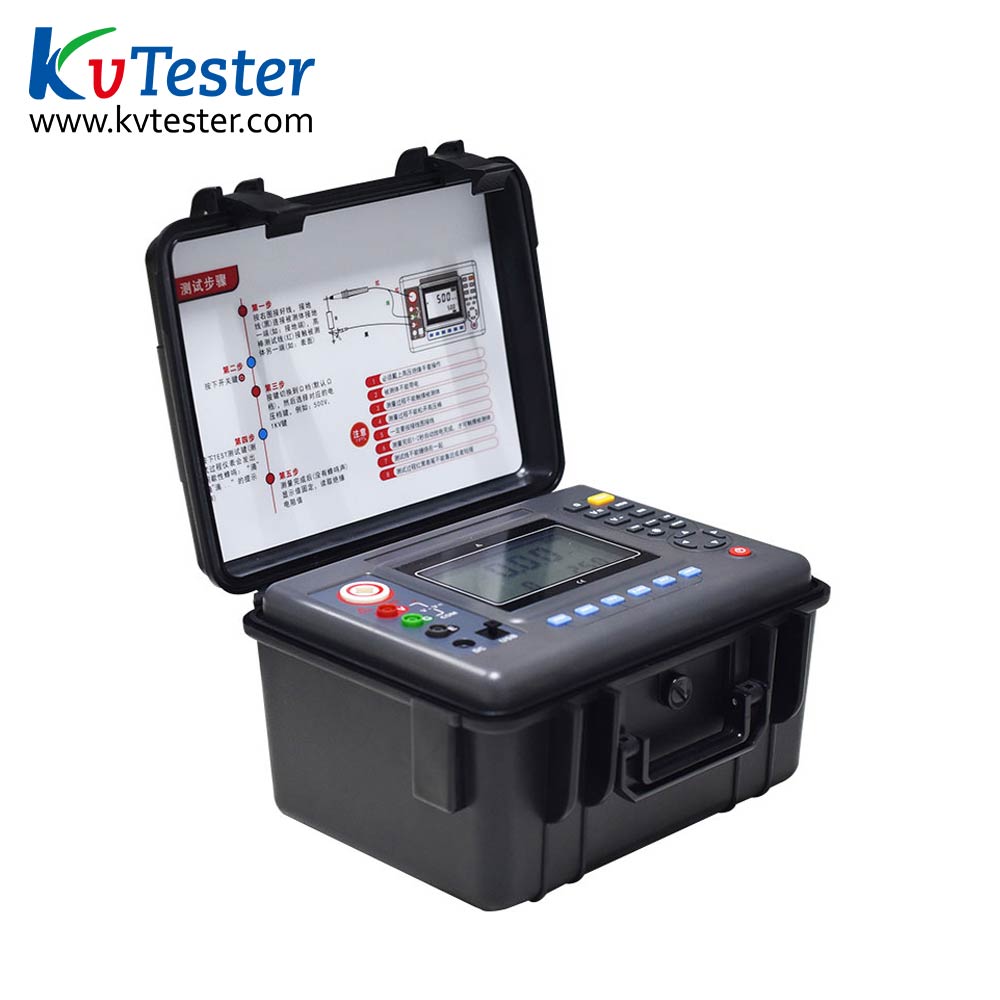

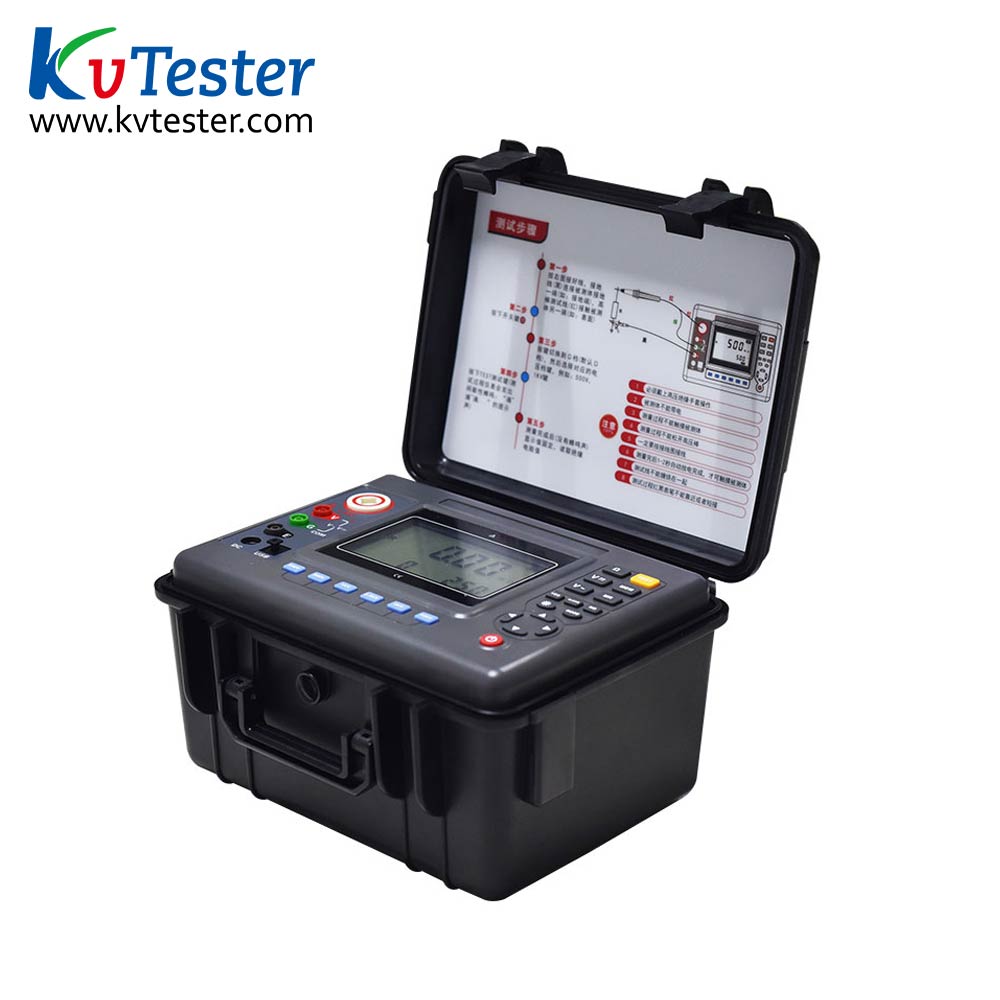

    • Product Picture
