Insulation & Earth Resistance Tester

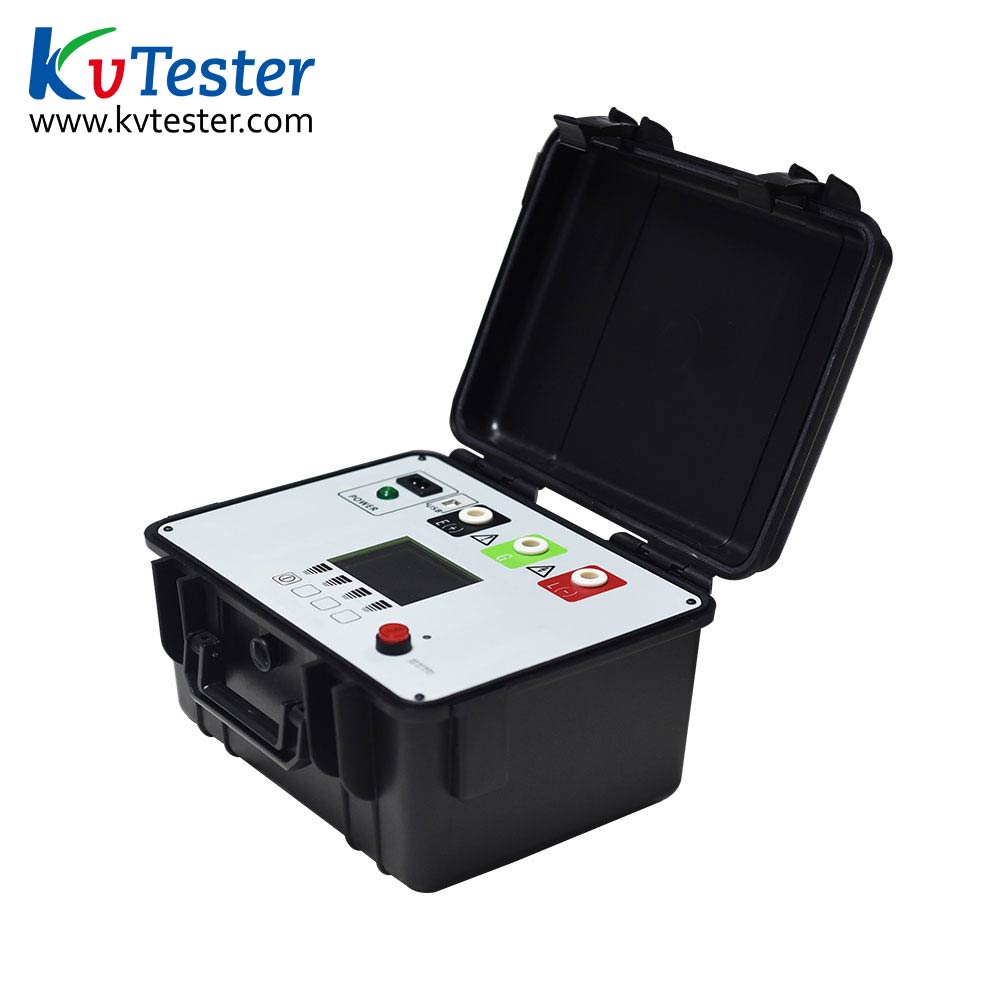

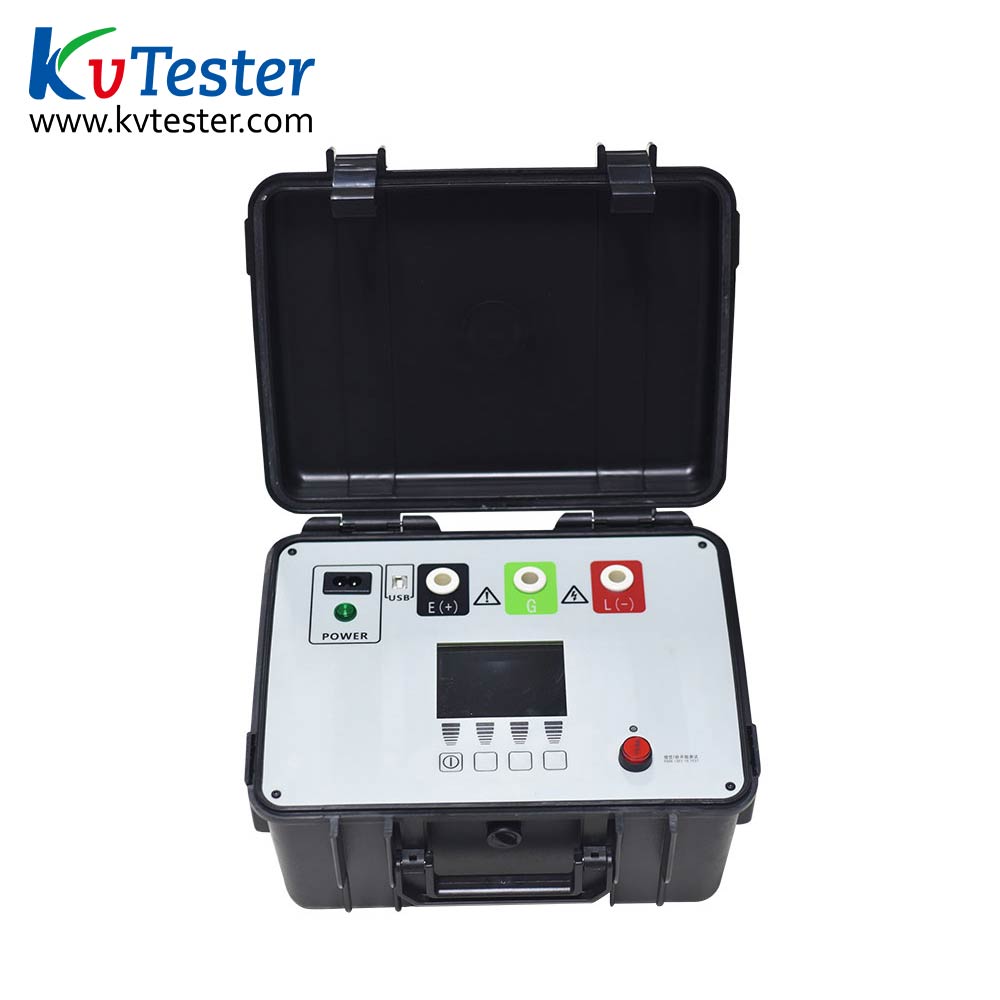

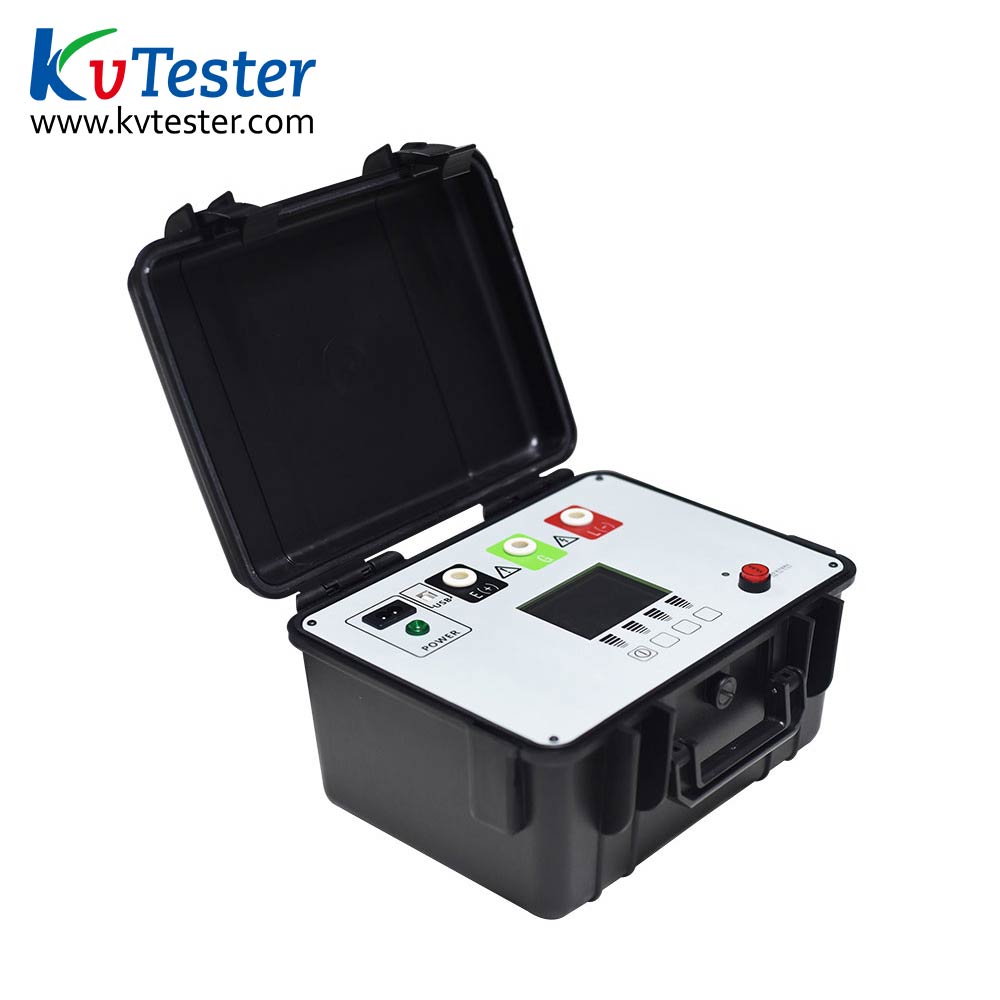

10KV High-voltage insulation resistance tester

type:ZC-430D-10KV

High-voltage insulation resistance tester, with 5 range: 500V, 1000V, 2500V, 5000V, 10000V, test up to 10TΩ.

Online Service
  • Product Parameters
AC Power220V±10%,50/60 HZ ,20 VA
Battery16.8V Lithium ion rechargeable battery
Battery Life10000V@100M, 4 hour
Size(LxWxH)26cm x 20cm x 16cm
Weight3kg
Test voltage accuracythe nominal value  100% to 110%
Voltage measurement accuracy5%+3V

Current test range

10mA
Current measure precision5%+0.2nA
Short-circuit current 5mA
Capacitance test range20uF
Capacitance testing accuracy15%+0.03uF
Capacitor discharge ratefrom 10000V to 10V0.5S/µF
Insulation resistance testing range and accuracy T:23±5ºRH :45 – 75%


  • Product Features

● Strict accordance with the safety standards for design


● Insulation resistance range 10TΩ @ 10 kv


● Short circuit current can be adjusted, maximum 5 mA (Can be ordered as high as 10 ma, short circuit current products).


● Automatic display polarization index (PI), induced electric absorption test values than (DAR), and can test the leakage current and

 capacitance.


● Anti-jamming performance is superior, the interference current reaches 2 mA, still ensure accuracy of test instruments.


● Capacitive discharge rapidly, cable test, no need manual discharge, instruments and automatic discharge quickly.


● 2 methods for power: use of lithium ion batteries, battery life can be up to 4 hours (10000V @ 100MΩ).


● Insulation resistance simulation column.


● Digital filtering functions, external influence deviation display value causing mitigation point using filter function.


● Perfect protection function, and the spare fuse prompt functions.
