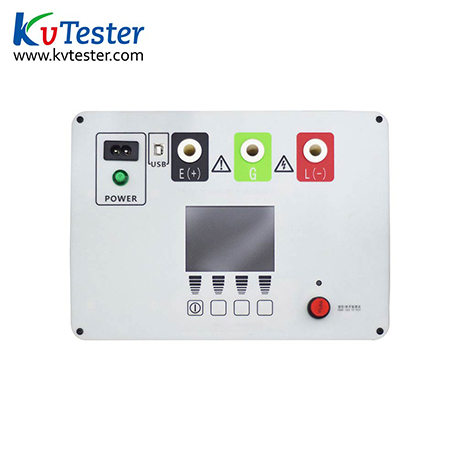

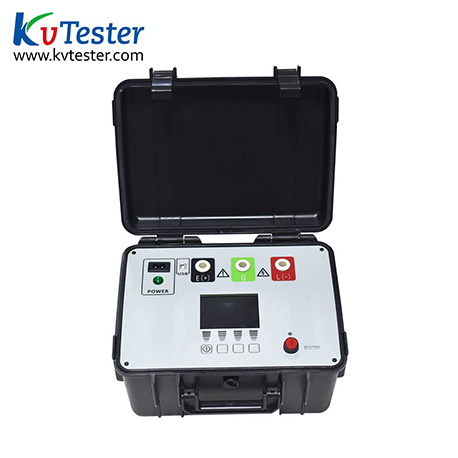

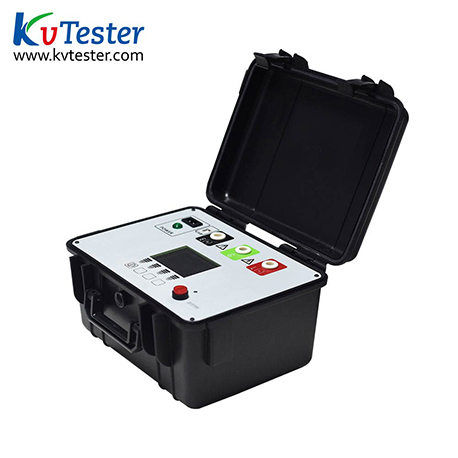

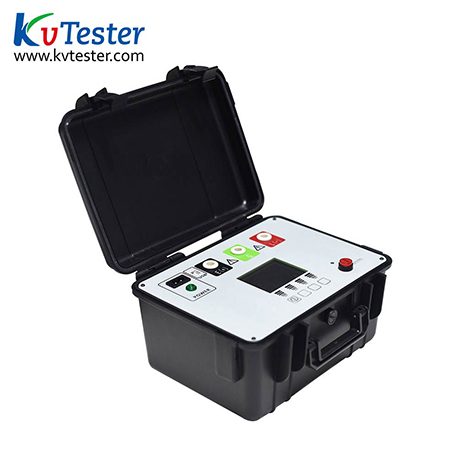

5KV Digital High Voltage Insulation Resistance Testers Insulation Test

type:ZC-430D-5KV
Online Service
  • Product Parameters

AC Power

220V±10%,50/60 HZ ,20 V

battery

16.8V Lithium ion rechargeable battery

Battery Life

5000V@100M, 6 hour

Size(LxWxH)

26cm x 20cm x 16cm

Weigh

3kg

Test voltage accuracy

 the nominal value  100% to 110%

Voltage measurement accuracy

5%+3V

Current test range

10mA

Current measure precision

5%+0.2nA

Short-circuit current

5mA

Capacitance test range

20uF

Capacitance testing accuracy

15%+0.03uF

Capacitor discharge rate

from 5000V to 10V,0.5S/µF

 Insulation resistance testing range and accuracy

T:23±5ºC ,RH :45 – 75%)


  • Product Features

1. Strict accordance with the safety standards for design


2. Insulation resistance range 5TΩ @ 5 kv


3. Short circuit current can be adjusted, maximum 5 mA (Can be ordered as high as 10 ma, short circuit current products).


4. Automatic display polarization index (PI), induced electric absorption test values than (DAR), and can test the leakage current and capacitance.


5. Anti-jamming performance is superior, the interference current reaches 2 mA, still ensure accuracy of test instruments.


6. Capacitive discharge rapidly, cable test, no need manual discharge, instruments and automatic discharge quickly.


7. 2 methods for power: use of lithium ion batteries, battery life can be up to 4 hours (5000V @ 100MΩ).


8. Insulation resistance simulation column.


9. Digital filtering functions, external influence deviation display value causing mitigation point using filter function.


10. Perfect protection function, and the spare fuse prompt functions.
