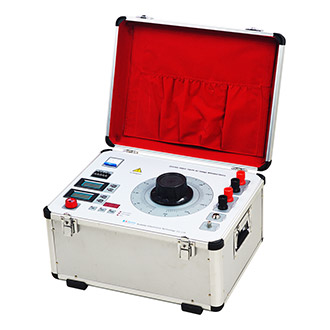

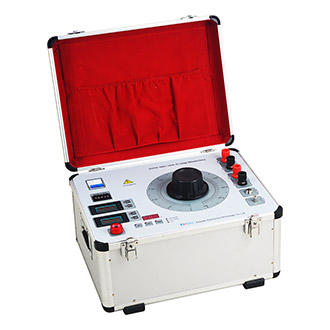

AC withstand voltage manual operation box

type:ZC-500 (Not Available)
Online Service

TAGS:

  • Product Introduction

ZC-500 series test transformer operation box is the supporting equipment of ZC-501A, ZC-501B and ZC-501C series high-voltage test transformers, which are tested for withstand voltage and leakage together with the test transformers. The control box has the characteristics of beautiful appearance, small volume, light weight, simple operation, convenient use and maintenance, etc.

  • Product Parameters

Model and Specification

Capacity (kVA)

Number of phase

Input voltage  (V)

Input current (A)

Output voltage (V)

Output current (A)

Operation mode

Ref Weight (kg)

ZC-500-2

2

1

220

50

0-220

10

Manual

14

ZC-500-3

3

1

220

50

0-220

15

Manual

16

ZC-500-5

5

1

220

50

0-220

20

Manual

18

ZC-500-10

10

1

220

50

0-220

40

Manual

50

ZC-500-15

15

2

380

50

0-430

37.5

Manual

65

ZC-500-20

20

2

380

50

0-430

50

Manual

65

ZC-500-25

25

2

380

50

0-430

62.5

Manual

75

ZC-500-30

30

2

380

50

0-430

70

Manual

80

ZC-500-50

50

2

380

50

0-430

125

Manual & Electric

90

ZC-500-100

100

2

380

50

0-430

250

100

ZC-500-150

150

2

380

50

0-430

50

105

ZC-500-200

200

2

380

50

0-430

65

110

ZC-500-250

250

2

380

50

0-430

84

Electric

115

ZC-500-300

300

2

380

50

0-430

100

Electric

120

  • Product Features
1. The monitor function: output current meter voltage zero indication or indication timing indicator.
2. Protection function: over current protection time relay.
3. With new time relay, the time range is more extensive.
4. Using a new type of current relay, more accurate and more reliable, to ensure the safety of personal and equipment.
5. Reasonable structure, small size, light weight.
