High Voltage Tester
Your location : Home > PRODUCTS > High Voltage Tester

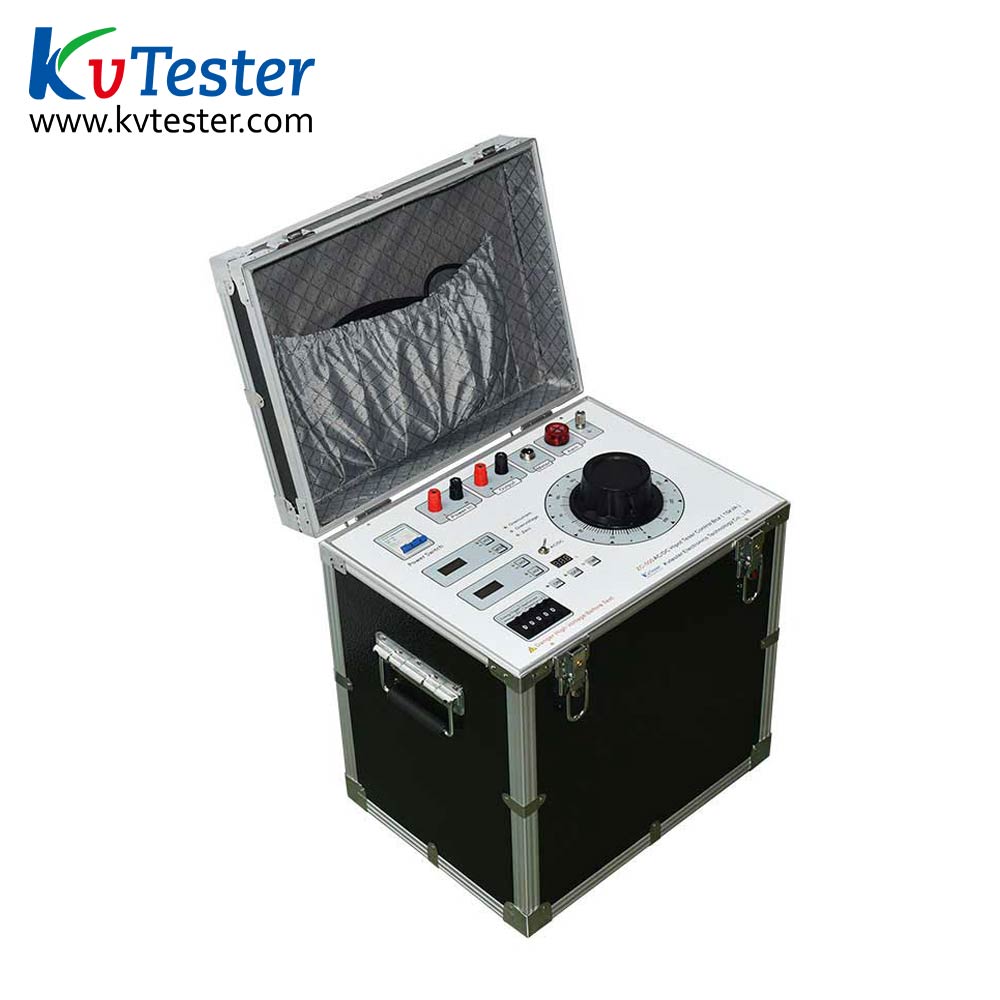

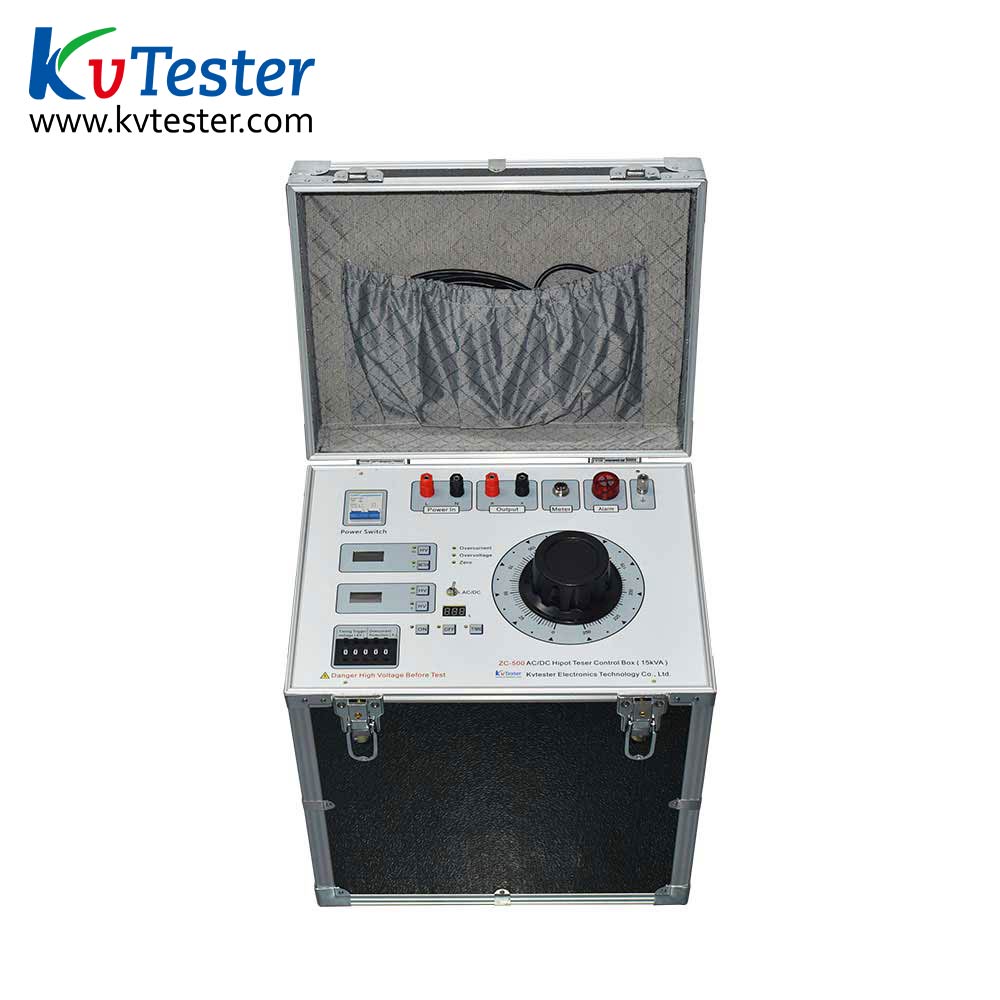

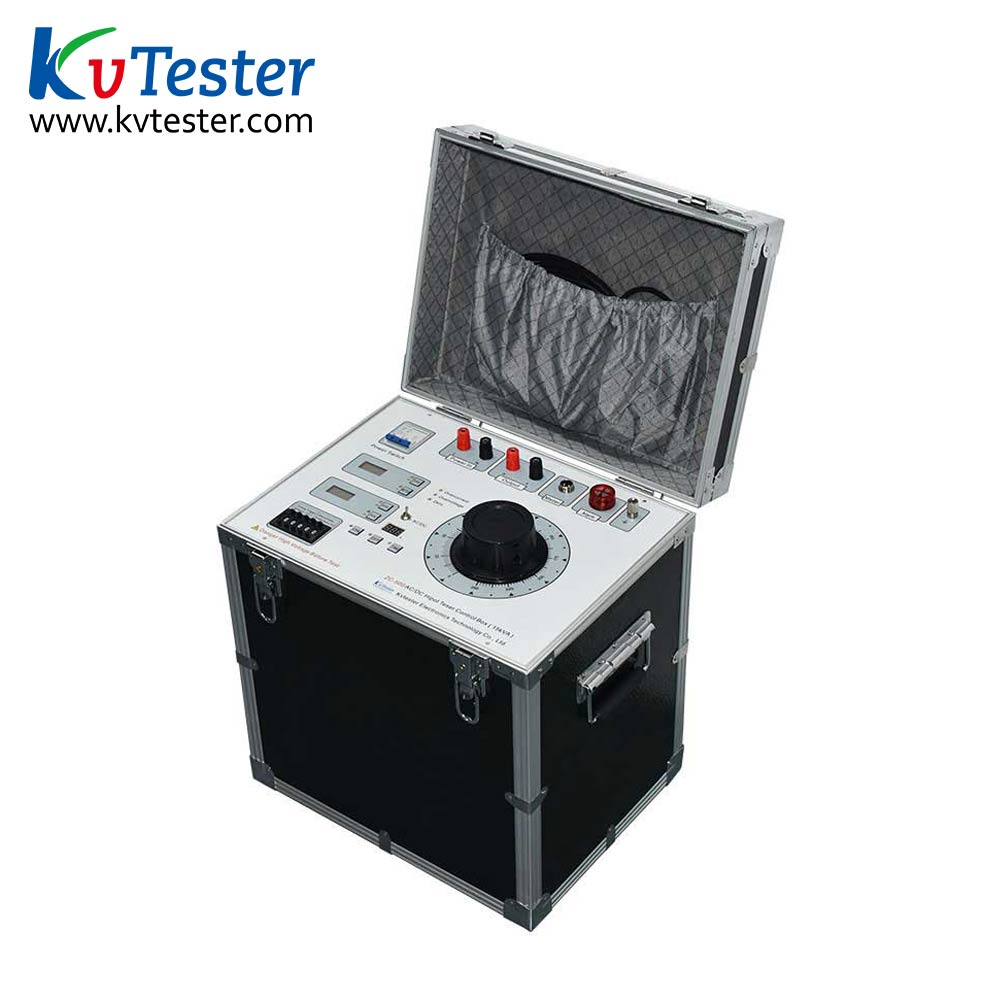

AC/DC Hipot Tester

type:ZC-501A
Online Service

TAGS:

  • products
  • ZC-501A
    • Product Introduction

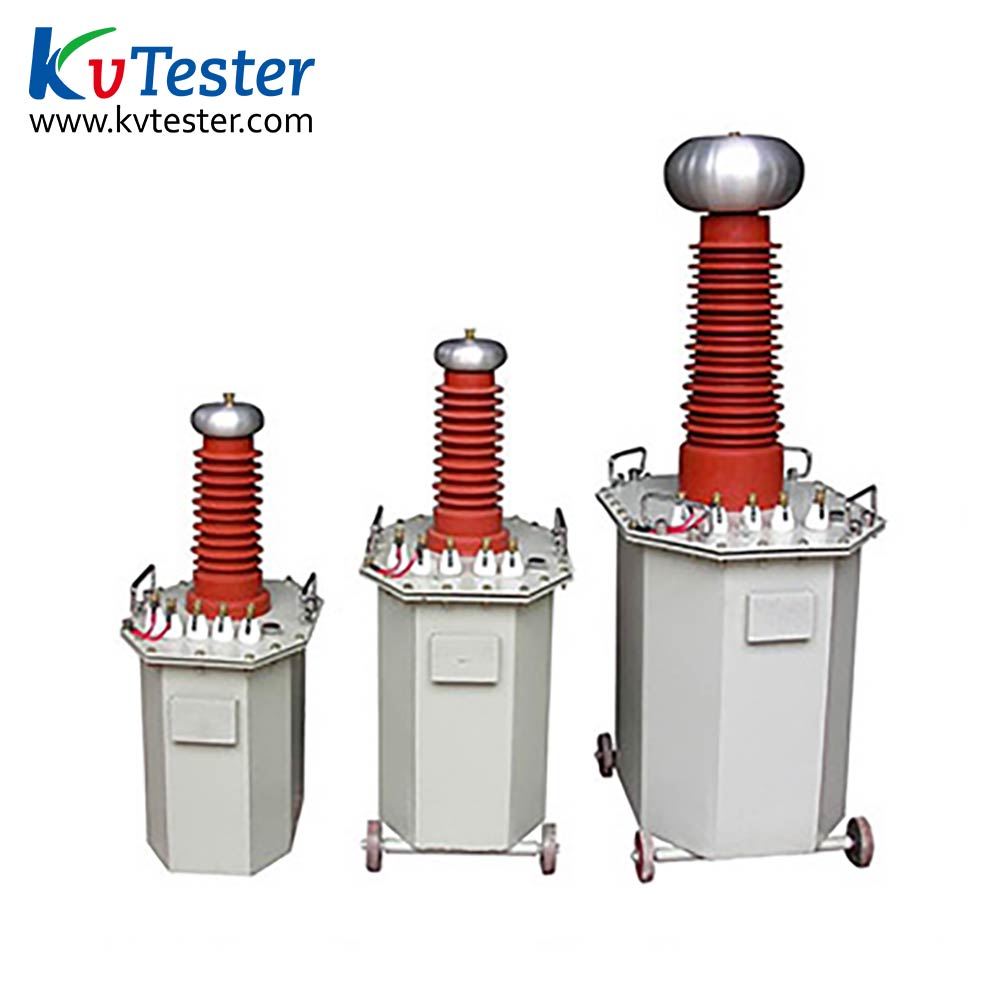

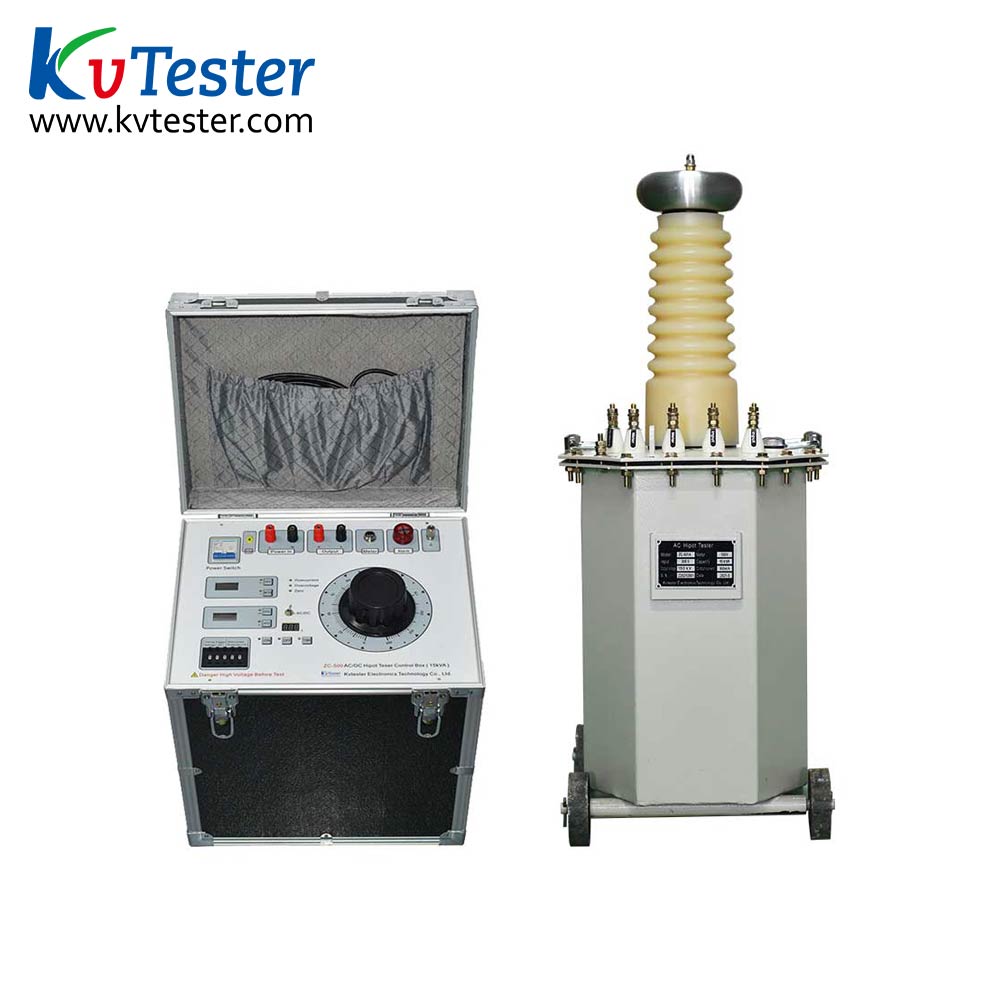

    The Oil immersed Dielectric Test Transformer also called boosting transformer , it is the basic equipment for power station, power supply system and scientific research units. Used for the dielectric strength test of various electrical appliances, electrical equipment, insulation materials in the prescribed voltage , test products insulation level, it is found that the insulation defects sample measure to bear voltage capability.

    • Product Parameters
    The rated voltage        AC 50～300kV、DC 70～210kV
    Rated capacitance 1～400kVA
    Product Category AC, AC, AC, AC, AC and DC


    2.Main product specifications:

    Specification model capacity
    (kVA)    		 High voltage
    (kV)    		 High voltage current
    (mA)    		 Low voltage input Ratio
    (high / instrument)    		 Temperature rise ℃
    (30 minutes)
    Voltage(V) Current(A)
      ZC-501A-1.5/50 1.5 50 30 200 7.5 500 10
    ZC-501A-3/50 3 50 60 200 15 500 10
    ZC-501A-5/50 5 50 100 200 25 500 10
    ZC-501A-10/50 10 50 200 200 50 500 10
    ZC-501A-20/50 20 50 400 380 52.6 500 10
    ZC-501A-30/50 30 50 600 380 79 500 10
    ZC-501A-50/50 50 50 1000 380 132 500 10
    ZC-501A-5/100 5 100 50 200 25 1000 10
    ZC-501A-10/100 10 100 100 200 50 1000 10
      ZC-501A-20/100 20 100 200 380 52.6 1000 10
    ZC-501A-30/100 30 100 300 380 79 1000 10
    ZC-501A-50/100 50 100 500 380 132 1000 10
    ZC-501A-15/150 15 150 100 380 39.5 1500 10



    • Product Features
        1. ZC-501A series oil immersed transformer AC test using single frame core type iron core structure.
        2. The primary winding is wound on the iron core, and the high voltage winding is outside, and the coaxial arrangement reduces the leakage flux and increases the coupling between the windings.
        3. The outer shell of the product is made of the best shape of the octagonal structure with the core; the overall appearance is beautiful and generous.
        4.  Voltage level：10kV~200kV.
        5. Capacity range：3kVA~100kVA.
